Angled Kiteboard Fin Orca style
Print Profile(0)
Description
3d printed in petg cf, abs, asa, pa6
tested for 90days in a row, no problem on sandy beaches, be careful on places with rocks

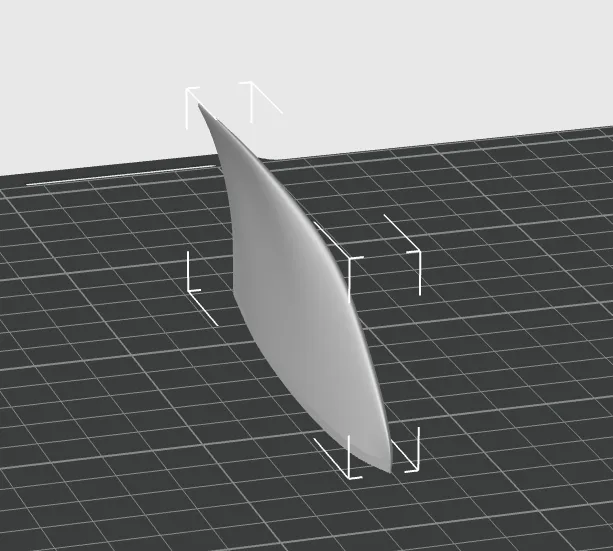

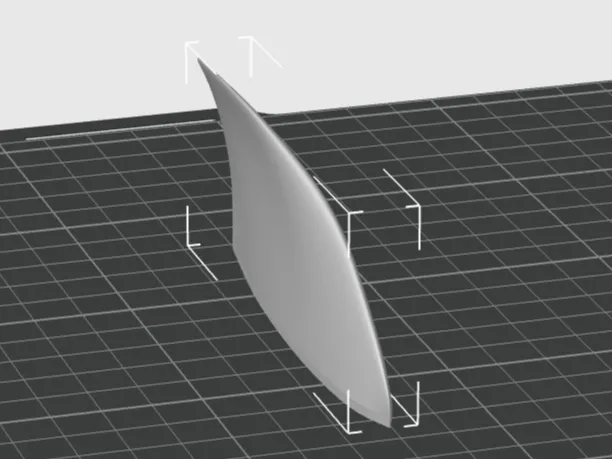

To be printed at 45degrees, upside down, will ensure maximum strength across bolt connection
3 walls, high infill

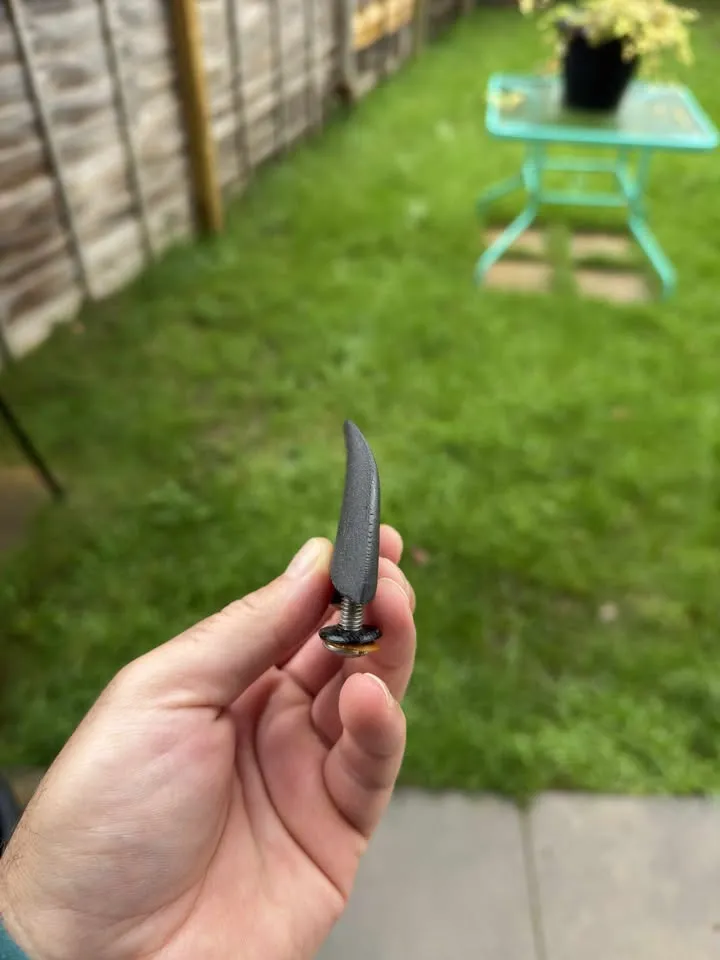

At this bolt size the thread is not doable in print hence will need to be tapped
to create the thread, you can run bolts straight through it but there is a risk that they will crack as petgcf has less flexibility.
needs a bit of post prep, i usually sand off the attack edge with 600 grit sandpaper
You can instantly feel the difference in grip, do few back to back runs and you will notice mainly when going back on normal fins
- hold more power
- better edge
- jump higher
- universal fit to most boards
Wish you all good wind and happy days on the water!
For angled fin please head to https://buymeacoffee.com/inginerusx/extras to purchase the stl
