M6 Rack Screws for 10 Inch and 19 Inch Racks
Print Profile(1)
Description
6 mm Rack Screws for 10 Inch and 19 Inch Racks
Out of rack screws? Print your own 6 mm rack screws in minutes for fast and practical use in 10 inch and 19 inch rack setups.
These 3D printable rack screws are designed for situations where the correct hardware is missing, hard to find locally, or needed quickly for a temporary installation. They are especially useful for homelabs, test racks, network racks, and other lightweight rack applications where you need a working solution right away.
When printed with the recommended settings, the screws are surprisingly strong and suitable for many non-critical rack uses.
Included Versions

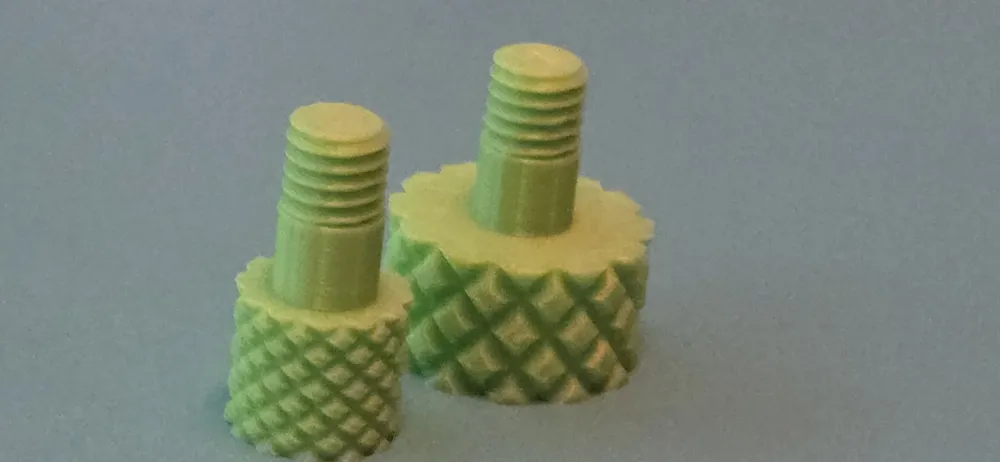

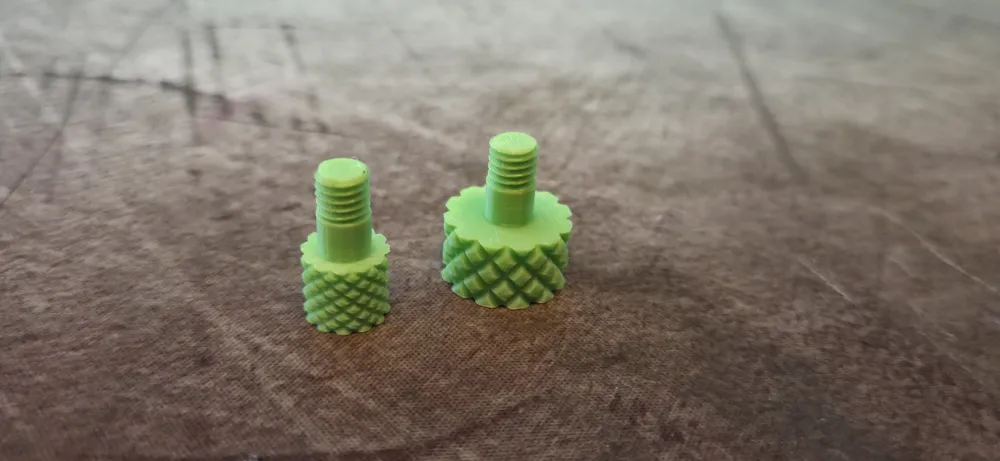

- Standard version for normal slot spacing
- Slim version for racks where two mounting slots are placed very close together
Features
- 3D printable 6 mm rack screws
- Compatible with 10 inch and 19 inch racks
- Two versions included
- Slim version fits tight rack slot spacing
- Strong when printed with recommended settings
- Great for homelabs, test racks, and temporary rack setups
Recommended Print Settings
For maximum strength:
- Layer height: 0.12 mm
- Walls: 3
- Infill: 30%
- Material: PLA, PETG, or stronger materials
- Supports: Not required
This makes it easy to print replacement rack screws whenever you need them, without waiting for hardware to arrive.
