SwitchBot Universal Remote Charging Dock
Print Profile(1)
Bill of Materials
Description

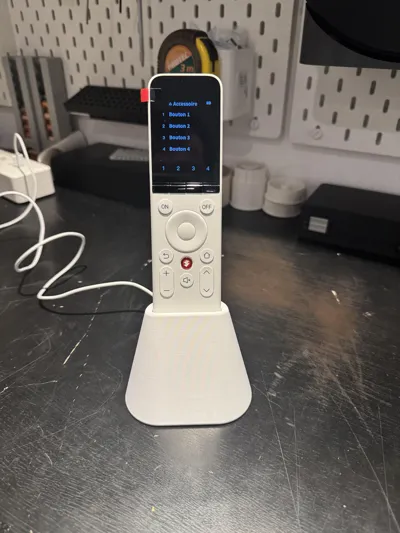

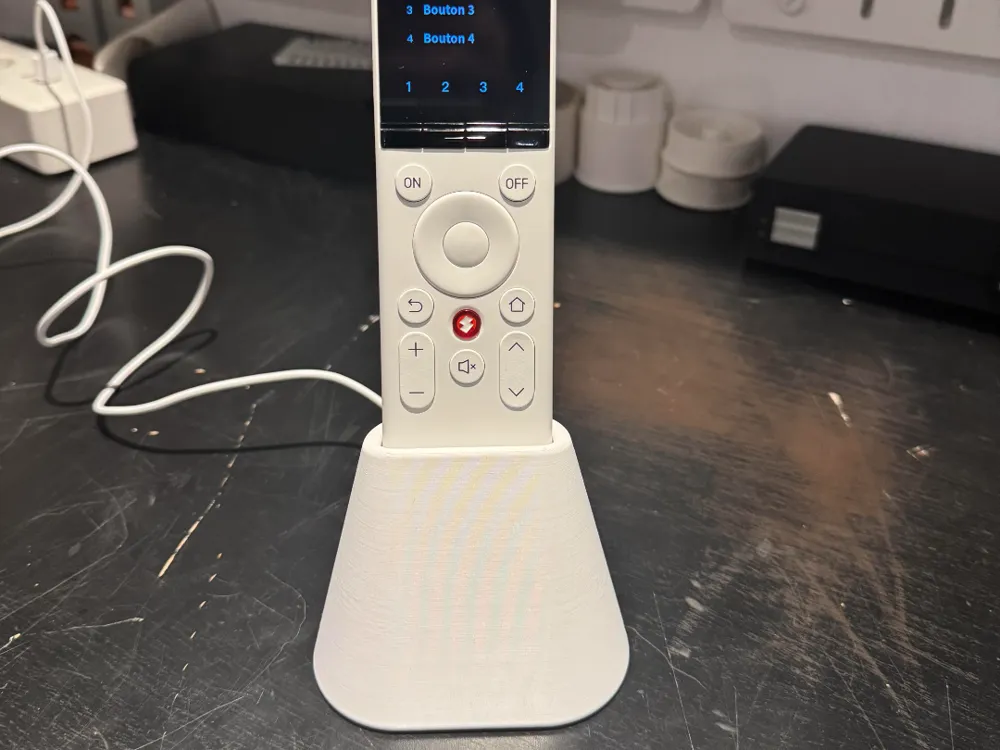

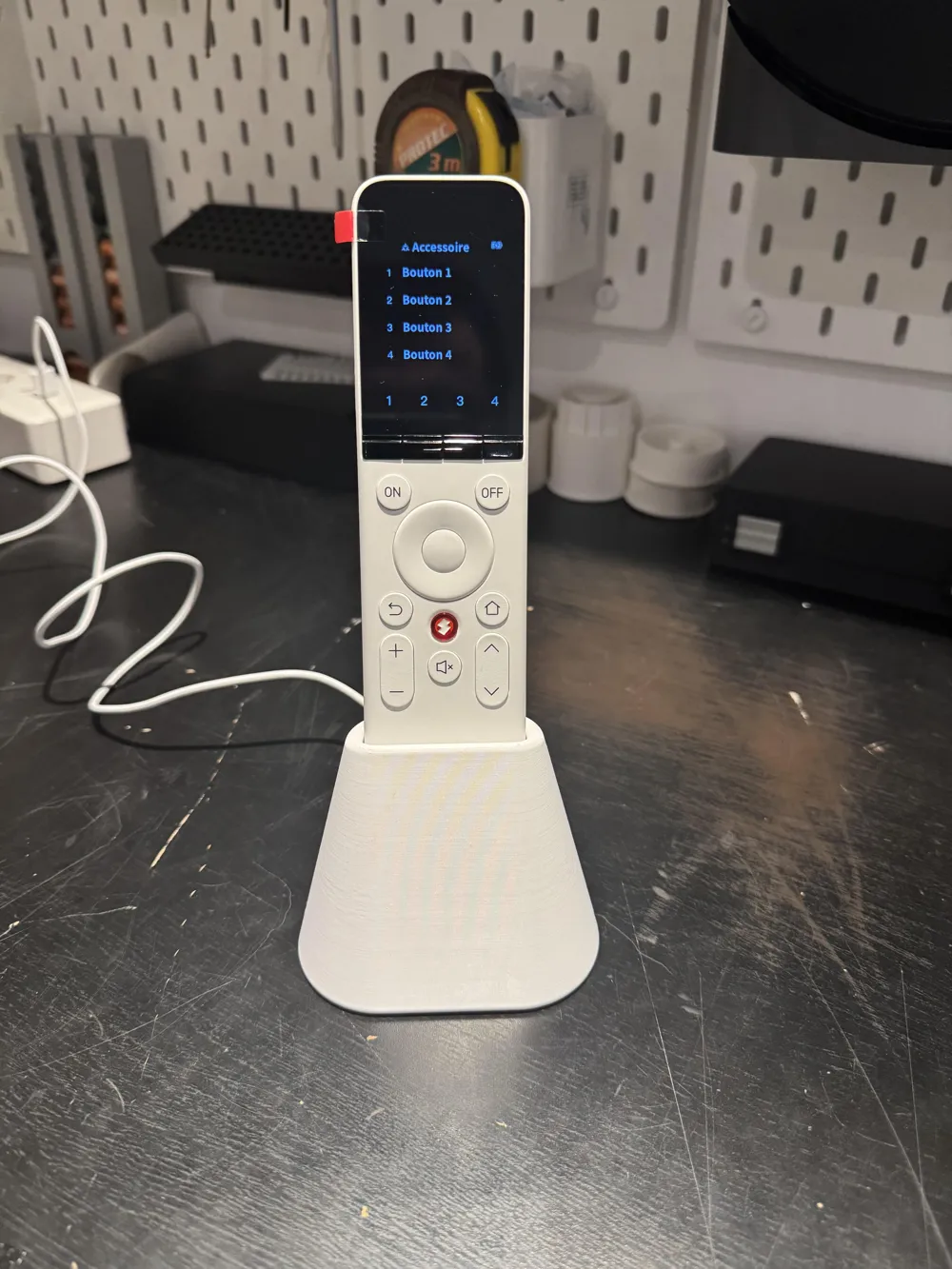

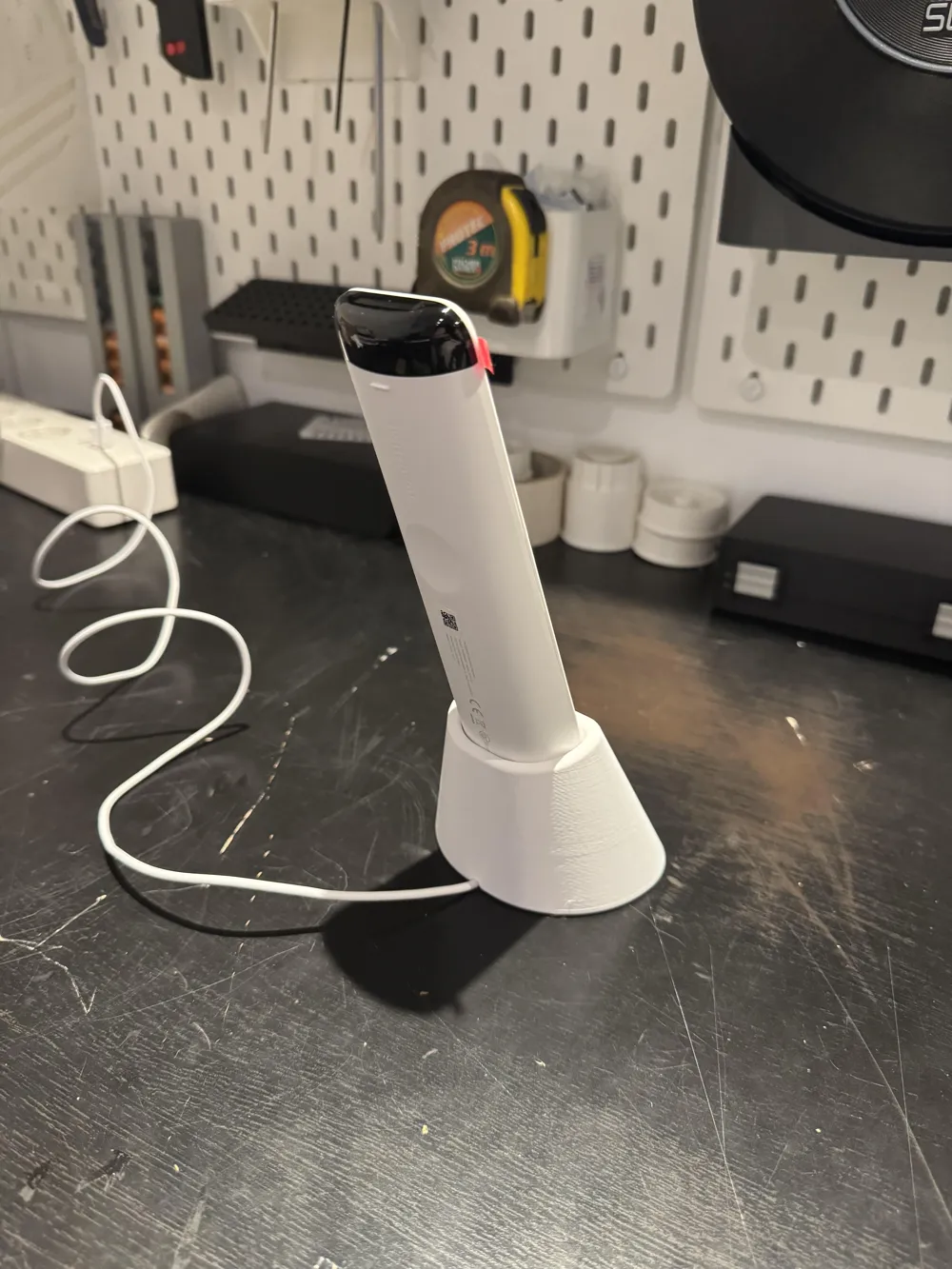

Charging station for SwitchBot universal remote control
Uses the USB-C cable provided with the remote control
Prints with any material (PLA, PETG, ABS, ...) avoid TPU... ;)
Tip! (optional)
Insert a pause at approximately 20mm, and fill the bottom with fine, dry sand
Caution! not all the way to the top, leave 2-3 mm so that the nozzle does not come into contact with the sand and to avoid getting it all over the printer
This will add weight, providing an enhanced sense of solidity and improved stability, even if not strictly necessary
For example, you can use aquarium sand: https://amzn.eu/d/0dAfpQON
Requires 2 M3x20 screws

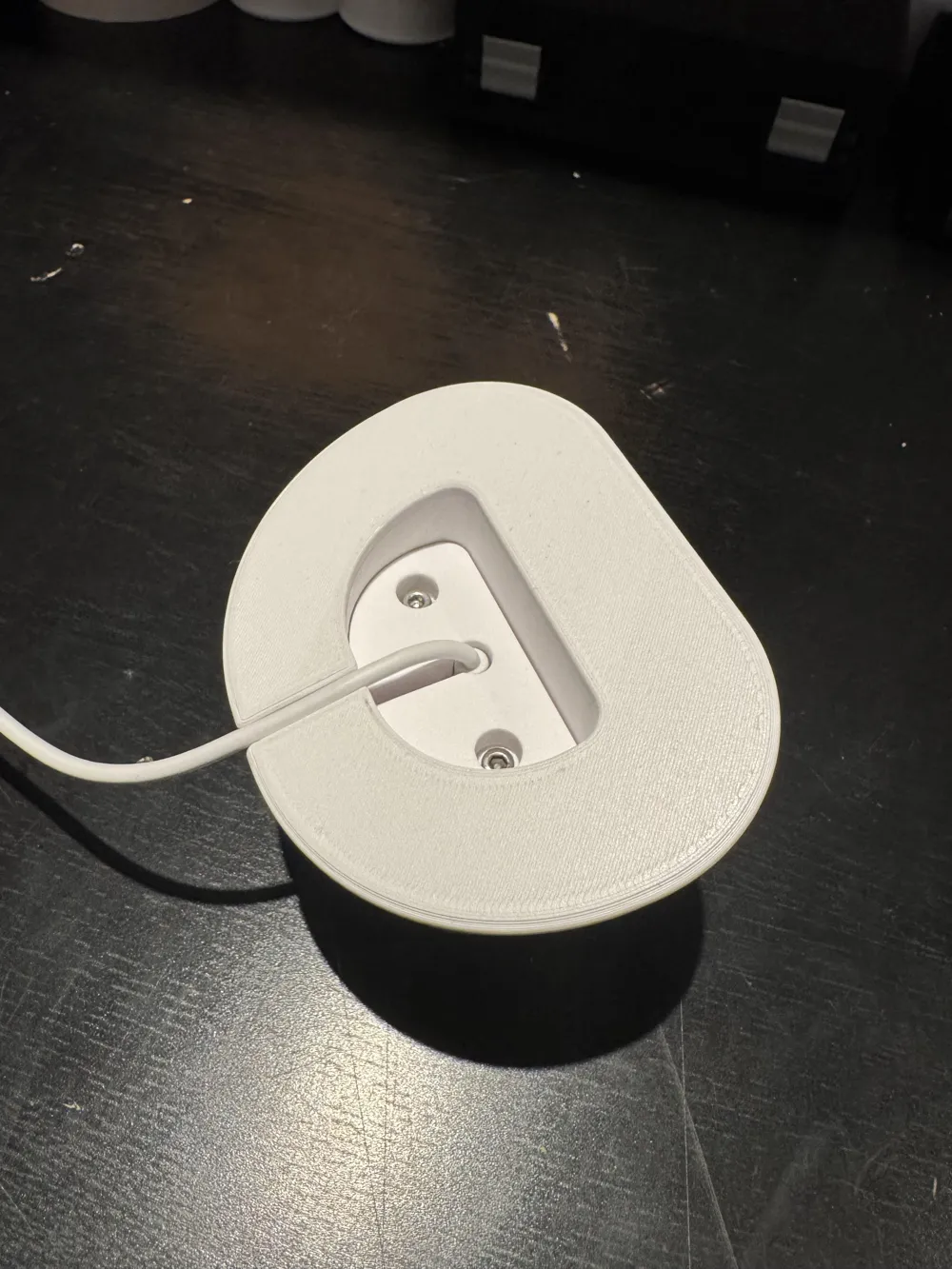

Assembly:

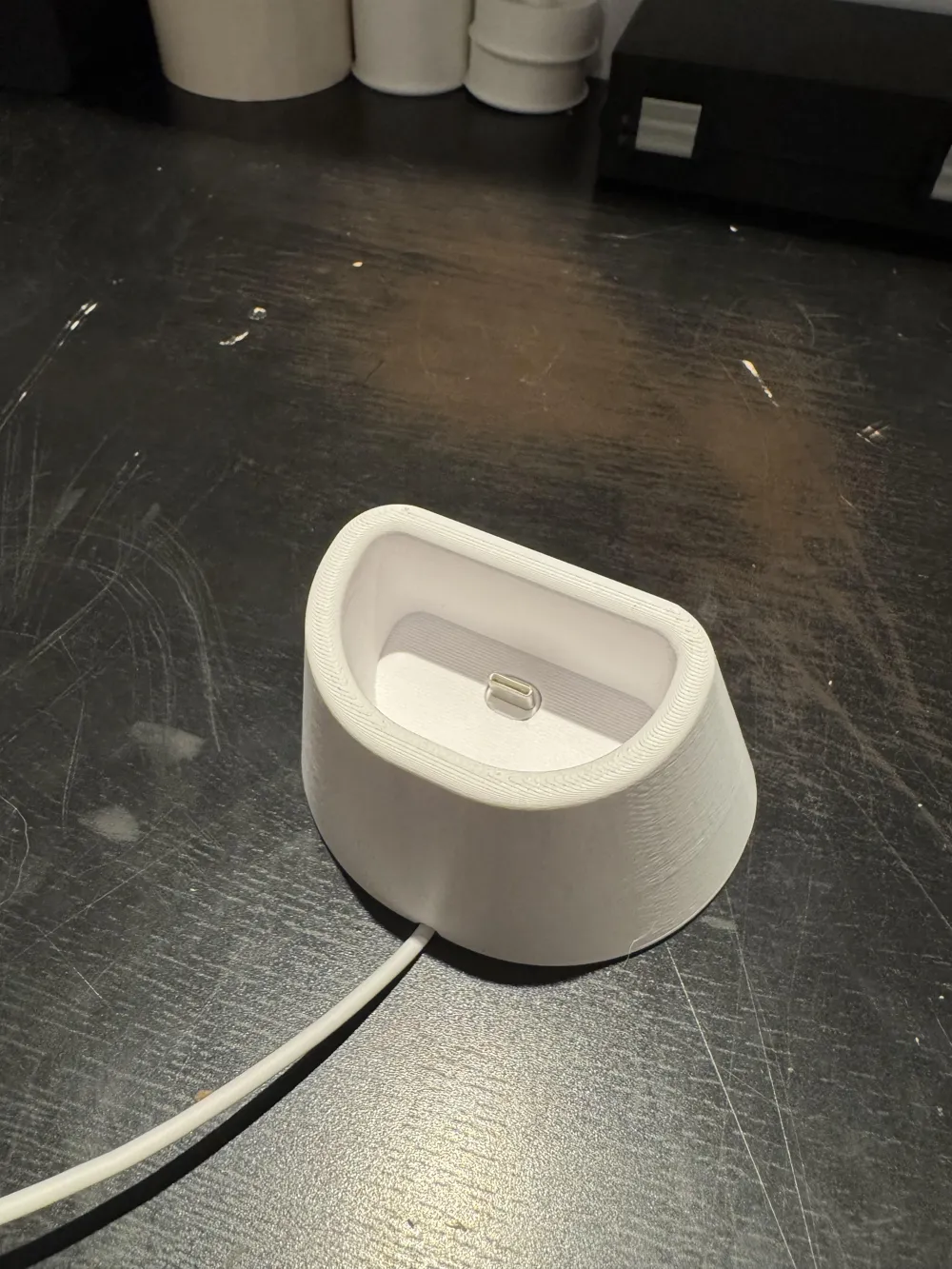

- Insert the USB cable into the holder by threading the cable through the slot (the fit is tight, which is normal)
- Insert the holder into the Dock
- Gently screw in the two M3 screws
- Adjust the cable in the designated groove
That's it, for a premium look, glue and cut a piece of black felt to the bottom, to protect your furniture and for a nice finish. (e.g. https://amzn.eu/d/03SPWZ72)
