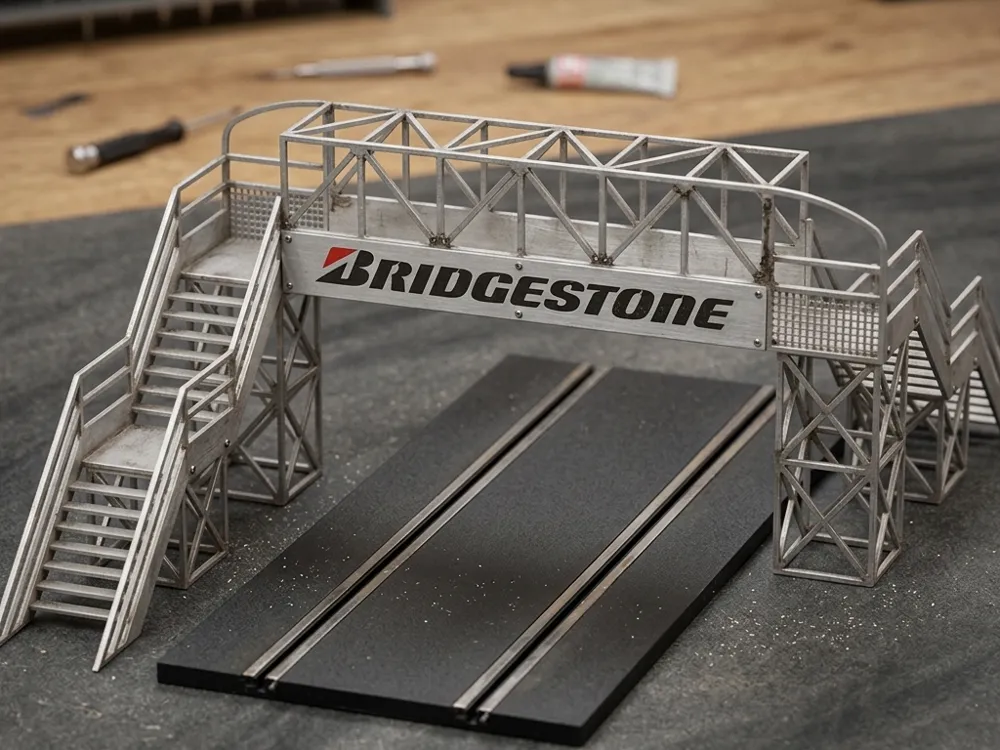

1:32 Slot Car Pedestrian Bridge (2-lane) – Kit

This detailed pedestrian bridge was specifically modeled for a scale of 1:32 and fits perfectly over a 2-lane slot car racetrack (e.g. Carrera). The design is based on real-world examples and gives your track an authentic racing atmosphere

Highlights

• Scale: 1:32 (Ideal for slot cars & dioramas)
• Width: Optimized for 2 lanes
• Design: Modular construction for maximum detail
• Support-free: Designed so that no supports are needed during printing

Bill of Materials (Parts Overview)

For the complete assembly, the following parts must be printed

Print Settings

To guarantee the accuracy of the plug connections and adhesive surfaces, I recommend

• Layer Height: 0.2 mm
• Speed: 30 mm/s (Slower printing ensures more precision for fine structures)
• Support: Not needed (No Supports)
• Adhesion: A brim is recommended for the narrow supports/frames

Assembly Tip

Take your time when gluing! Since the bridge consists of many individual parts, neat work is important for a straight result. A liquid superglue usually works best for PLA

Credits & Info

This model is a remix of the design by Shane54. I have re-processed the model for MakerWorld, optimized the print settings, and adjusted the coloring for a modern racetrack look
