A1 Mini Friendly Sim Racing Button Plate
Print Profile(3)
Description

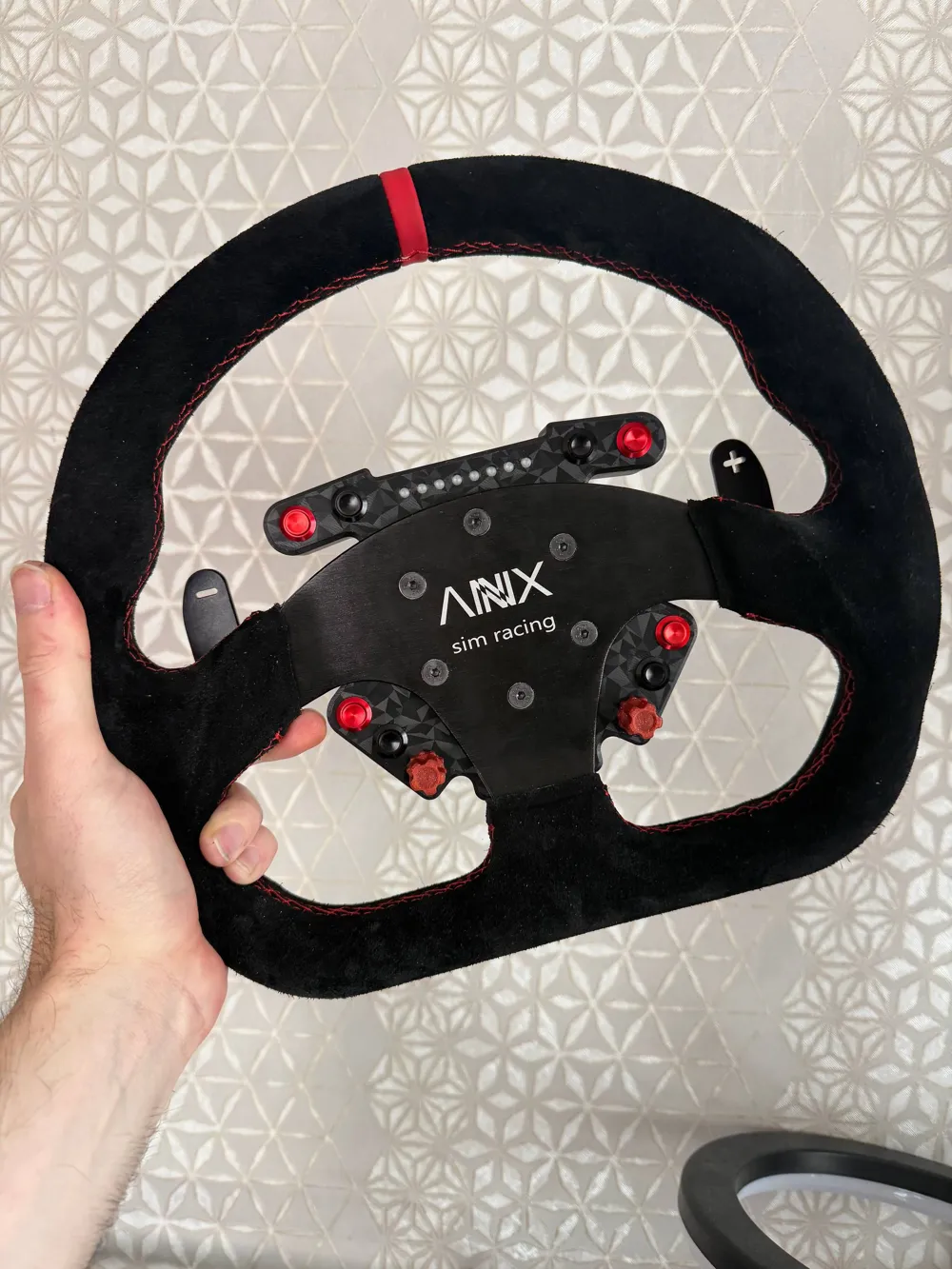

A compact Sim Racing Button Plate designed to be fully printable on Bambu Lab A1 Mini build volume.

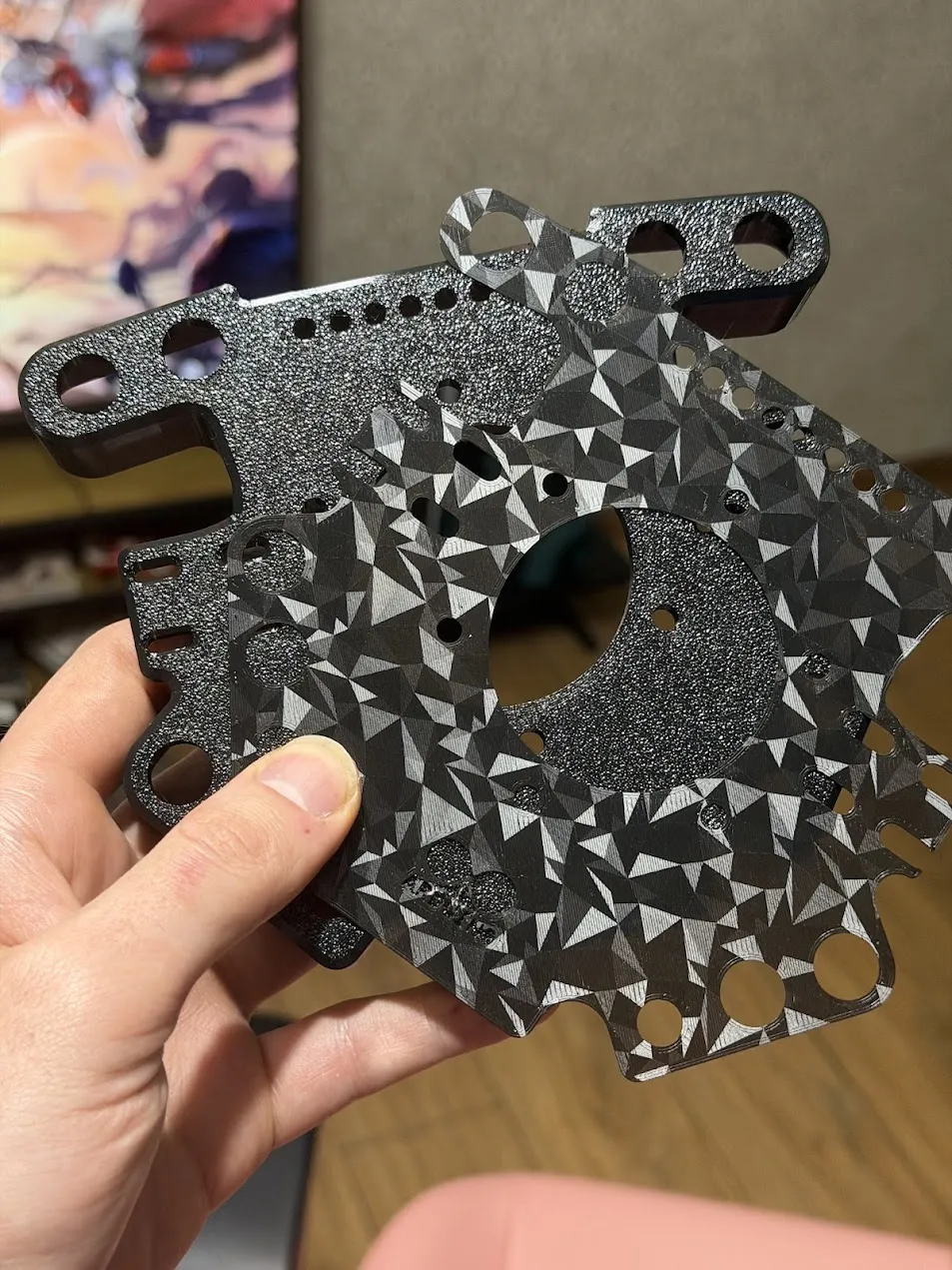

The design keeps parts small and modular while maintaining a rigid structure once assembled.

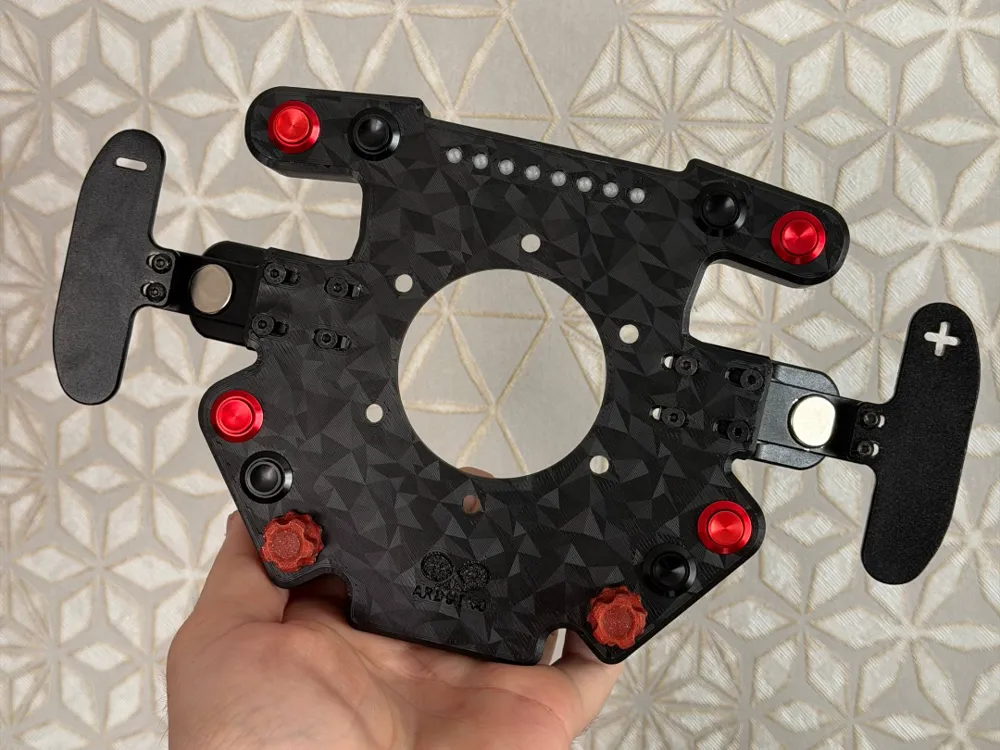

This button plate supports 8 push buttons, 2 rotary encoders, and magnetic shifter paddles, making it suitable for many DIY sim racing wheel builds.
Features
- Designed for Bambu Lab A1 Mini compatible print size
- Supports 8× 12 mm push buttons
- Supports 2× EC11 rotary encoders

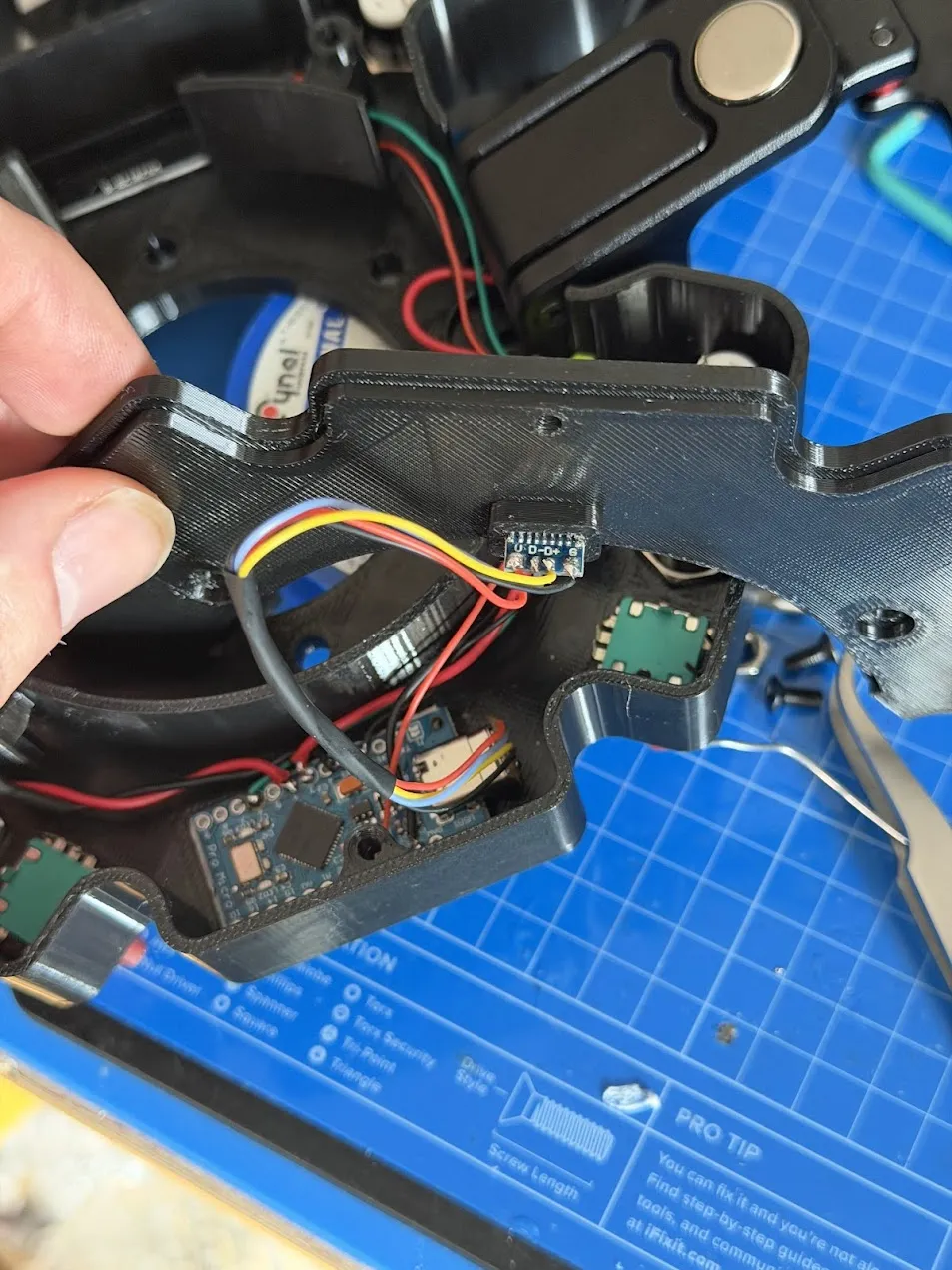

- Compatible with Arduino Pro Micro
- Magnetic shifter paddles
- USB-C connection via coiled cable
- Clean low-profile button layout
- Fully DIY friendly
Bill of Materials (BOM)
Hardware
- 5× M3x8mm flat head screws
Electronics
- 1× Arduino Pro Micro (Type-C)
- 2× EC11 rotary encoders
https://www.aliexpress.com/item/1005005983134515.html - 8× 12 mm push buttons
- 1x 8x1 WS2812 RGB LED
USB Connection
- 1× Type-C male 4P connector
https://www.aliexpress.com/item/1005005870466748.html - 1× Type-C female 4P connector
https://www.aliexpress.com/item/4000314458731.html - 1× 3 m coiled USB-C cable
Shifter
- 1× Magnetic shifter paddle set
https://www.aliexpress.com/item/1005008666478656.html
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
