Audi A3 / S3 Headlight Intake – Modular Design
Print Profile(1)
Description

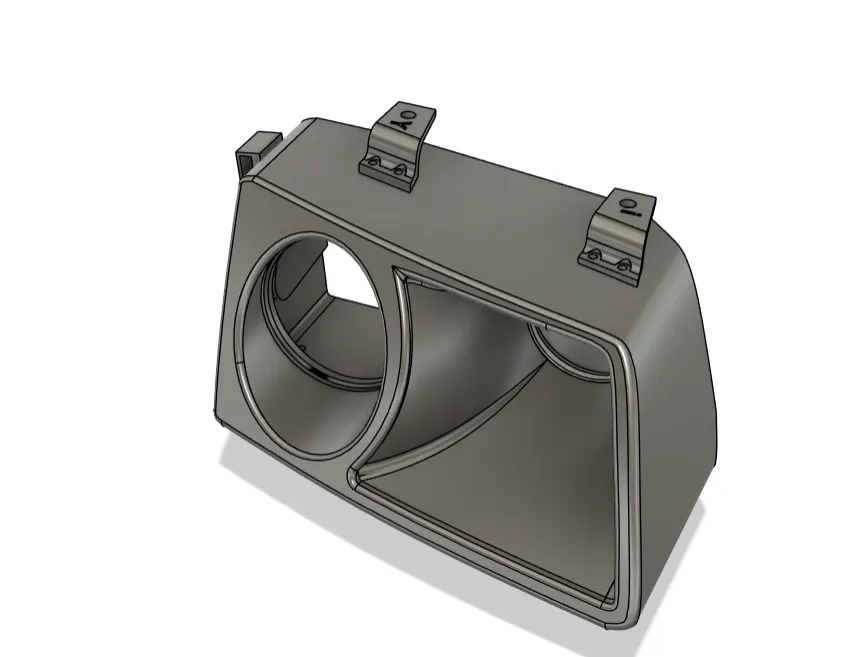

Finally a proper headlight + air intake combo for the Audi A3 / S3. This design combines a clean look with functionality and is made with 3D printing in mind.
The intake includes a dedicated slot for an optional LED strip, letting you add a subtle light effect inside the air channel.
The entire model is fully modular. All mounting brackets are separate parts, making printing easier and allowing you to replace or modify individual components if needed.
The assembly is designed around M4 screws and M4 heat inserts for a strong and reliable installation. The exact heat insert positions are marked in the images to make assembly simple.
Features
- Headlight + air intake in one design
- Slot for optional LED strip in the intake
- Modular construction with separate mounting parts
- Designed for M4 screws + M4 heat inserts

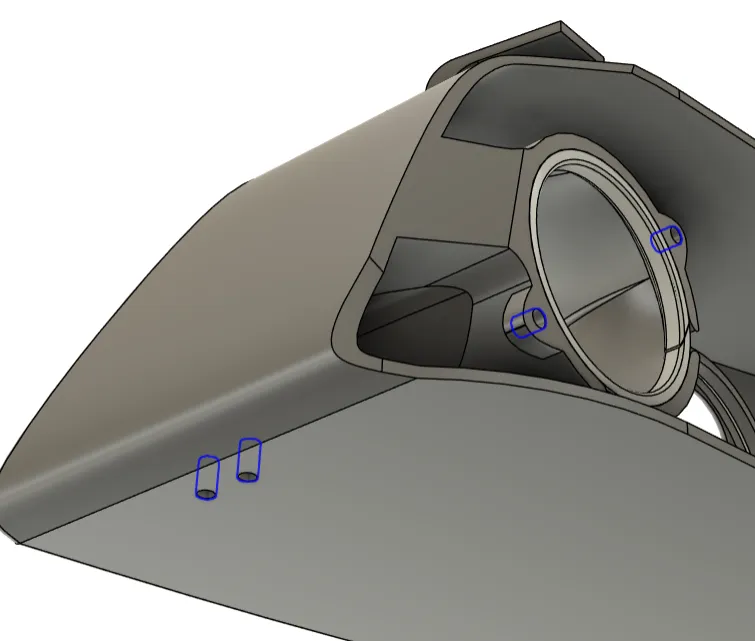

- Heat insert positions marked in the images
- Optimized for easy 3D printing and assembly

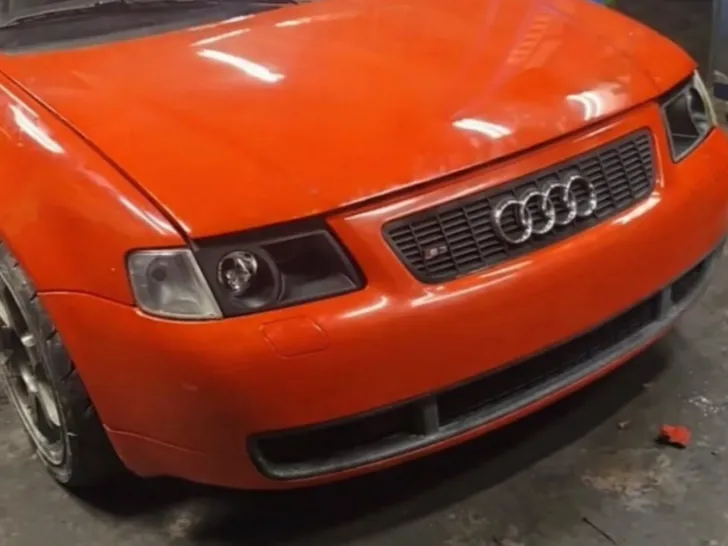

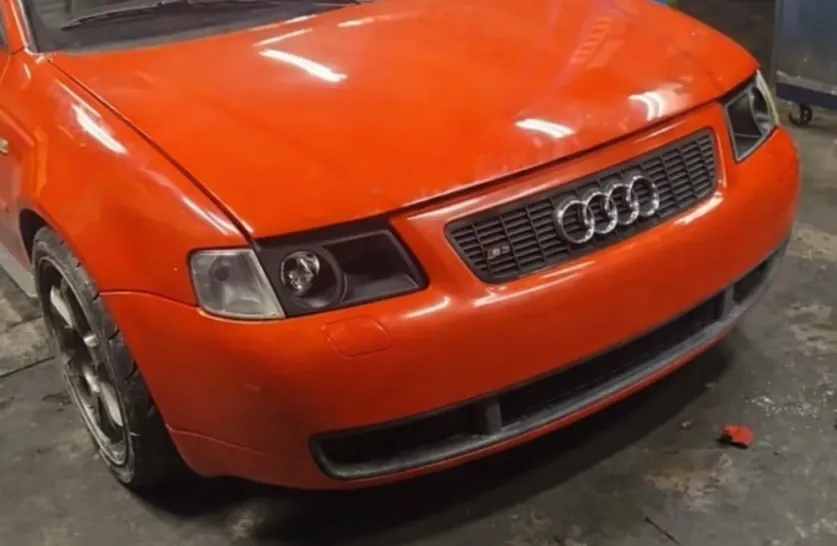

Perfect for adding a custom and functional detail to your Audi build.
you will need m4 screws, m4 nuts, m4 heatinserts, springs for the headlight
https://www.fc-moto.de/epages/fcm.sf/?ObjectPath=/Shops/10207048/Products/BI-226-091HS&Locale=sv_SE
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
