UniFi Camera Turret & Bullet mount

UniFi Camera Mount G5/G6 with Hidden Cable Space (Junction Box for UniFi G5 / G6)

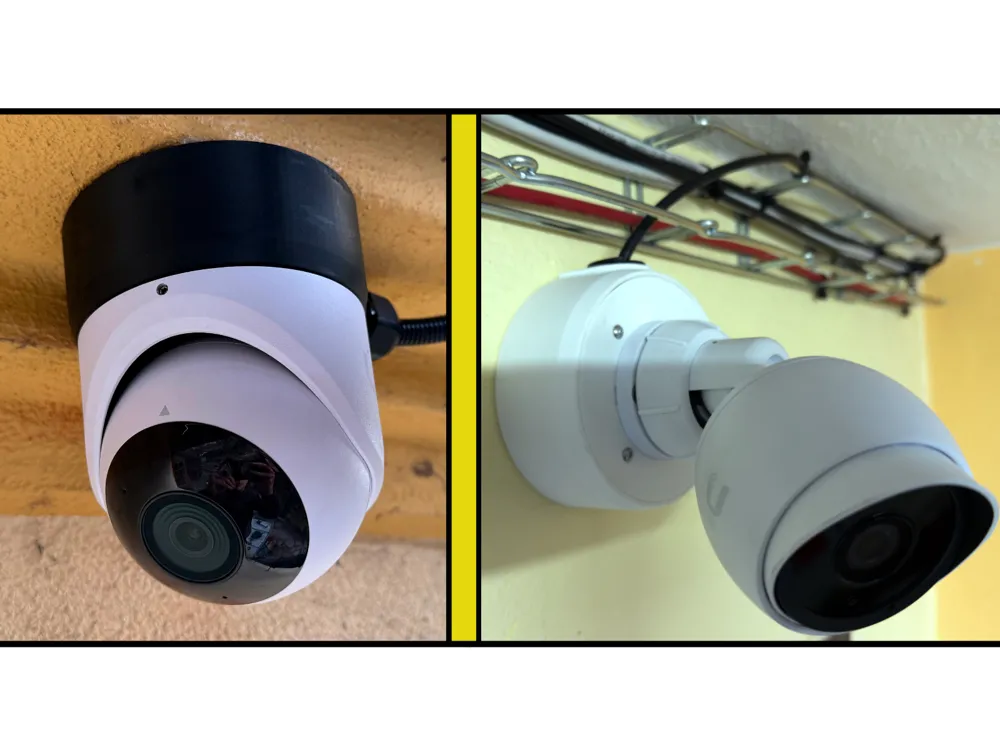

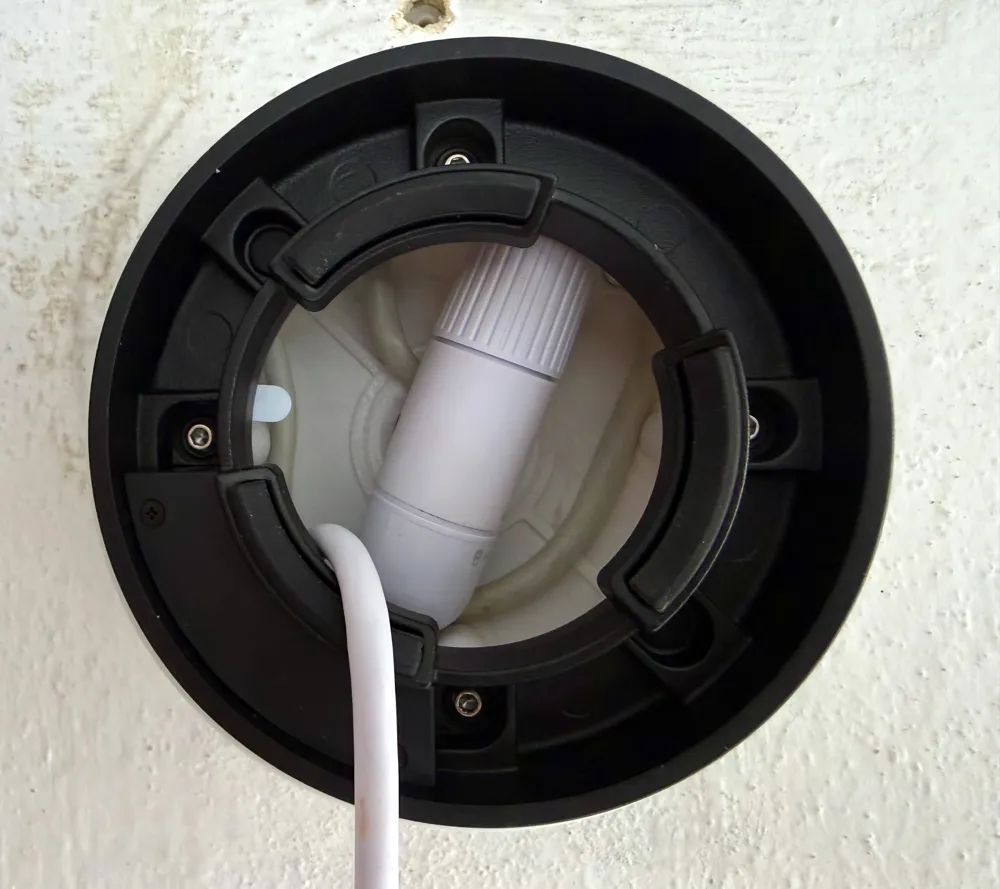

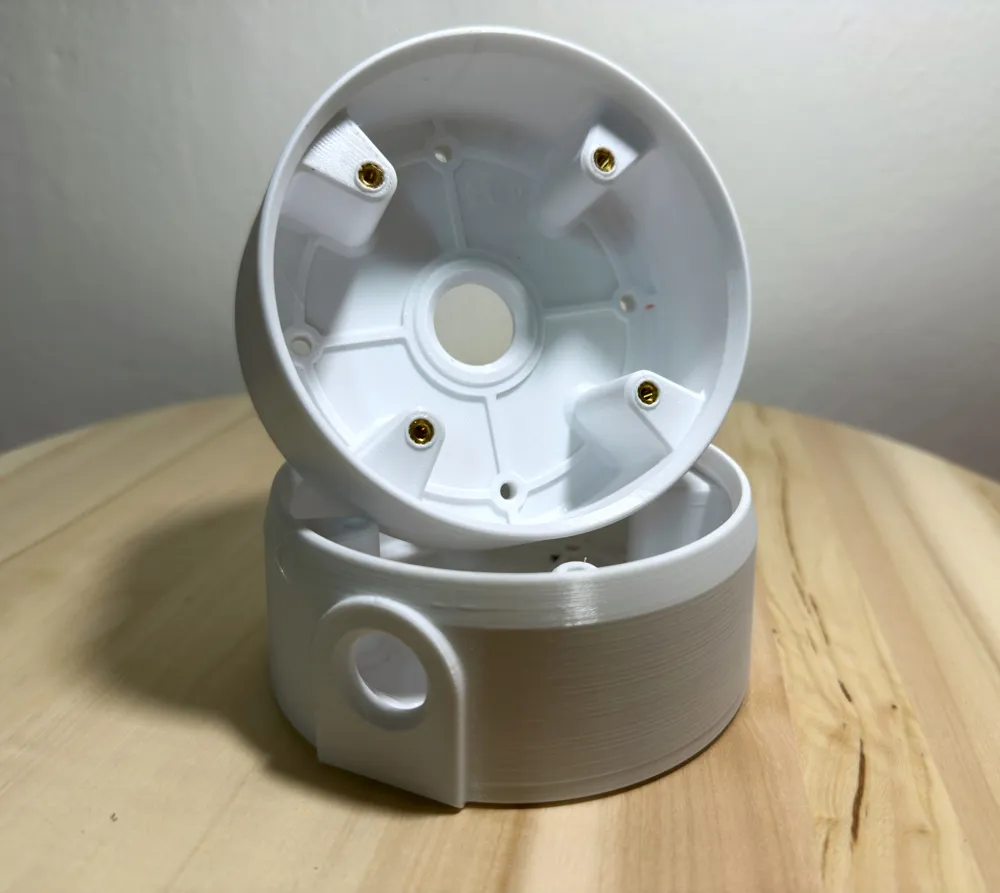

This elevated camera mount works as a junction box for turret cameras (+ bullet adapter) and provides additional space to hide and protect cable connectors behind the camera.

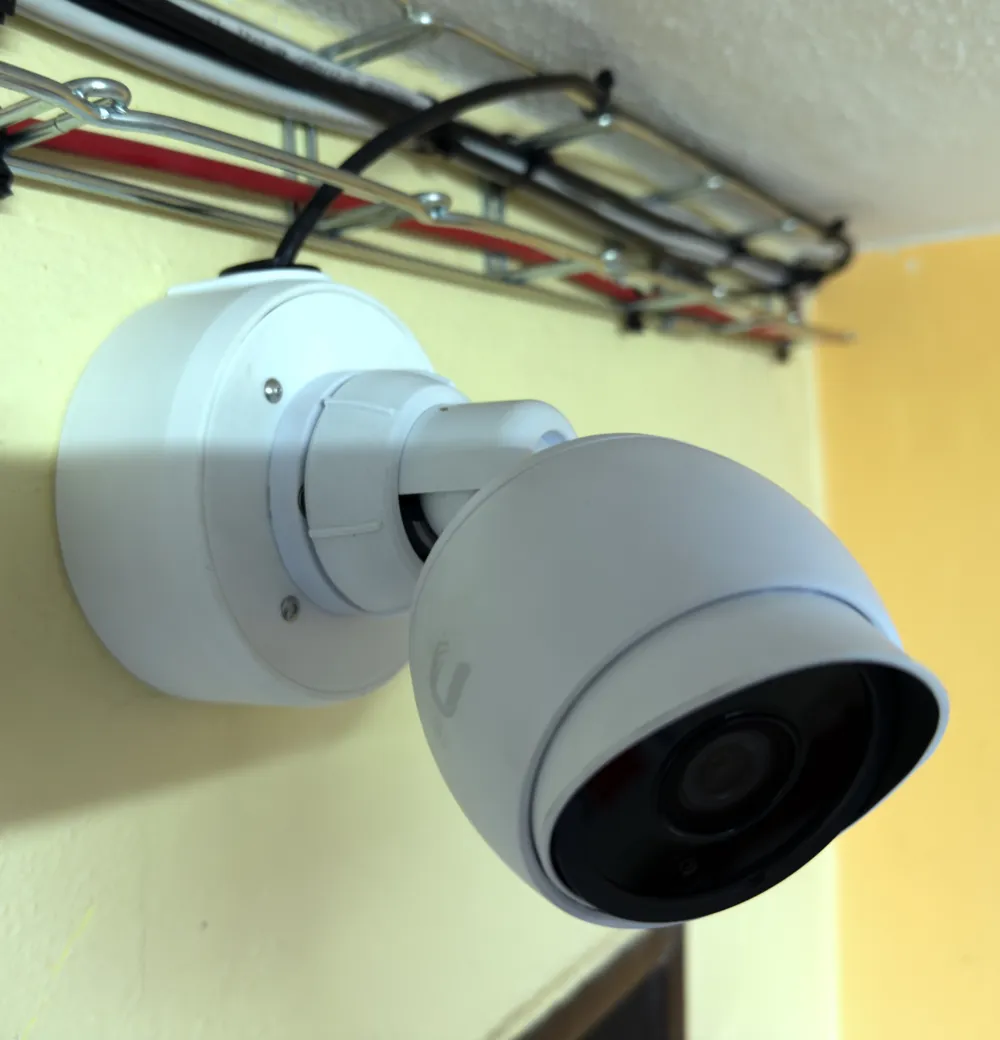

It is designed for a clean and professional installation of UniFi turret cameras, especially G5 and G6 models. The mount allows connectors to be safely stored inside the housing while keeping the camera installation neat and organized.

We have also newly added an adapter for G5/G6 Bullet, Pro Bullet, and AI DSLR camera models in two variants – indoor and outdoor.
The outdoor version supports the use of TPU/TPE sealing rings and plugs.

The set contains 6 different variants for various installation scenarios + 2 models for the bullet adapter.

Available Variants

The set includes different combinations depending on the installation type:

• Indoor version
• Outdoor version
• Side cable entry with 16 mm diameter compatible with PG9 or M16 cable glands
• Rear cable entry with 20 mm diameter

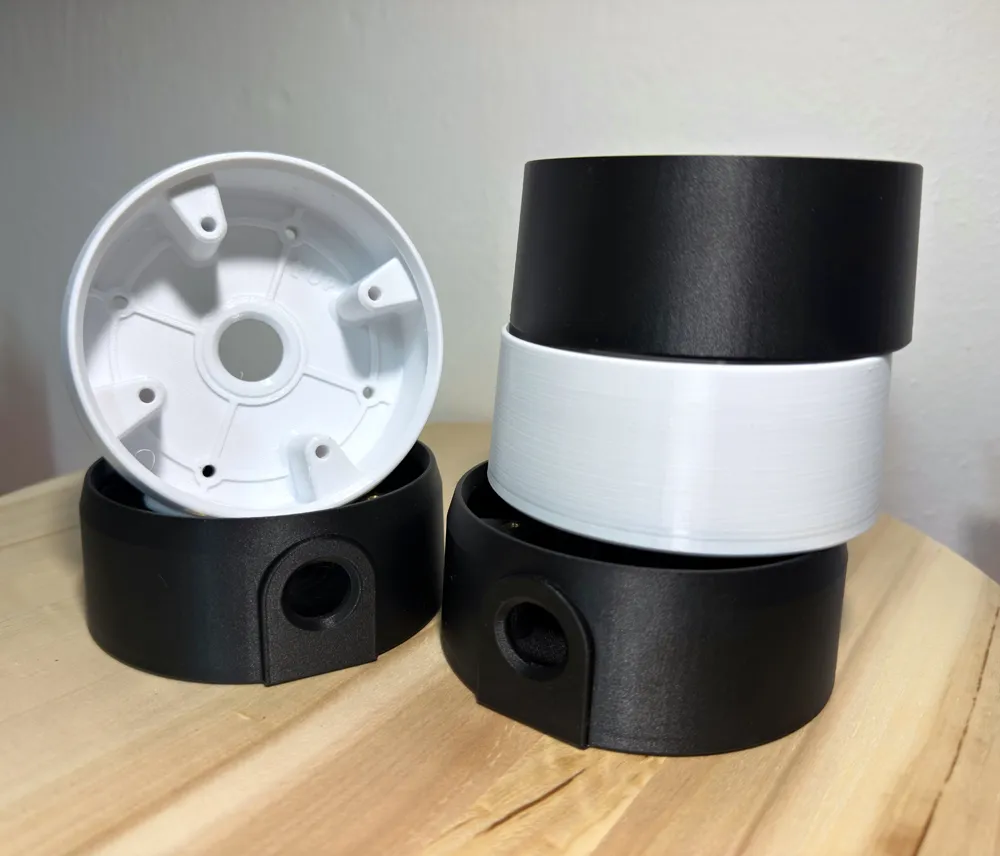

• Two outdoor design variants

Variant Details

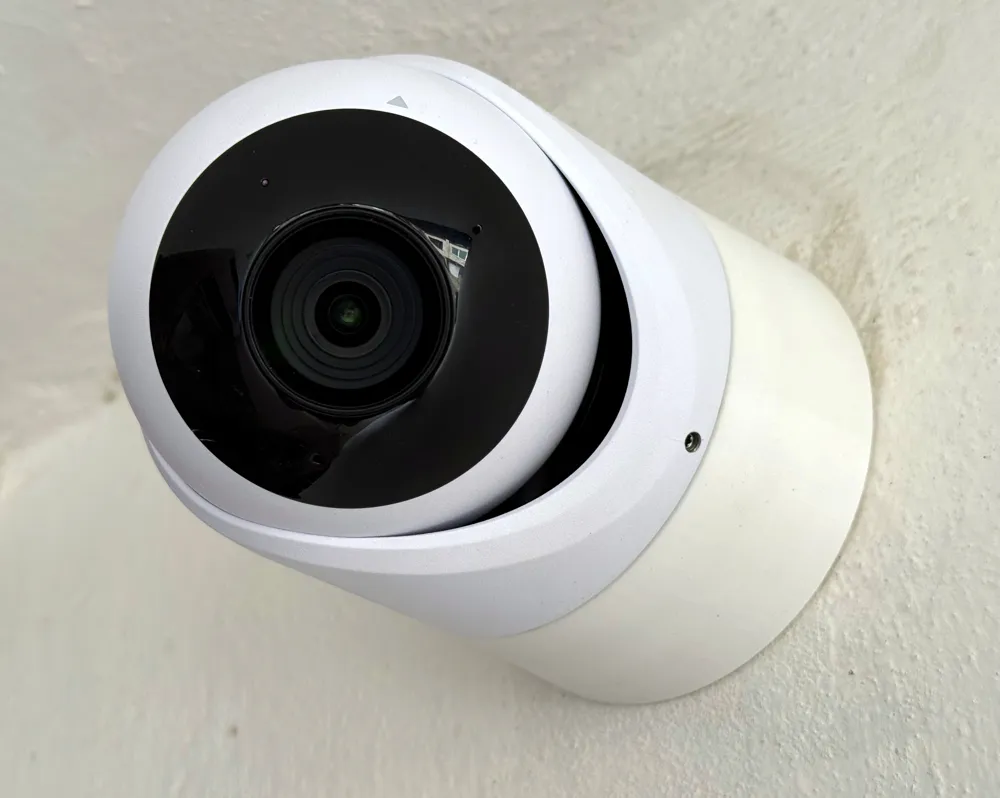

Indoor V1

This version has a narrower diameter because additional connector protection is usually not required for indoor installations.

Outdoor V1 / Outdoor V2

The difference between these versions is purely visual (design).
Both variants have identical functionality and dimensions.

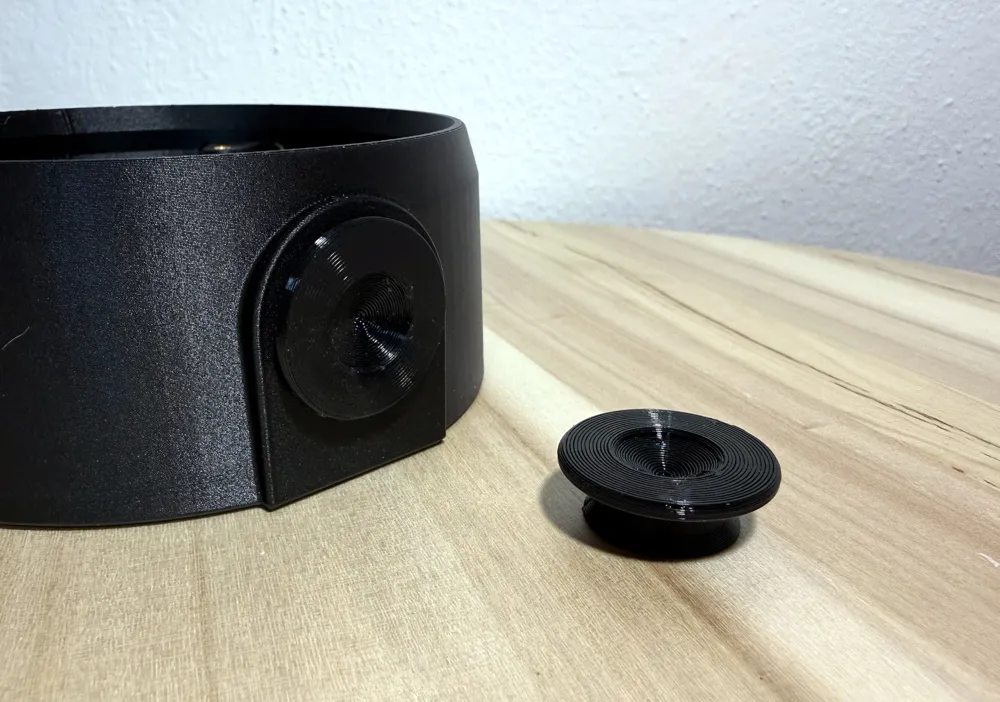

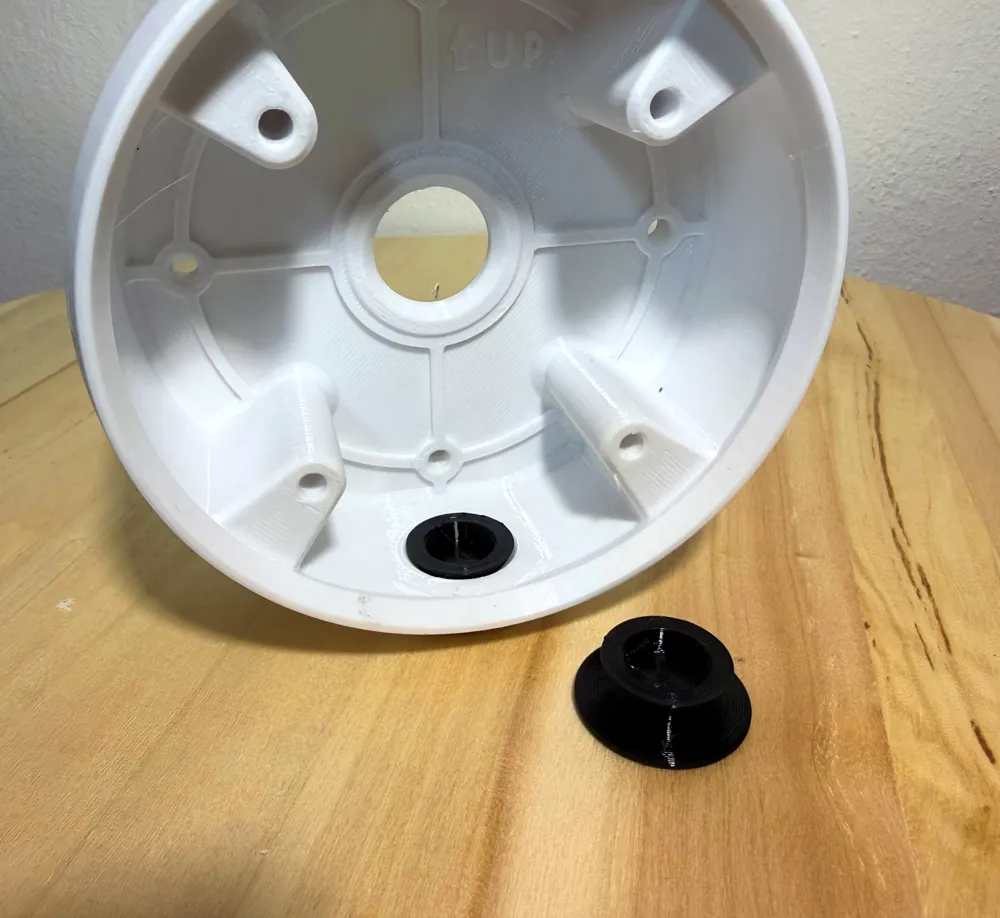

Matching sealing plugs are included to close unused openings and help prevent water ingress during outdoor use.

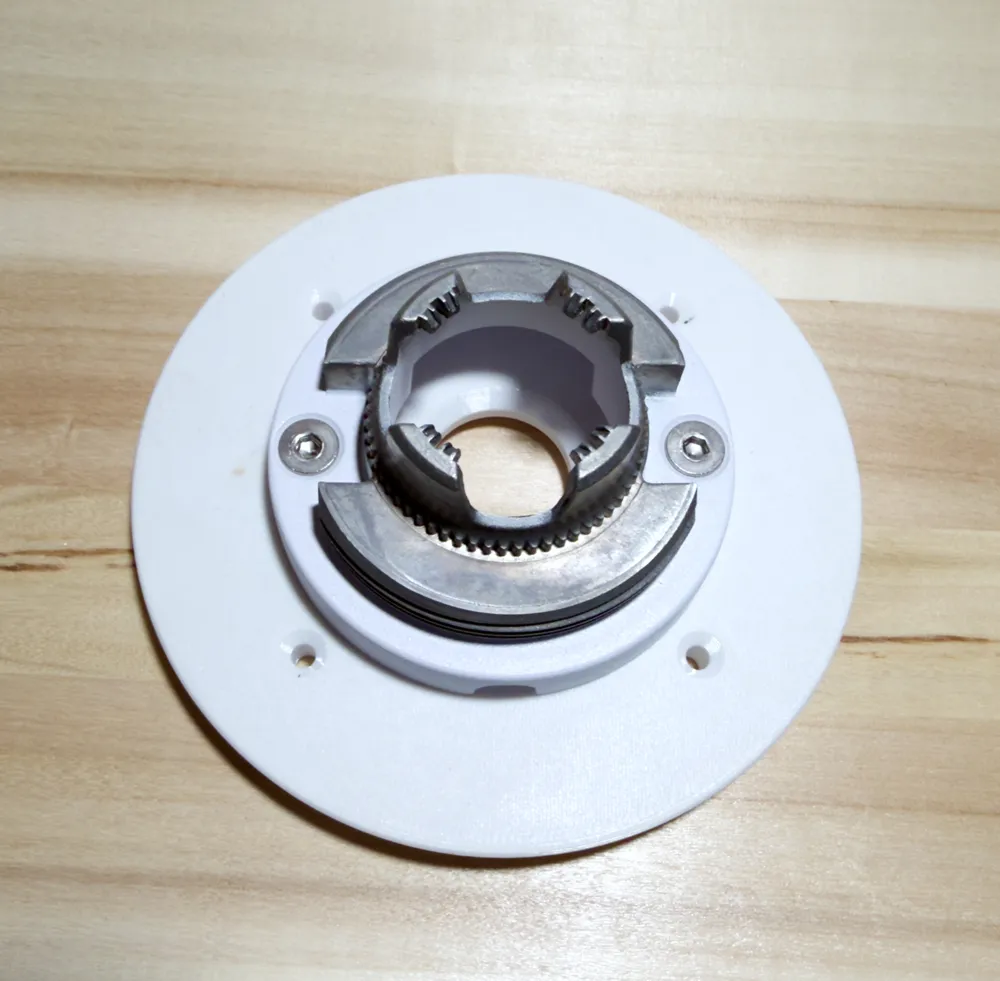

Bullet Adapter

Indoor version

Without support for a sealing ring.

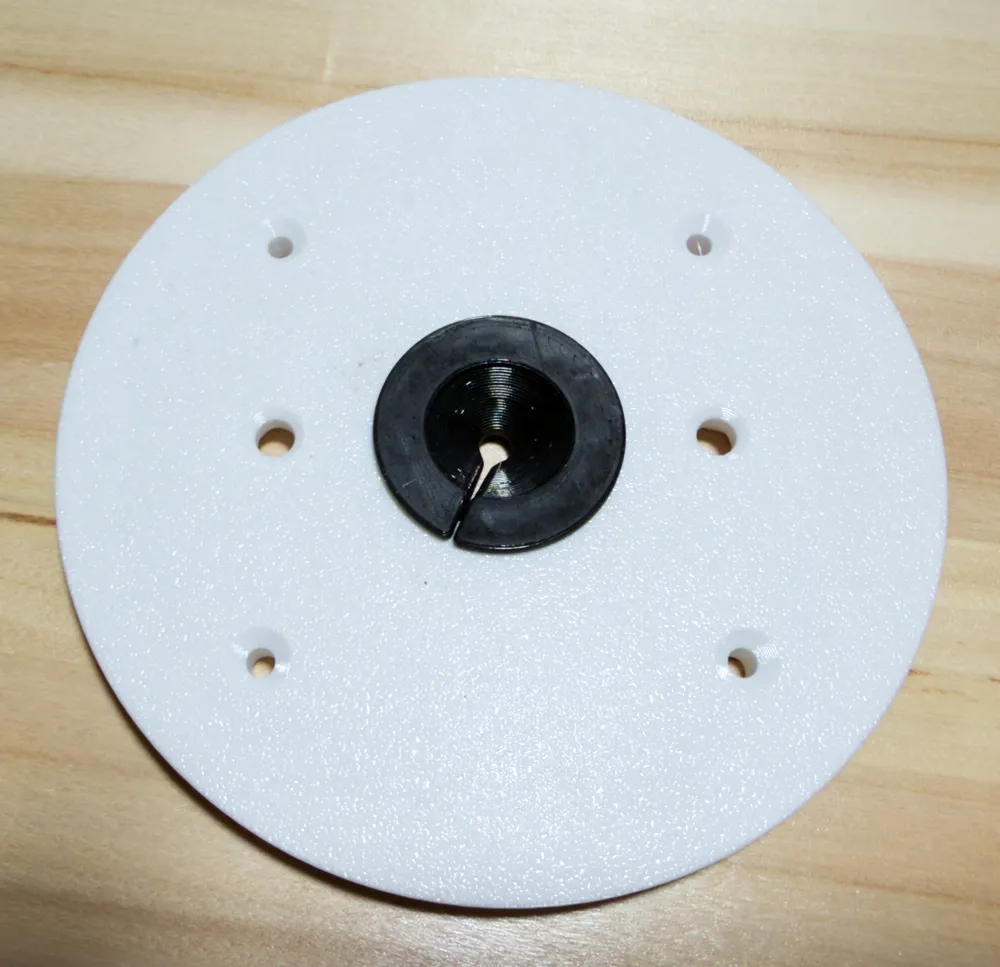

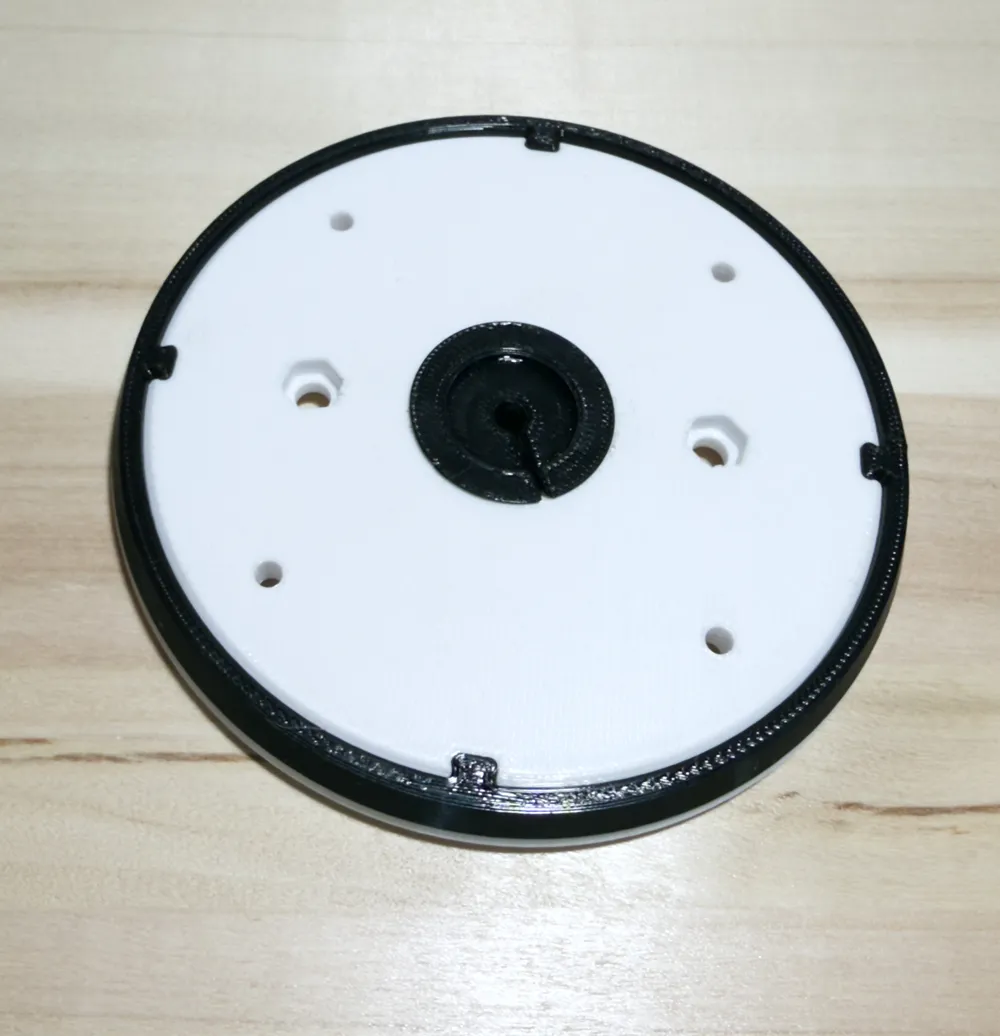

Outdoor version

Supports the use of a sealing ring and sealing plug.

Included models:

• Sealing ring
• Sealing plug

Required Hardware

To complete the assembly you will need:

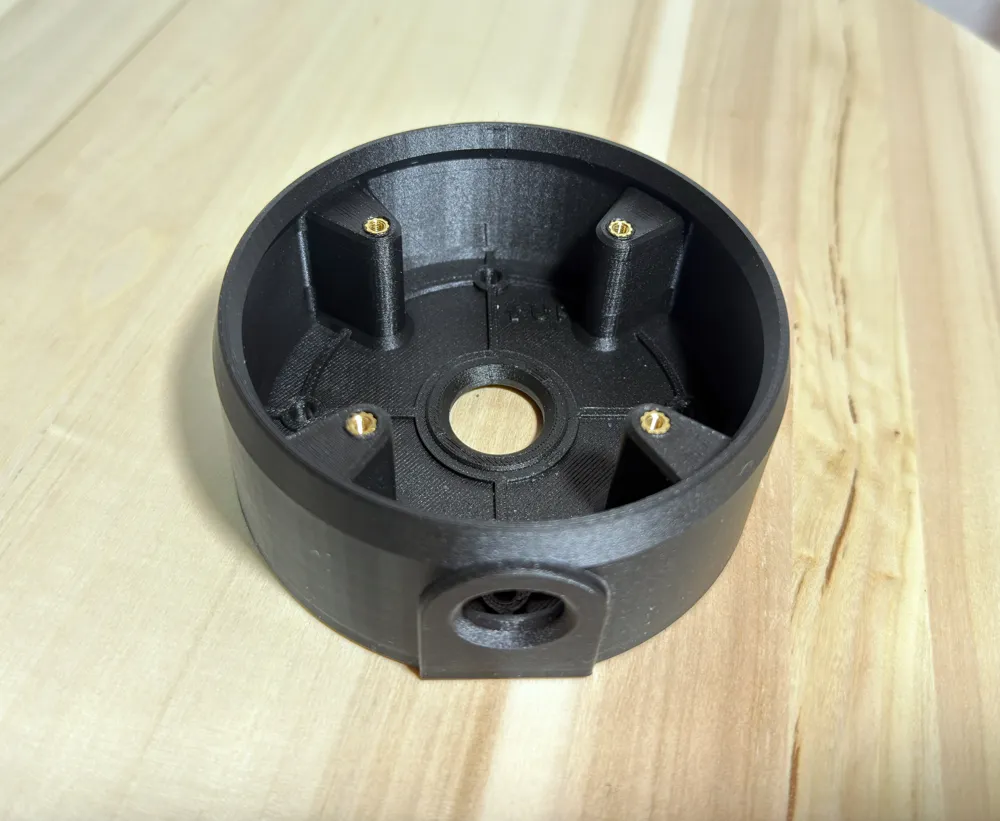

• M3 threaded inserts
• M3x10 screws

Printing Recommendations

Recommended materials:

• PETG or PCTG – suitable for indoor use
• ASA or other UV-resistant materials – recommended for outdoor use

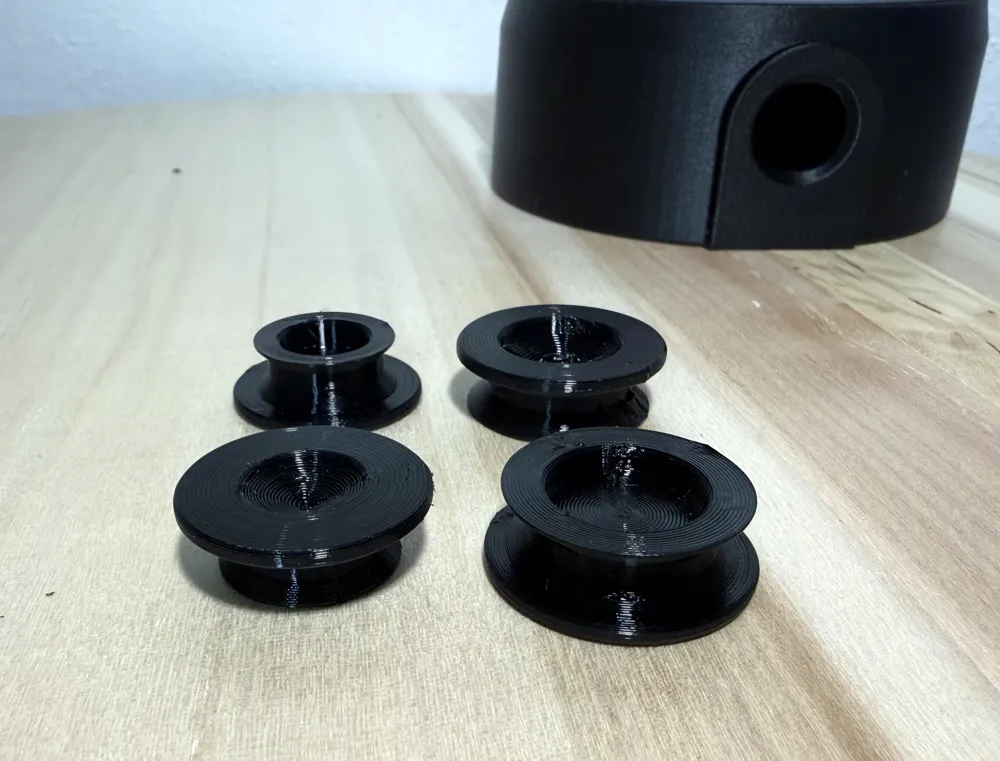

For sealing plugs and rings, we recommend using TPU/TPE for improved flexibility and sealing performance.

Print settings used:

• Layer height: 0.16 mm
• Supports: not required (depending on printer and print orientation)
• Scarf seam setting: Override filament scarf seam setting
• Scarf seam type: Contour
