Mennekes Type 2 cable wall holder for EV charger

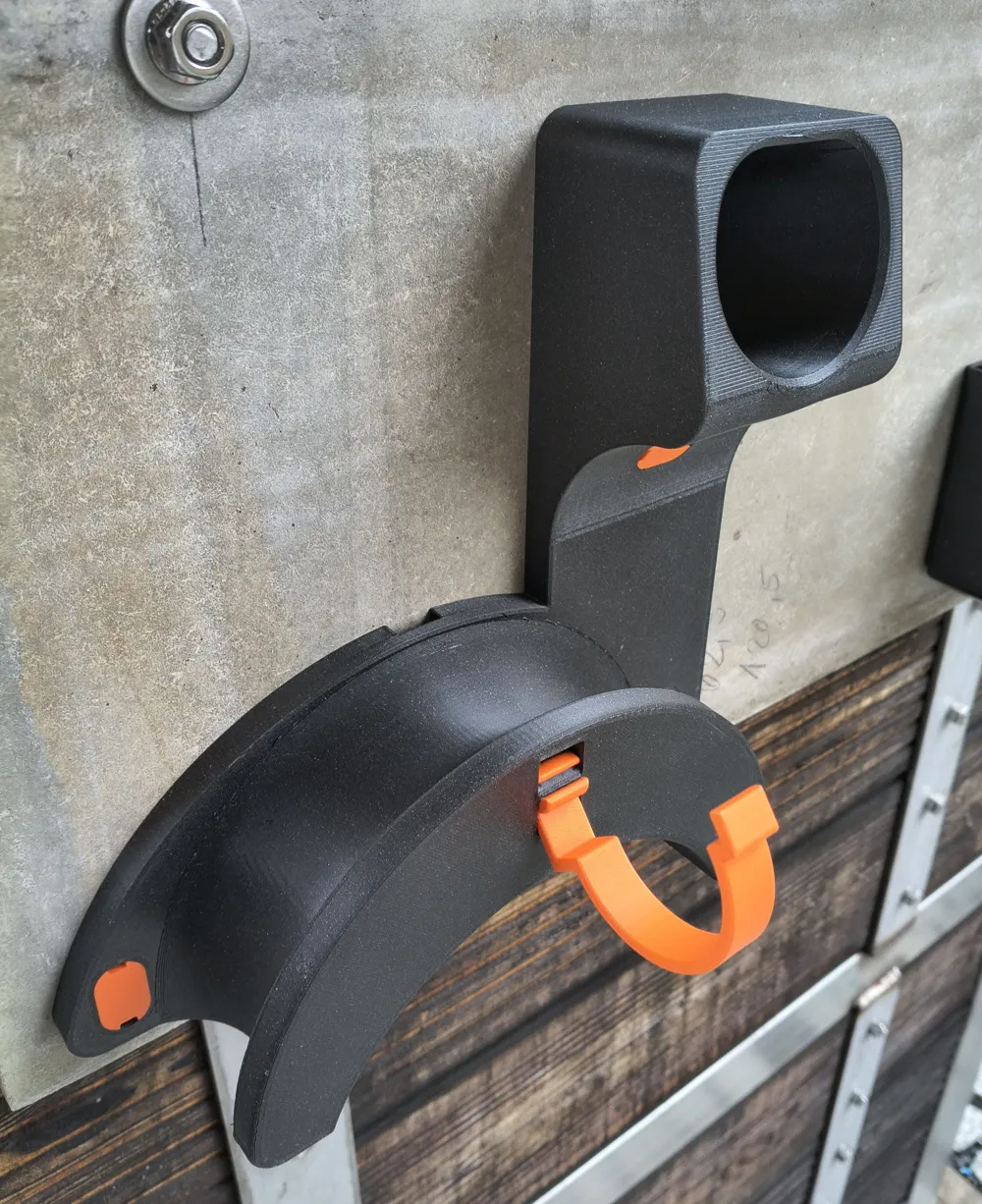

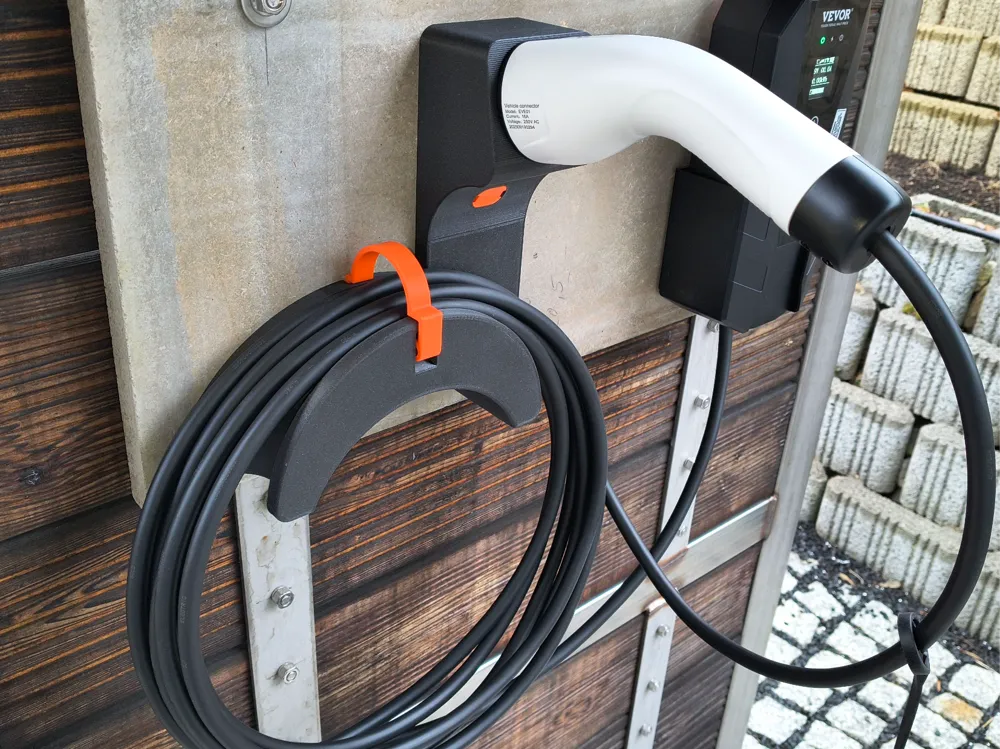

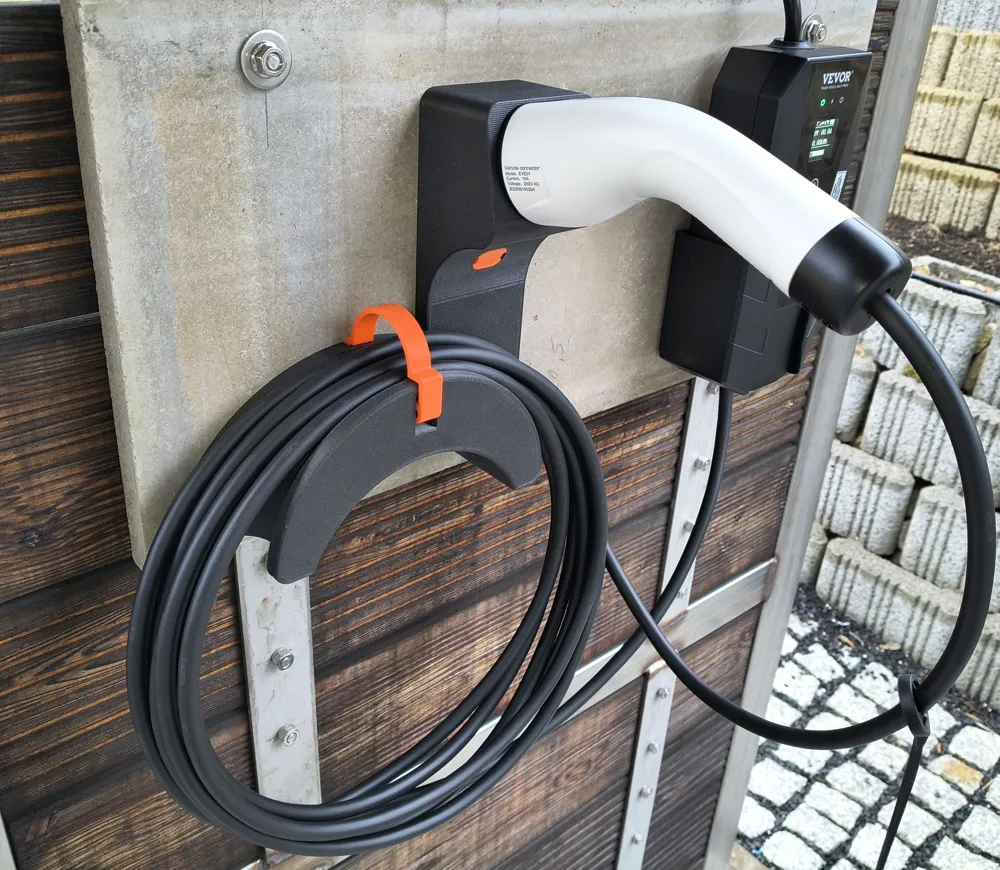

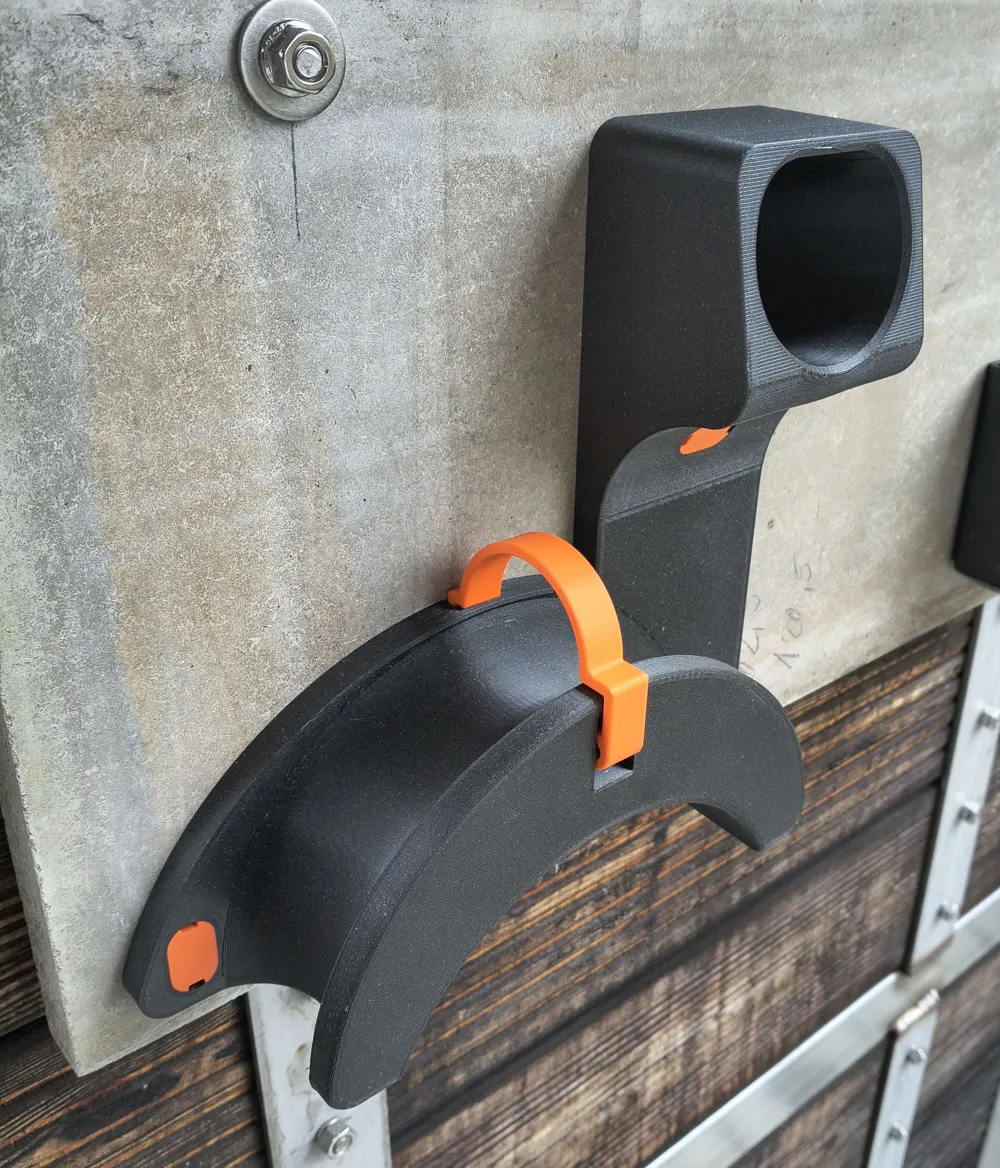

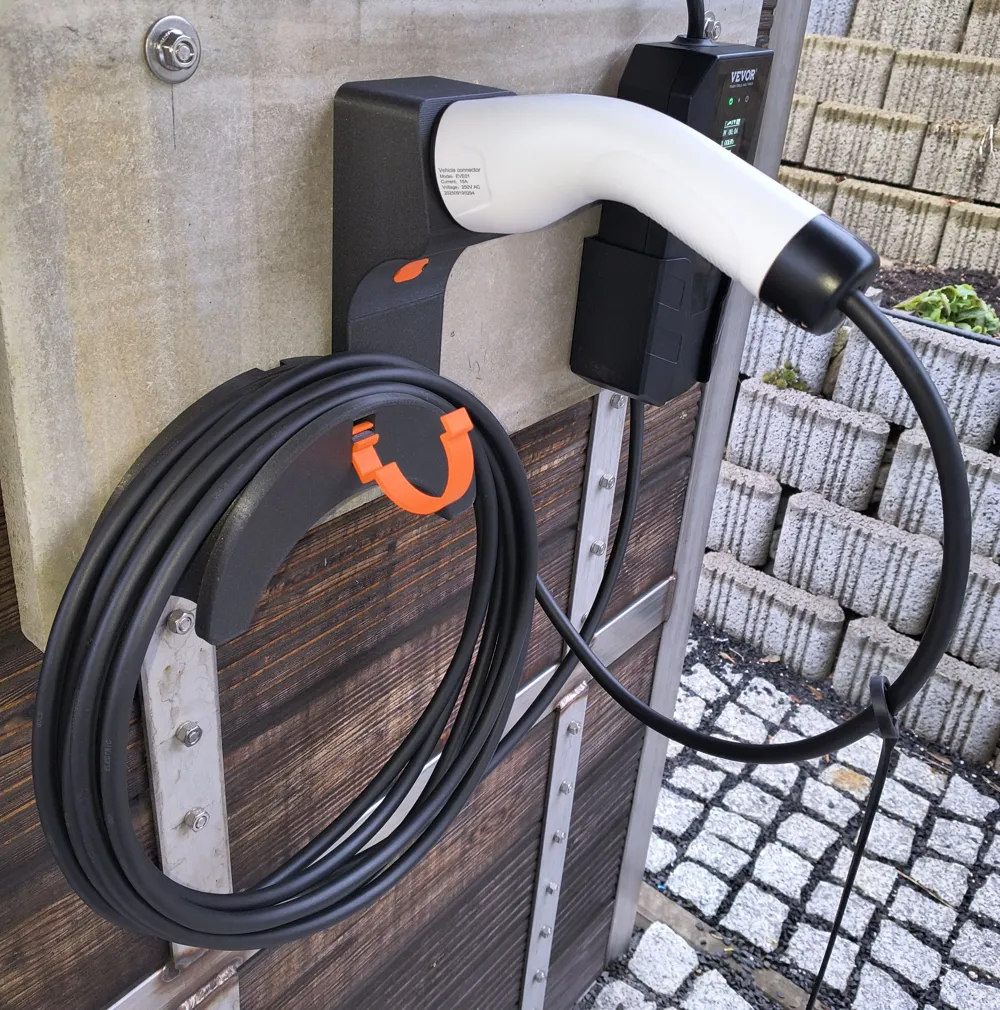

Simple wall mounted holder for cable spool and Mennekes Type 2 plug (car side). Model has optional covers for mount holes and also locking clip for cable - so it doesnt slip. Locking clip is "click on" the shaft in the holder.

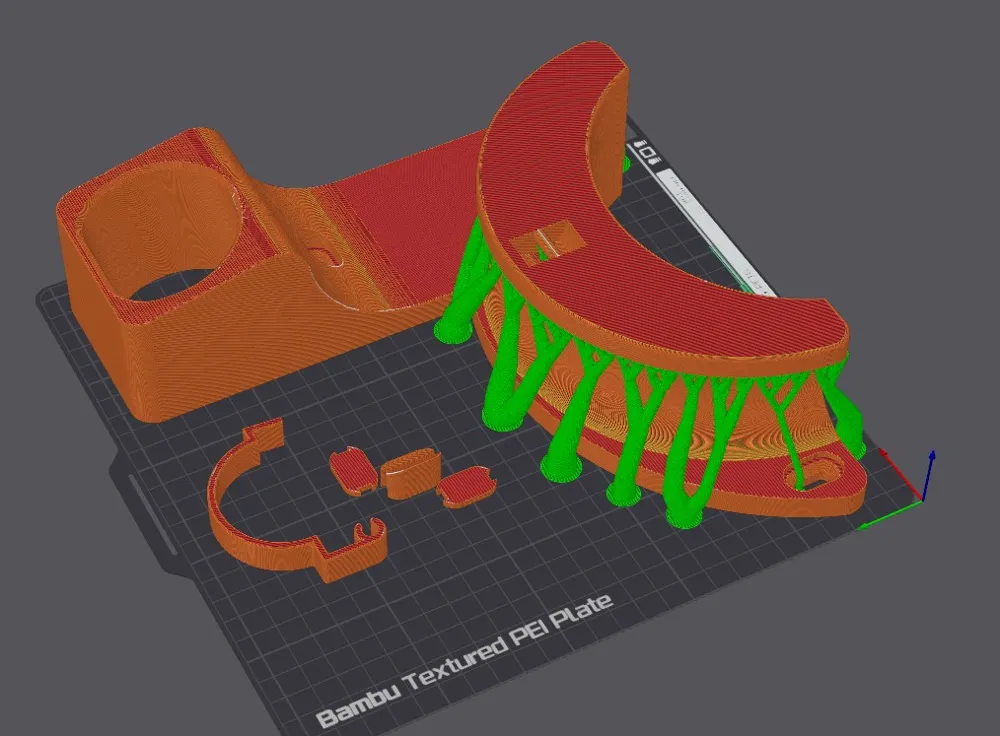

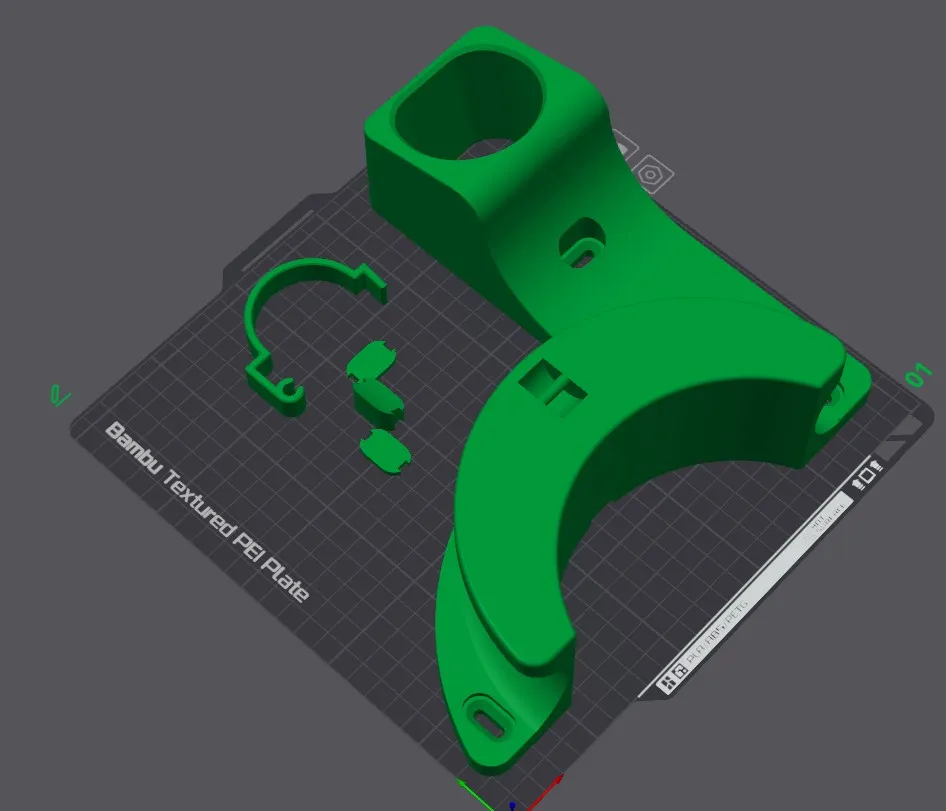

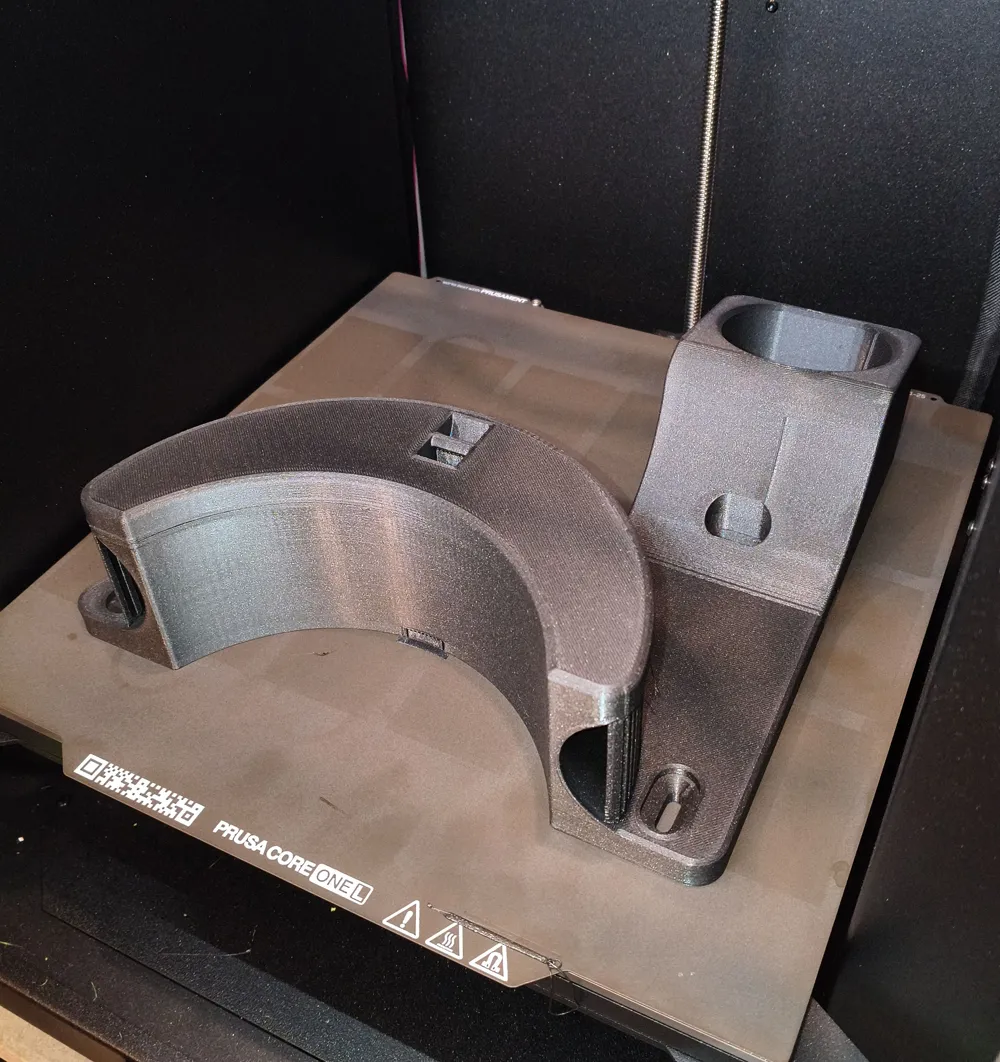

Print as shown on pictures - supports are needed in arch area (for smooth surface, so cable does not get scratched).

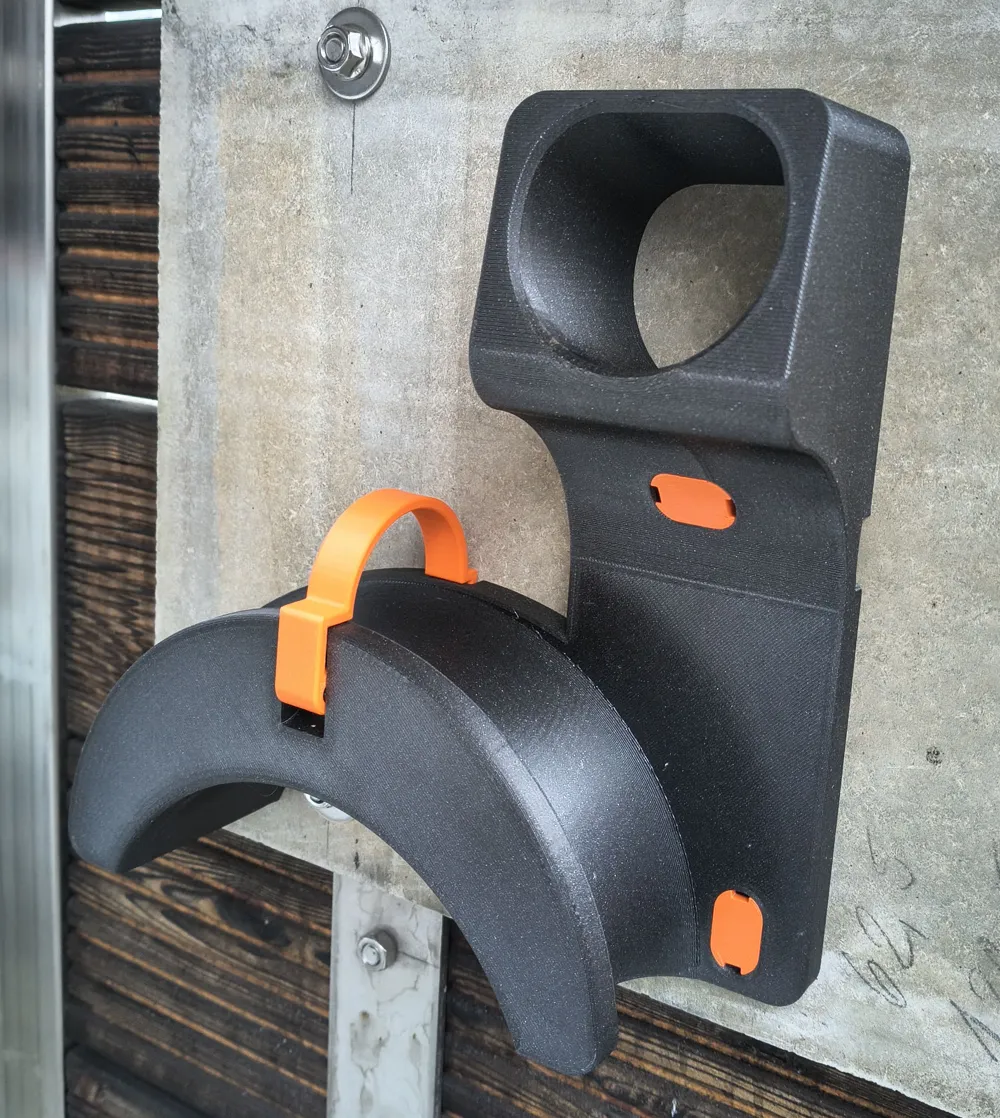

Mount holes are for countersunk screws with 5mm shaft. There are 3 mount holes of oval shape for possible adjustments if Your holes are not leveled.

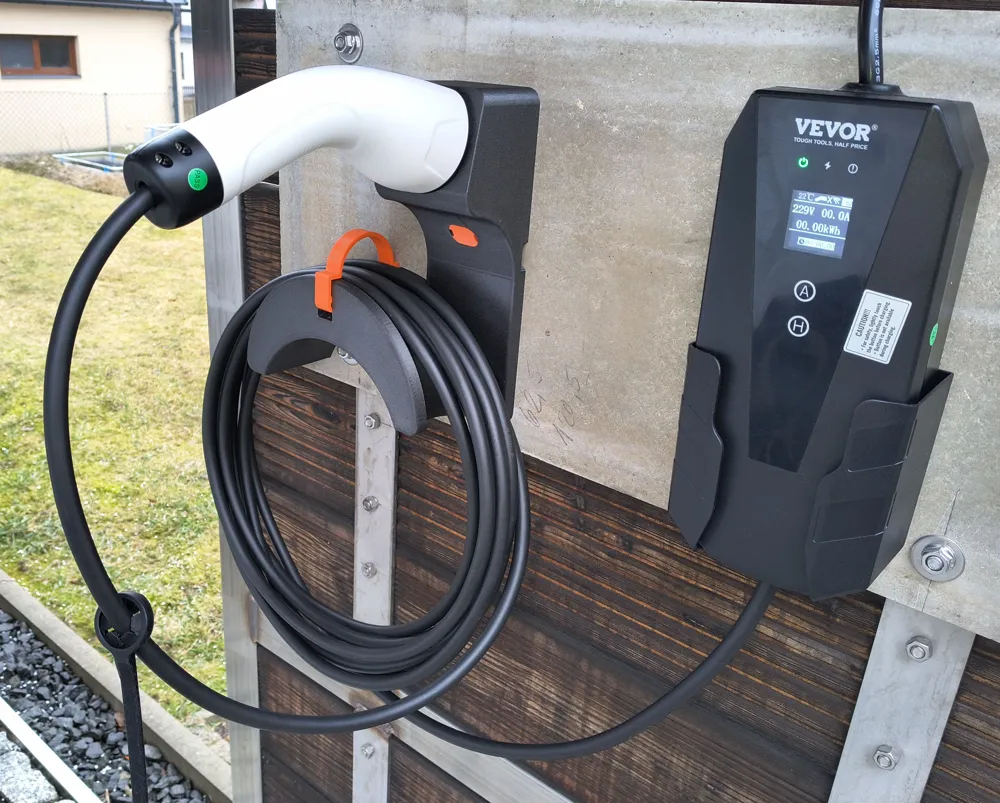

If You have it exposed in exterior as I do - i suggest using ASA or PETG (I have several structural PETG prints outside for 8 years without any sign of wear)

"Socket" for plug has drain hole - in case water gets in - so it can flow away and not get into connector.

I suggest to sacrifice a bit of material and print it tough enough - so 4-5 perimeters, 20-25% infill and 5 top/down layers as minimum.
