Mounting angles in 90, 45, 30 degrees
Print Profile(3)
Bill of Materials
Description
Note:
I have designed another version that is wider and features an additional brace for enhanced stability, which you can find here:
https://makerworld.com/en/models/2841227-mounting-angles-90-45-30-degrees-including-stabili#profileId-3167473

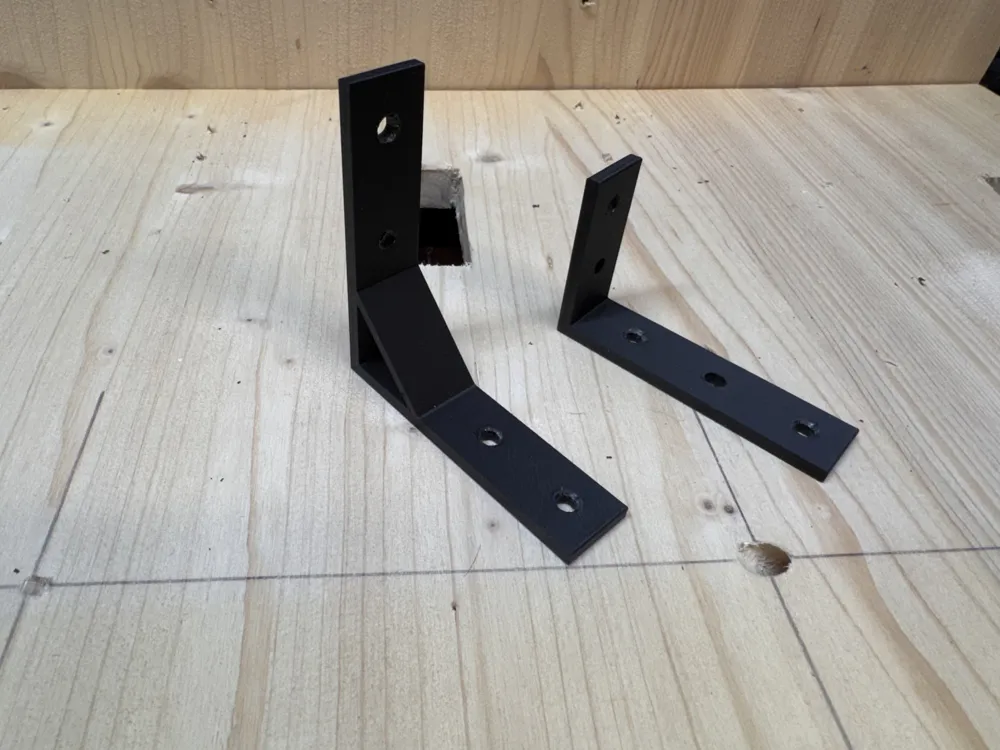

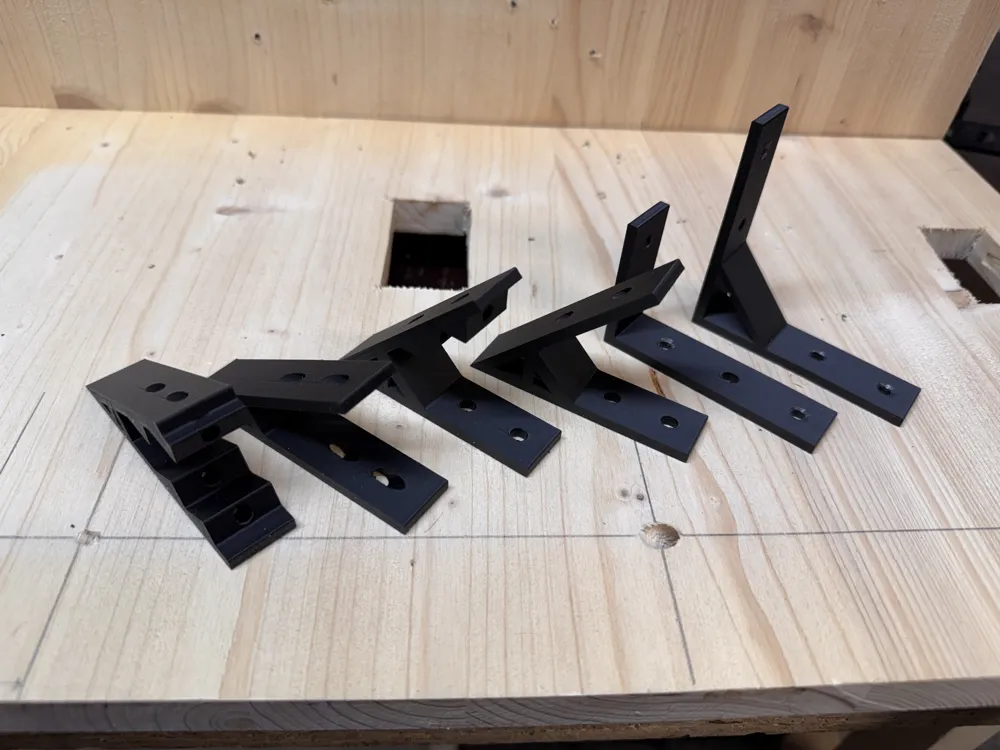

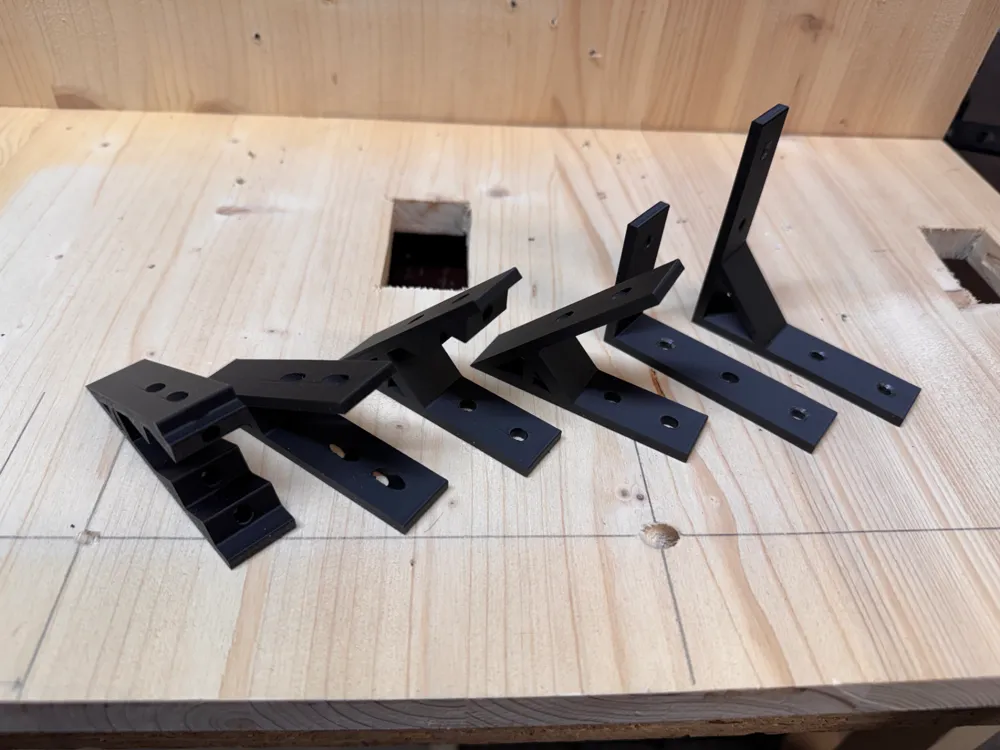

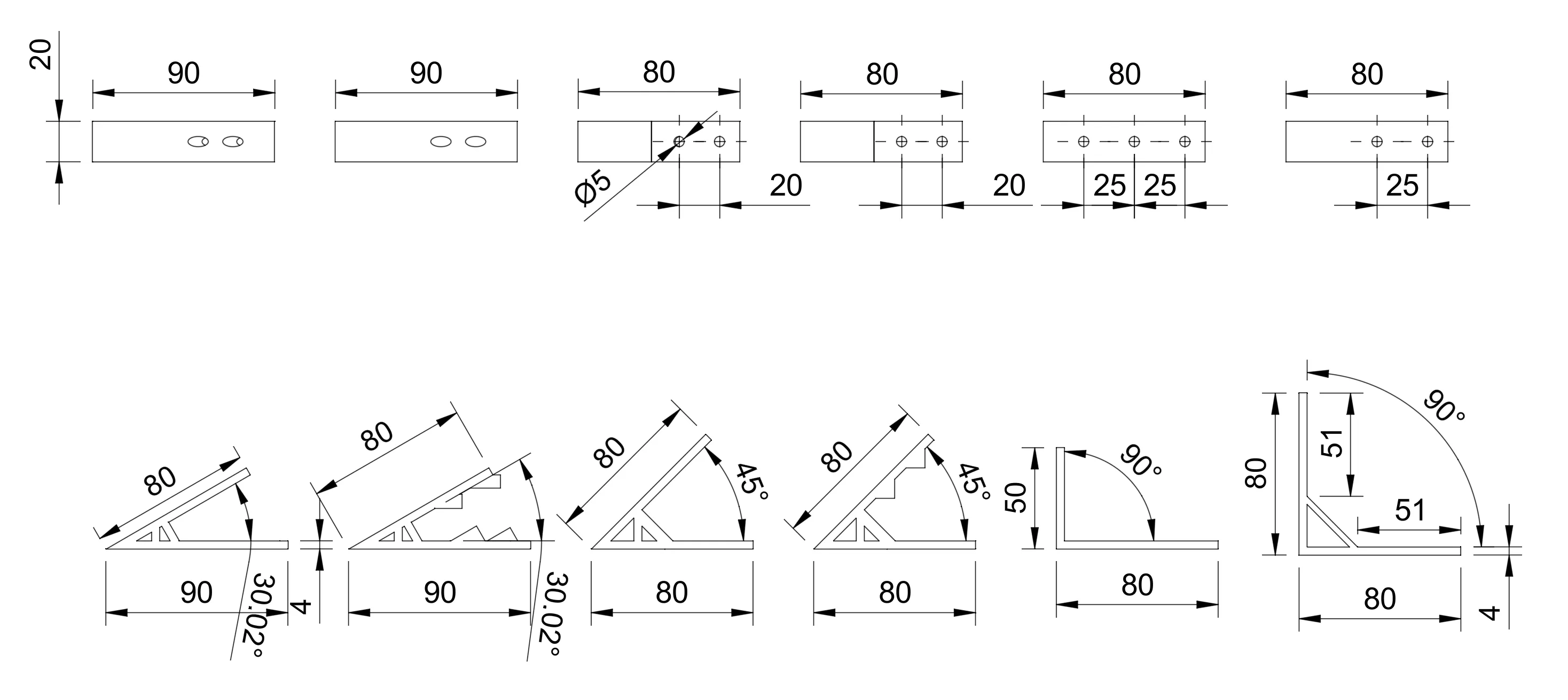

I created brackets with 30°, 45°, and 90° angles.

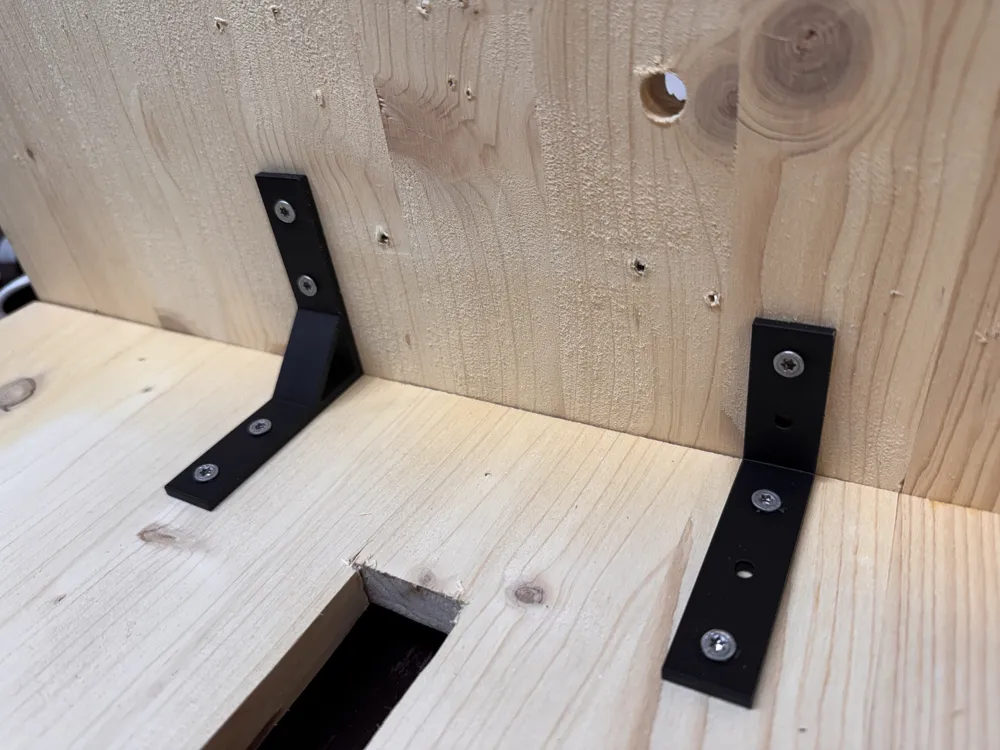

The brackets feature multiple mounting holes for screws, allowing for flexible attachment.
Each bracket design was created in two variations to add a bit of variety.

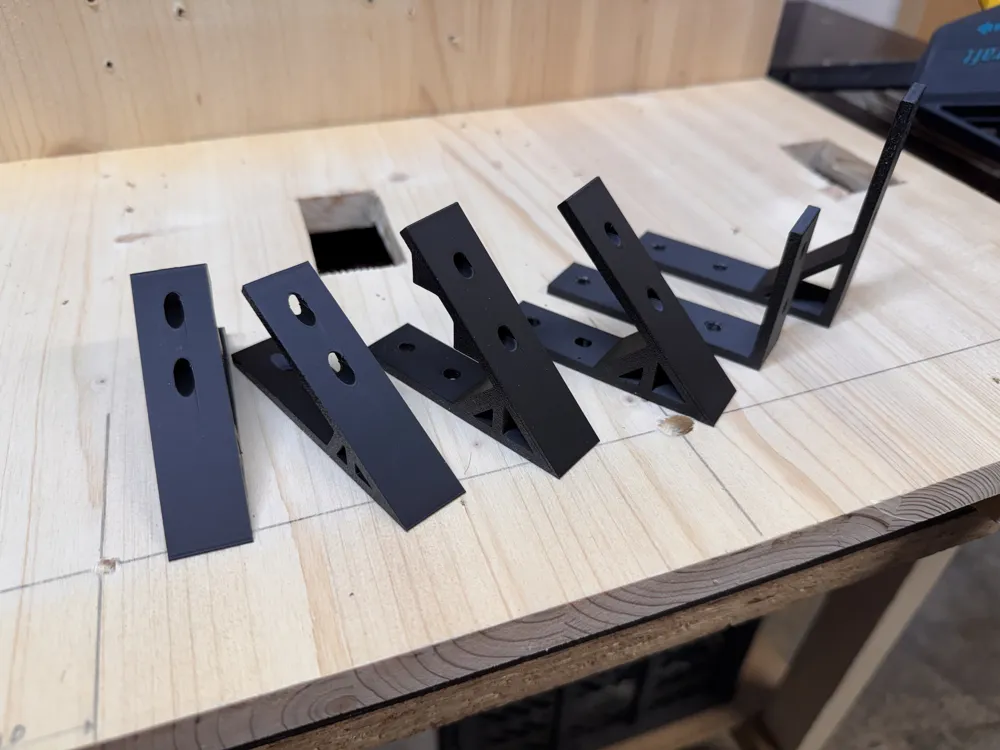

For the 30° and 45° brackets, I additionally designed hole extensions so the screw has a direct contact surface. This allows for better force transfer and easier installation.
Tip: For the 30° and 45° brackets, I recommend pre-drilling a small pilot hole first so the screw can be driven in more easily.
Tip: Stability naturally depends on the type of filament used. If in doubt, simply use multiple brackets.
Tip: The brackets can also be scaled. Please note that the holes will increase in size as well.
