Steel Ruler Stop Marking Gauge
Print Profile(1)
Description
Boost Me (for free)
If you like the model, please leave a Boost here.
Design

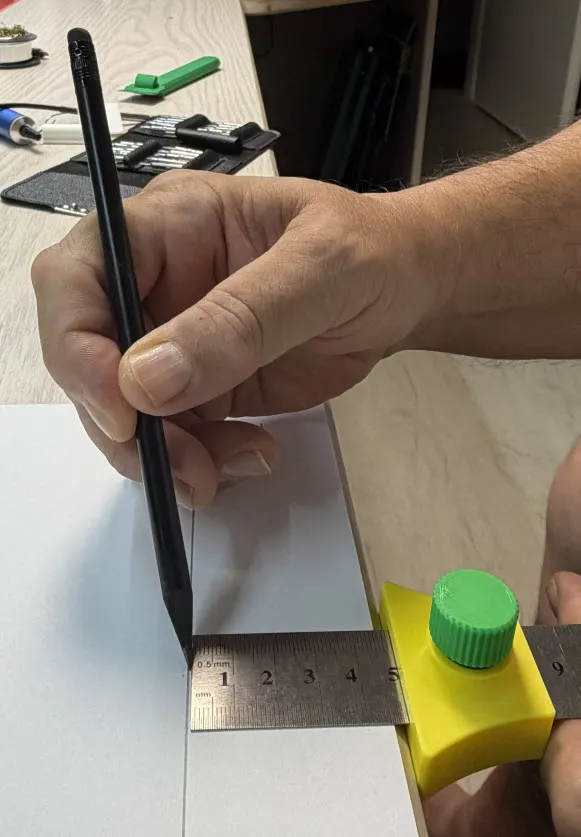

Here I present a stop/marking gauge for a steel ruler. After I had already designed the measuring jaws for my steel rulers, this was the logical next step for me.
A steel ruler has no joint, making it particularly suitable for accurately, precisely, and reliably transferring measurements over 18 cm. This is a real advantage, especially for accurate scribing and marking work.
Here you will find my design for measuring jaws on the steel ruler.
Steel Ruler Extension Measure Inside and Out – Free 3D Print Model – MakerWorld
Dimensions
The jaws are designed for steel rulers with a width of 26 mm and a thickness of 0.7 mm.
If you need different dimensions for your steel ruler, just let me know. I will gladly adapt the model accordingly.
Print
I used PLA Basic from Bambu Lab – that works excellently.
PLA or PETG from other manufacturers should also work without problems.
Link
Stainless Steel Ruler *: https://amzn.to/4seOQsg
