Ikea Skadis Supports for Ikea Enhet
Print Profile(1)
Description
Do you have an IKEA ENHET cabinet and would like to install Skadis-compatible 240x240mm panels on the side (such as those created here https://makerworld.com/it/models/932107-modular-pegboard-panel-ikea-compatible?from=search#profileId-896189 )?

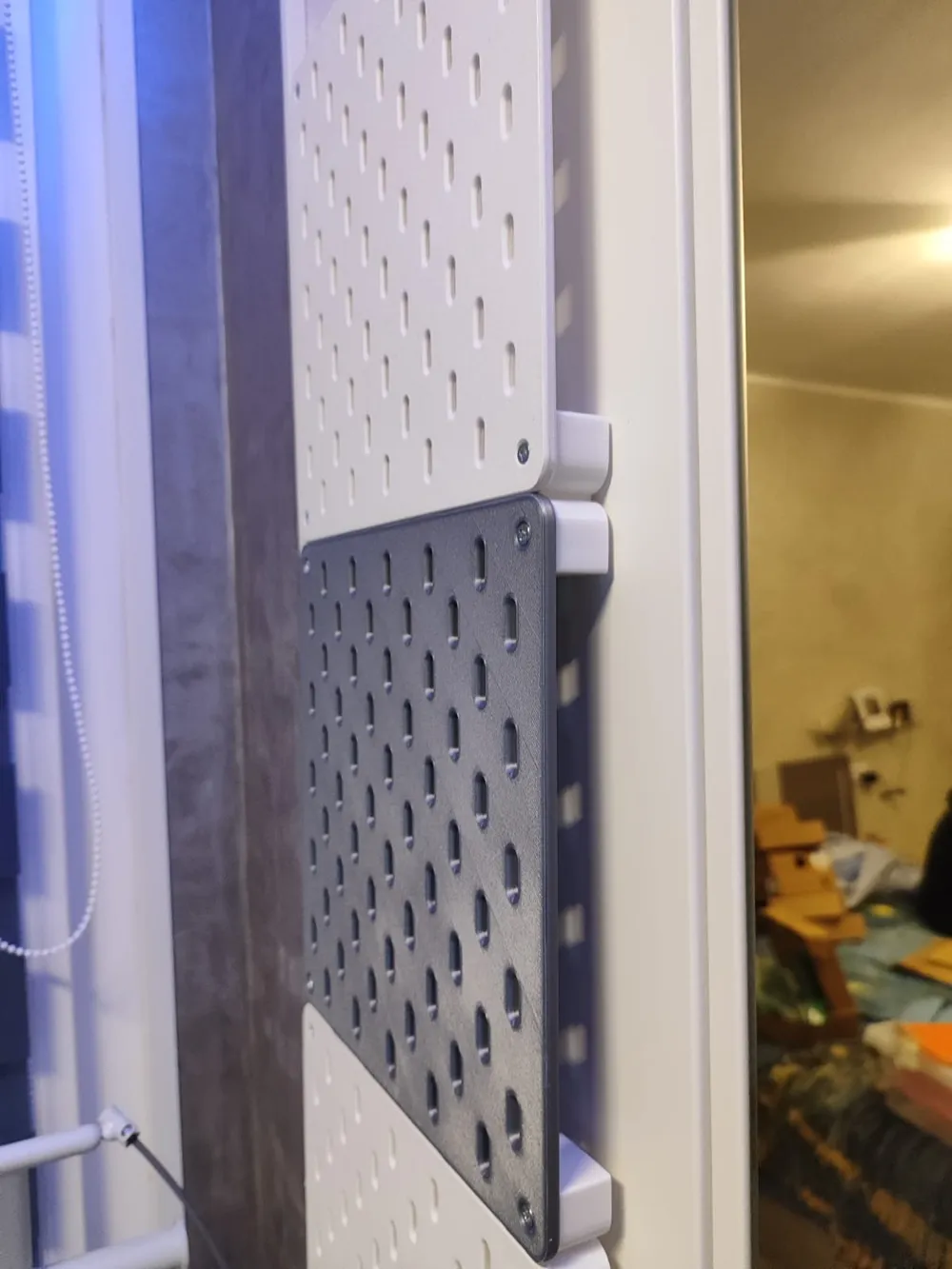

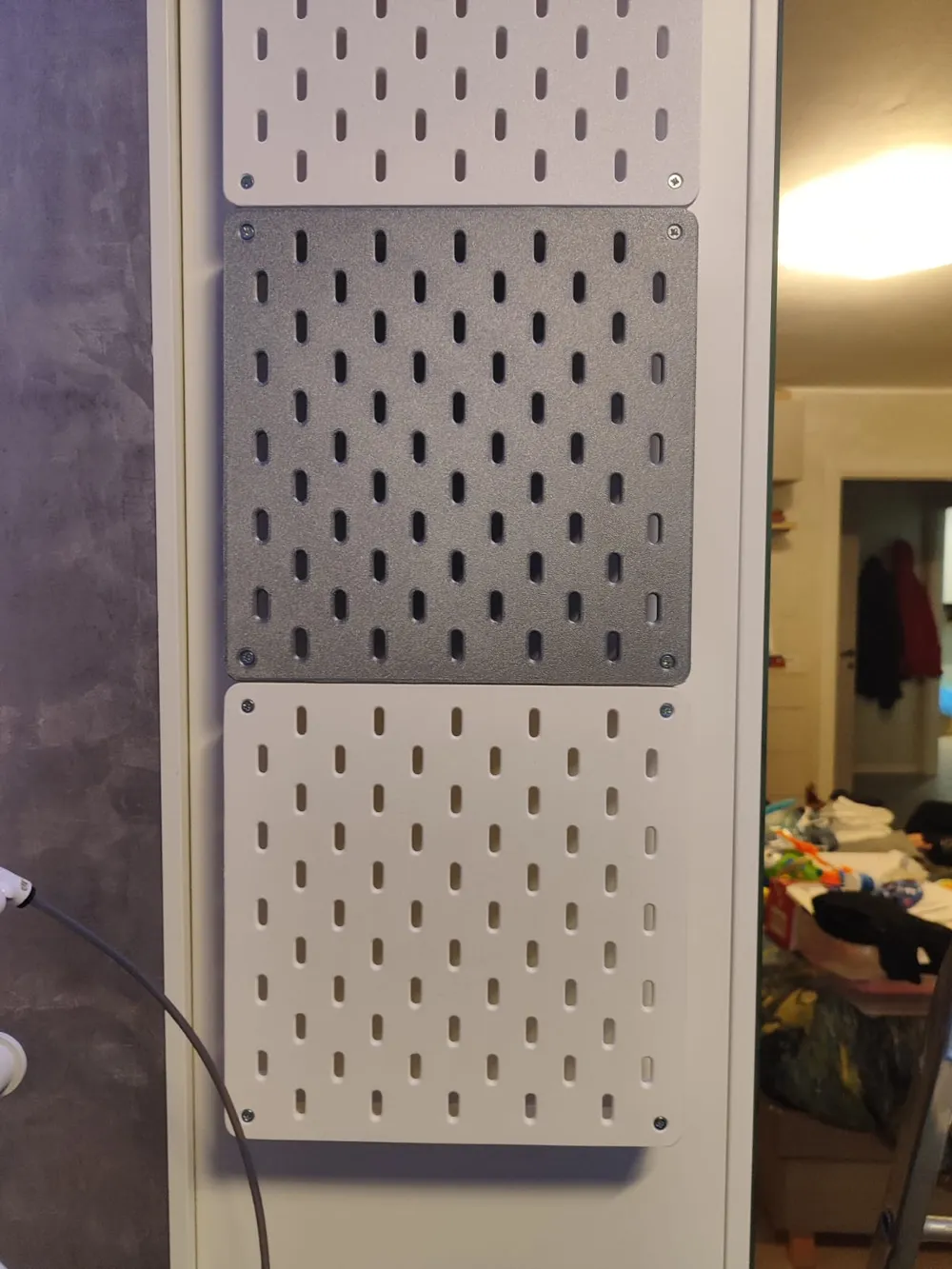

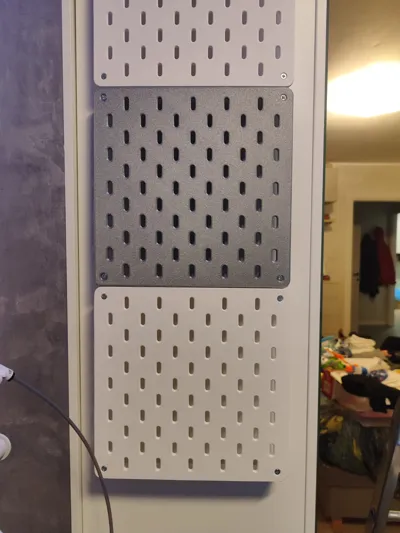

No worries: I have created supports that, starting from the top of the Ikea Enhet cabinet, allow you to create a vertical panel made up of various aforementioned Skadis-like panels without drilling into the cabinet.

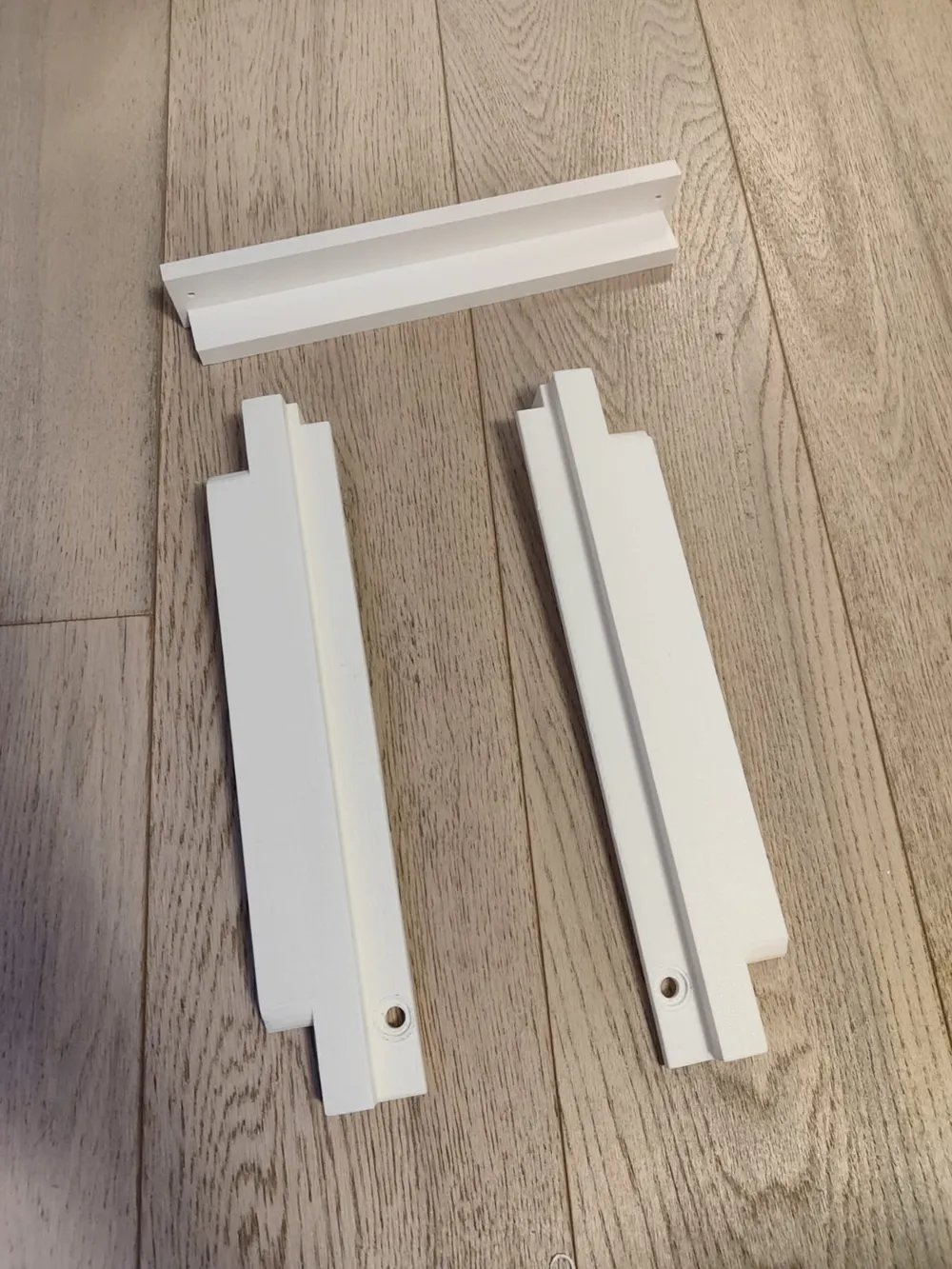

The project contains:

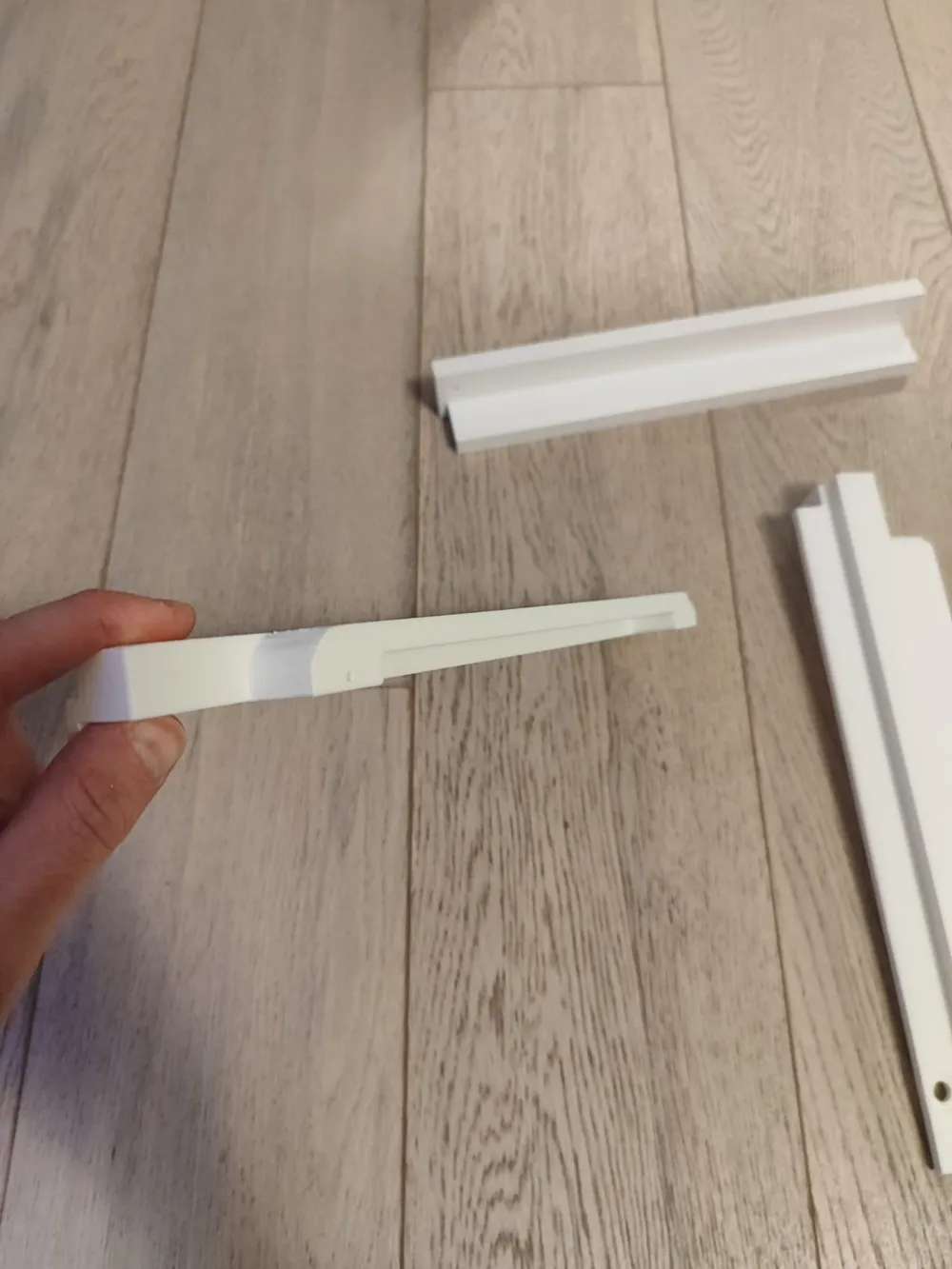

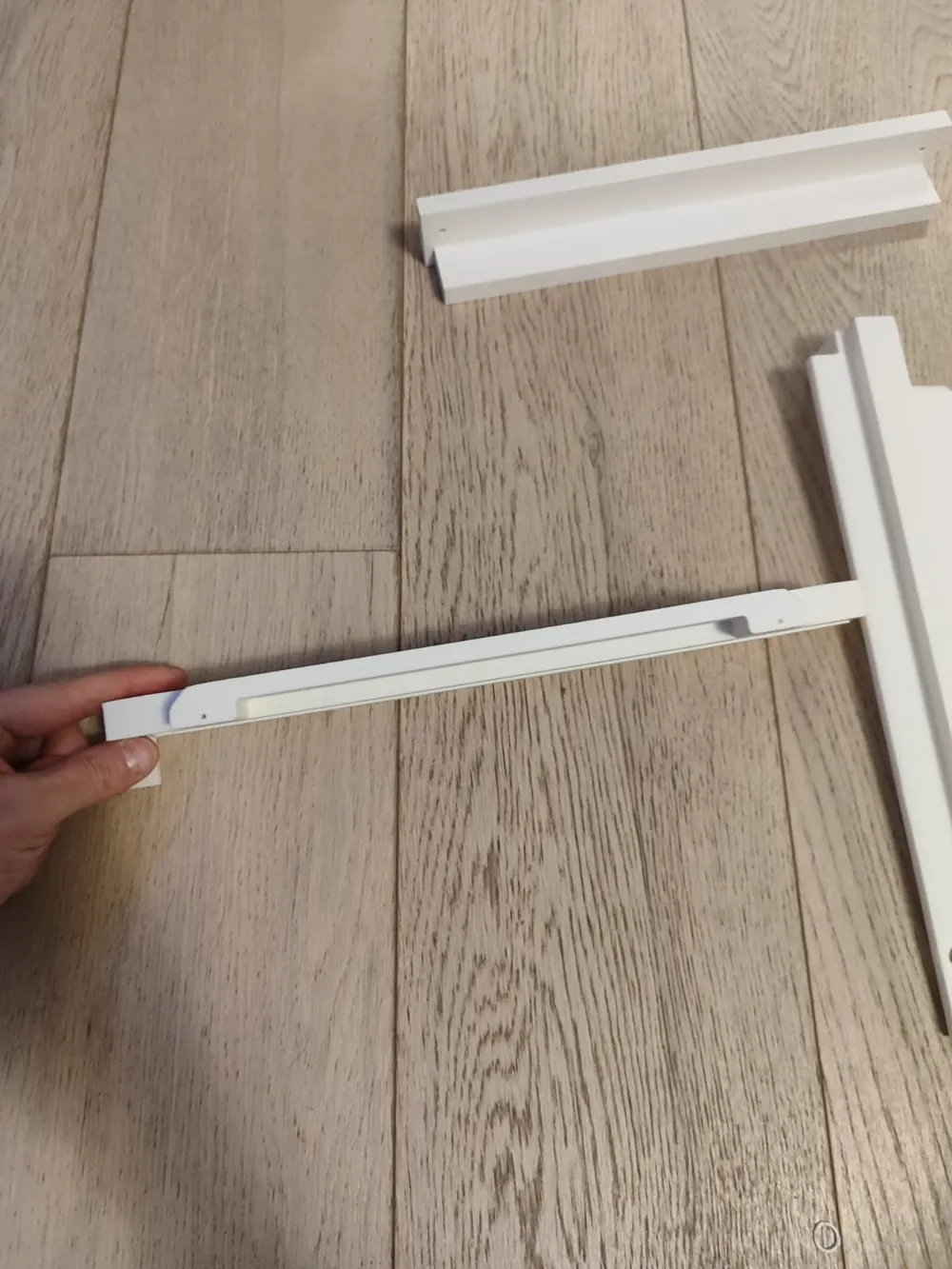

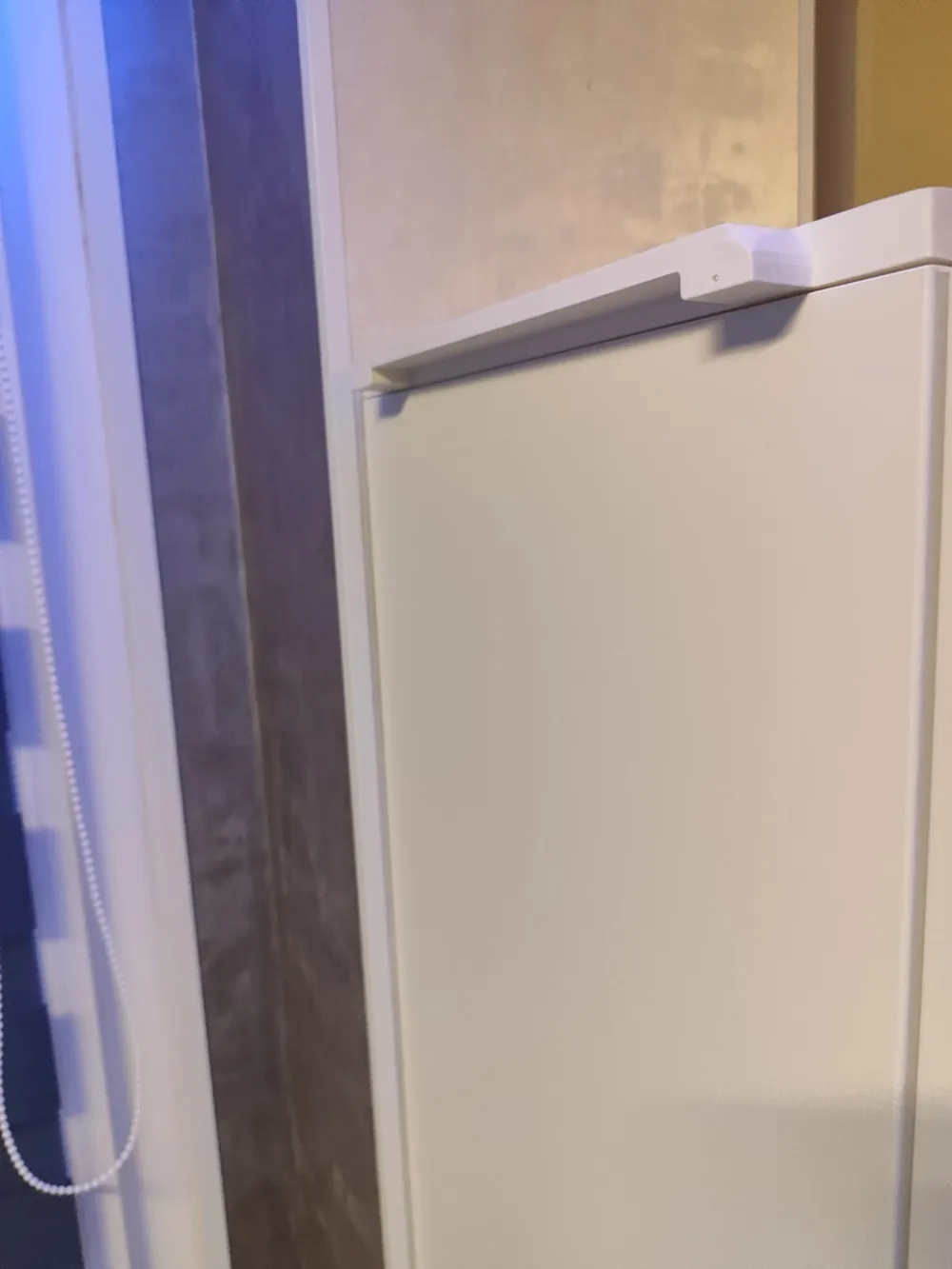

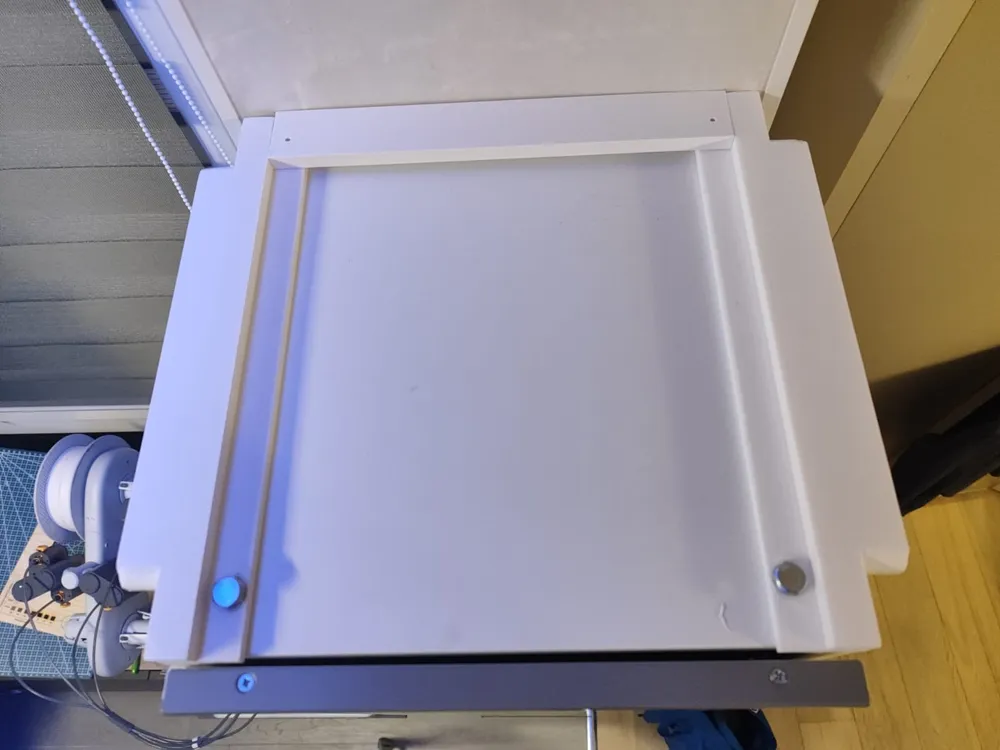

- Upper right support with starting Skadis-like attachment
- Upper left support with starting Skadis-like attachment

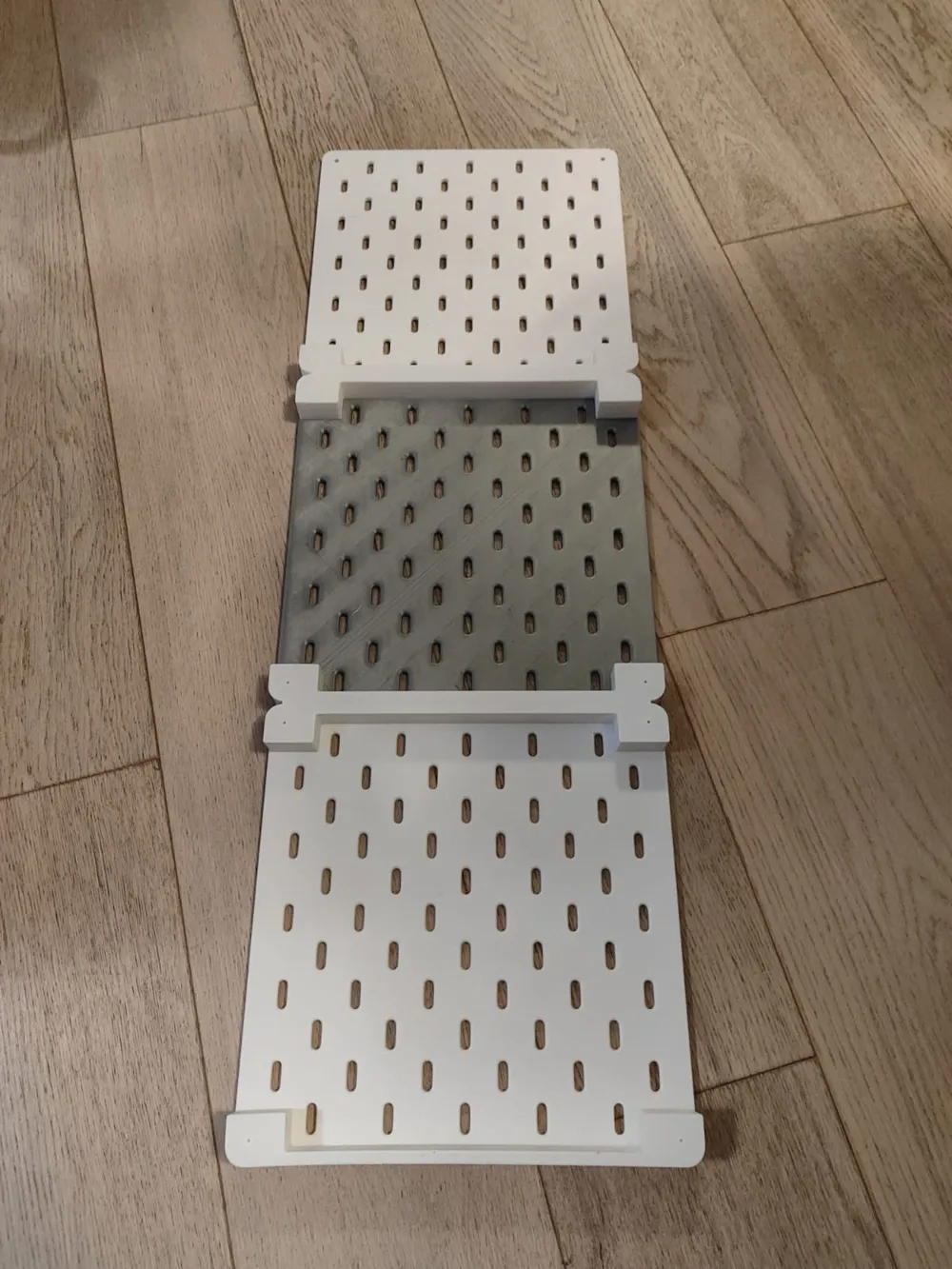

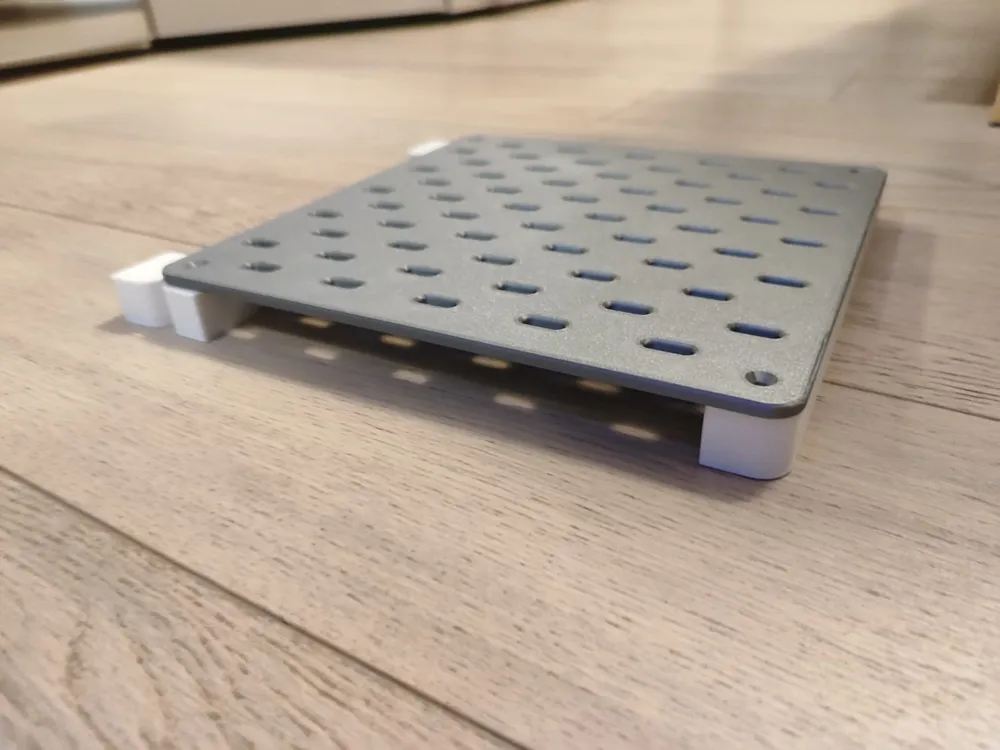

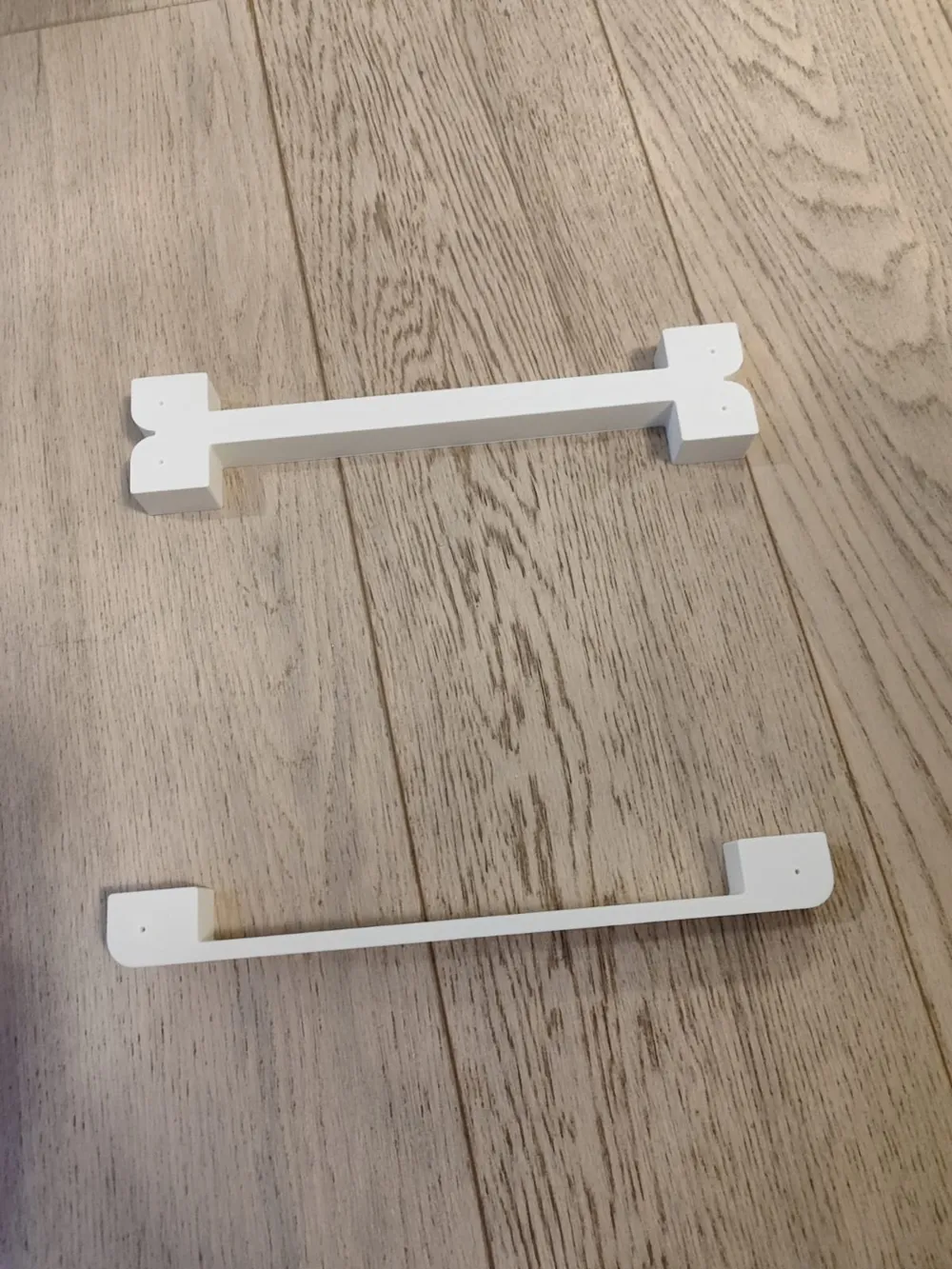

- Intermediate support to connect the two Skadis-like panels
- Final support to complete the last Skadis-like panel at the bottom

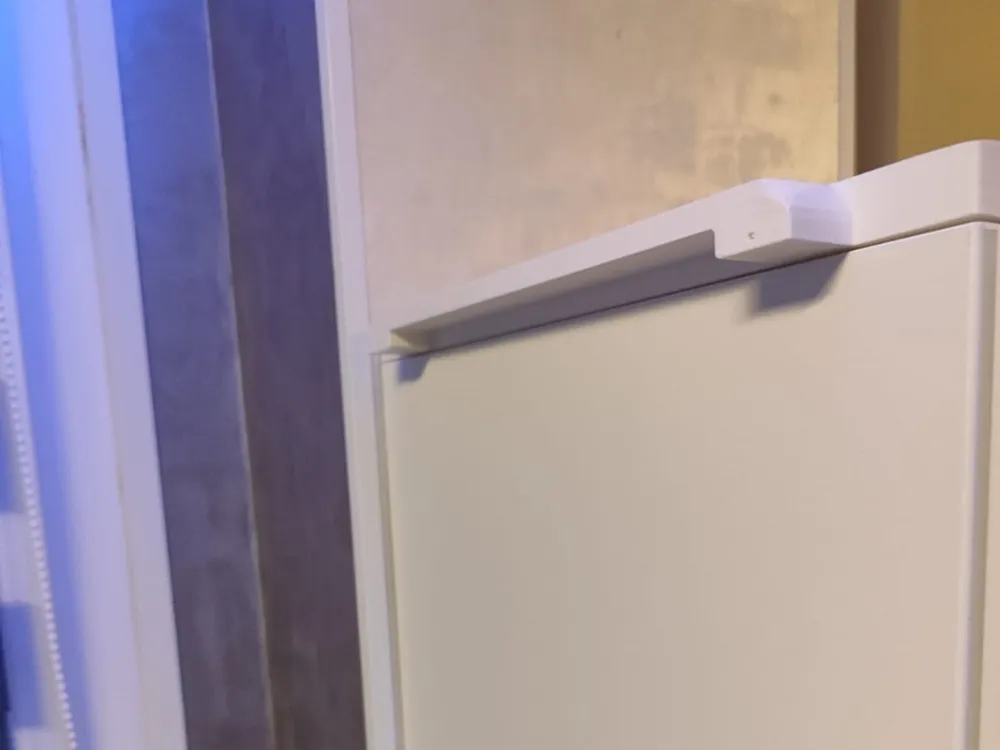

It will be necessary to use Ø3mm x 12mm wood screws to connect the various panels to the supports and 2 screws with existing threads on the top of the Enhet cabinet.
Once the system is created, I recommend using a bit of Pattafix removable adhesive paste or similar to keep the Skadis-like panels “locked” on the side.
The model is ready to print in PLA or PETG
To make it, the following parameters were used:
- Infill Density: 20%
- Wall Loops: 3
- Layer Height: 0.20mm
- Supports needed (tree)
- Material: White PLA (but can be made in any color desired)
