Description

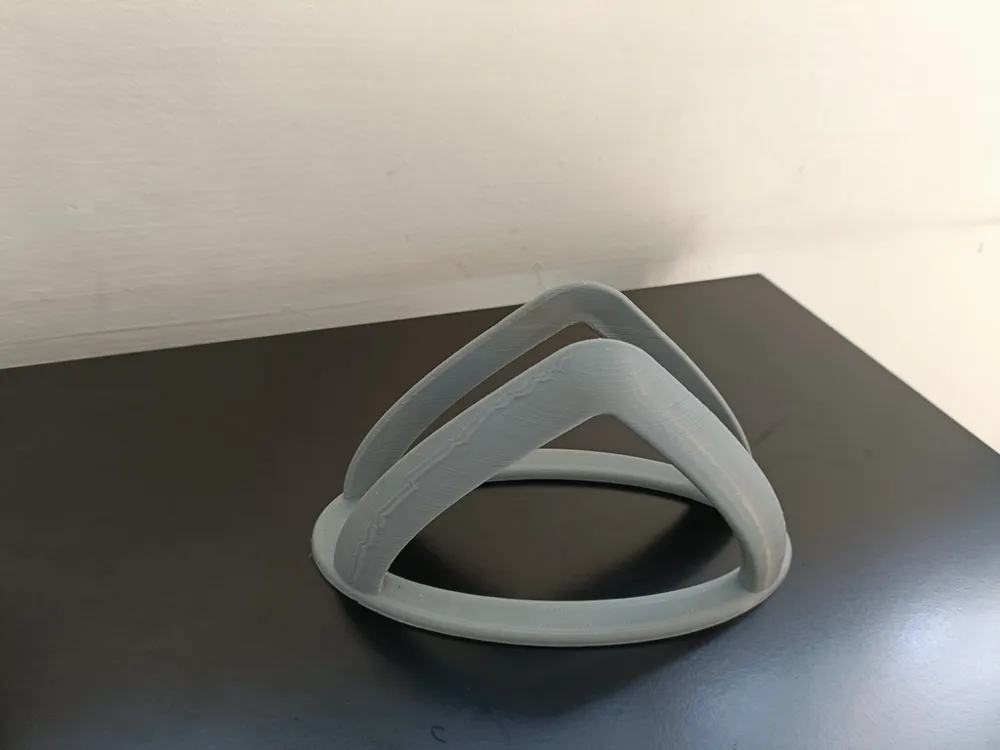

I'm inspired by many laptop stand designs but didn't see one that I like and is usable for my old thick laptop (32mm) without changing the size ratio.

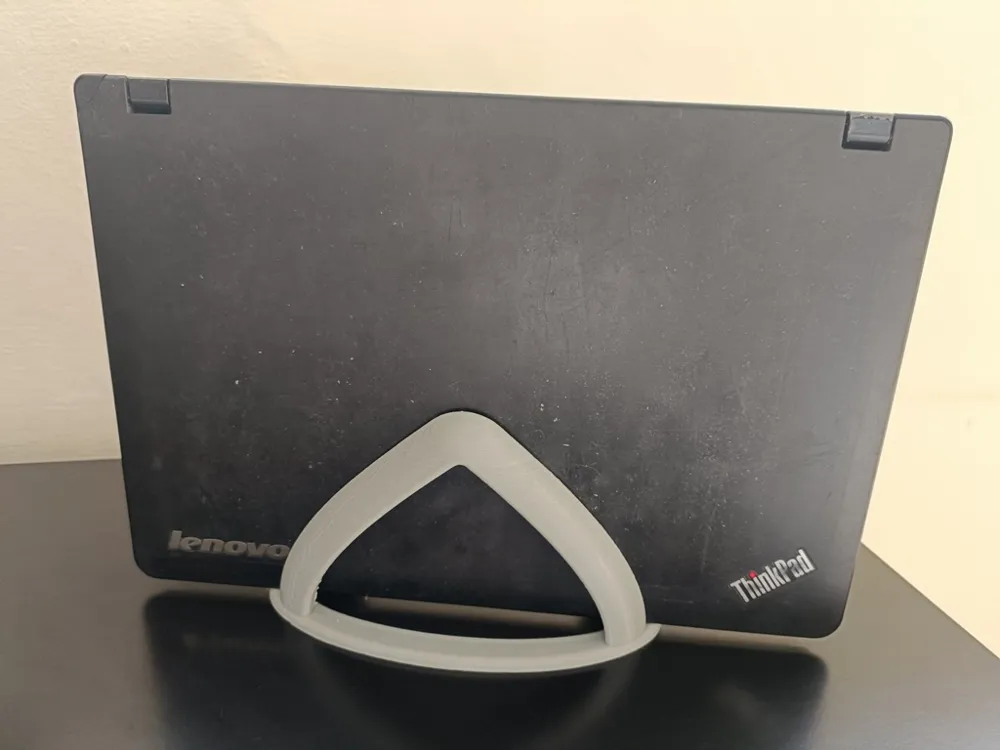

I have uploaded my own print profile that is 100% size, which will hold 32mm thick laptops, I hope this clears the air on sizing.

I'm experimenting with this new service from Slant3d. Print on demand, and I get a cut of the sales. https://teleportpod.com/portal/f33ca0b1-b58a-4e7e-b608-0183dd8be661?item=46

General guideline on resizing the model to fit your laptop/device better. (I do not guarntee you will get your desired fit because there are too many variables to consider other than thickness.)


Your measured device at thickest point = T

Assuming that your slicer resize adjustment is based on moving up and down from 100%
Amount to resize  = T/32 x 100%

I suggest to give some buffer from the calculated value, i. e. resize it such that it is still slightly larger than the calculated value.
