Amotion Cupholder Seat Leon 5F
Print Profile(1)
Description
I designed a 3D model, as there is almost nothing to be found online.

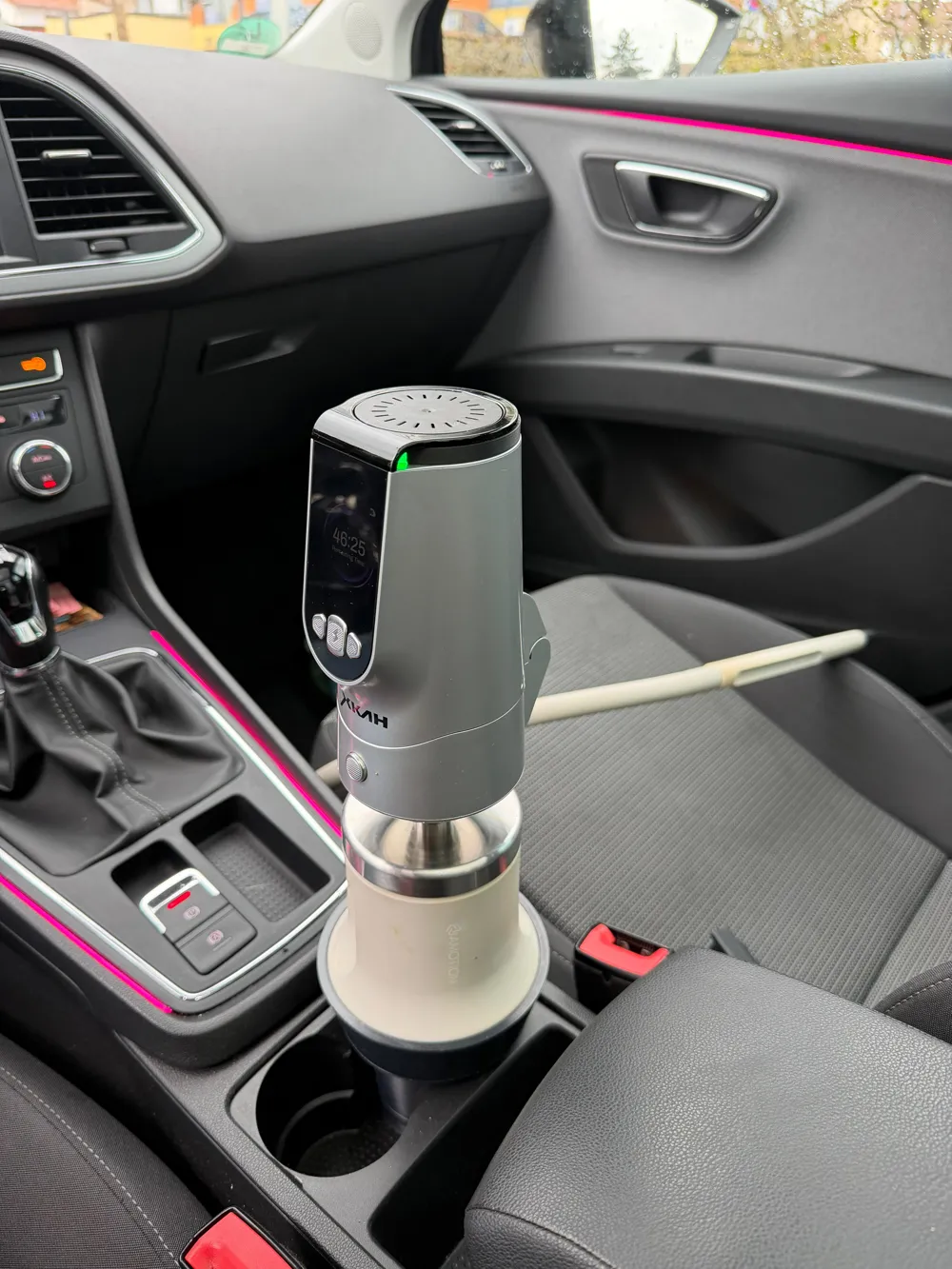

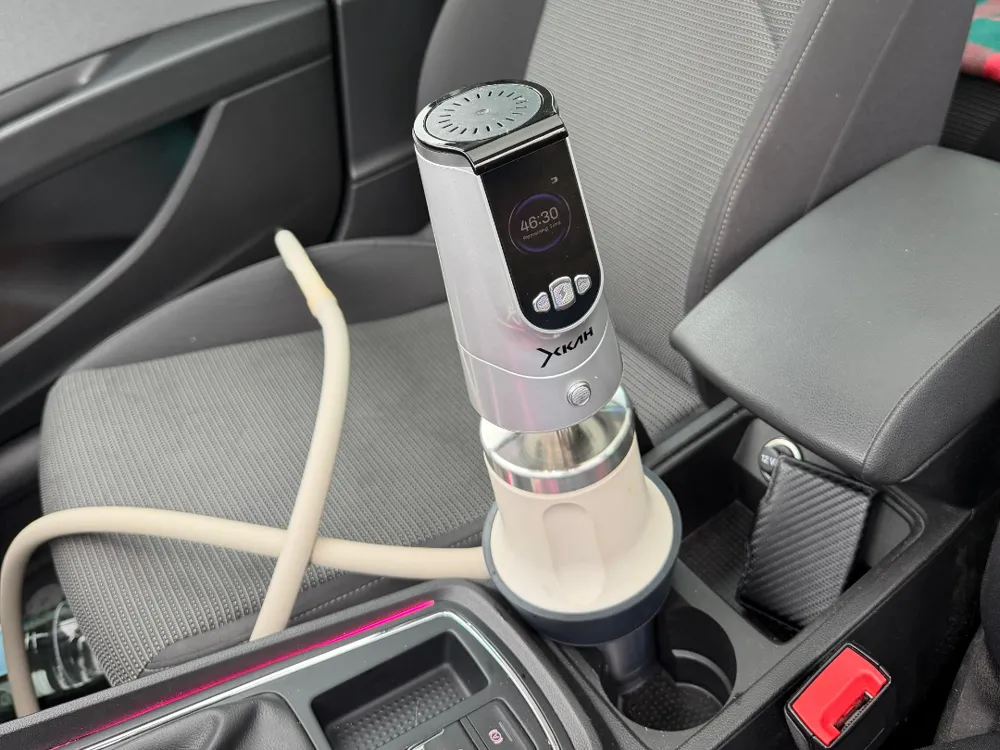

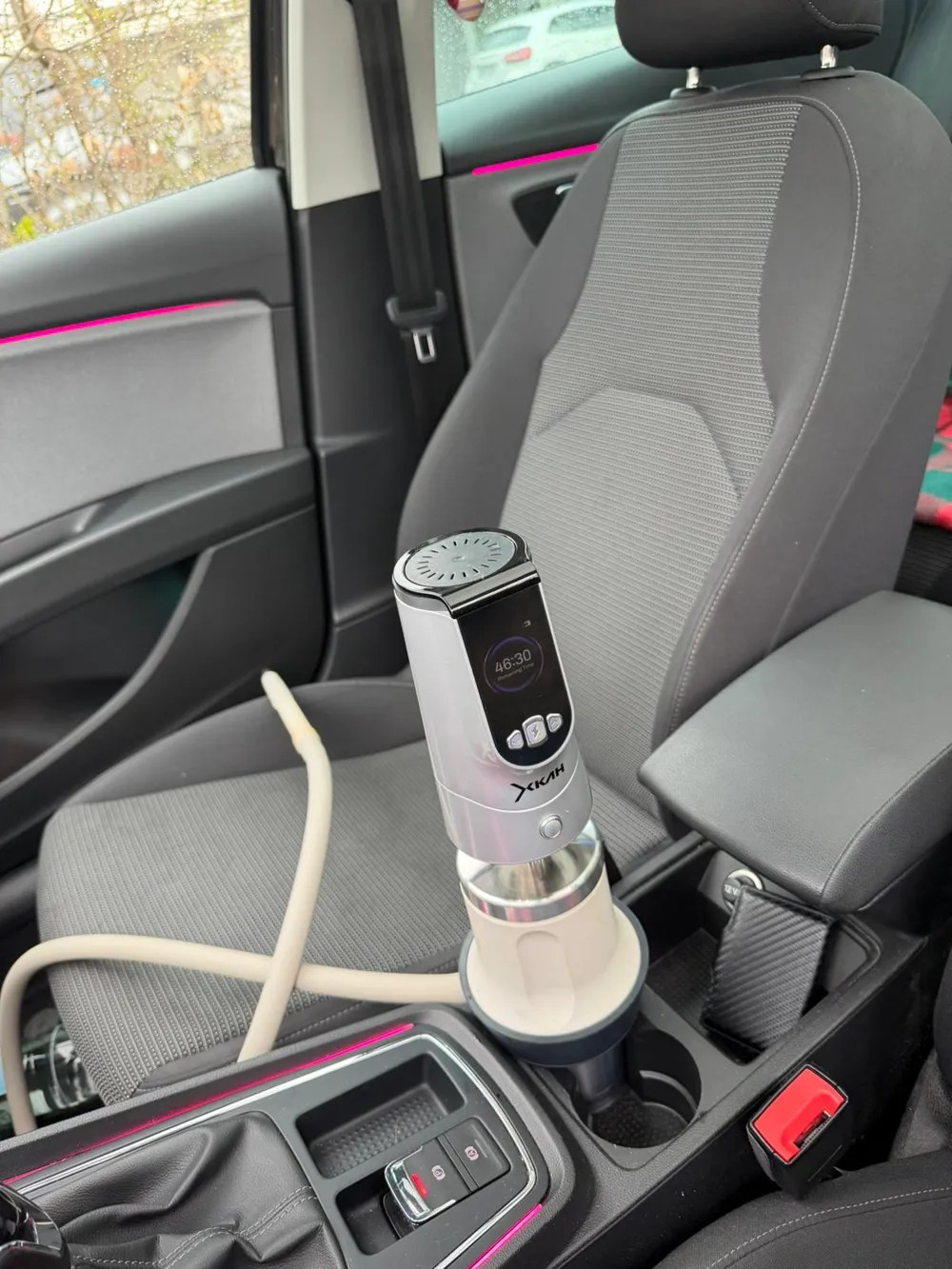

It serves as a connection between the Amotion Roam Shisha and the car's cup holder.
Bambu PETG HF
0.4 mm nozzle
with tree support structure
improved wall strength x4, 10% infill density
I received the dimensions.

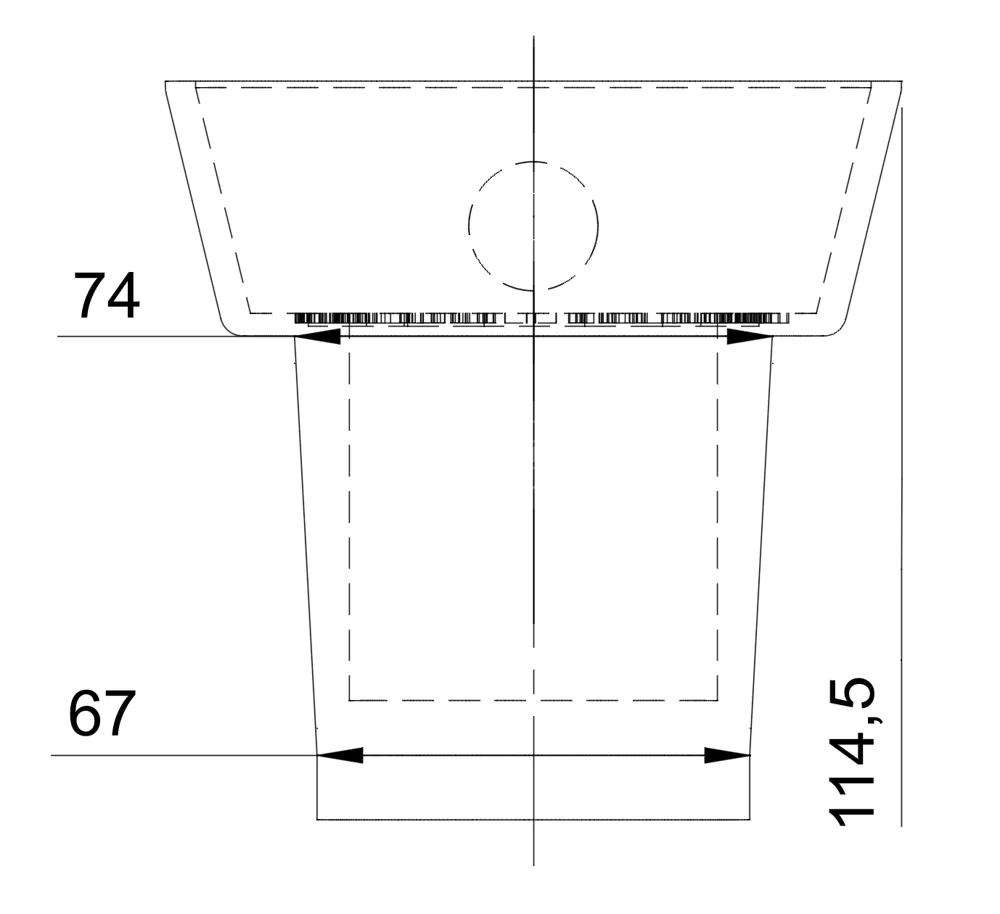

The cup holder's diameter is 74 mm at the top and 67 mm at the bottom.
It has a total height of 114.5 mm and is 75 mm deep in the cup holder.
Upon request, the diameter as well as the height within the cup holder can be adjusted.
In the holder's socket there is also a recess for water leaking from the hose.
A spare battery can be stored in the lower part.
Perfect for smoking while driving.
