Modular Bird & Insect Bath with Ground Spike

⚠️ Printing Note

The model was designed for long-term outdoor durability
Please **use at least PETG**, as this material is weather-resistant and ensures the **threads function reliably**

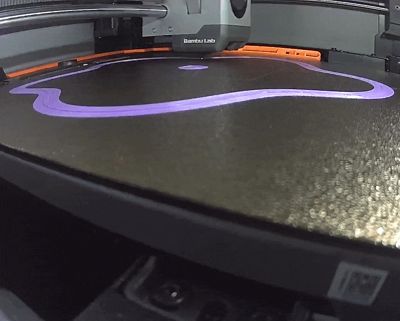

The bowl is printed **almost without supports** to save material

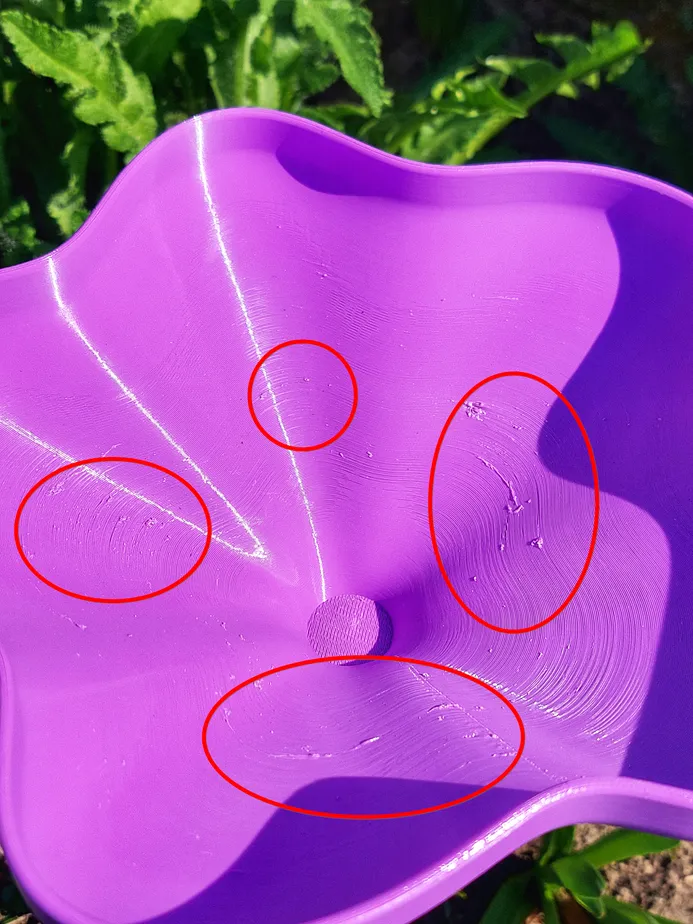

Small **printing bumps may appear on the inside** (see photo below)

These can be easily removed:

• remove larger remnants by hand
• briefly melt small threads with a lighter

The **function or watertightness of the bowl is not affected** by this
These marks are design-related due to printing without supports and are **not a quality defect**
All models are **printed by me before release and tested in practice**

Description

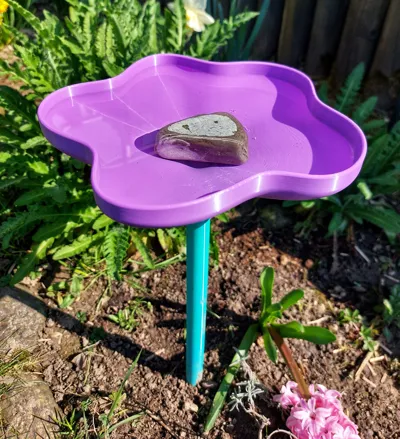

This minimalist bird and insect drinker was specially designed for the garden, visually inspired by the **outlines of a wildflower** 🌸 and thus naturally blends in with plants 🌿 Thanks to its modular system, it can be set up flexibly and is ideal for small garden birds like sparrows, tits, or robins, as well as for bees and other insects 🐦🐝

🧩 Modules

• Main bowl – water basin for birds and insects
• Extension elements – height adjustment 175 mm / 87.5 mm (The **87.5 mm variant is ideal for bedslinger printers** (e.g., Bambu A1 / A1 mini), as the thread at the upper end is printed more cleanly)

• Ground stake – stable ground fastening



⚙️ Assembly

1. First, **prepare a hole in the ground** (e.g., with a stick or metal rod)
2. **Insert the ground stake** and do not apply strong lateral forces
3. **Screw the modules together** and adjust to the desired height
4. If the drinker wobbles too much, simply **remove an extension element**
5. **Fill with water and enjoy **
   1. 💡 Tip: Place small stones or gravel in the bowl This creates safe landing spots for insects and additional drinking areas💧🐦

----------------------------------------------------------------------------------------------------------------------------------------------------------------------
