Self-Watering Planter with Adjustable LED Light

Hi all

I would like to introduce you my new 3D model

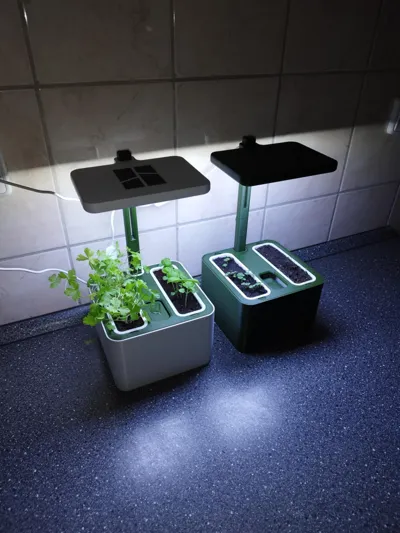

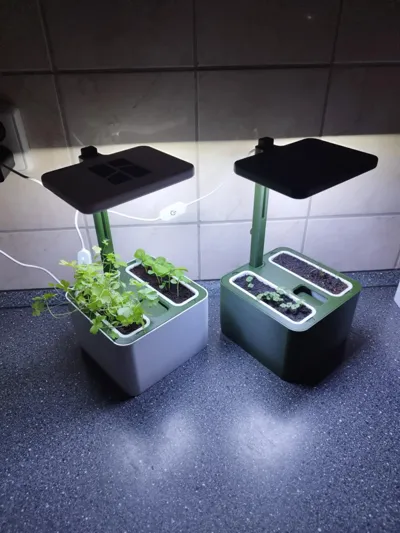

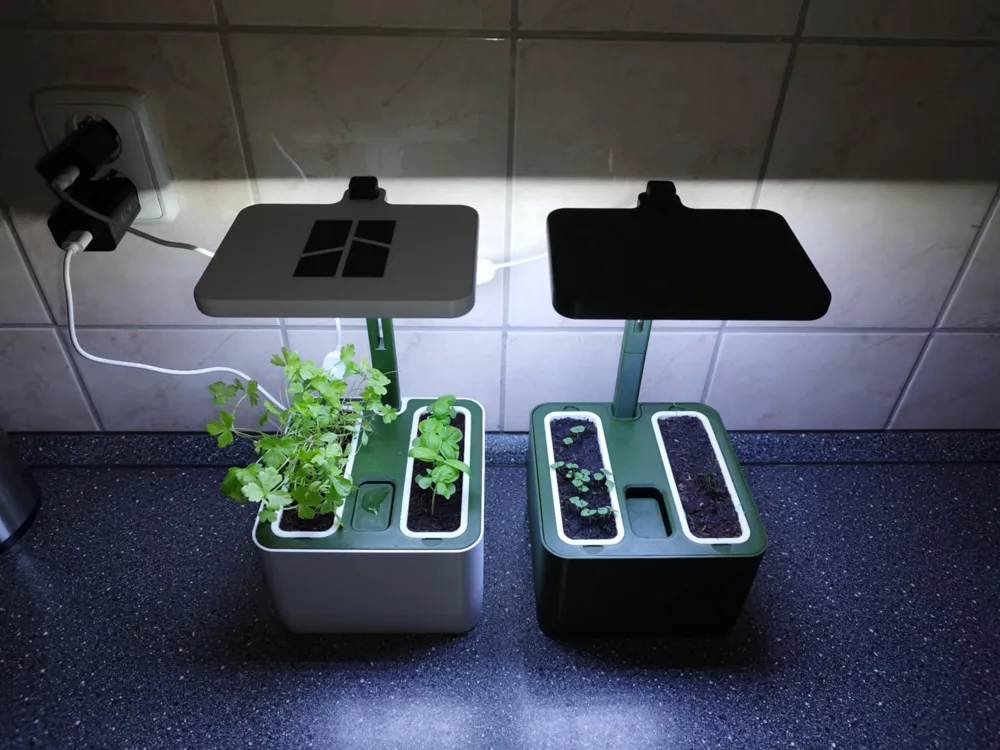

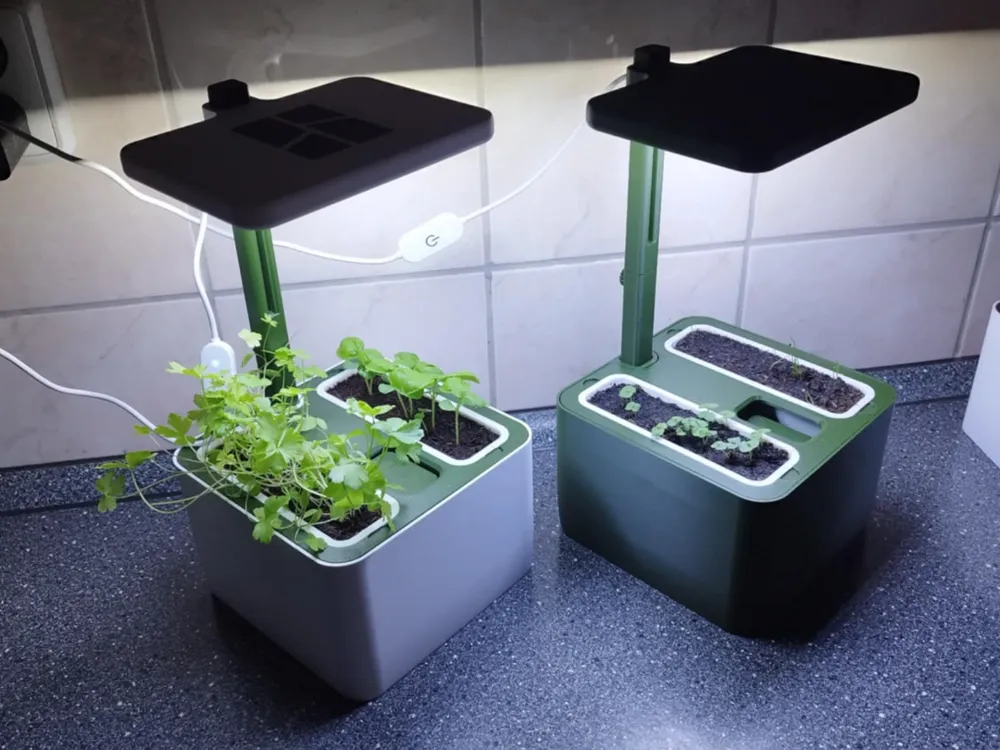

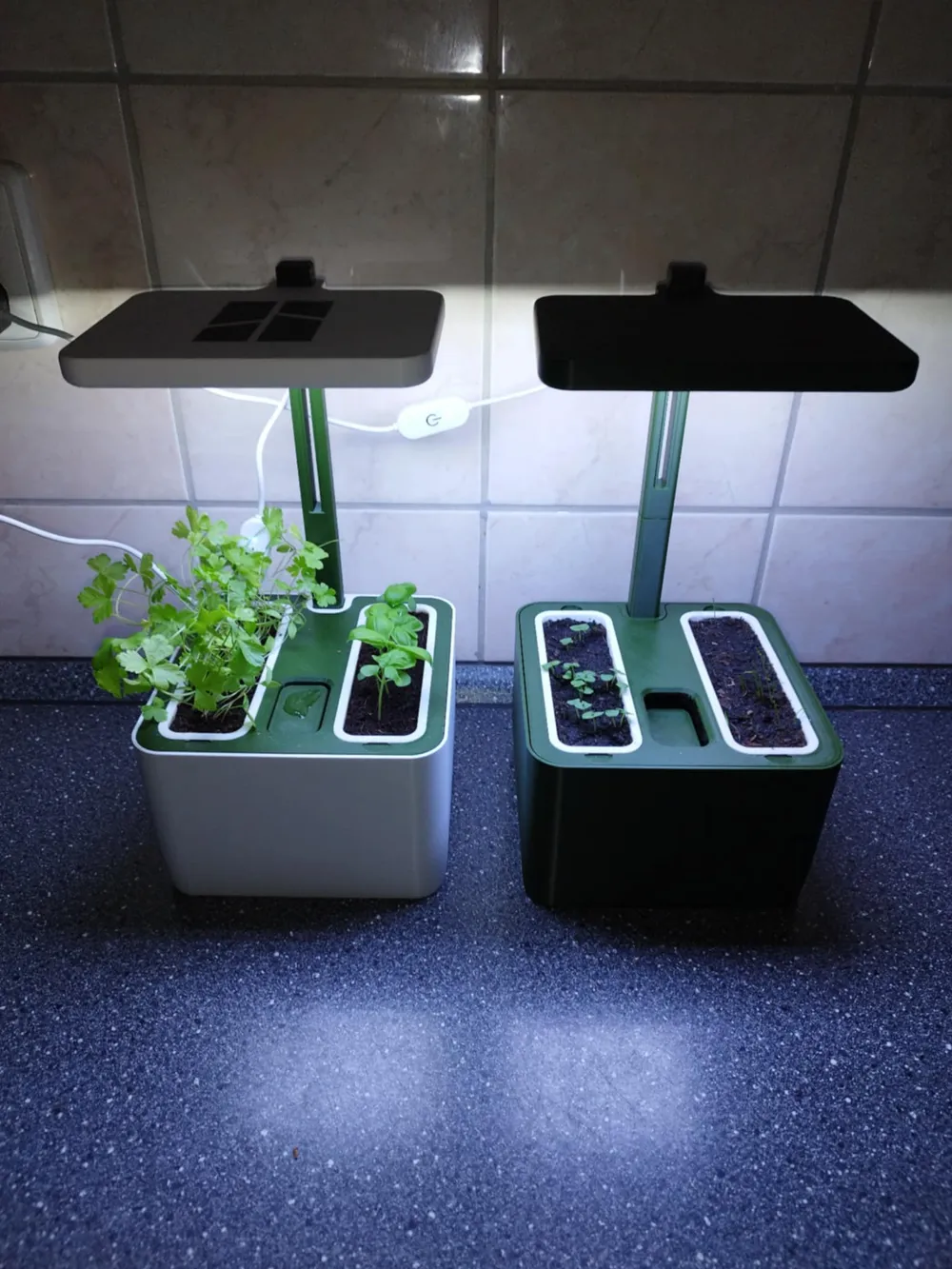

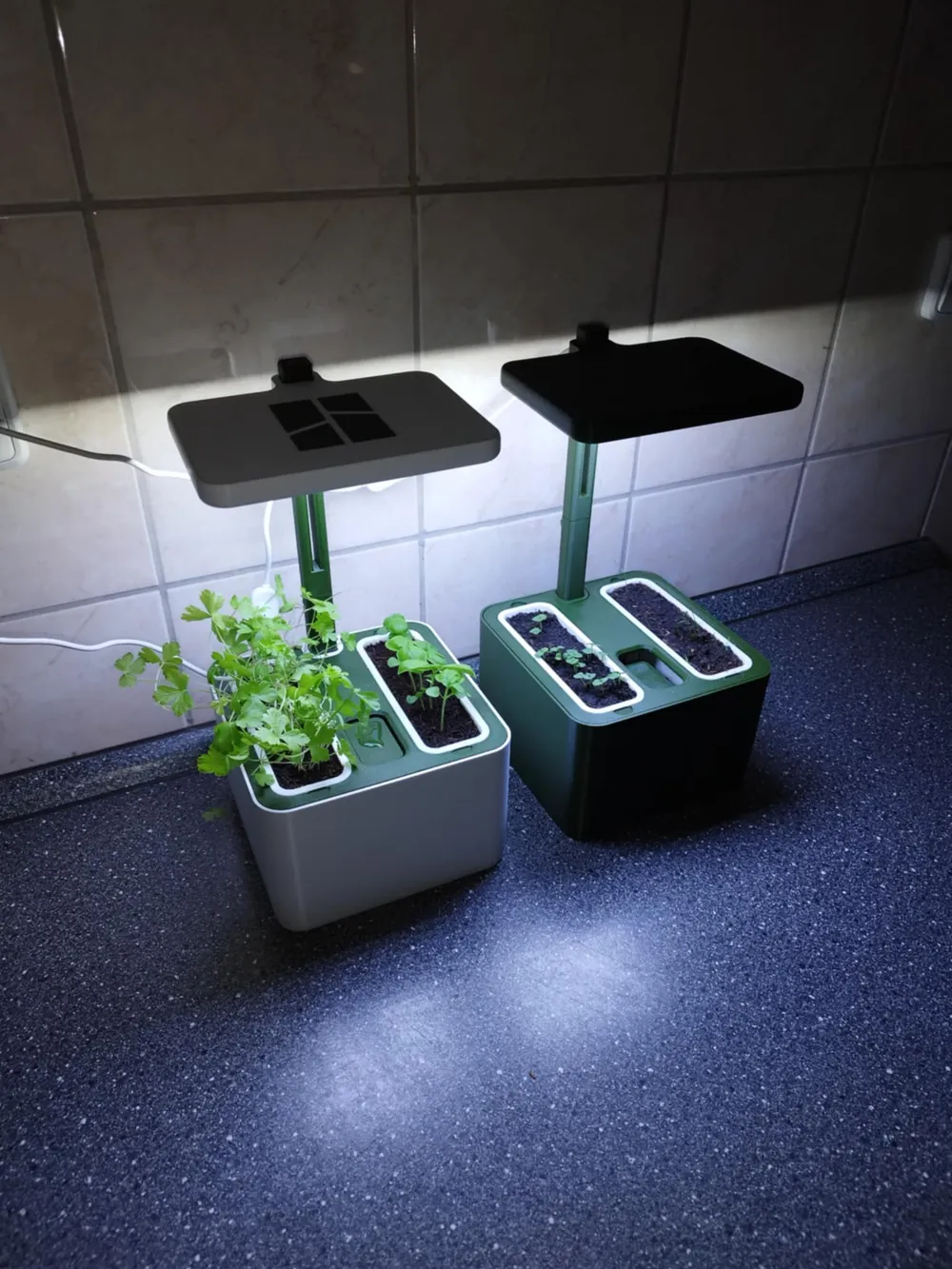

🌱 Self-Watering Planter with Adjustable LED Grow Light 🌱

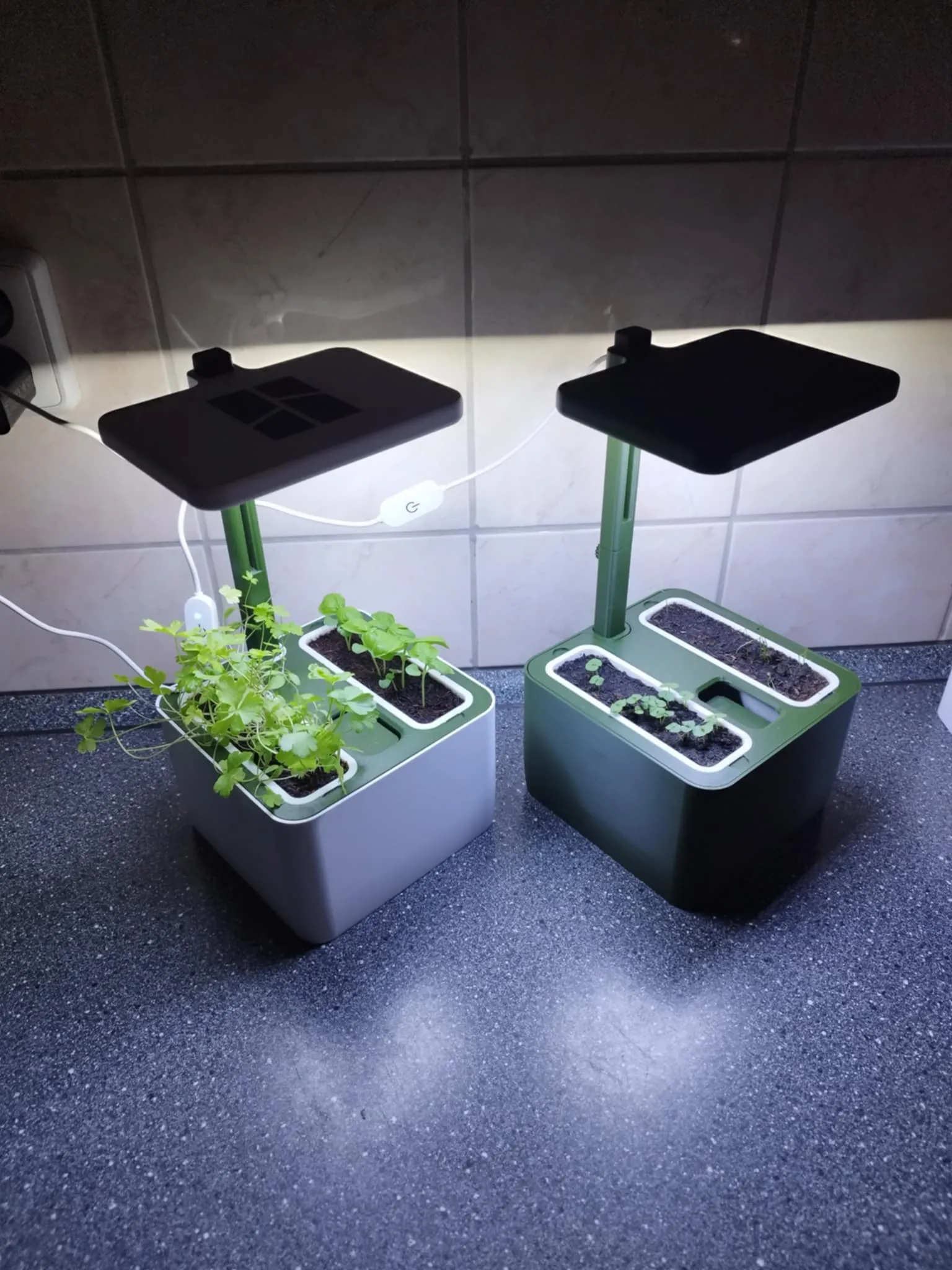

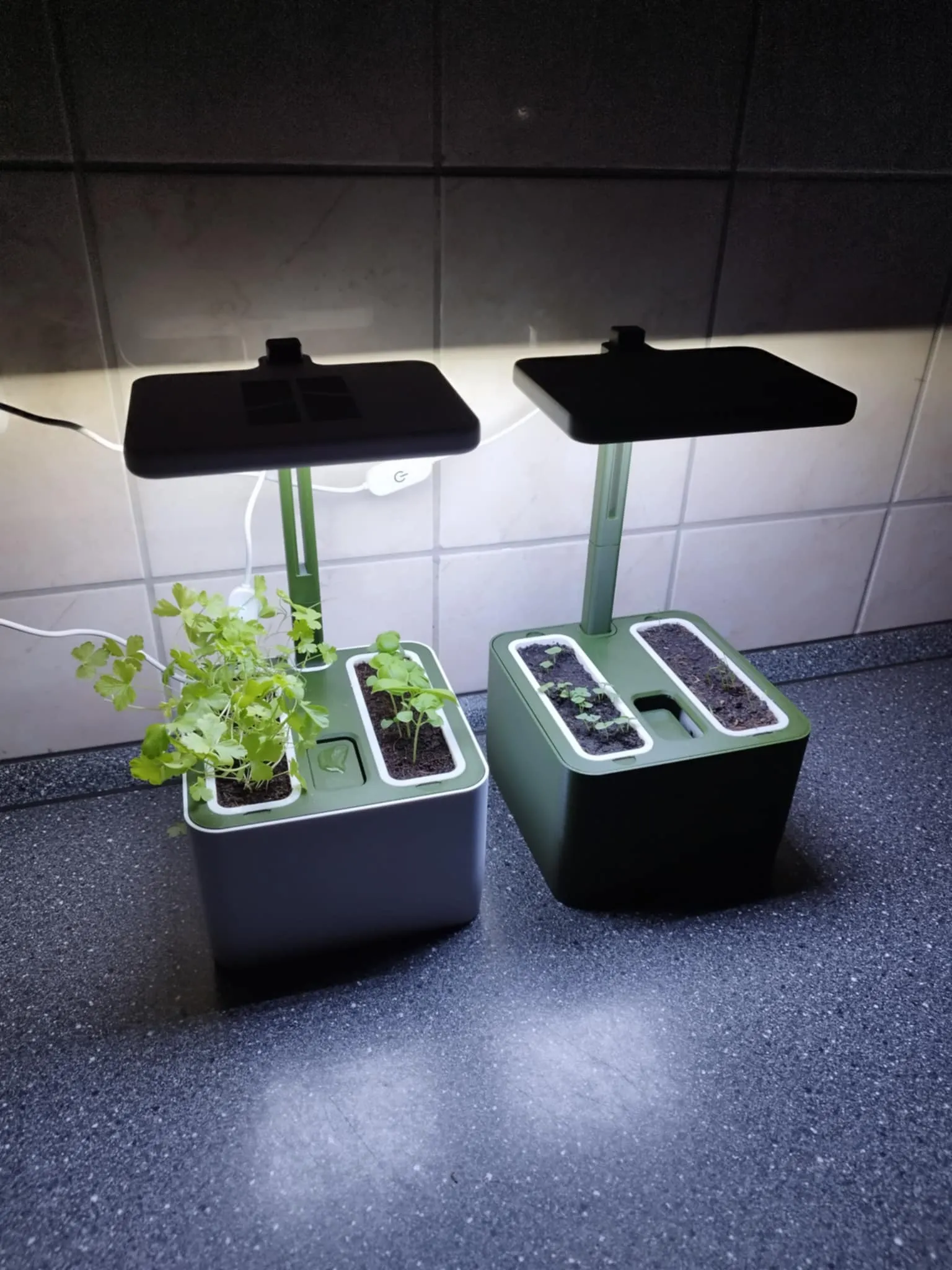

Grow herbs and small plants indoors with this smart self-watering planter featuring an adjustable LED grow light and automatic water level control.

This compact indoor planter combines a self-watering system, adjustable lighting, and a modern design to make growing herbs and small plants easy all year round.

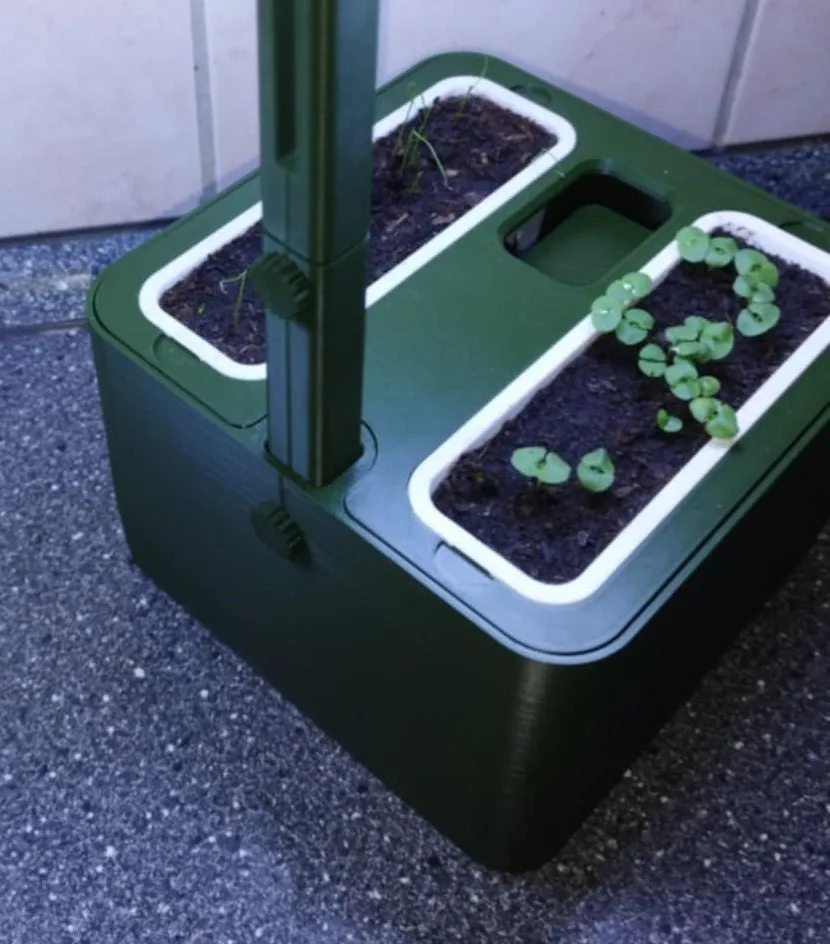

The integrated water reservoir provides consistent moisture to the plants, while the float indicator allows you to quickly check the water level.

A unique feature of this design is that the float also closes the watering hole when the reservoir is full, helping prevent overfilling.

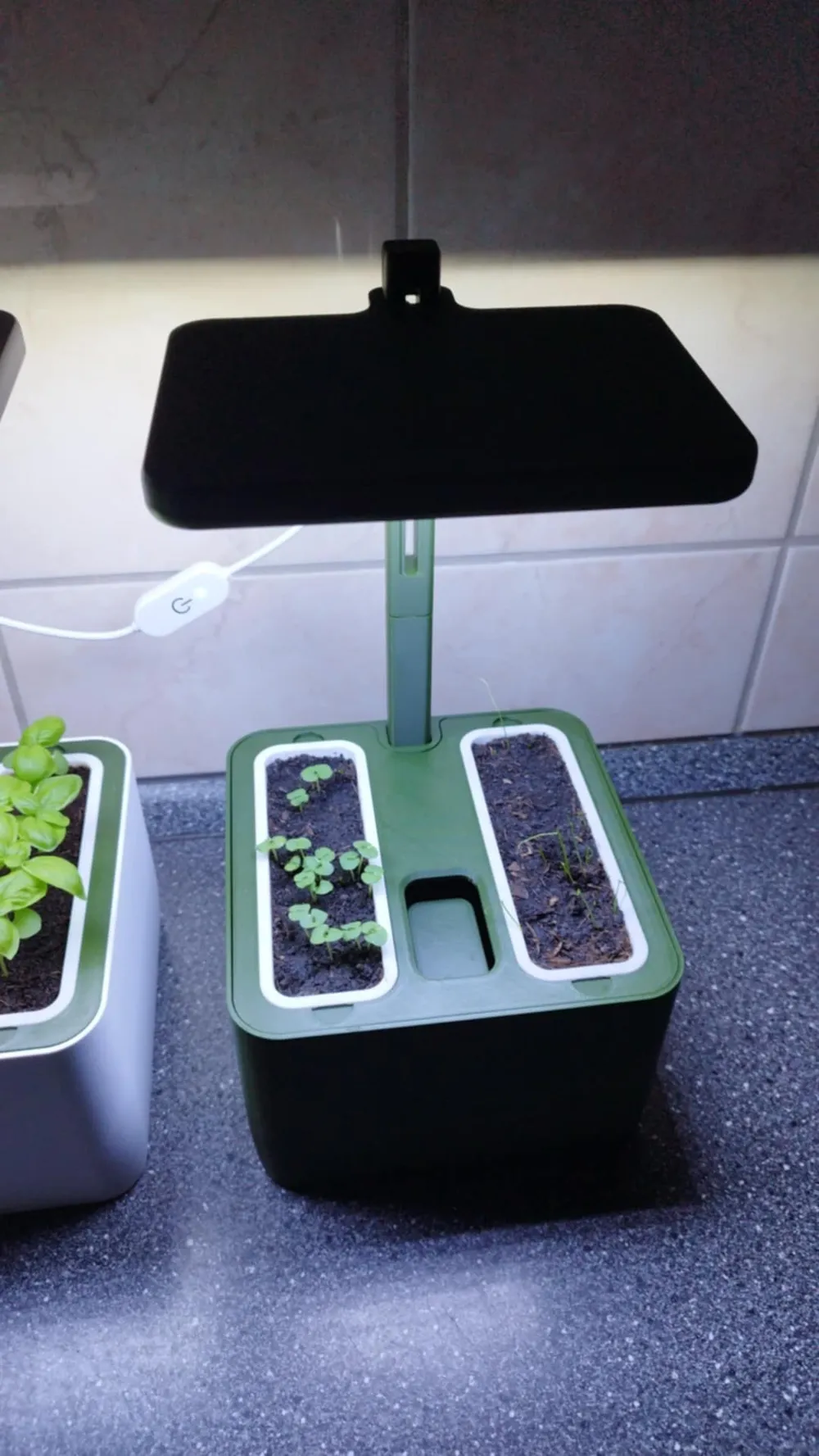

The adjustable grow light column allows you to raise the light as plants grow, ensuring optimal lighting from seedlings to mature plants.

The light support column also includes internal cable routing, keeping the setup clean and organized.

Perfect for growing herbs directly in your kitchen or workspace.

🌿 Features🌿

• Self-watering planter with water reservoir
• water level indicator with float
• float also closes the filling hole automatically
• adjustable LED grow light height
• clean internal cable routing inside the column
• ideal for herbs and seedlings

🌱 Perfect for growing 🌱

• herbs (basil, parsley, mint)
• microgreens
• seedlings
• small indoor plants

Great for:

• kitchen herb gardens
• indoor gardening
• year-round growing

🖨 Print settings

Recommended print settings are included in the 3MF files.

For the best results it is recommended to print directly from the provided 3MF project files, which contain optimized settings and part orientation.

if you dont want use my setting take special care about waterproofnes of water tank and floater .

🧱 Material recommendation

PETG recommended for all parts

mainly water tank, floater and light panel . rest i think can be PLA

The flower pot is one of my biggest projects. Tested for about a month to make sure everything is waterproof and works long term. The light is strong enough for the plants to grow well and not stretch for the light from the windows.I am curious about your color combinations and your growing successes.

If you enjoy this model, feel free to leave a Like, Boost, or Follow . Thank you! 🎄✨

All my models are tested by me and photos are real photos without help of AI

🔧 LED Light Assembly (Step-by-Step)

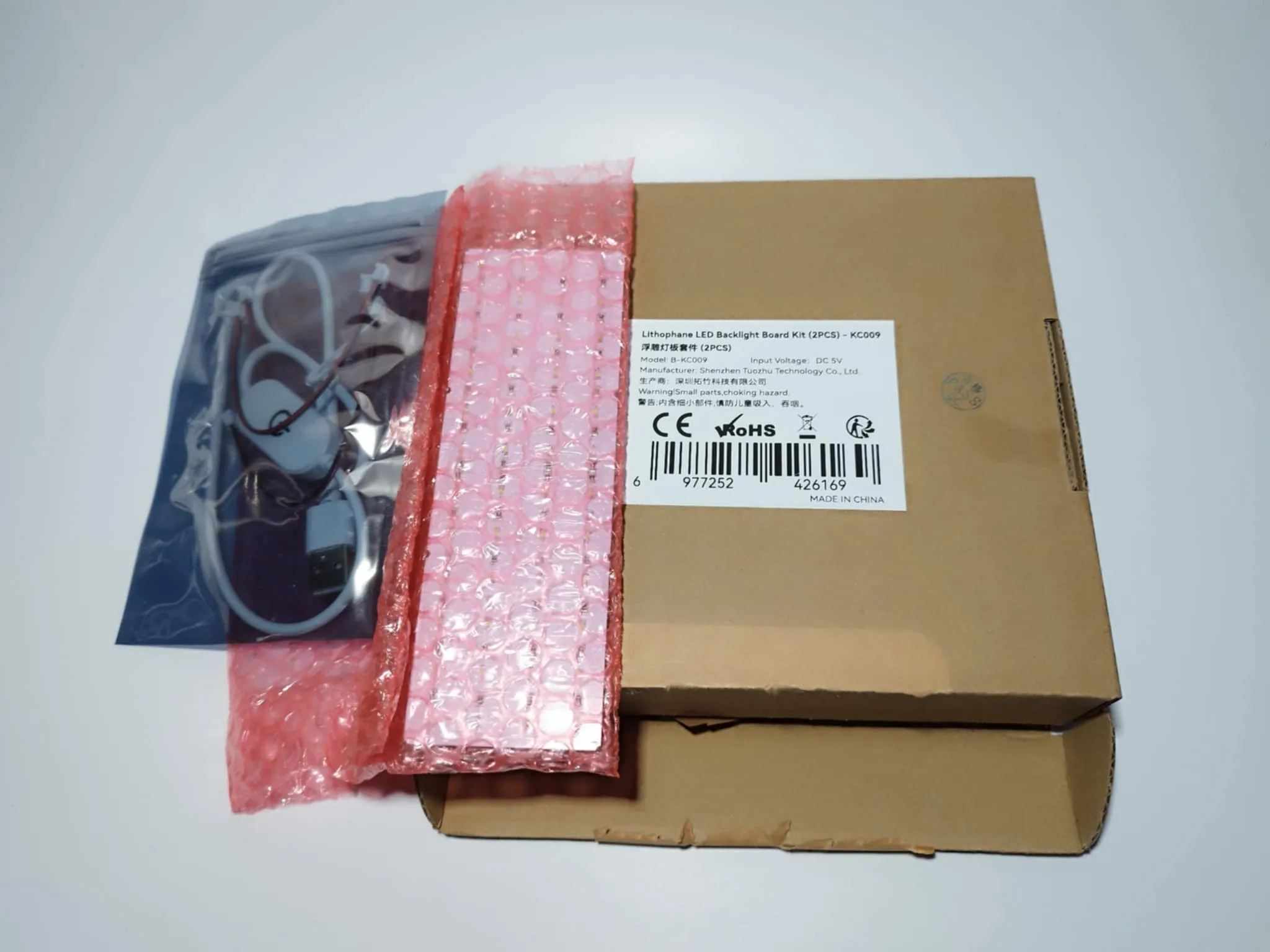

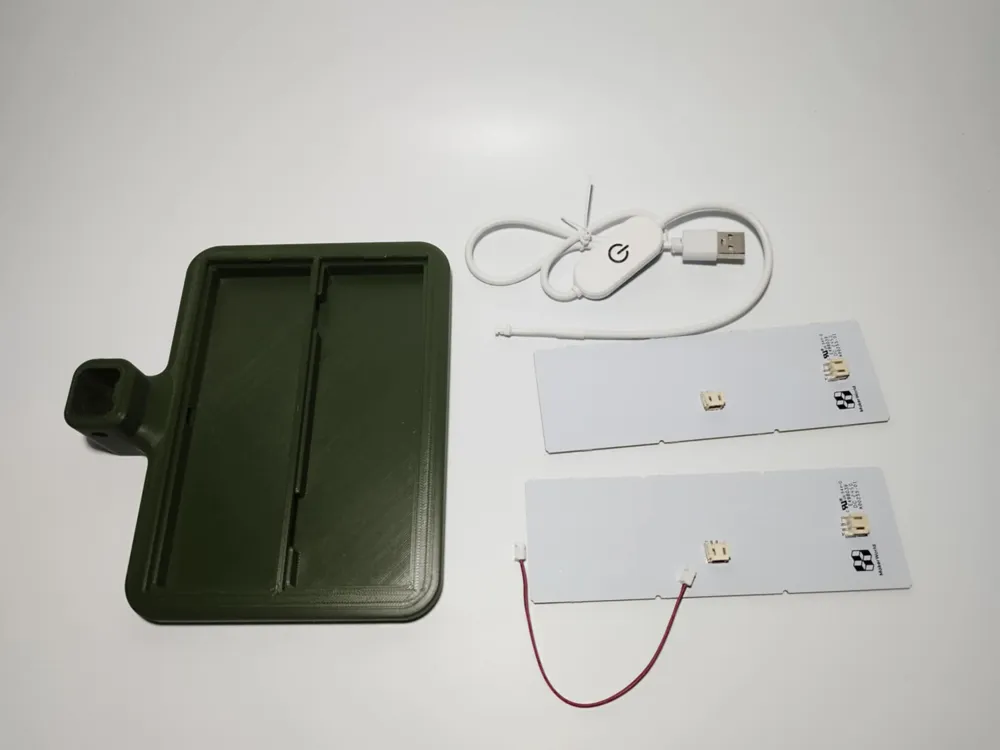

Step 1 – Prepare components

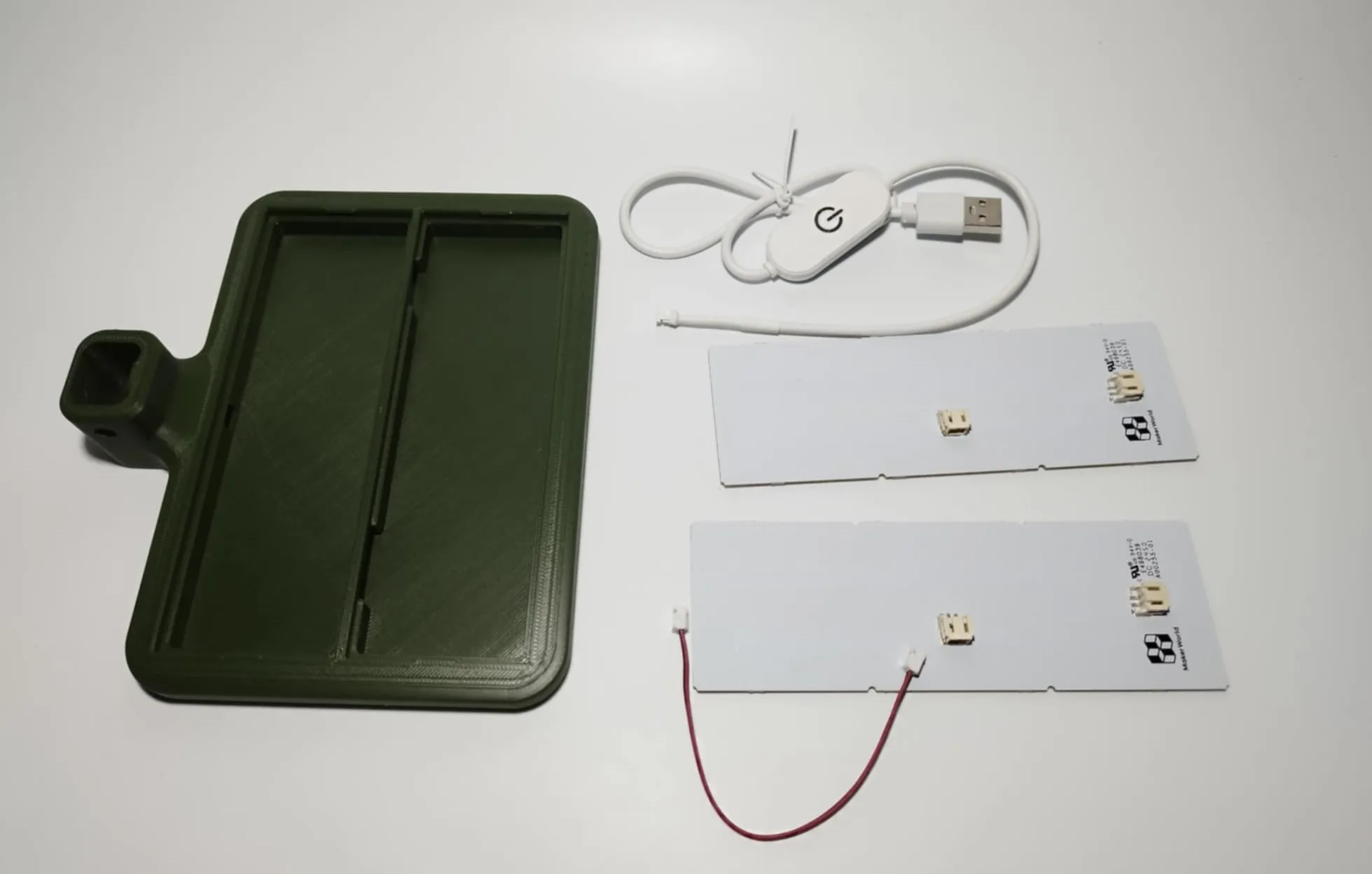

Make sure you have all parts ready:
• LED panel
• light housing
• support column
• wiring

Step 2 – Install LED panel

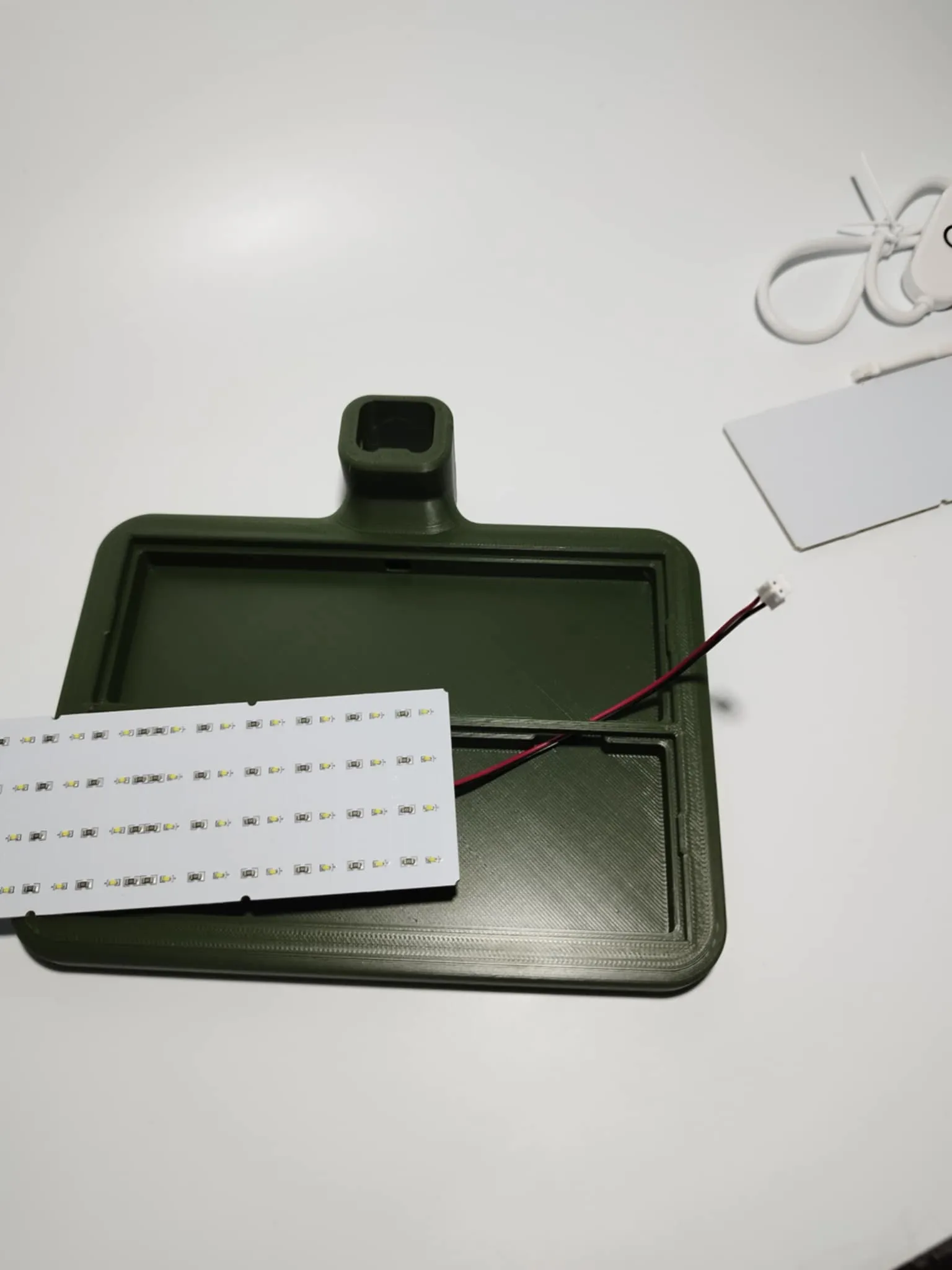

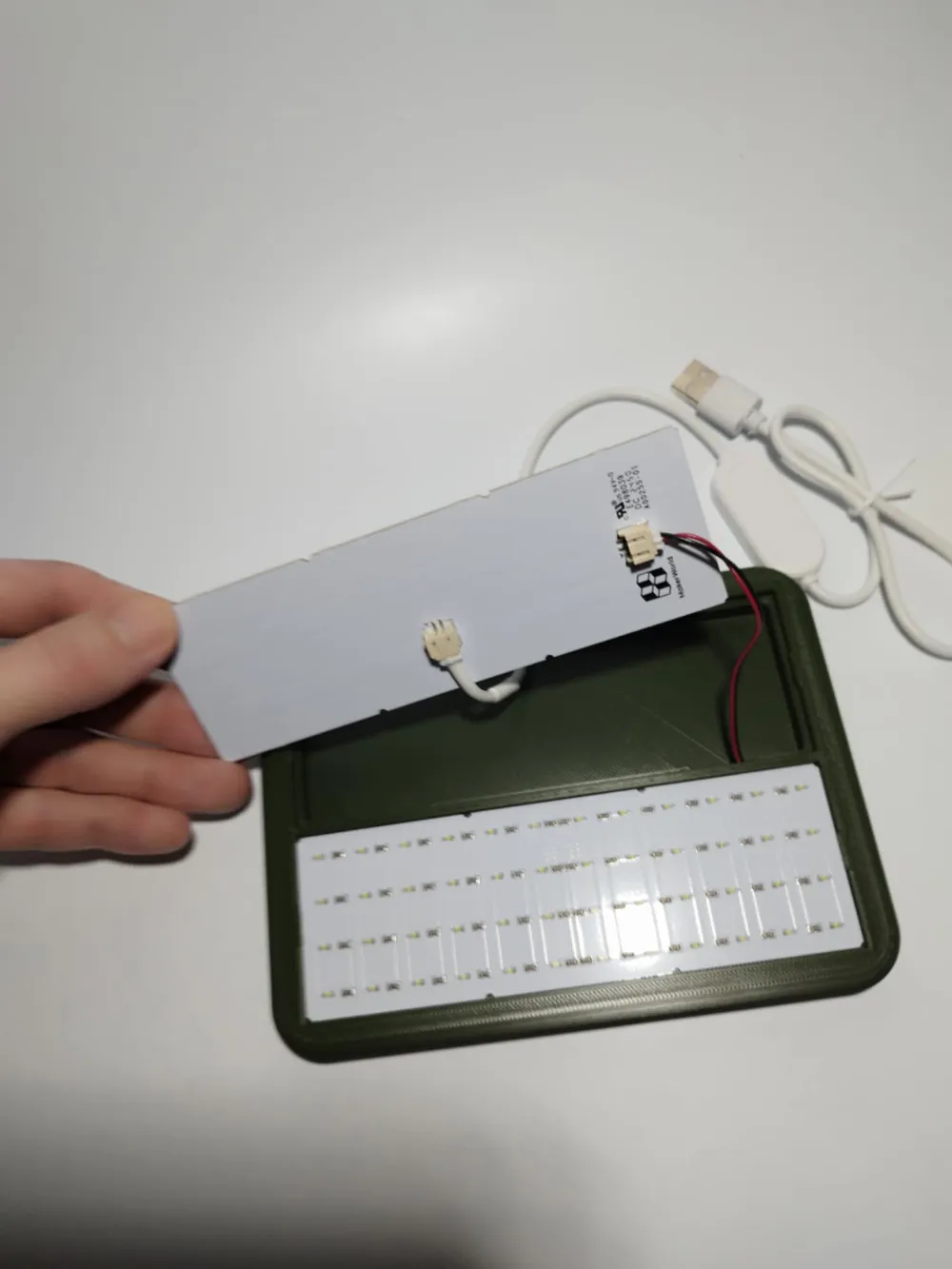

take the first panel and the connecting cable and connect it to the short side of the panel slot

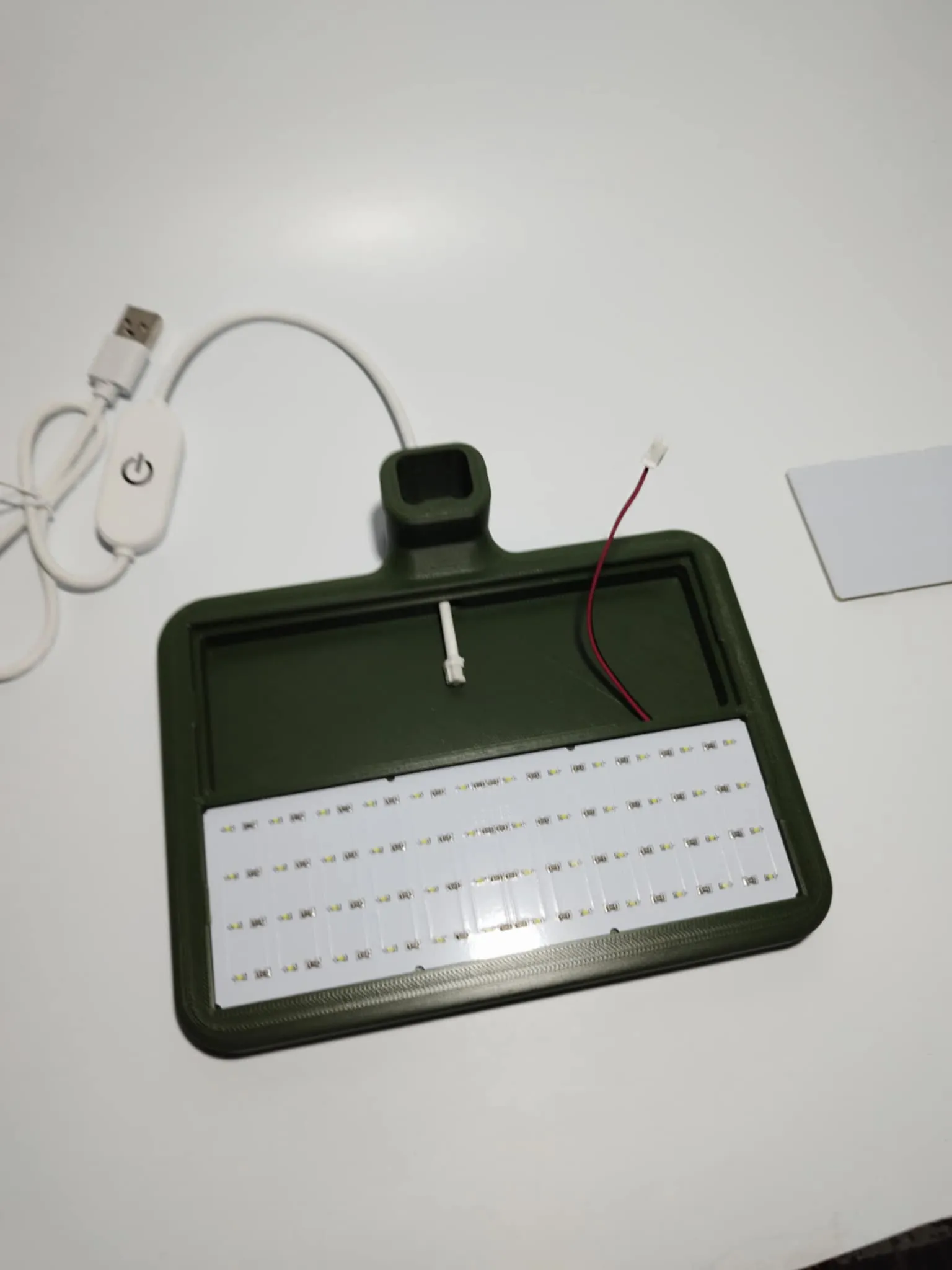

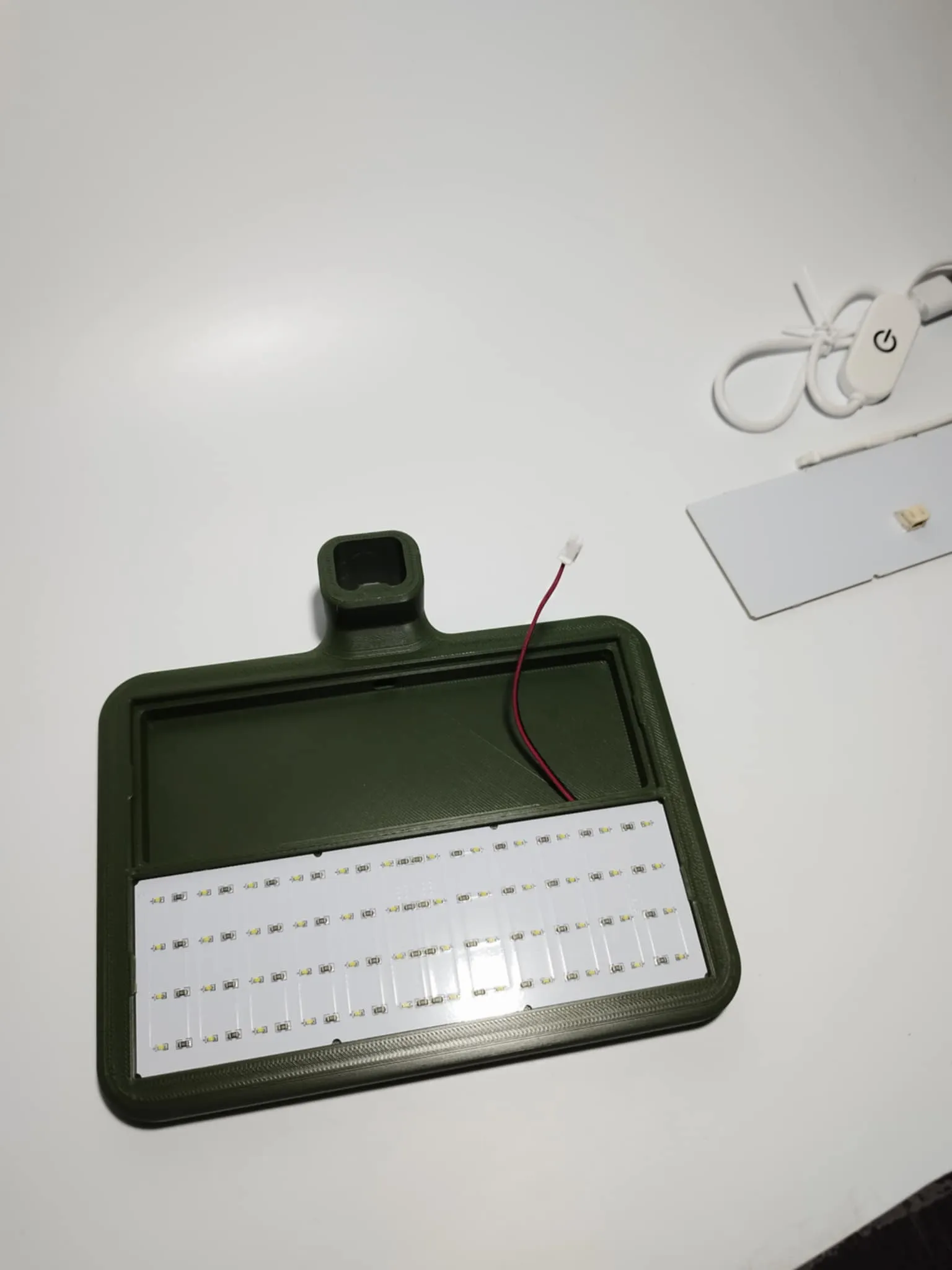

Pull the cable through the prepared hole and push the panel into position with light pressure.

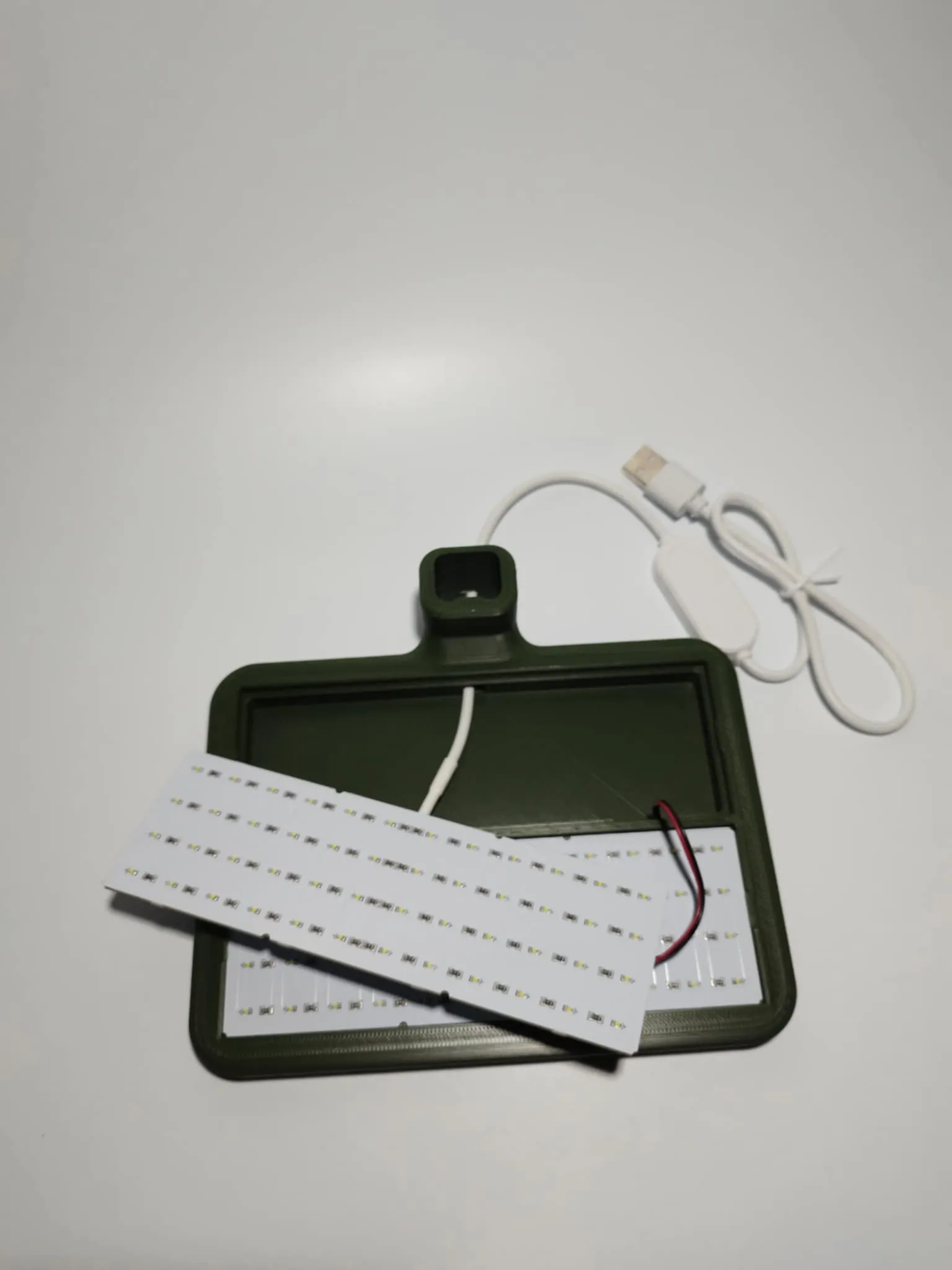

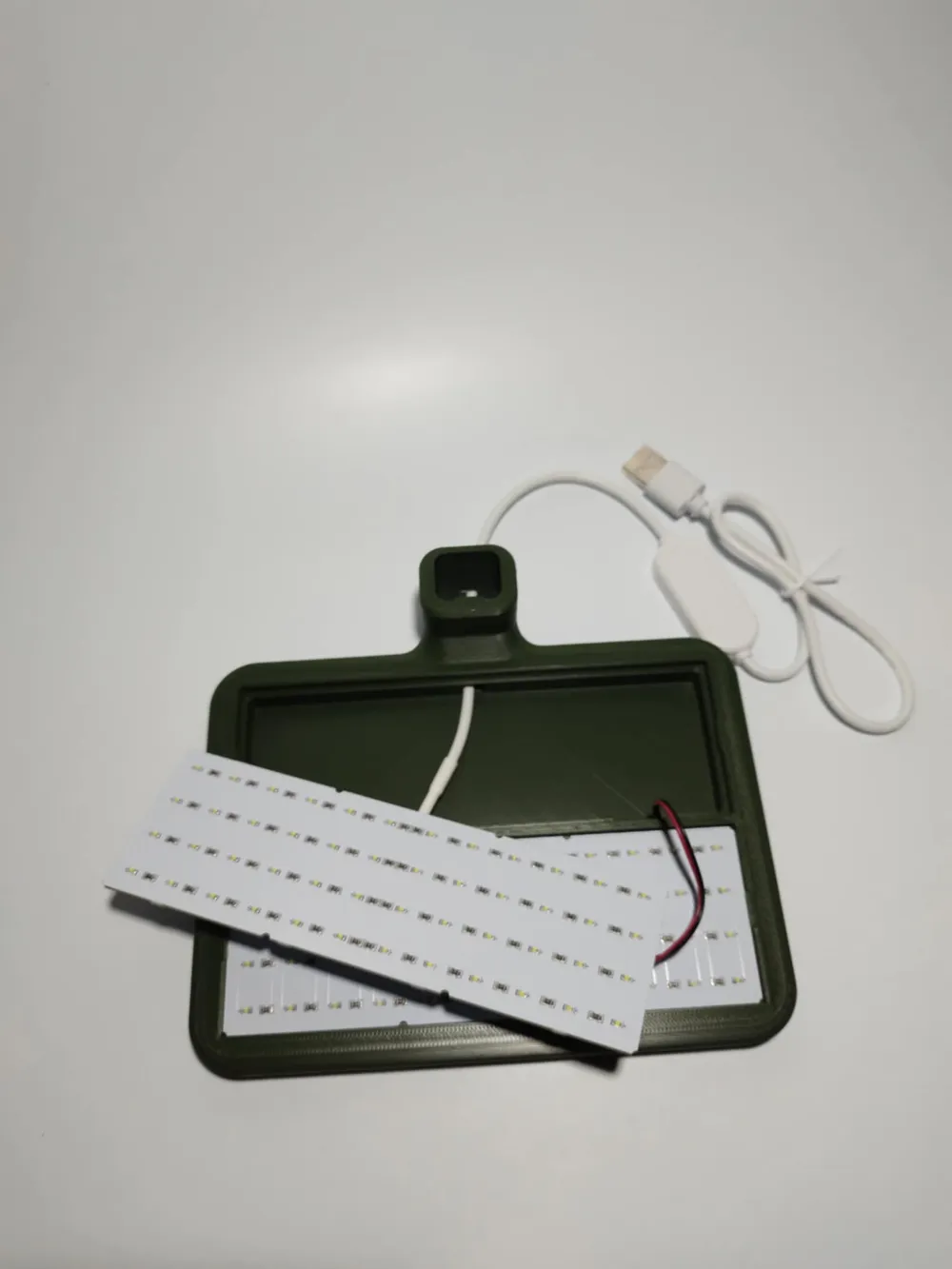

then we take the power cable and pull the end through the prepared hole so that we have both the connection and power cable ready to connect to the second panel

now we just connect both ends to the slots in the second panel

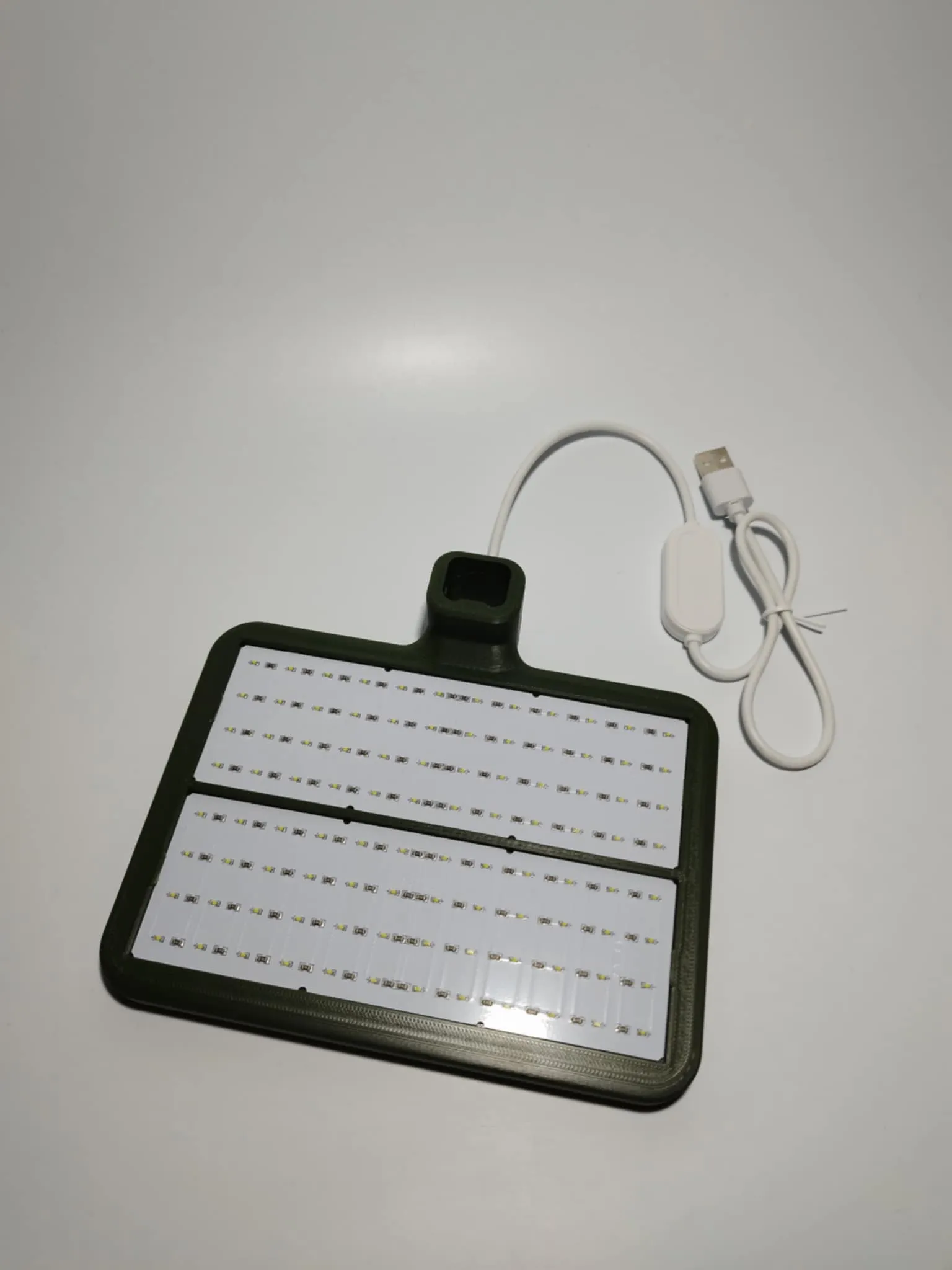

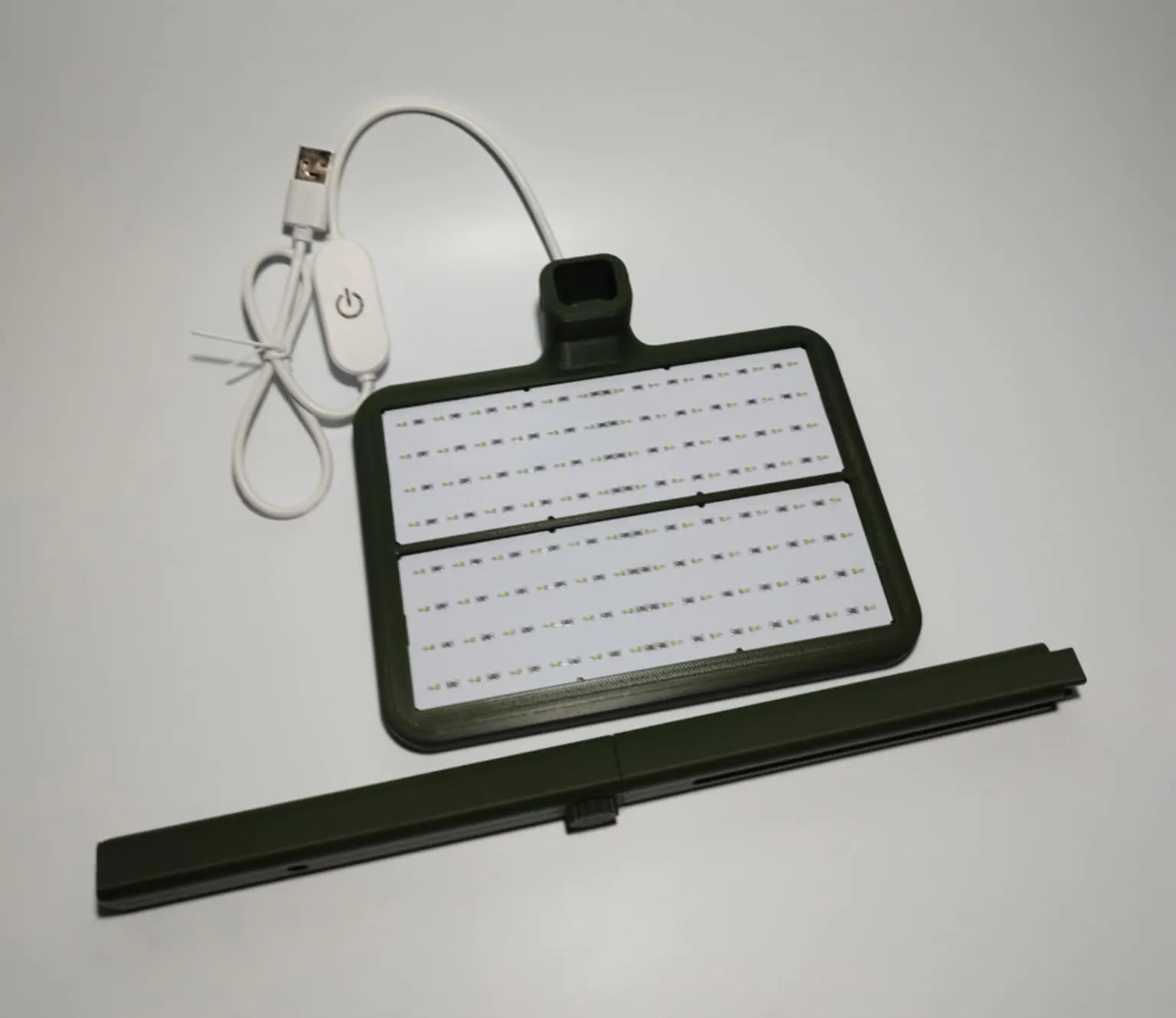

and finally just click the second panel and the light panel is ready

Step 3 – Attach the light module to collum

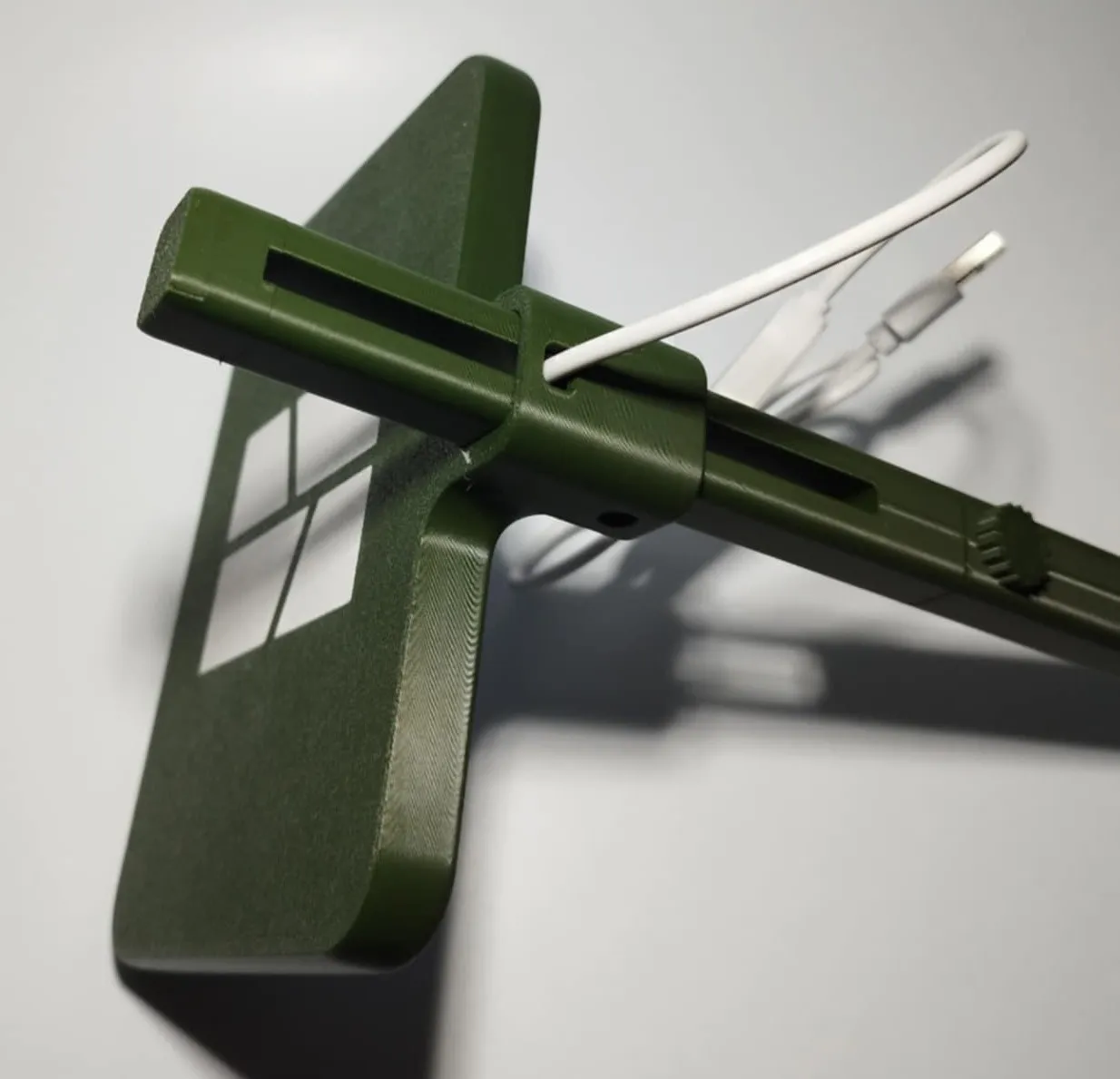

Prepare the column, connect the two parts and secure with a screw

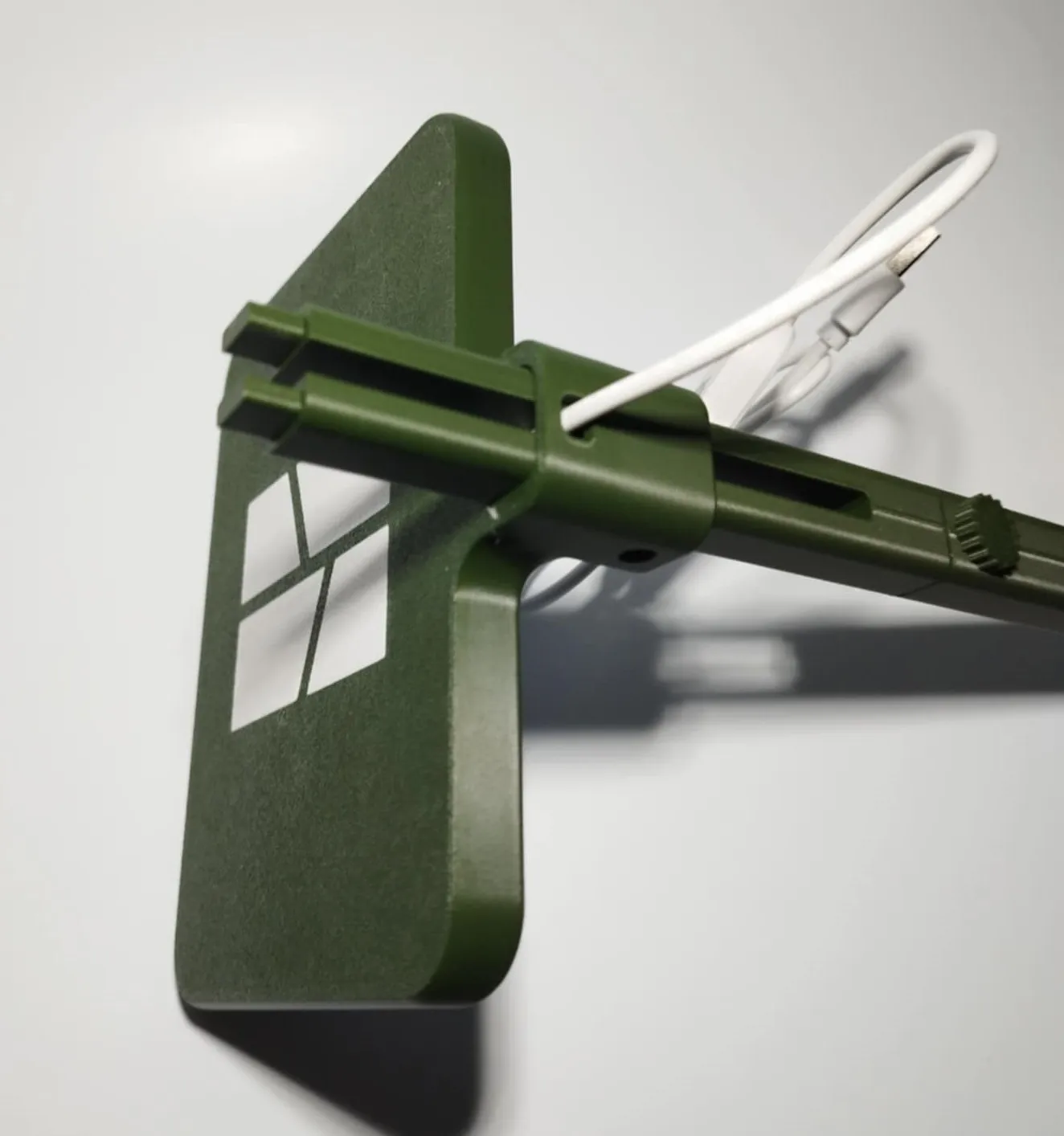

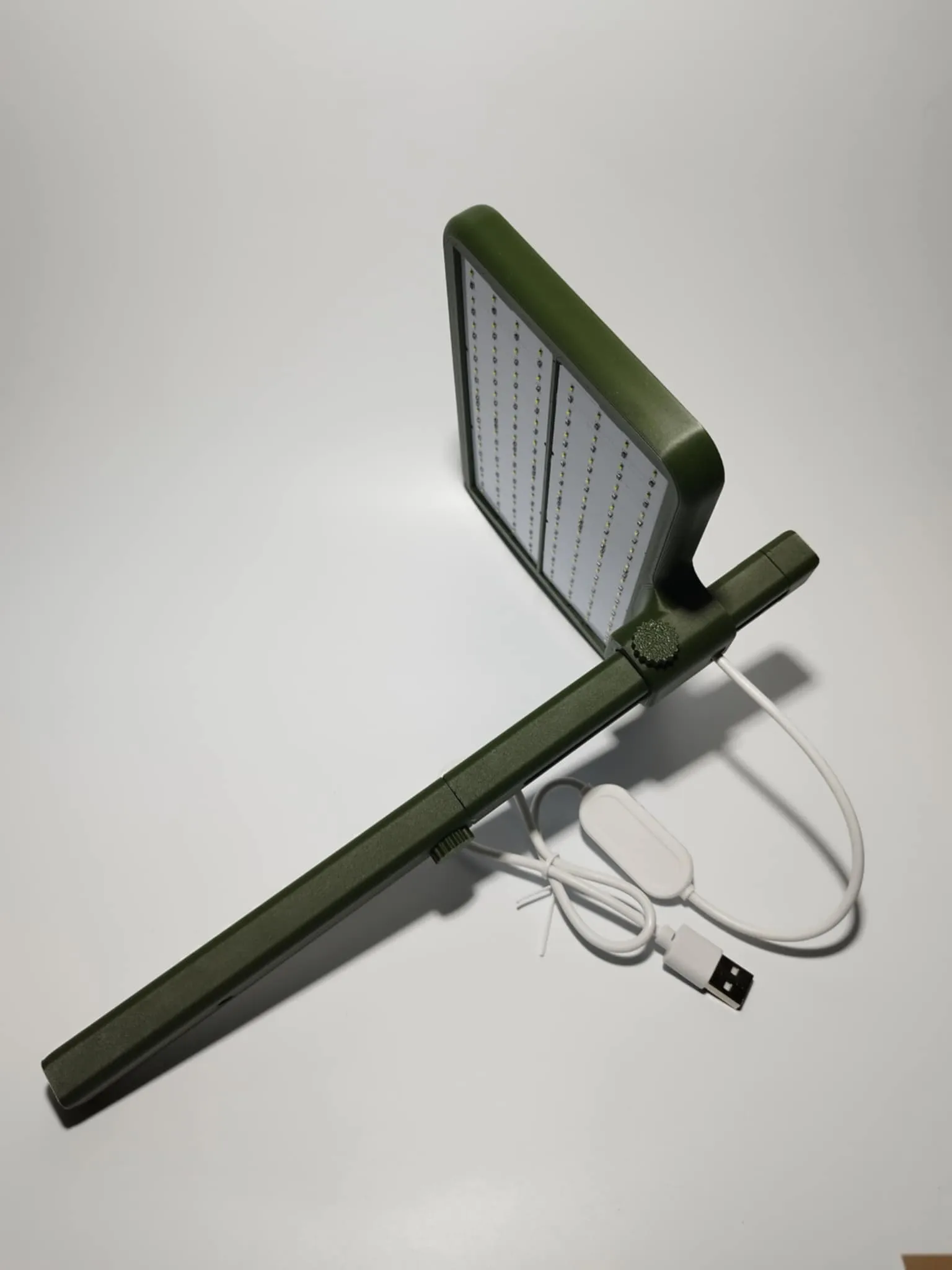

put the panel on the collar and secure with cap. then use a small screw to secure and adjust height

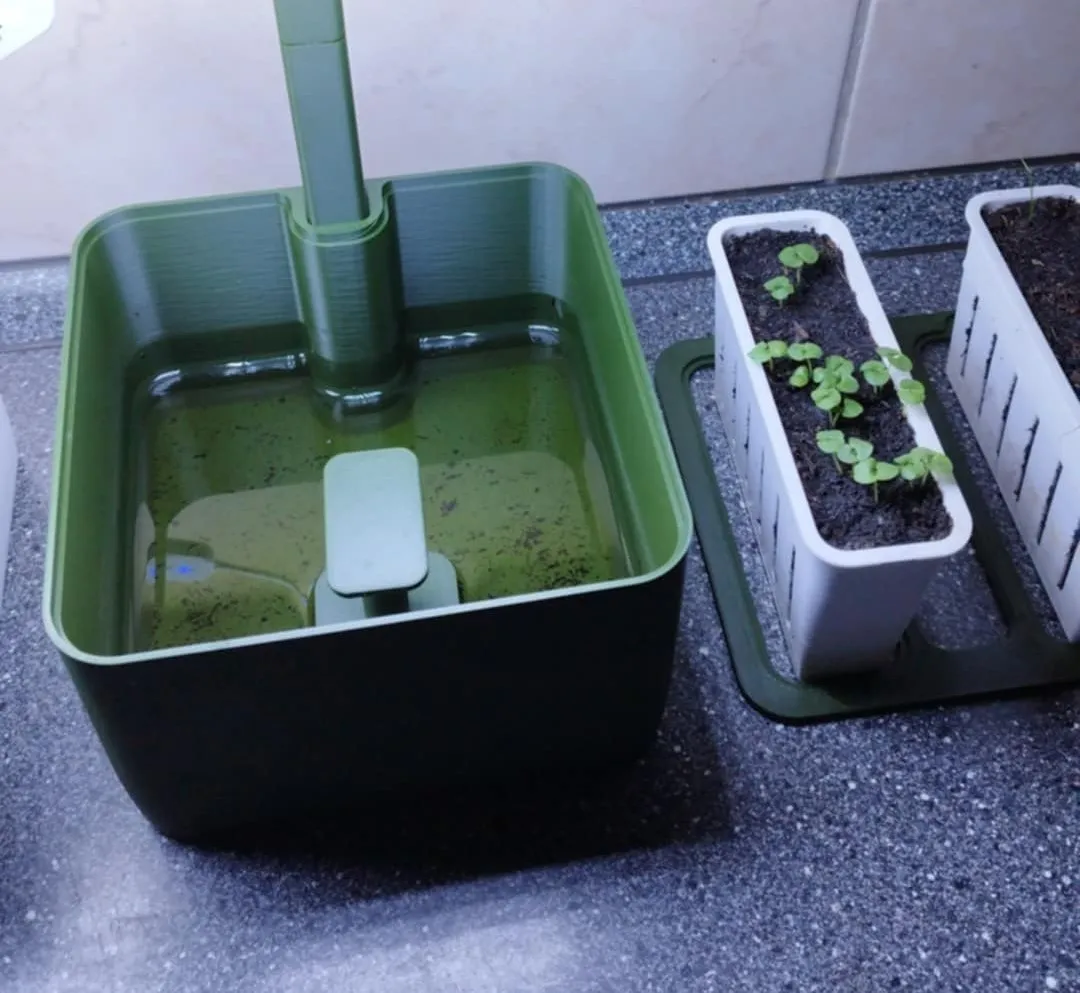

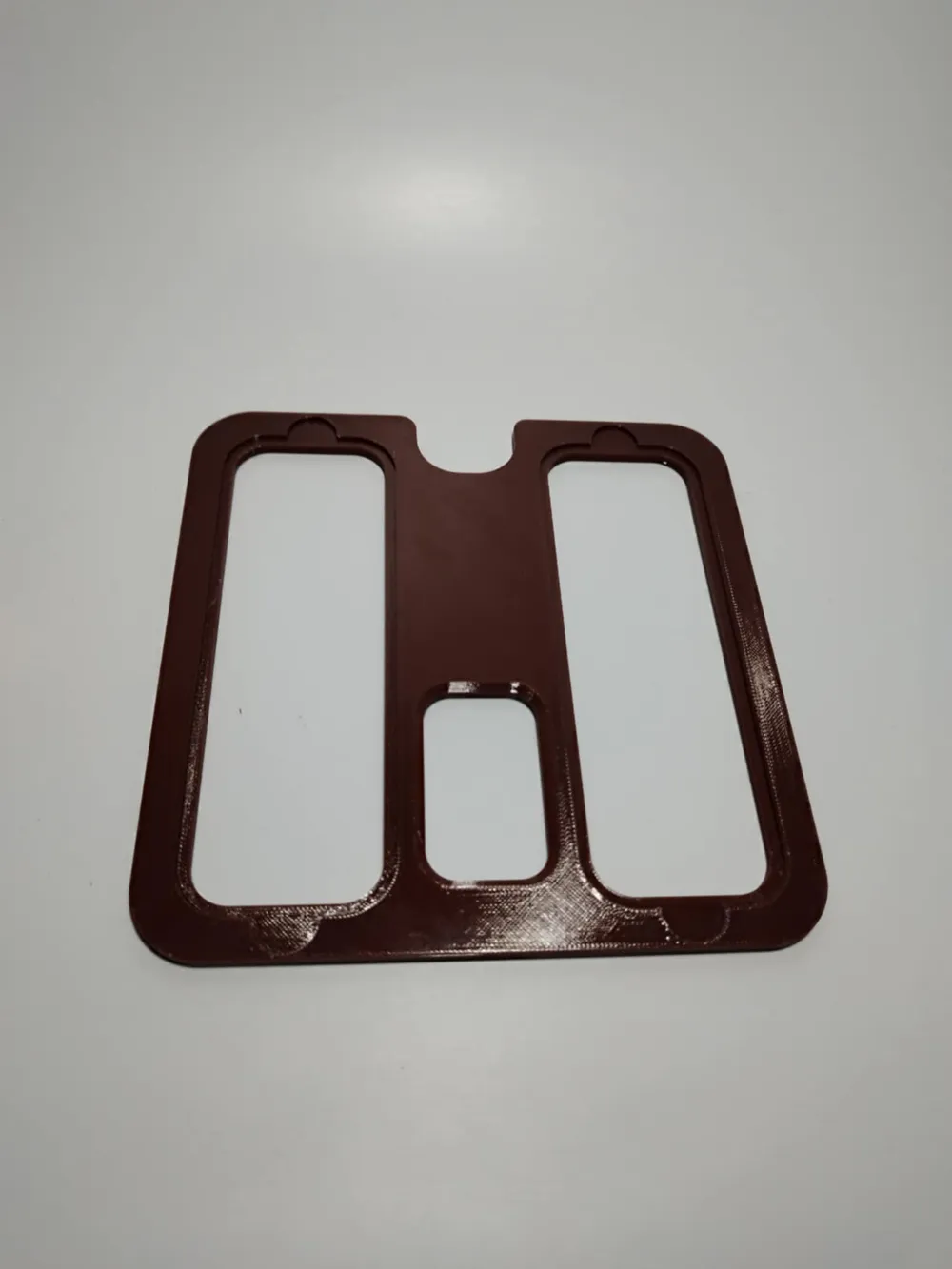

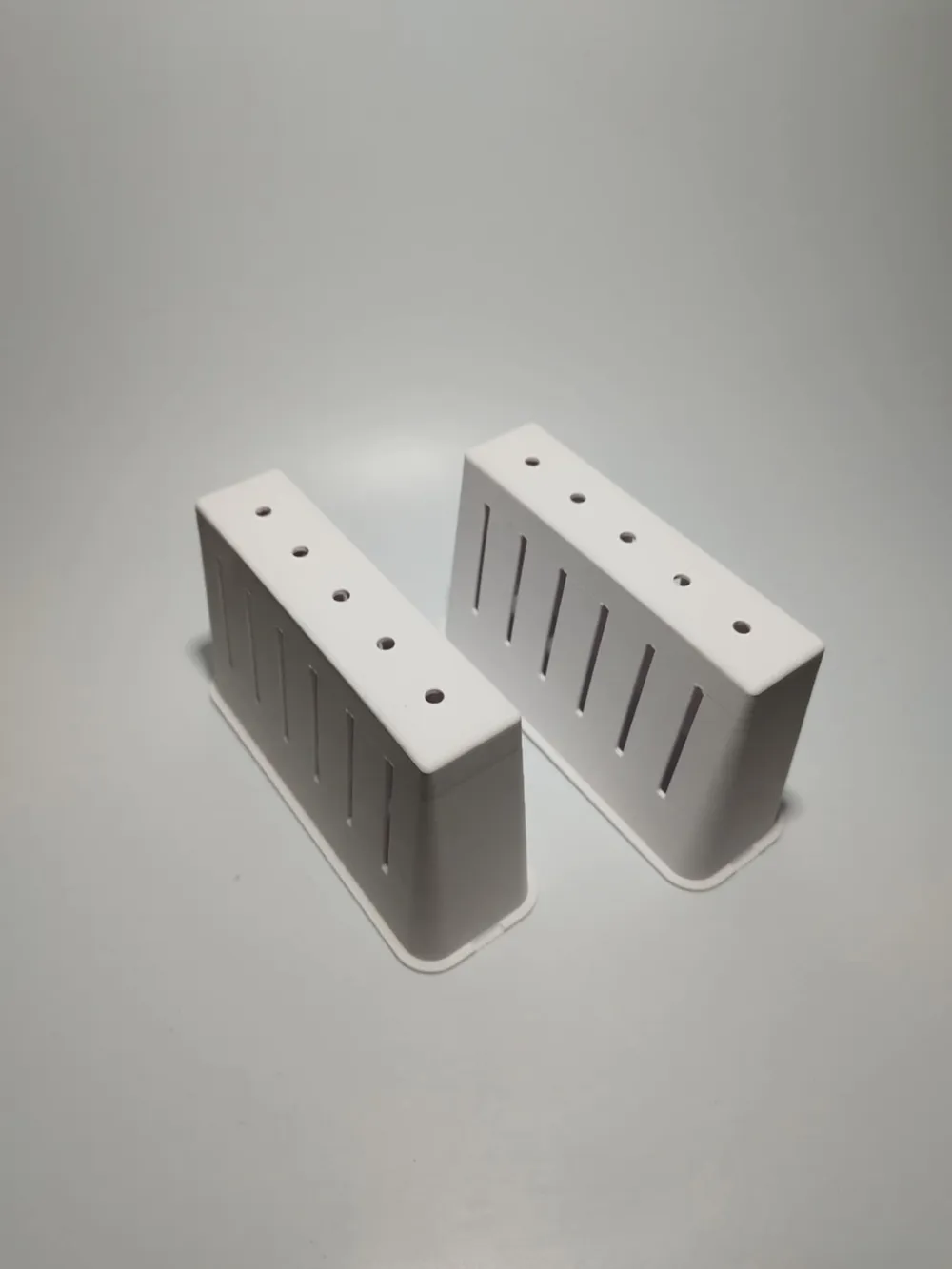

Now you can insert the entire complex into the prepared hole in the water tank with prepared floating mechanism, lid and pots. Secure with the last screw and everything is ready for planting.

and we have everything ready to plant your favorite herbs and spices
