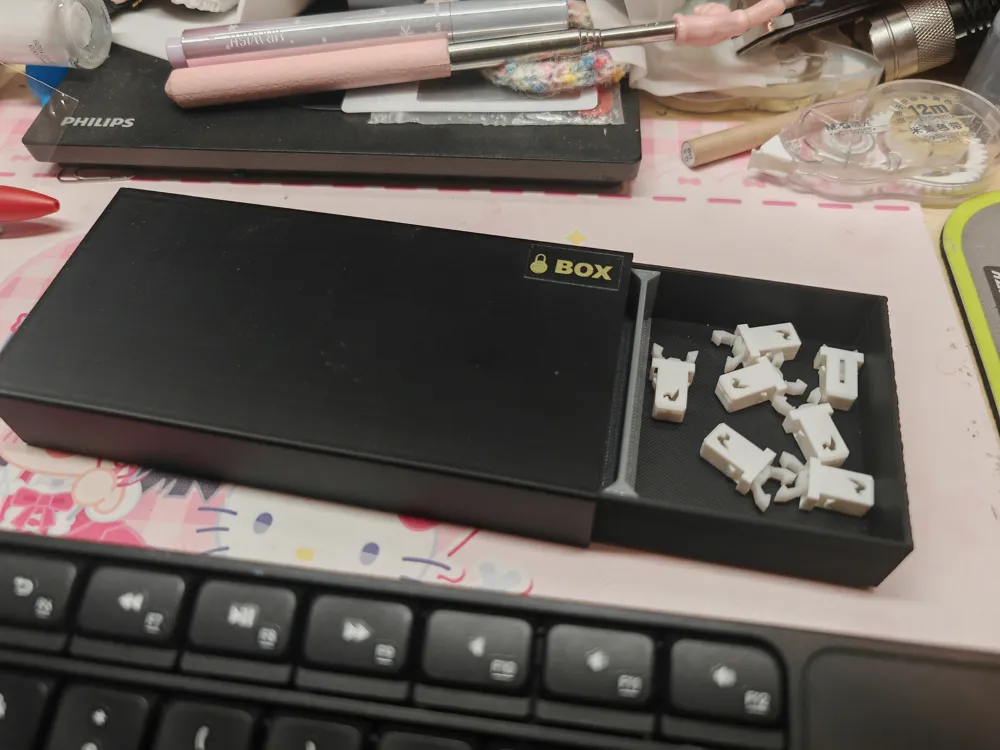

Pop-up Self-Locking Tool Storage Box Drawer Box Parts Storage Box

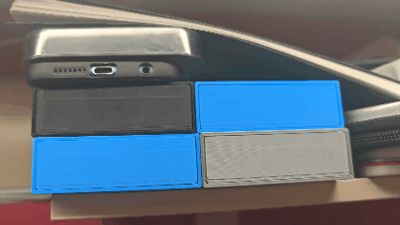

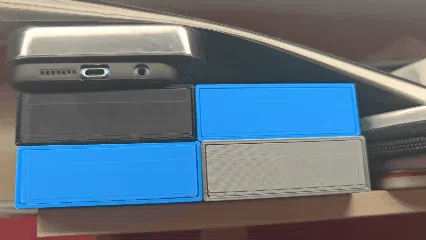

Flexible stackable desktop drawers, with geometric dimensions (length, width, height) in a multiple relationship

It can be used as a portable toolbox for going out, providing a DIY-customizable liner

plate 1 is the main body of the toolbox, which can be used universally

plate 2

Accessory 1 drawer divider

Accessory 2 18650 battery tray

Accessory 3 support infill (solid), the inner dimension outline of the drawer. It is used to hollow out and adapt to different tools via negative parts. It can also be exported and edited to fit your own tools

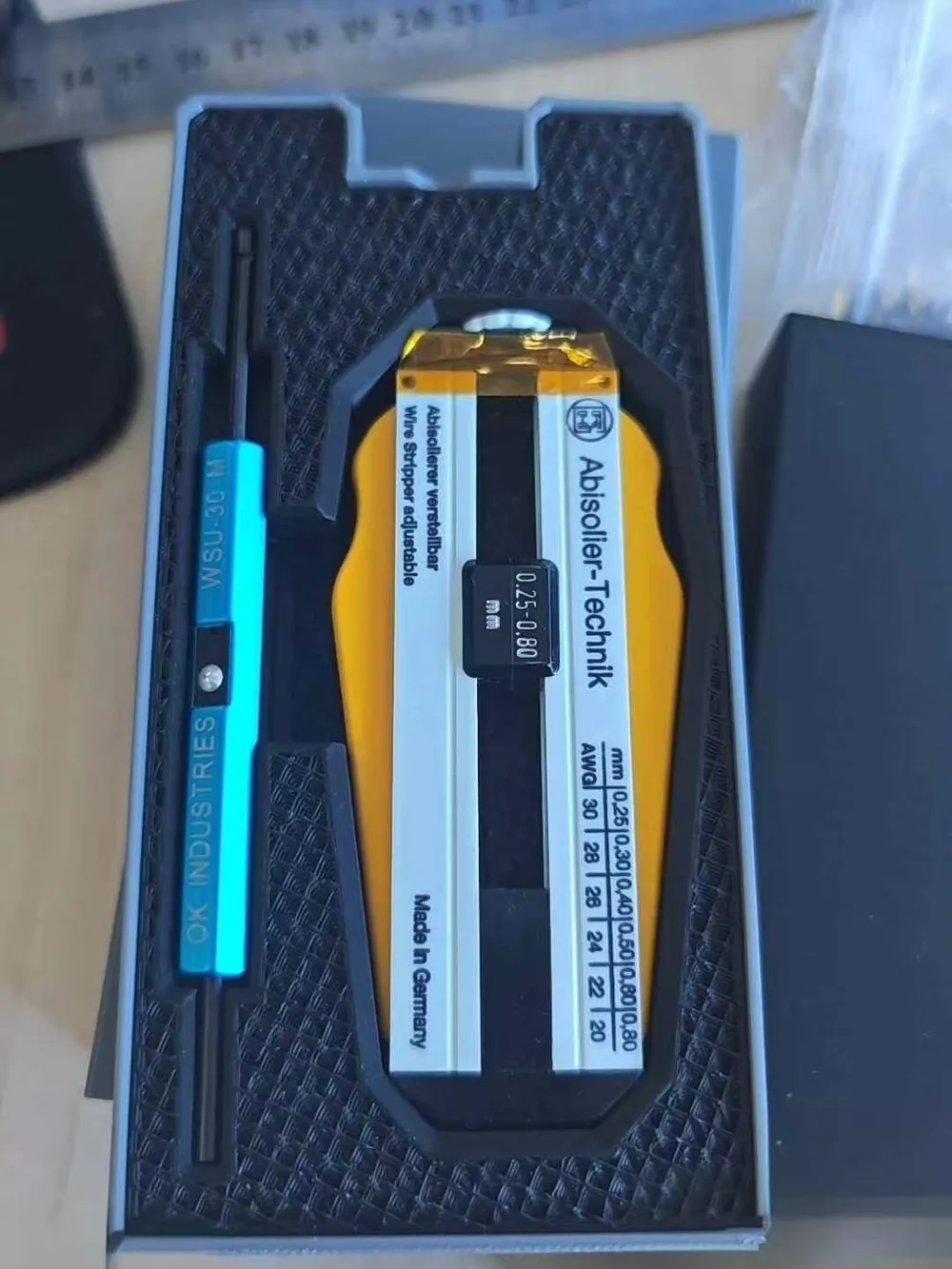

Accessory 4 wire stripper tray, for internal infill demonstration purposes, has no practical function

This model requires purchasing a switch spring lock, search for "push-button trash can latch" on e-commerce platforms, the price is very cheap

Installation method:

1 After printing, insert the drawer into the outer casing in reverse, then pull it out and push it in several times to ensure smooth operation

2 Insert the latch into the drawer's lock head, then press to lock

3 Push the drawer with the latch forward into the outer casing until it bottoms out
