Scheppach PL55 Parallel Fence
Print Profile(1)
Description
For my Scheppach PL55 plunge saw, I designed parallel guides
An M8 C-profile (17x11) is used as a guide
For example, here from Profilzuschnitt24

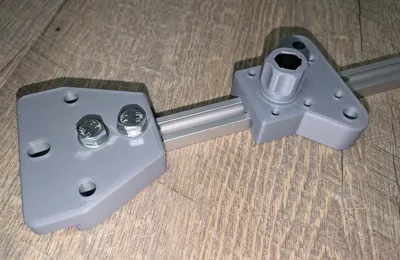

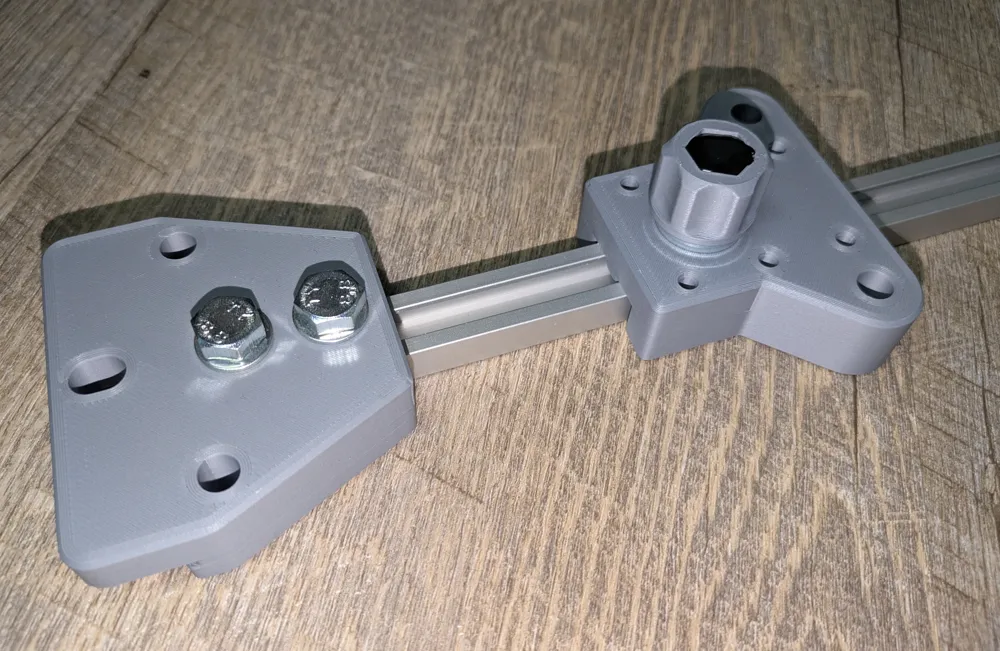

The C-profile is firmly screwed into Part 1 with two M8 screws and M8 hex nuts. A 10mm wide measuring tape can be glued to the side of the C-profile
Part 2 can be fixed as desired on the C-rail with an M8 hex screw, the handle model, and an M8 hex nut
An aluminum strip measuring 50x3 can be attached to Part 2 with M3 screws and M3 heat-set inserts (not yet visible in the pictures)
The aluminum strip then serves as the actual stop; if chosen long enough, narrow strips of a wooden board can be cut with it

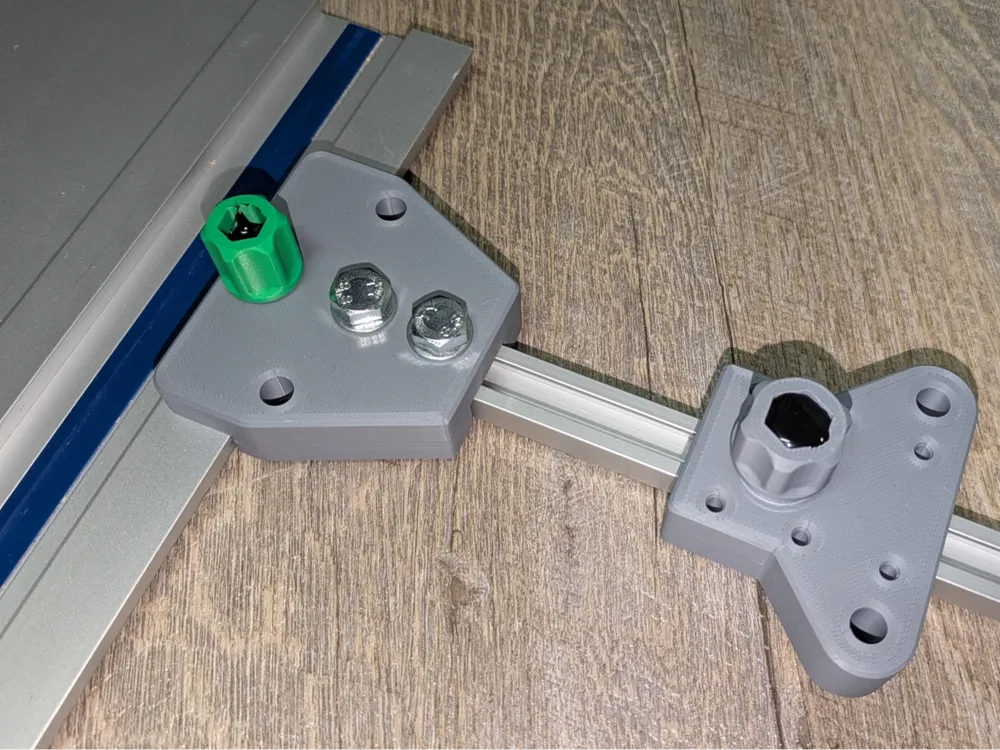

I attach the stops to the guide rail with my Scheppach nut holders

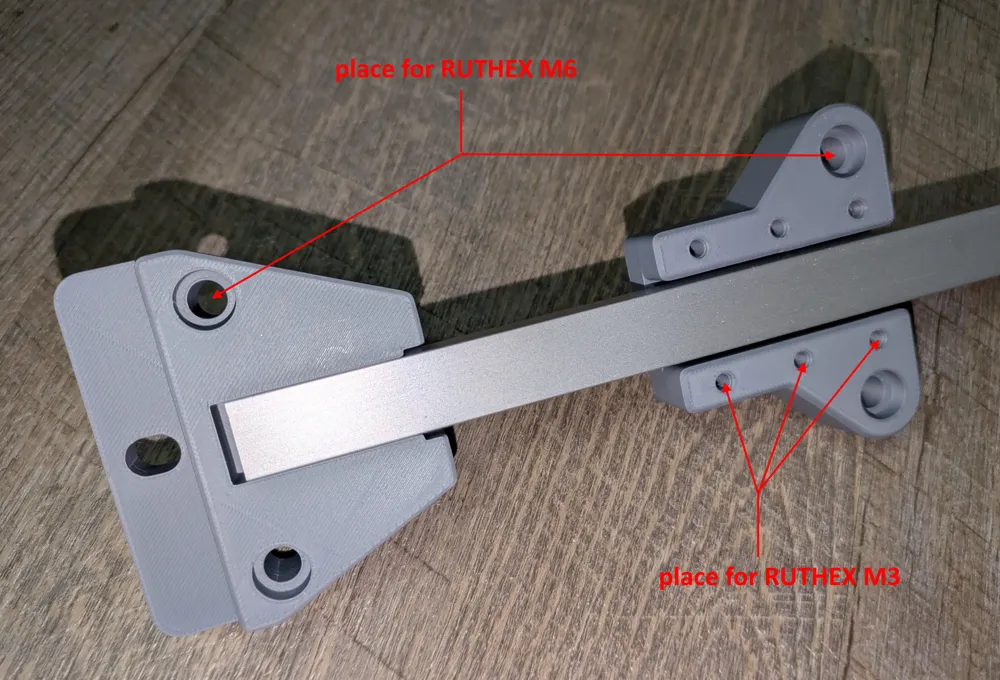

In both parts, 2 holes are provided for Ruhtex M6 heat-set inserts. The idea here is to use M6 screws as height stops so that the stops do not wobble
