Description
I designed this original 40mm square tube railing mount to work with the Premium Bird Feeder House by Techro3D.

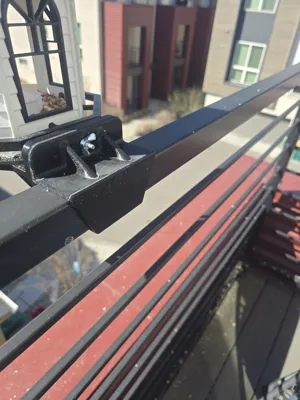

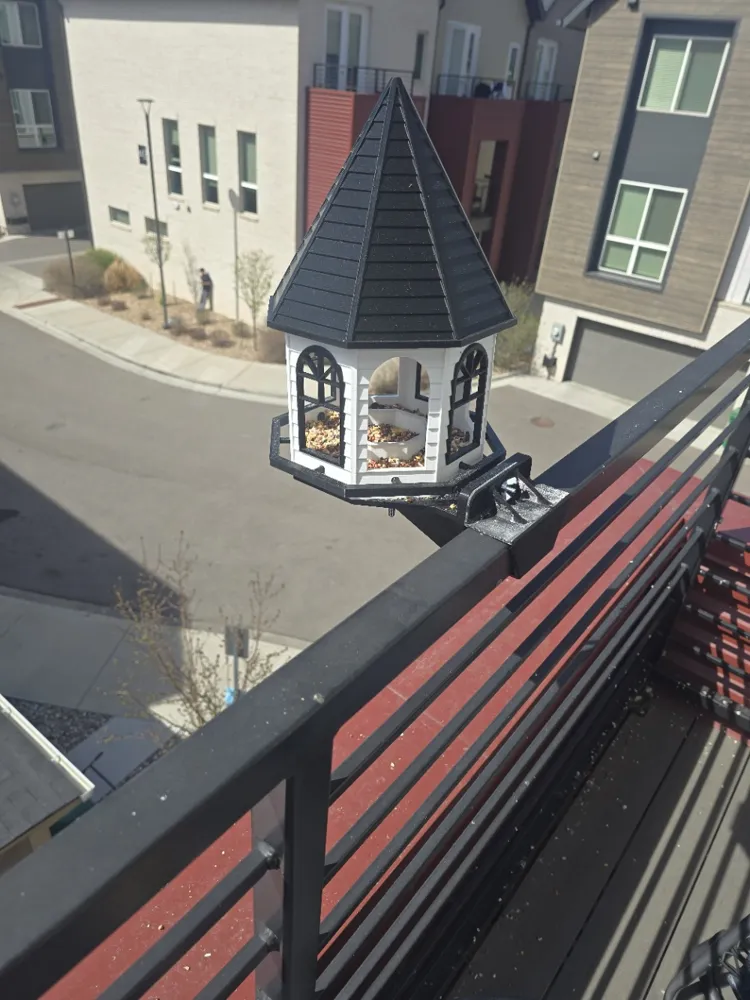

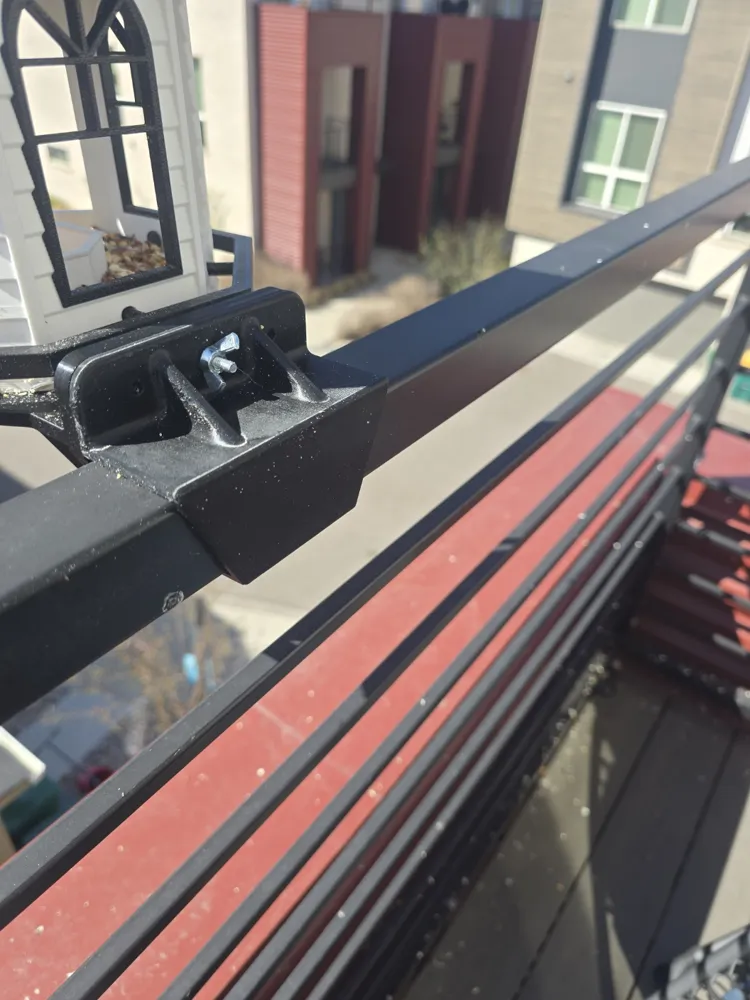

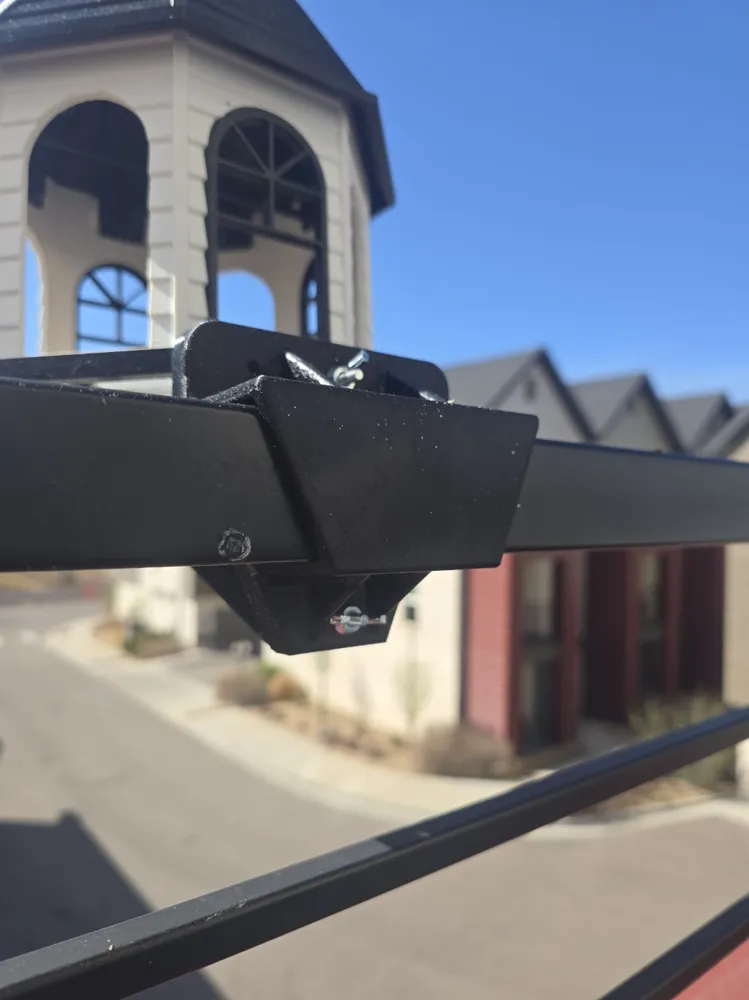

The original bird feeder includes a wall/fence style mount for vertical surfaces, but I wanted to install mine on a deck railing made from 40mm square tube, so I created a completely new bracket in Fusion 360.
This upload includes
- Mount / bracket only
To use it
- Print the original Premium Bird Feeder House by Techro3D
- Print this mount
- Assemble with no modifications to the original bird feeder parts

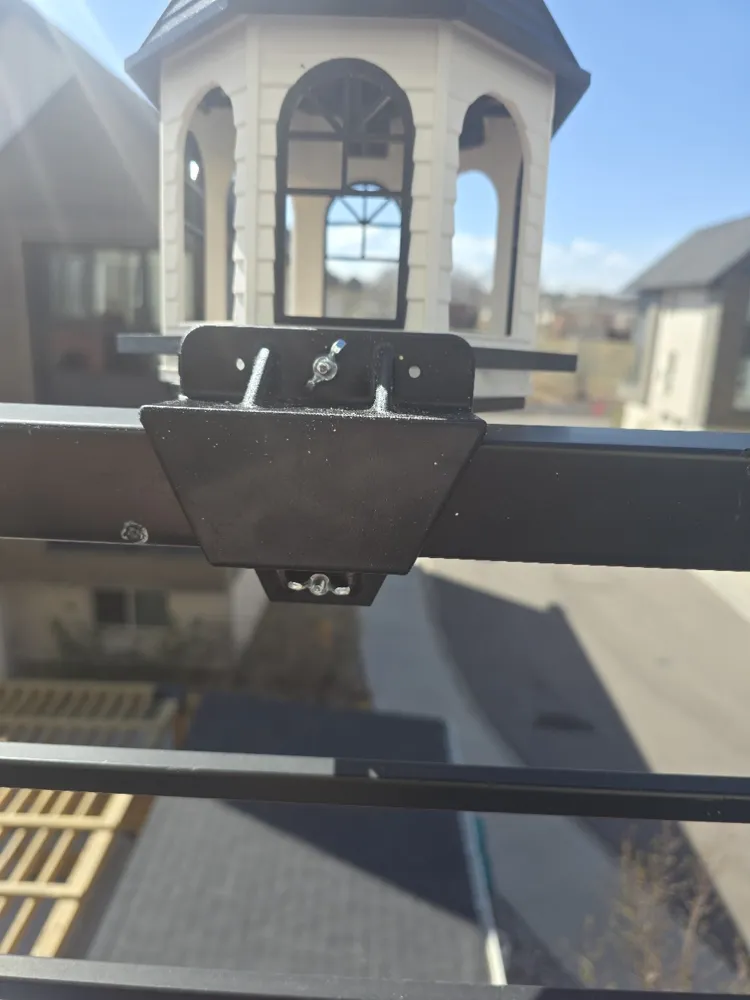

Additional hardware required
You will need:
- M4 bolts/screws
- M4 nuts
Any M4 x 0.7 fastener longer than 15mm should work.
I used:
- 4mm - 0.7 x 16mm Phillips-drive machine screws
- M4-.70 wing nuts
Printing recommendation

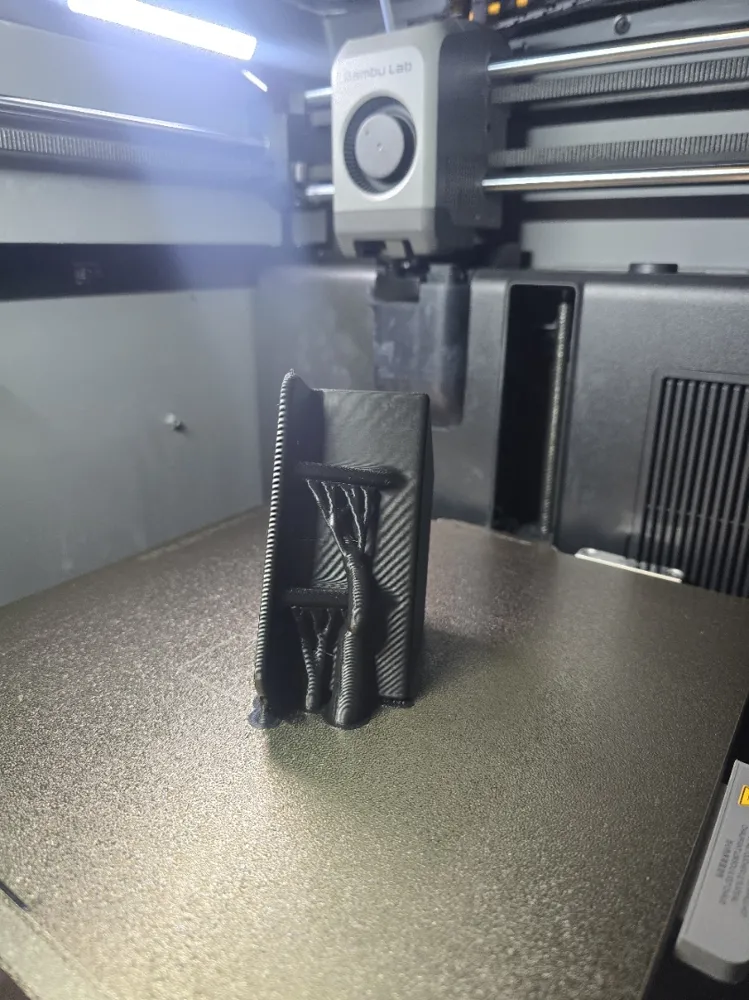

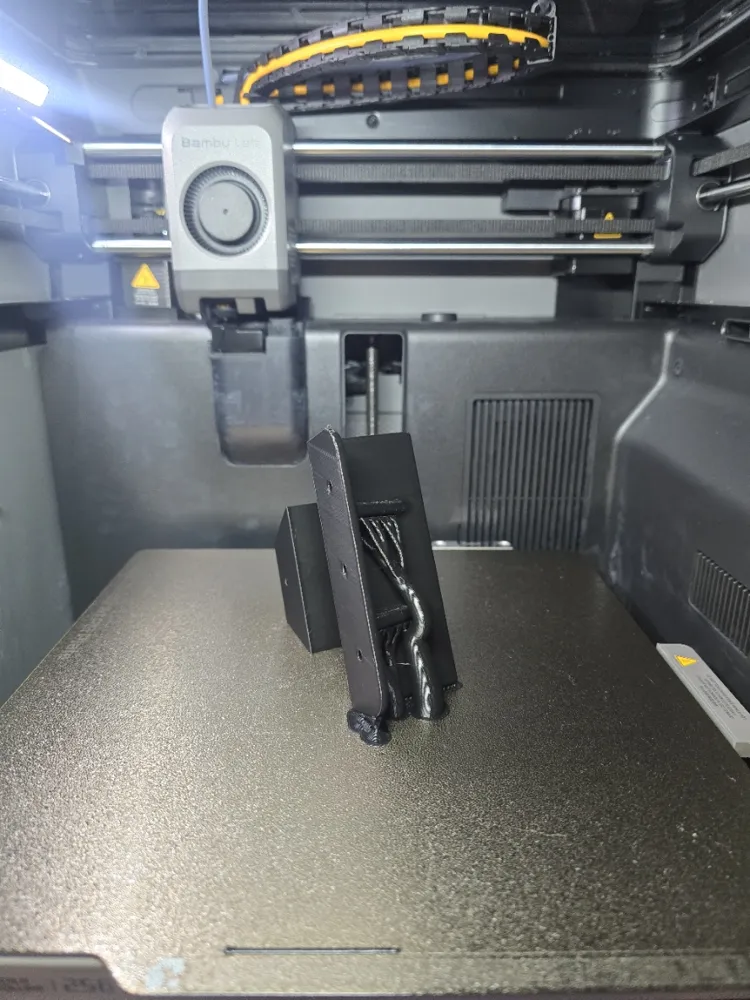

I recommend printing the .3MF file included with this upload. It is already oriented the way I designed it to print for maximum strength, so printing it in the provided orientation is recommended.
This is not a reupload or remix of the original bird feeder files — it is an original accessory model designed by BeastMade to be compatible with that design.
Search terms: Premium Bird Feeder House, Techro3D, bird feeder mount, railing mount, 40mm square tube, deck railing bracket, compatible accessory
Please check out and support the original model by Techro3D:
https://makerworld.com/en/models/1042165-premium-bird-feeder-house-by-techro3d?from=search#profileId-1027233
— BeastMade
