Picatinny Riser
Print Profile(2)
Bill of Materials
Description

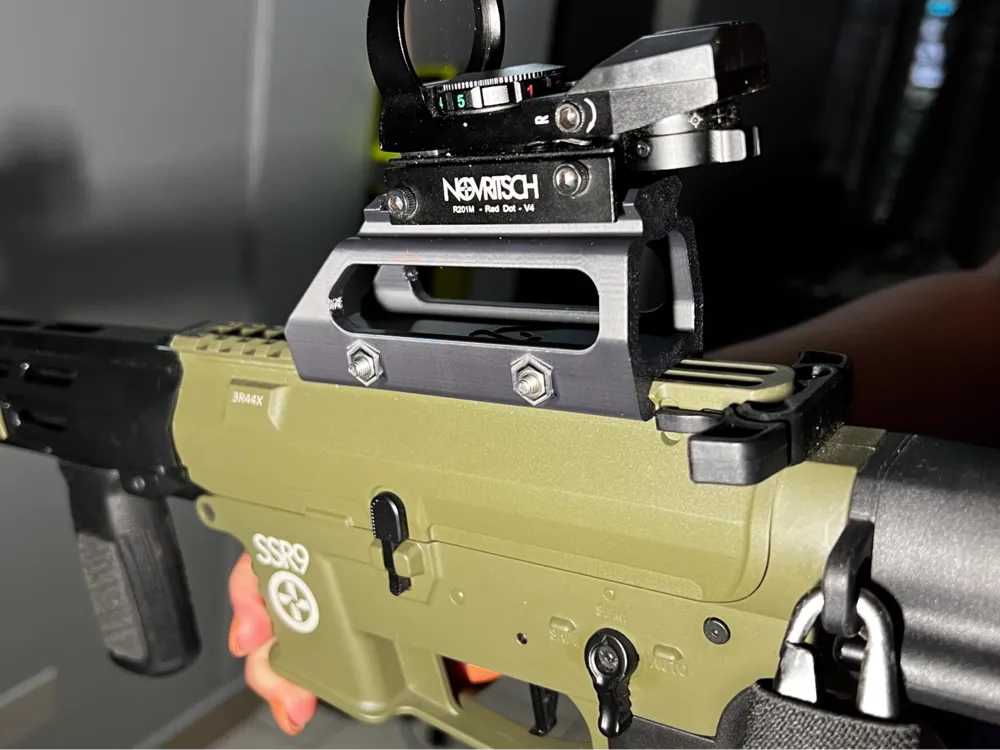

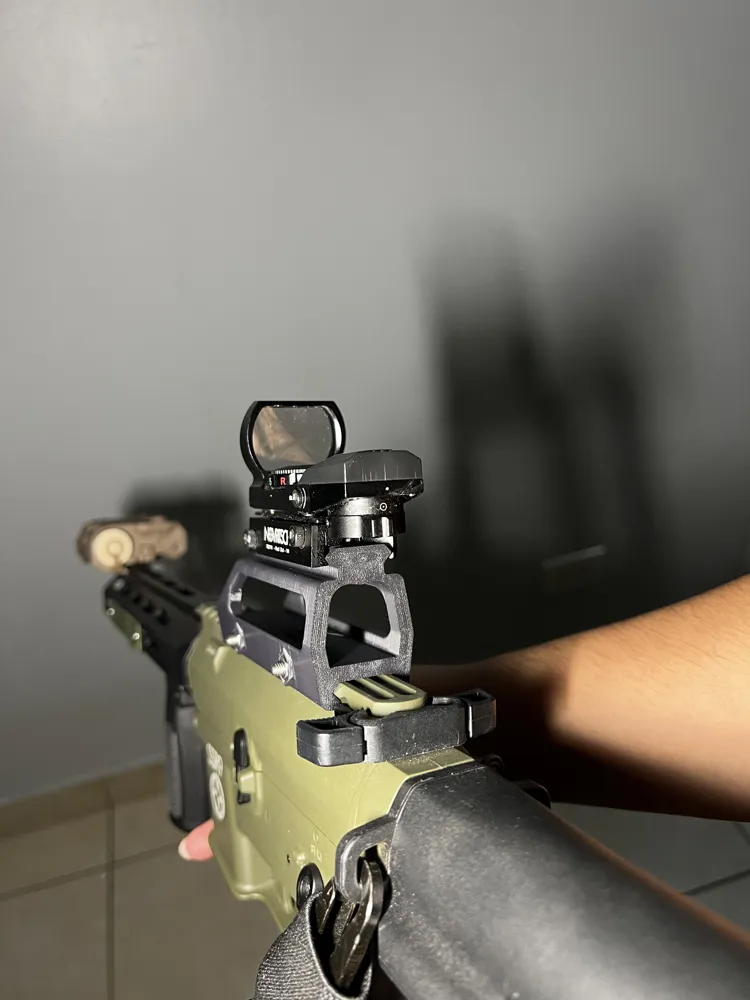

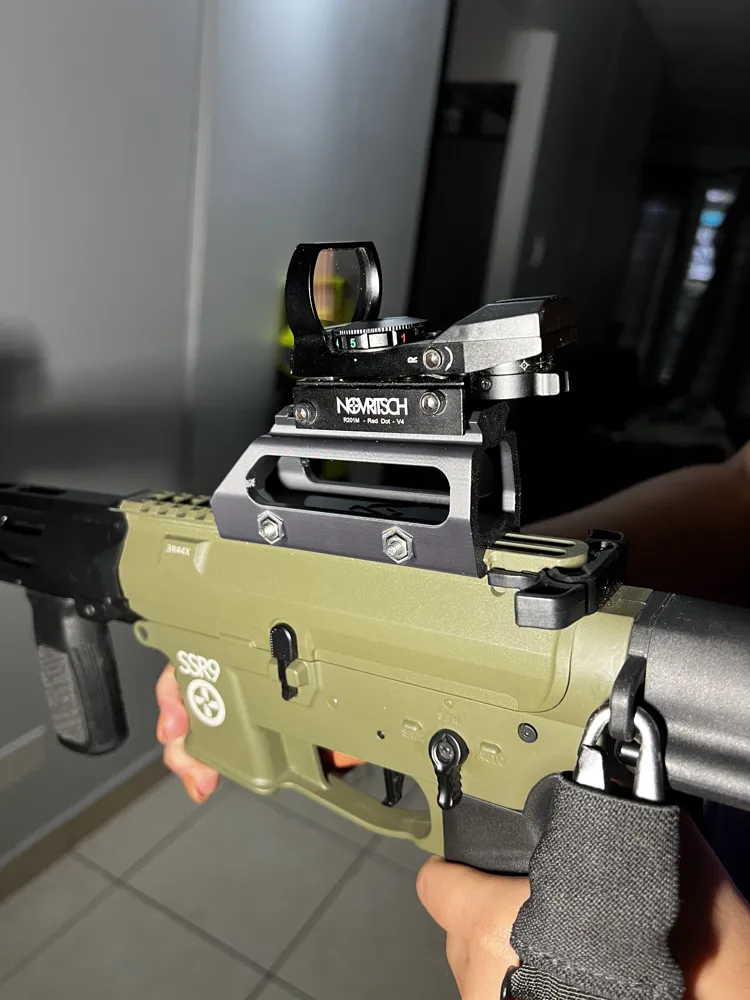

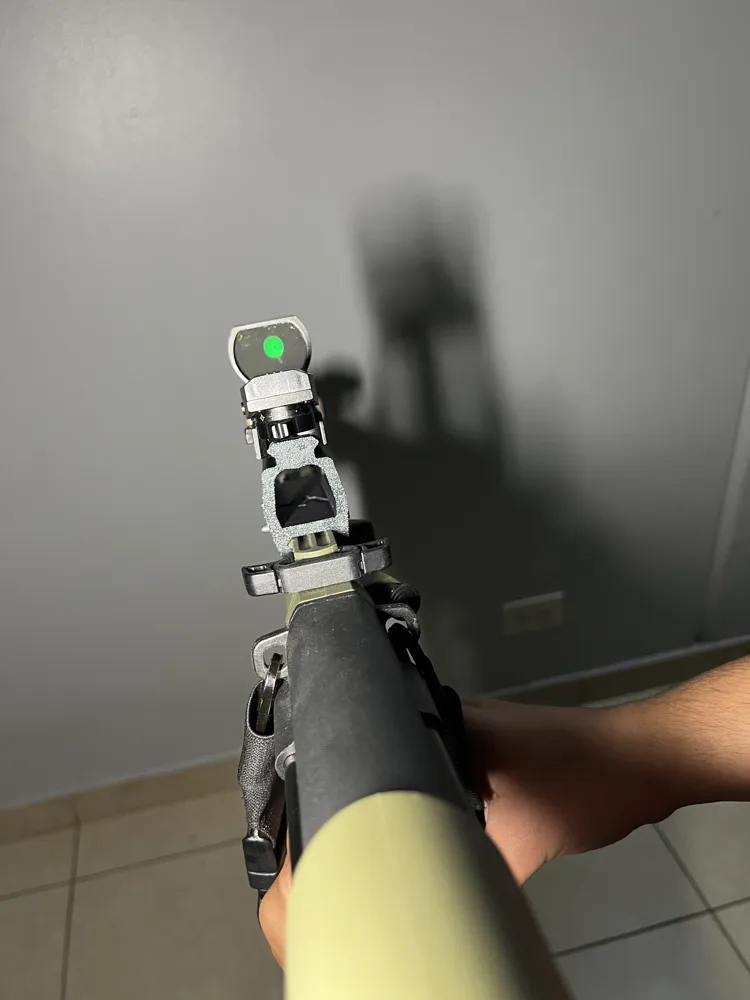

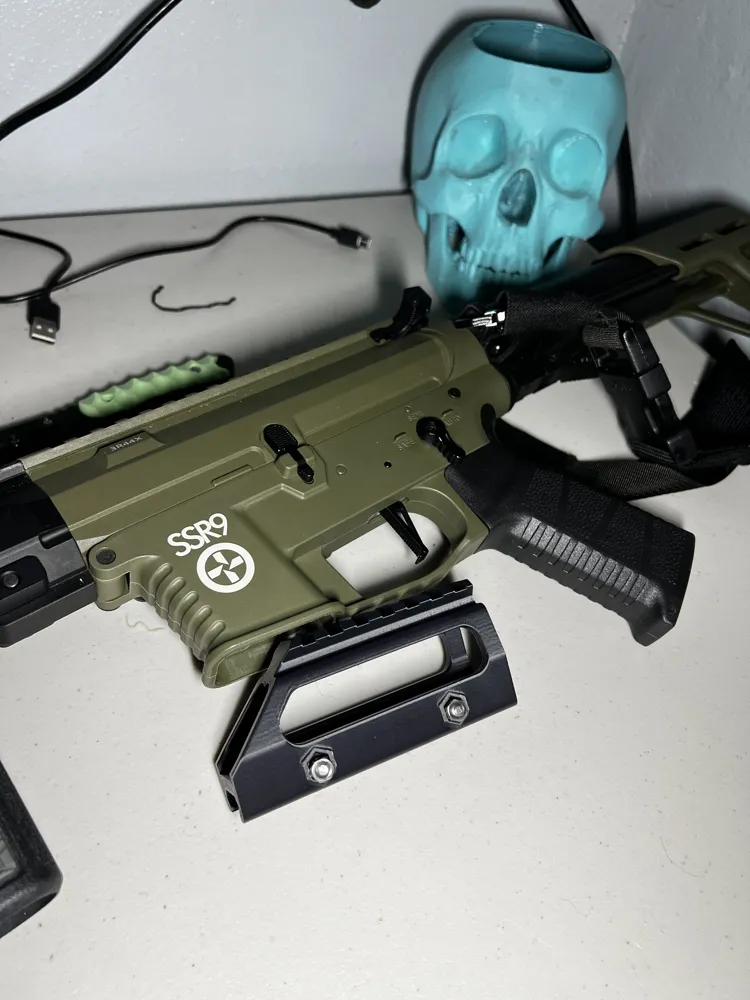

Upgrade your setup with this 39mm (1.5 inch) Picatinny riser, designed for solid performance and clean fitment.
Perfect for improving sight alignment, mounting optics, or creating better ergonomics on your platform.
This riser is engineered to be strong, lightweight, and easy to print, making it ideal for both practical use and prototyping.
This rail was made using Norvritch SSR9 as reference .
Key Features
- Height: 39mm (1.5 inches)
- Standard Picatinny compatibility
- Lightweight but durable
- Optimized for FDM 3D printing
Recommended Print Settings
- Material: PETG / ABS / Nylon (for higher strength)
- Layer height: 0.2mm
- Infill: 40–100% (depending on use)
- Walls: 4–6 perimeters
- Supports: Not required (depending on orientation)
Important Notes
- This is a prototype / DIY part — use at your own risk.
- Not tested under extreme conditions.
- Fitment may vary depending on printer calibration.
BOM
2X M4 Button Head Cap Machine Screws
2X M4 Hex Nut
