Xshot Fury X Reshell - BLH-04 Hardball for A1 Mini

Description

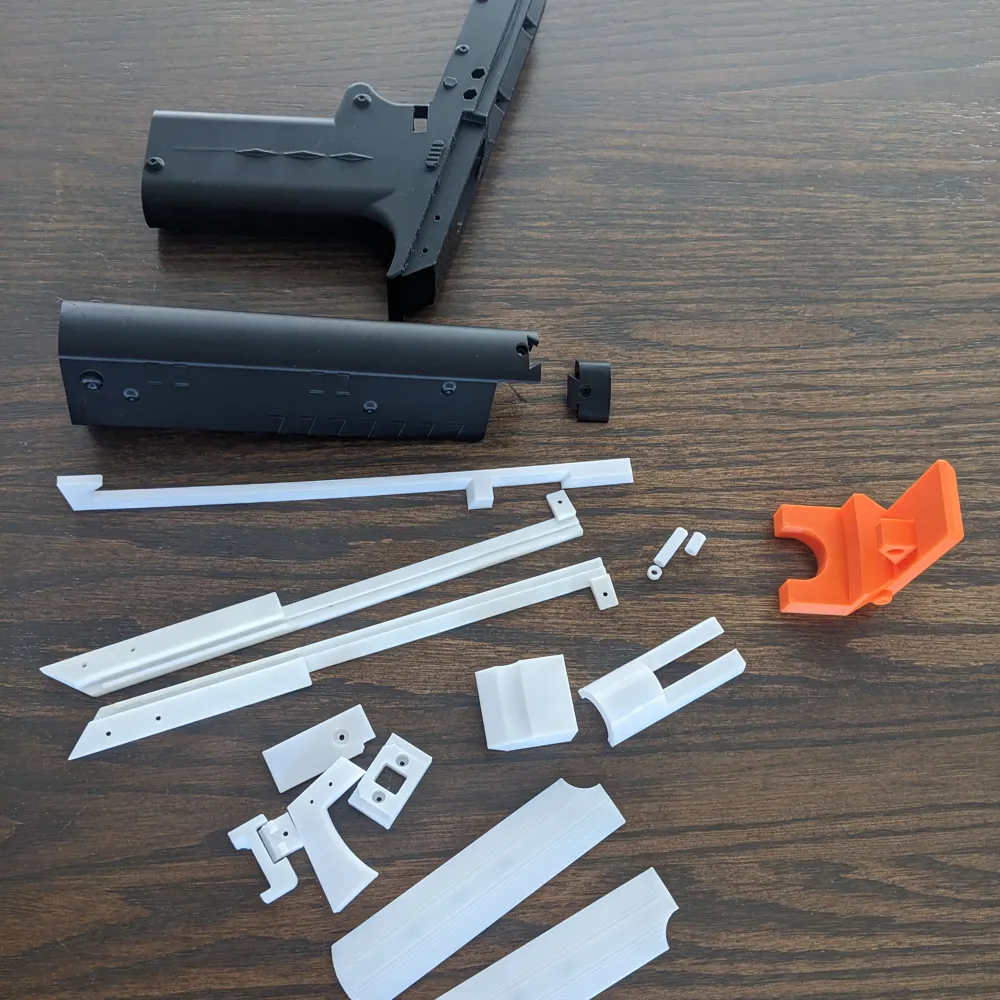

This model is a remix of the original Xshot Fury X Reshell by @JaneDoe_2072041. I modified the design to work with the smaller build plate and moving print bed of the A1 Mini, fine‑tuned the print profile, and added a custom mag that uses the stock Xshot box‑mag spring - meaning no extra springs or aftermarket magazines are required unless you want them.

About the Original Design

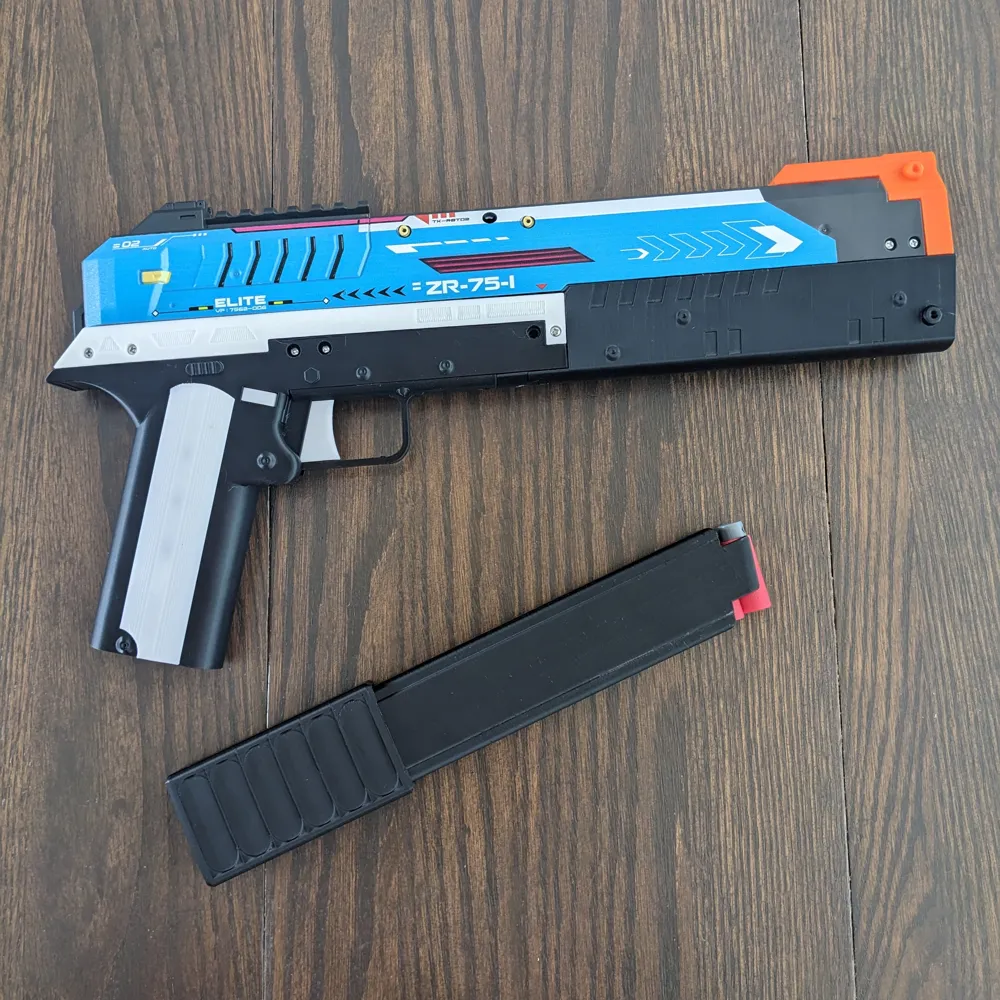

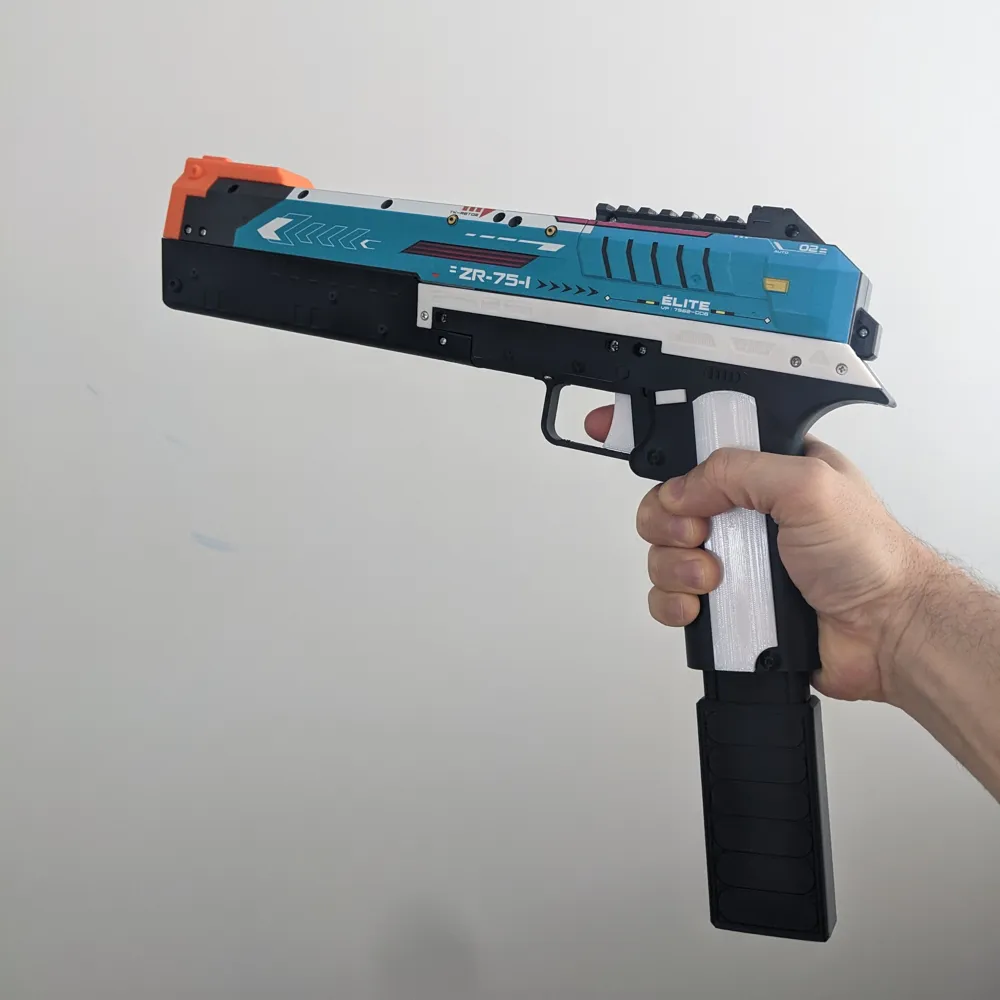

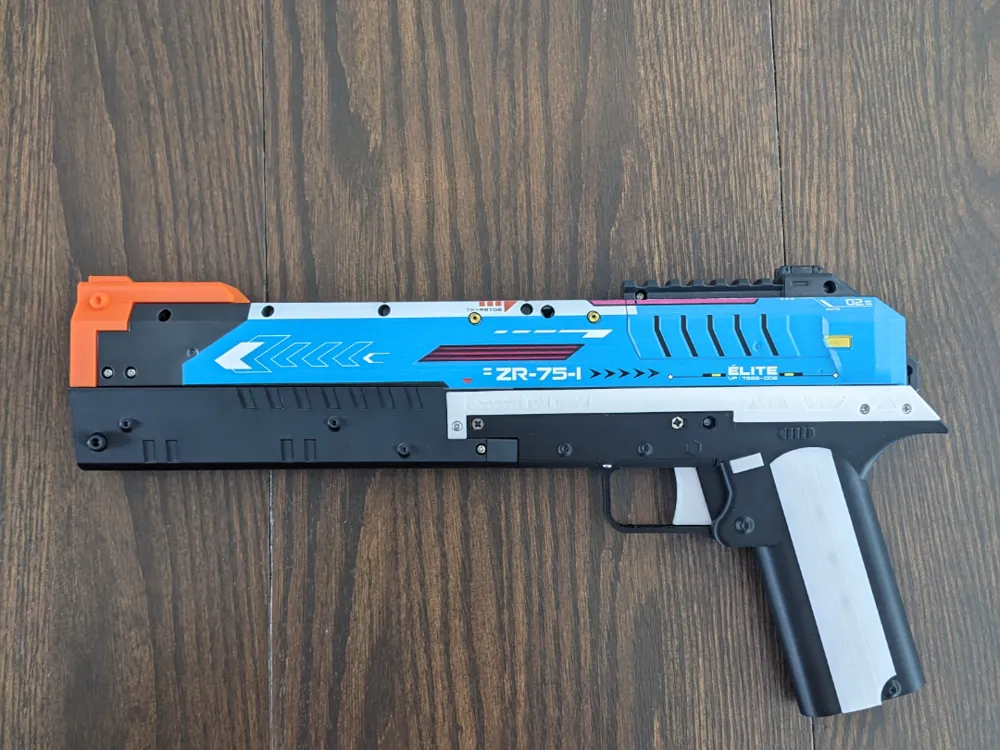

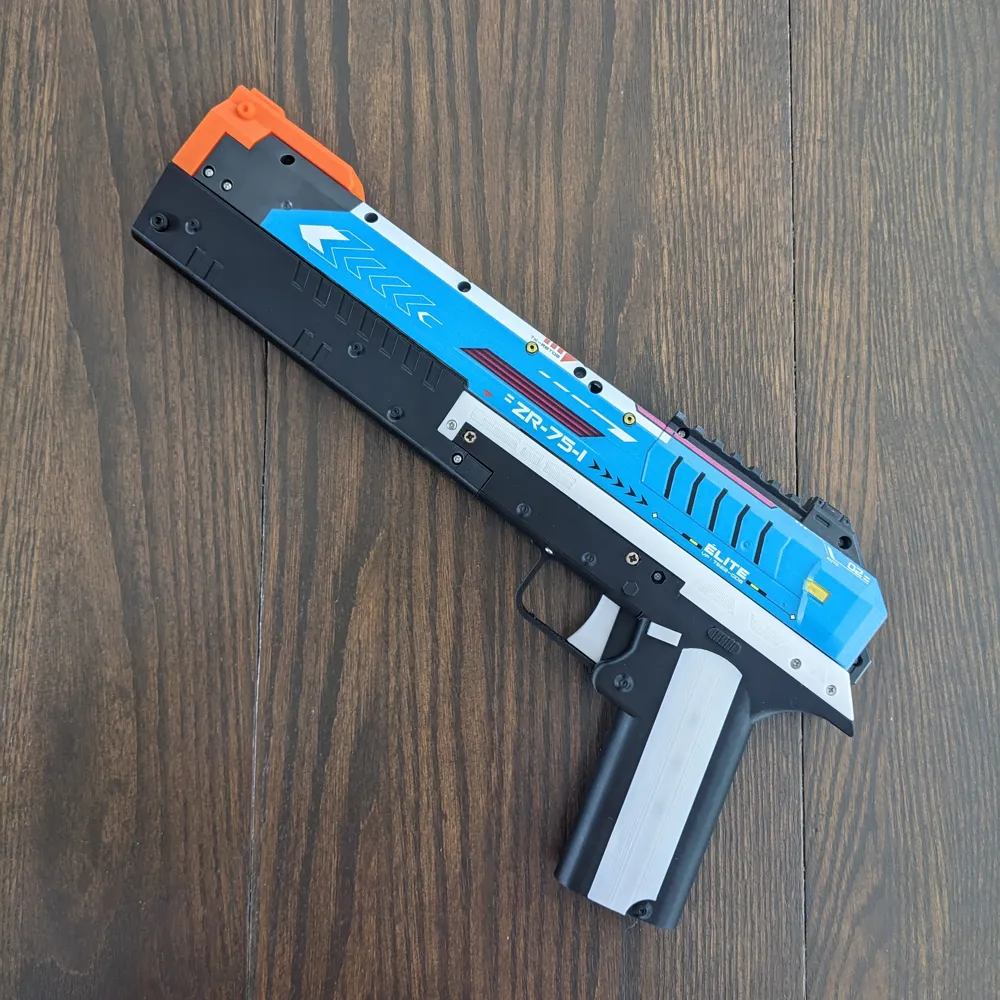

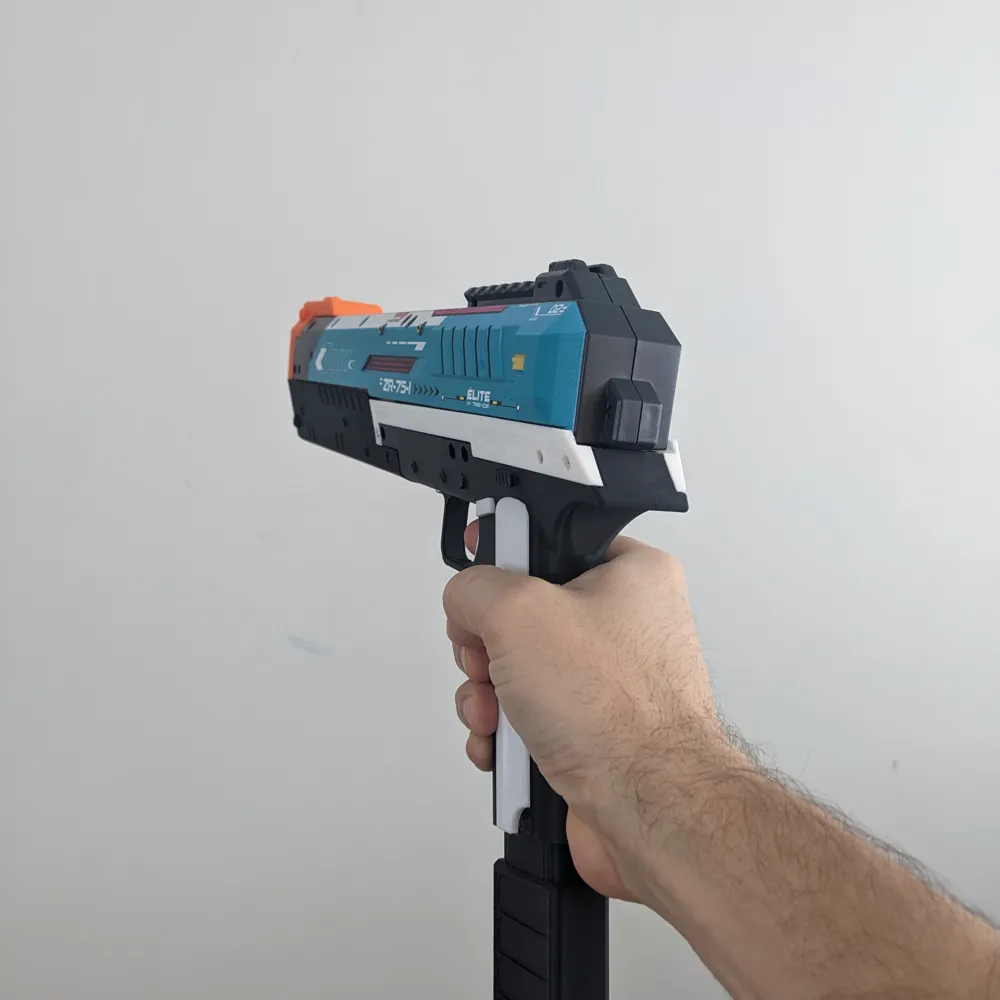

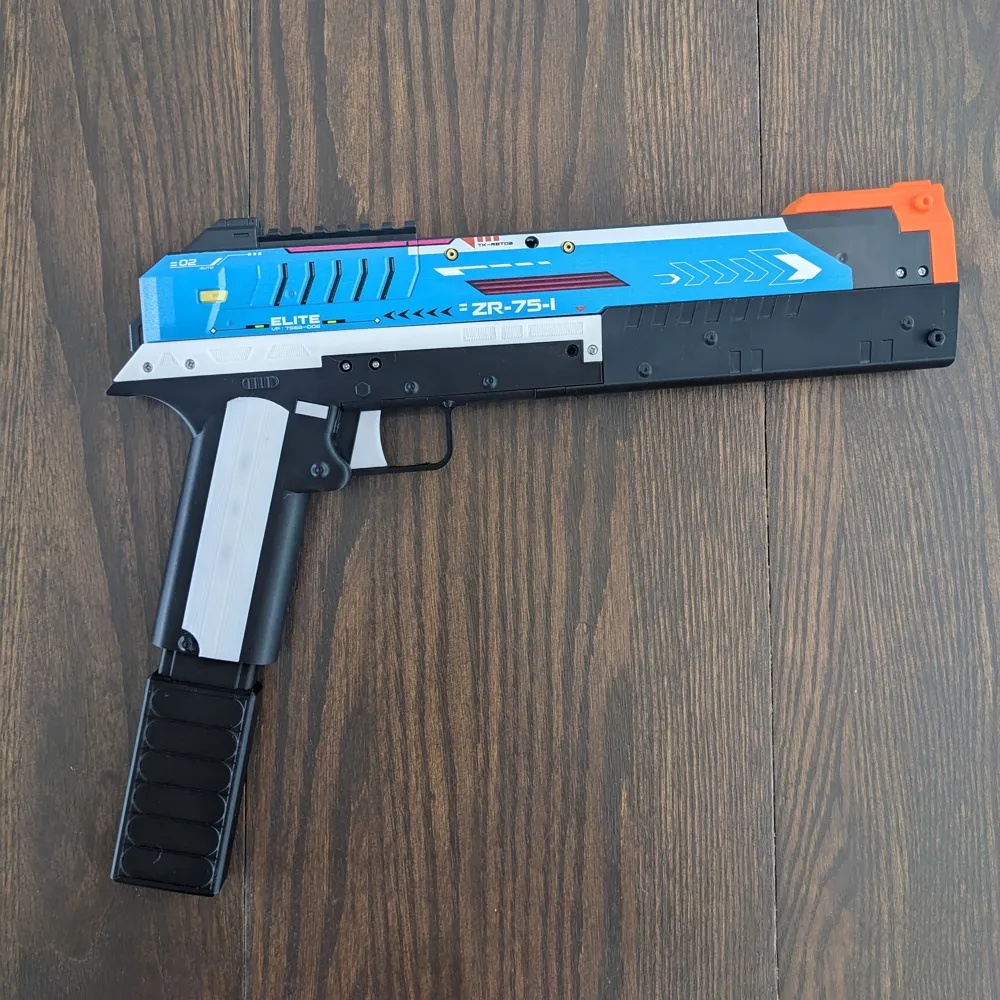

The base model is an Xshot Fury X Reshell that transforms the platform from its bullpup talon configuration into a mag‑in‑grip blaster supporting 31k, Nightingale, and Mini Angled Talon‑style magazines.

The original fileset includes a 10‑dart magazine (shorter mags are not compatible).

Magazine Compatibility

Best Compatibility

• Standard 31k mags (primary design target)

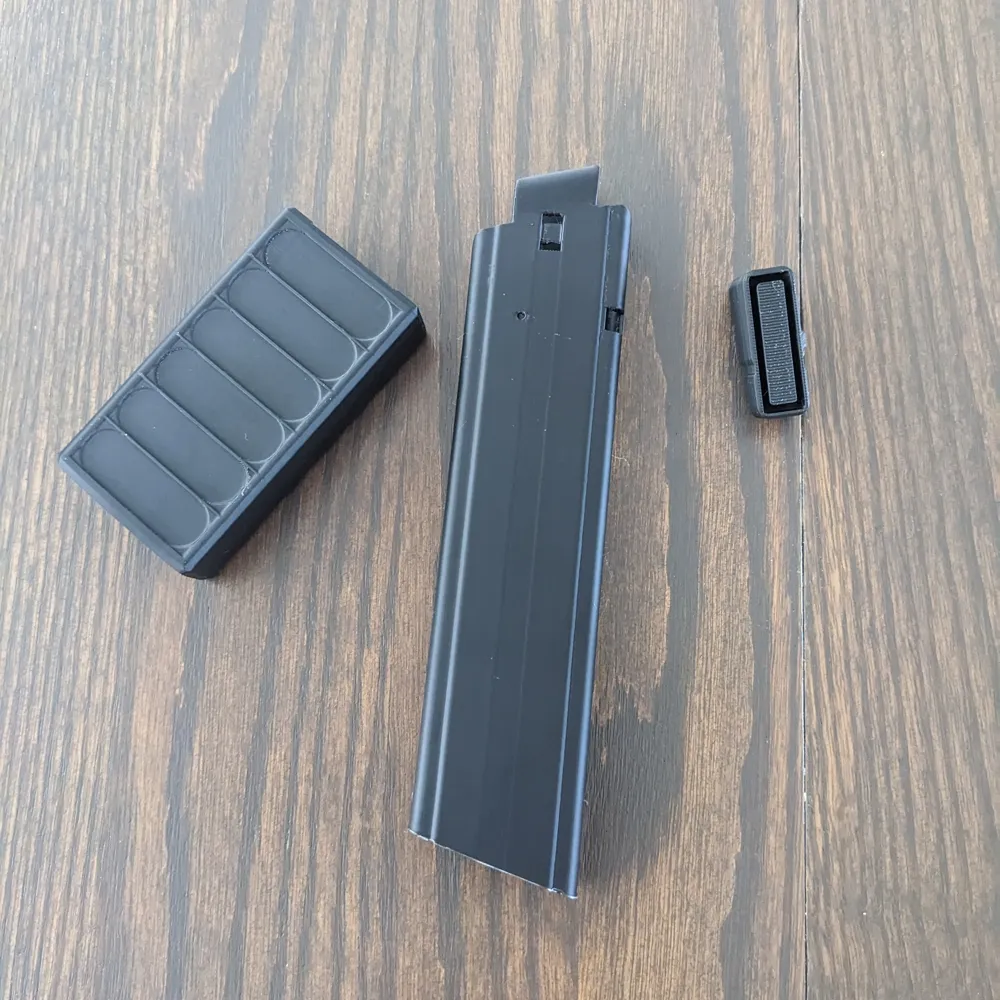

• Included 31k‑pattern mag in the profile (The mag from JaneDoe_2072041, which requires a coil spring, and a custom one that uses the XShot spring and requires no extra hardware)

Works With Tweaks / Optional Files

• Nightingale / Mini Angled Talon mags with the 31k cut
  • Feeds, but may pull off the pusher’s rubber ring
• Venom / Dartzone mags with 31k cut
  • No pusher‑seal issue

Untested

• RedCowl Compound mags
• Vesper mags (future release)

Not Compatible

• Diana mags with wide grip base
• 31k “horizontal print” mags (dimensionally different)

Required Hardware

• 3 × M3 nuts
• 3 × M3×25 bolts
• Superglue
• Lube
• (Optional) Replacement pusher O‑ring
  • Xshot Longshot O‑ring recommended (14 mm OD / 10 mm ID / 2 mm tube diameter)

Additional Notes

• Build Guide:
  See the PDF assembly guide included below.
• For longer barrels, use the “Red Cowl Collet” version and swap the parts as listed.
• 31k File Repository:
  https://drive.google.com/drive/u/0/folders/1E0PVRUimsXT9qqWXhqq85TYIZZVnGRC2
• RedCowl Low‑Profile Collet:
  https://www.printables.com/model/812491-low-profile-collet-for-redcowl-collet-system

Update Log (Original Project)

• v1.01 – Grip panel mesh fix (@FIB_170804)
• v1.02 – Optional “Magazine Stop”
• v1.03 – Adjusted Rear Frame fit
• v1.04 – Mesh fixes for Rear Frame / Front Frame / Trigger Guard
• v1.05 – Feeding improvements with replacement O‑ring
• v1.06 – Improved Dart Guide for Nightingale mags (@JOP_3764735)
