Description
** Update - now includes fusion source file - I would appreciate remixes or additions being published per the license **

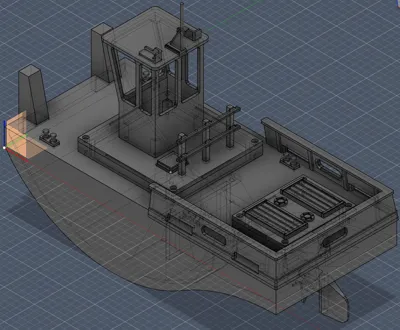

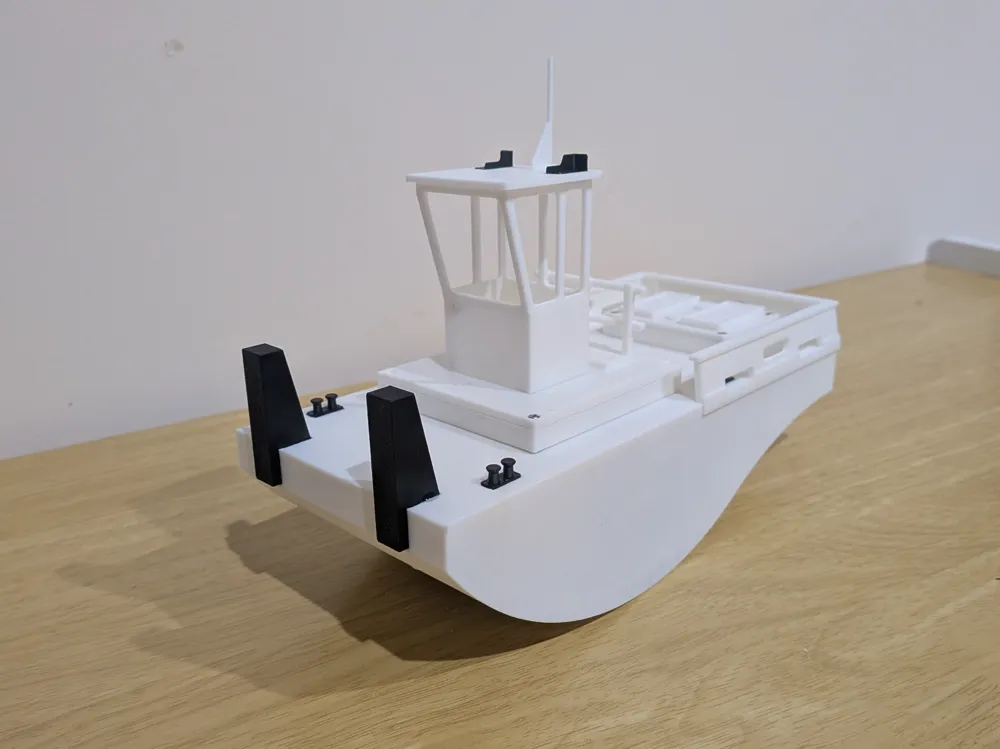

Micro Springer Tug designed for RC
225mm long, 100mm wide
Requires:
2mm bolts
2.5mm bolts
3mm bolts
micro servo
24mm motor and ESC
2.4Ghz radio gear
2mm pushrod and hardware
9mm diameter 5.5cm long prop shaft with 4mm shaft and lock dog
4mm brass rod for rudder
Small battery
Tools:
1.5mm, 2.5mm and 9mm drill bits to clear holes.
2mm and 3mm taps for hatch mounts and motor and servo mounts.
Superglue to attaching rear rail, cabin parts and rope cleats.
Amazon (Australia) part options:
