Assemblable Chainmail Coaster Series-Three_2.3-2.6
Print Profile(4)
Description
This series of models uses geometric equilateral triangles as basic units, connected by a snap-fit hinge structure, allowing for free disassembly and assembly, soft as fabric.
The version released this time is the fourth group of equilateral triangle units, the third group can be found here, and more versions and combinations will be released later
Since this series of models needs to be assembled and requires a certain degree of part fit, before printing, be sure to
Perform flow rate calibration!
Perform flow rate calibration!
Perform flow rate calibration!
Otherwise, it may cause, but is not limited to: 1. failure to assemble 2. excessively loose assembly
Because the connecting rod part is small, almost approaching the minimum limit of an FDM 3D Printer, and considering the strength of FDM printed parts, please choose filament with certain strength and layer adhesion After multiple printing tests, the minimum required filament is PLA Basic Most PLA Silk types have very weak strength, especially in terms of layer adhesion, and the connecting rod can easily break during disassembly and assembly, becoming single-use

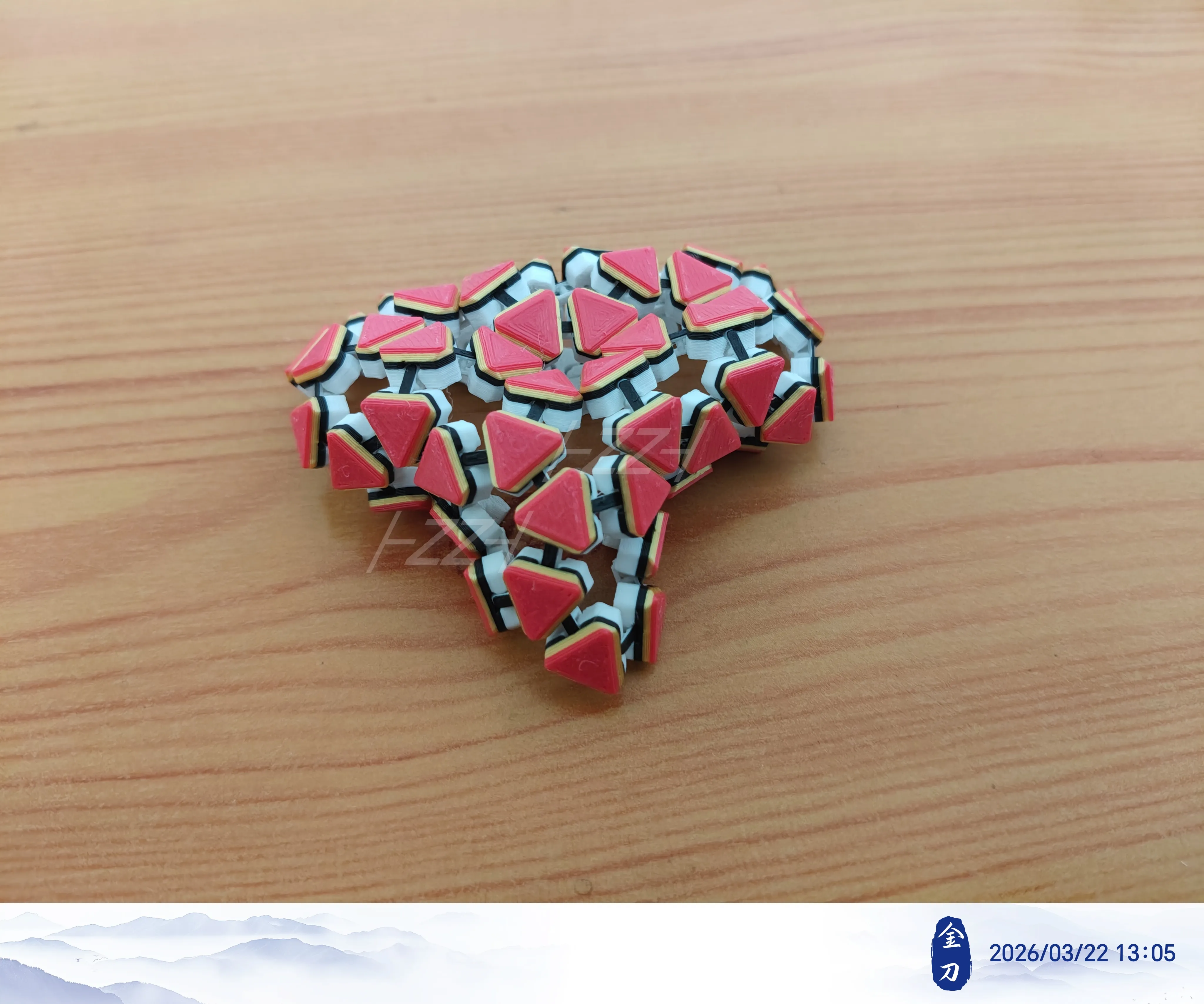

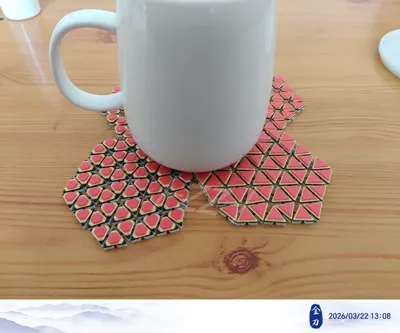

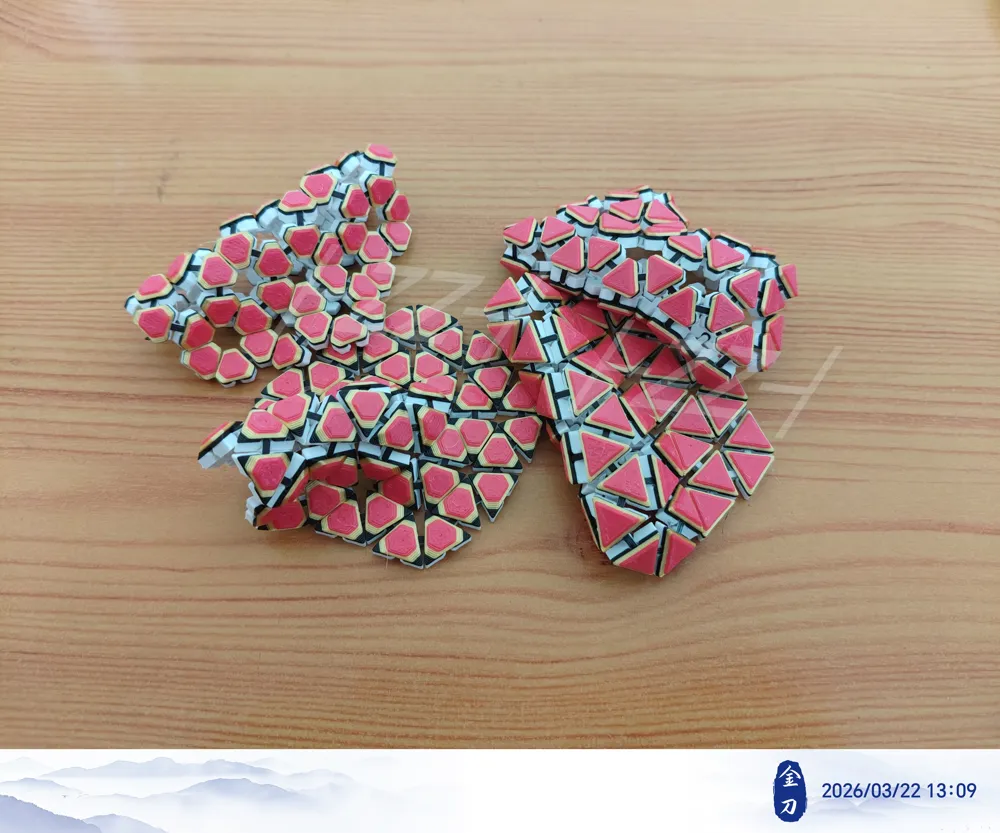

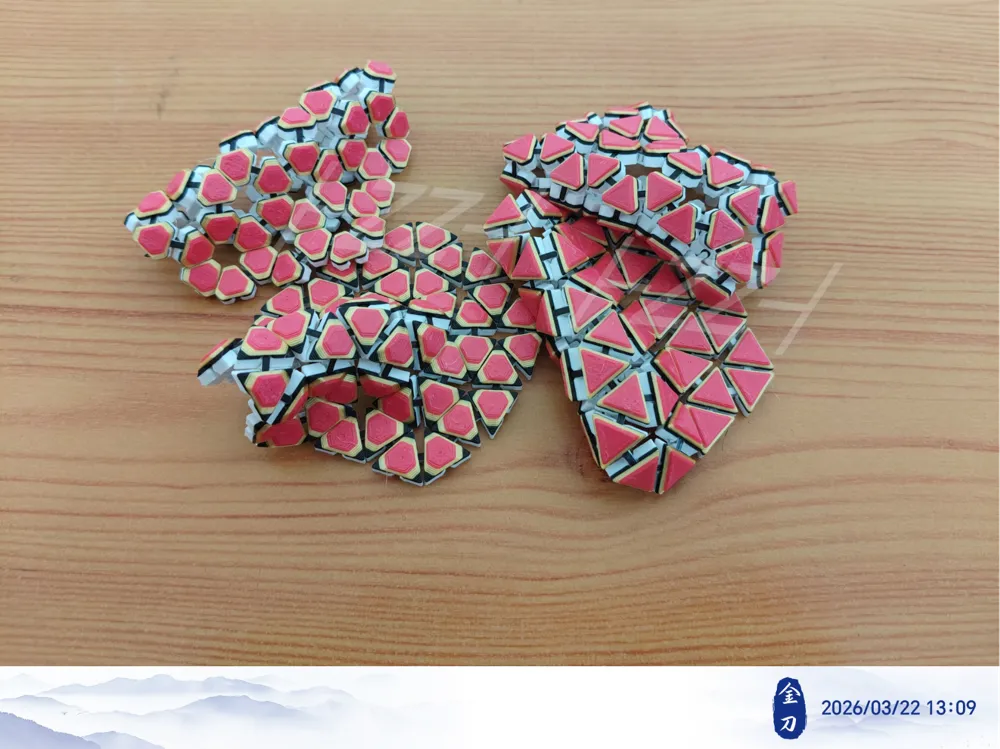

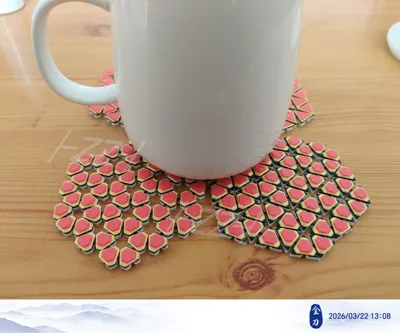

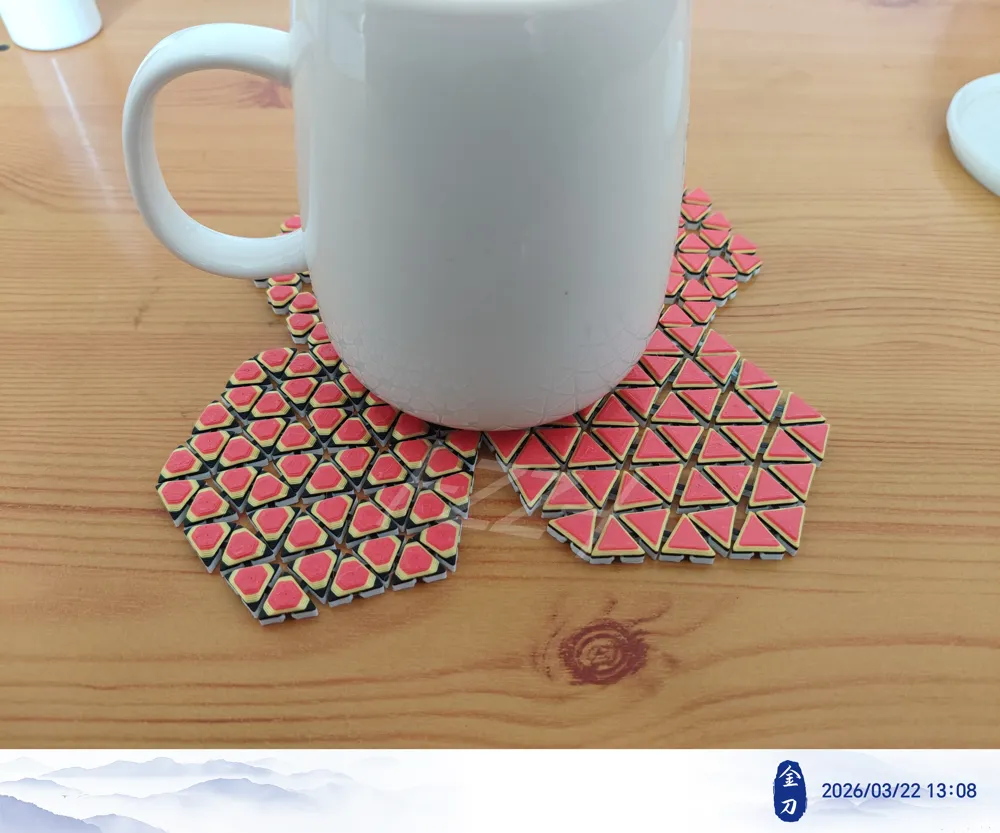

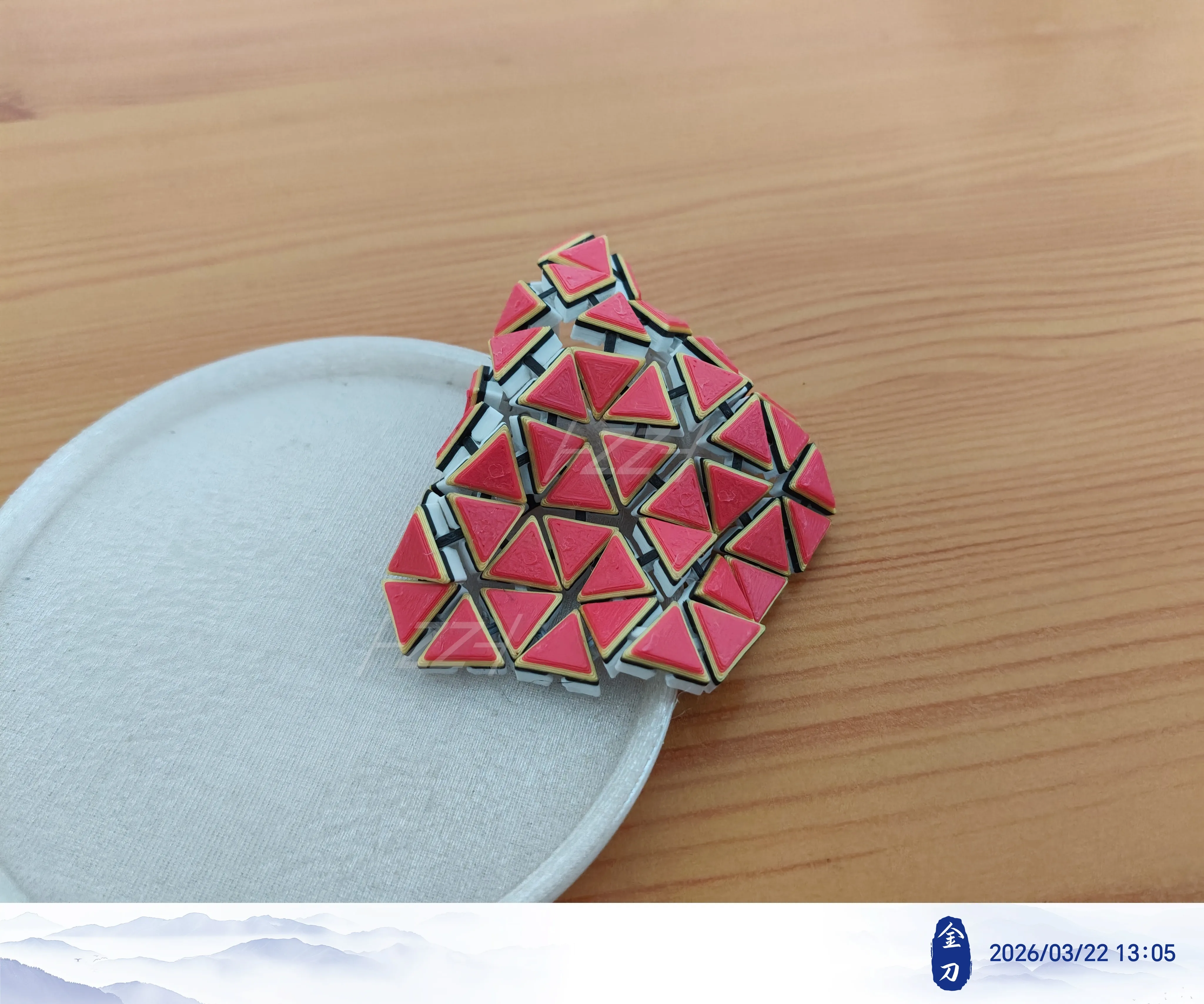

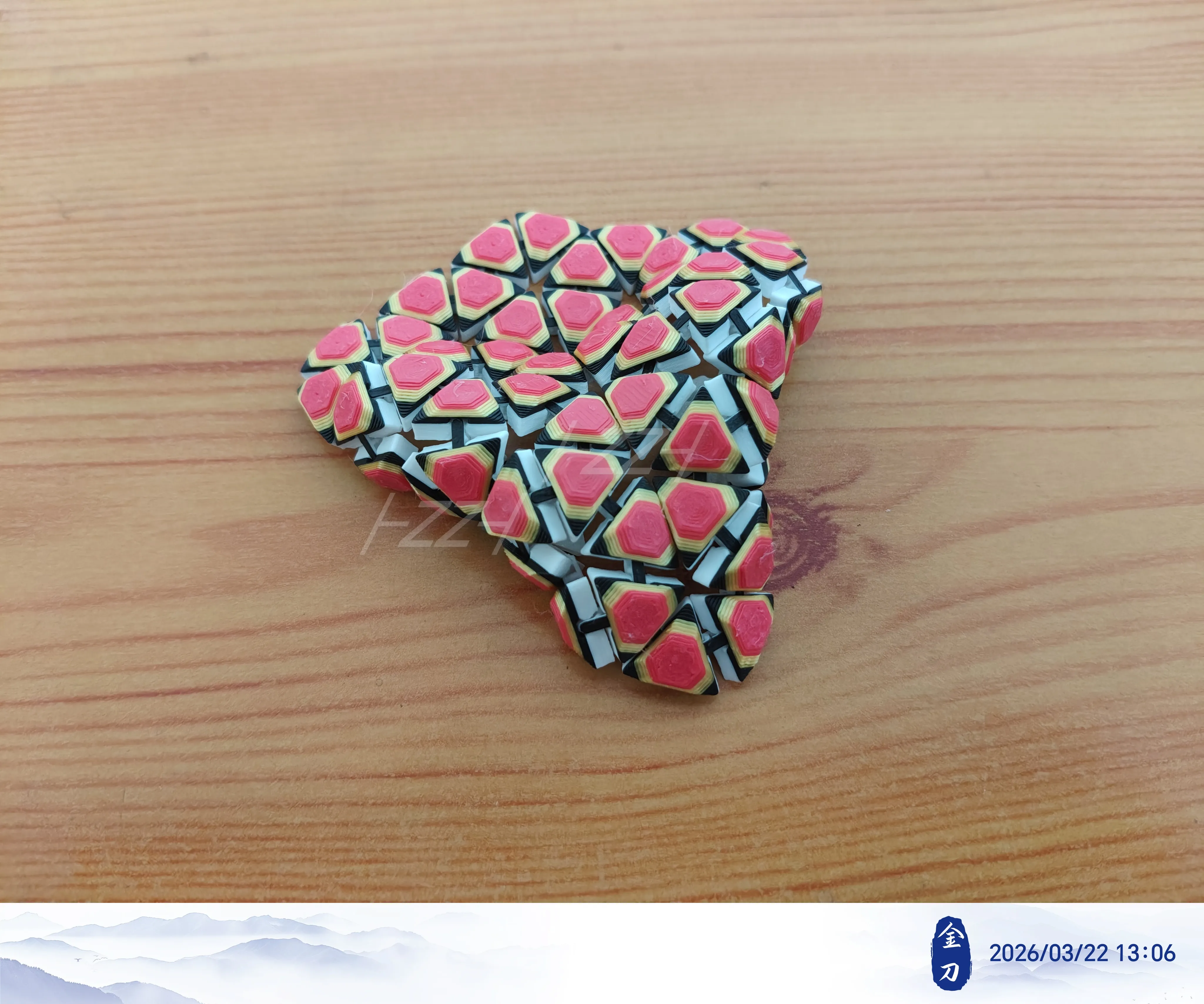

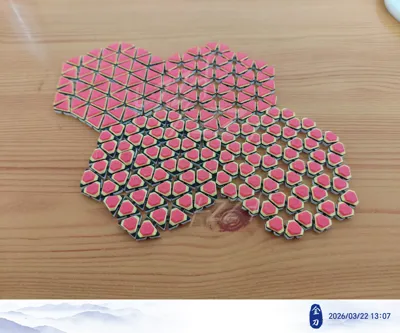

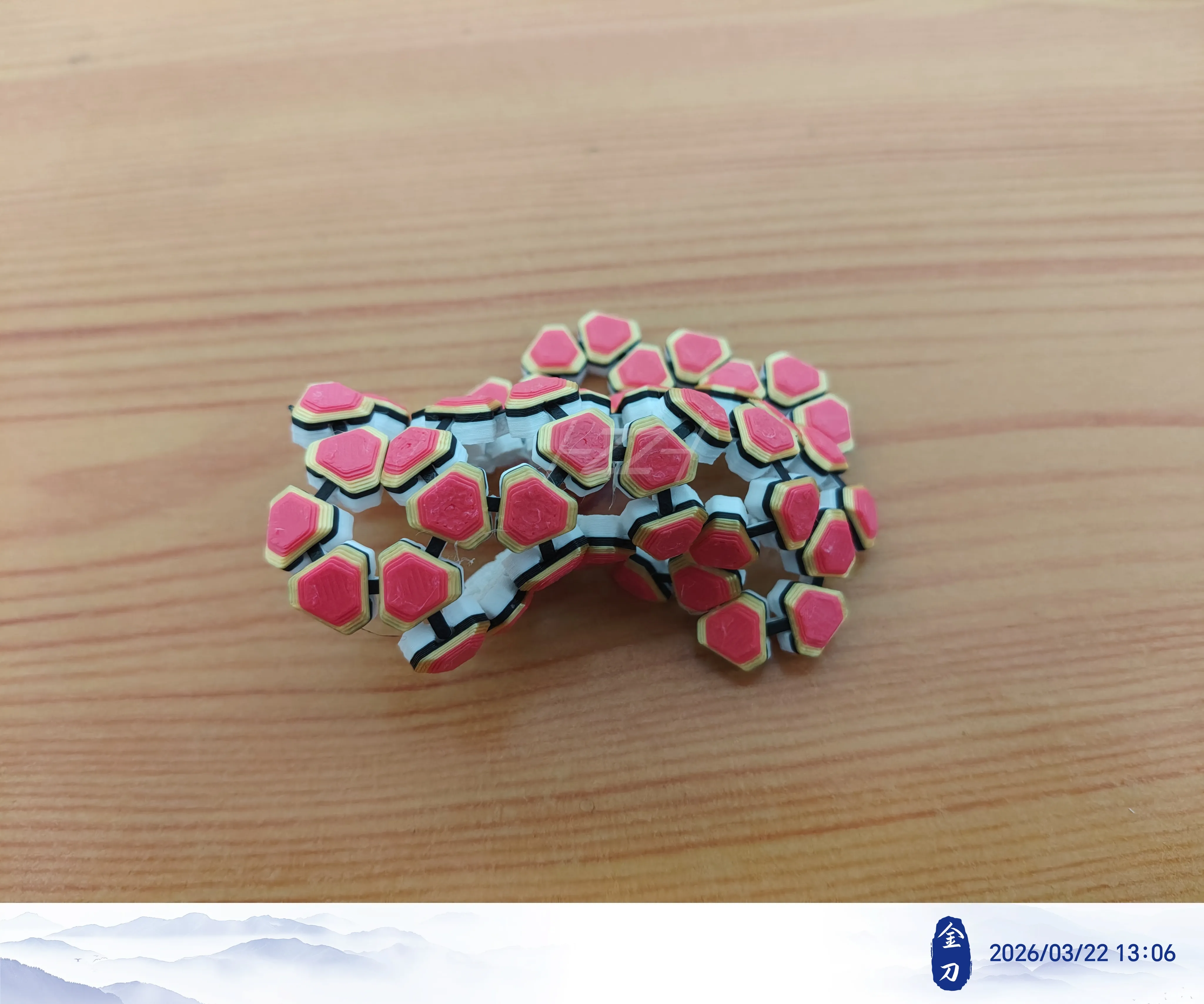

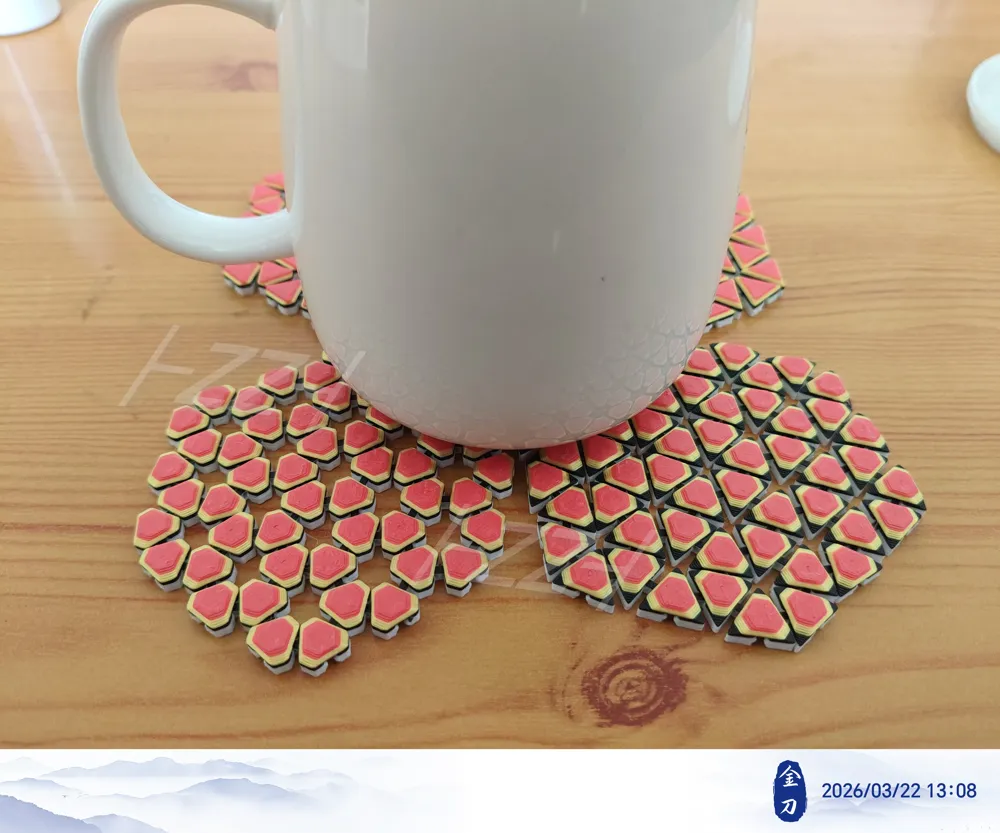

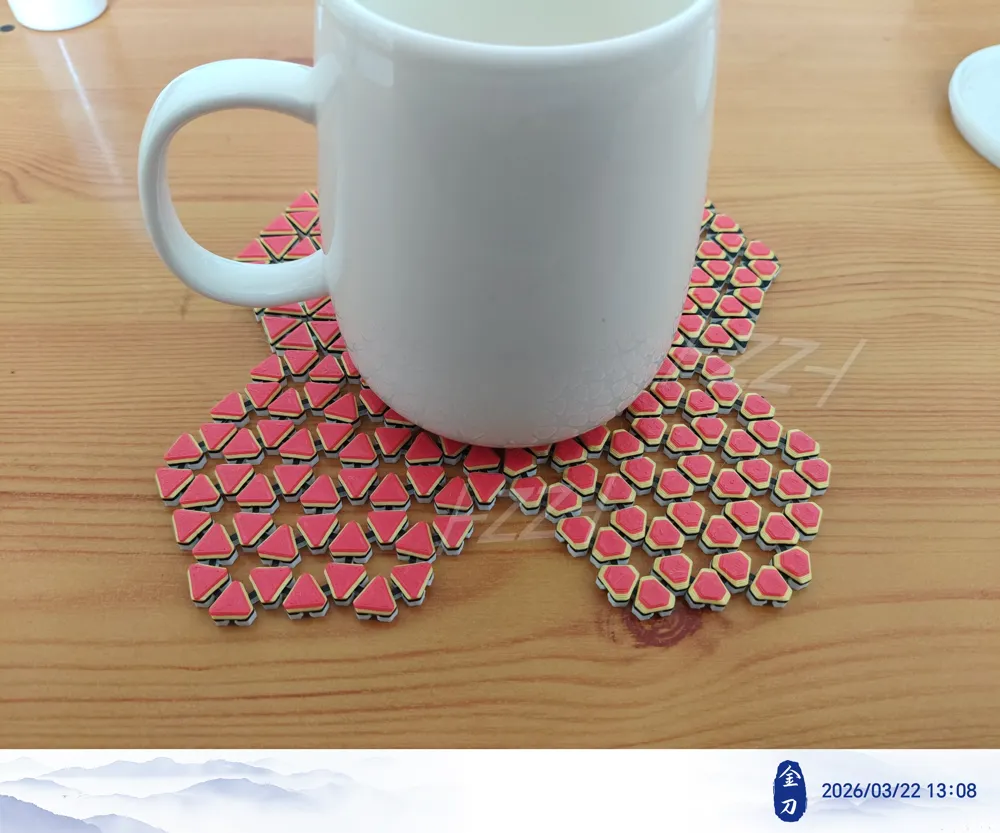

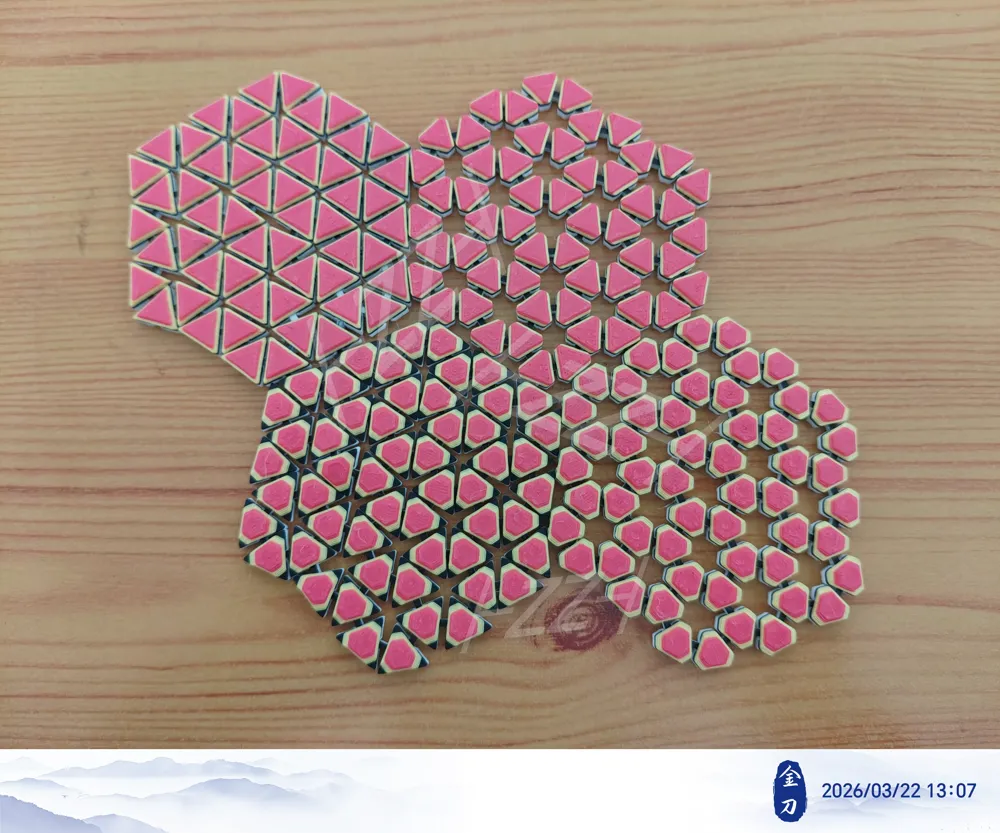

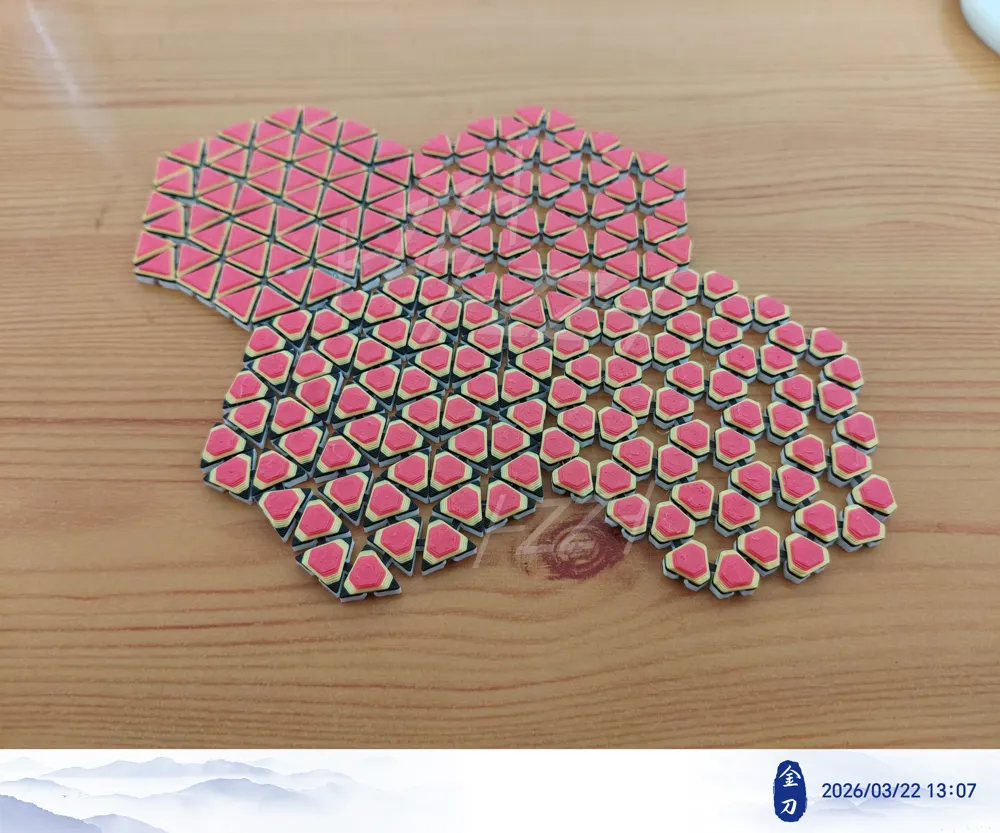

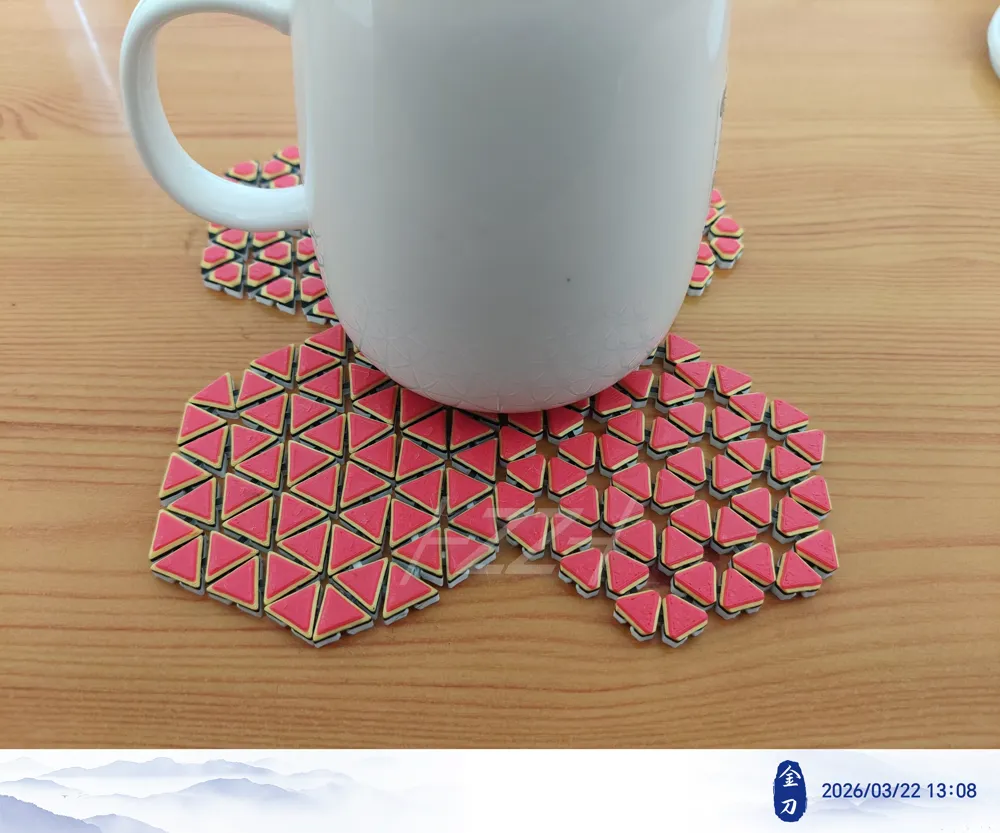

Simple schematic diagrams of the current combination of each version and physical images after assembly (Print in Place) are shown below
1.三_2.3
2.三_2.4
3.三_2.5
4.三_2.6

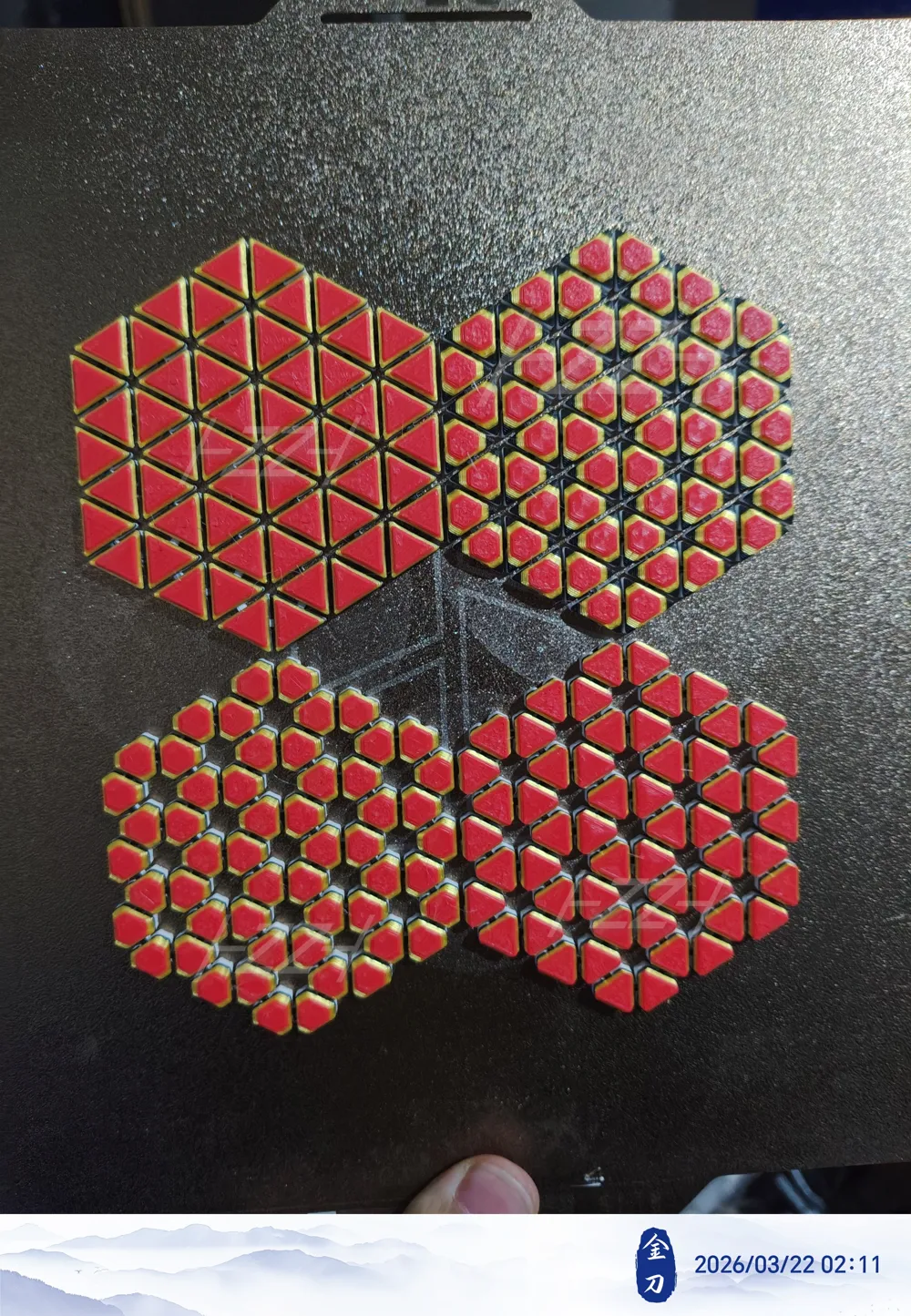

The multi-color realization of this set of models is achieved by manually changing the corresponding filament after setting a pause at a specified height Those who do not care about waste can achieve automatic filament change using a multi-color system by painting at specified heights
Due to the presence of small parts (connecting rods),
Please keep away from children under 5 years old and infants to prevent accidental ingestion!
Please keep away from children under 5 years old and infants to prevent accidental ingestion!
Please keep away from children under 5 years old and infants to prevent accidental ingestion!
This version group is exclusively released on this platform, Do not repost or publish on other platforms without permission! Do not use for commercial purposes! For personal research and entertainment only, thank you for your understanding and cooperation
Finally, I wish you happy printing and to assemble your own chainmail!
