Description

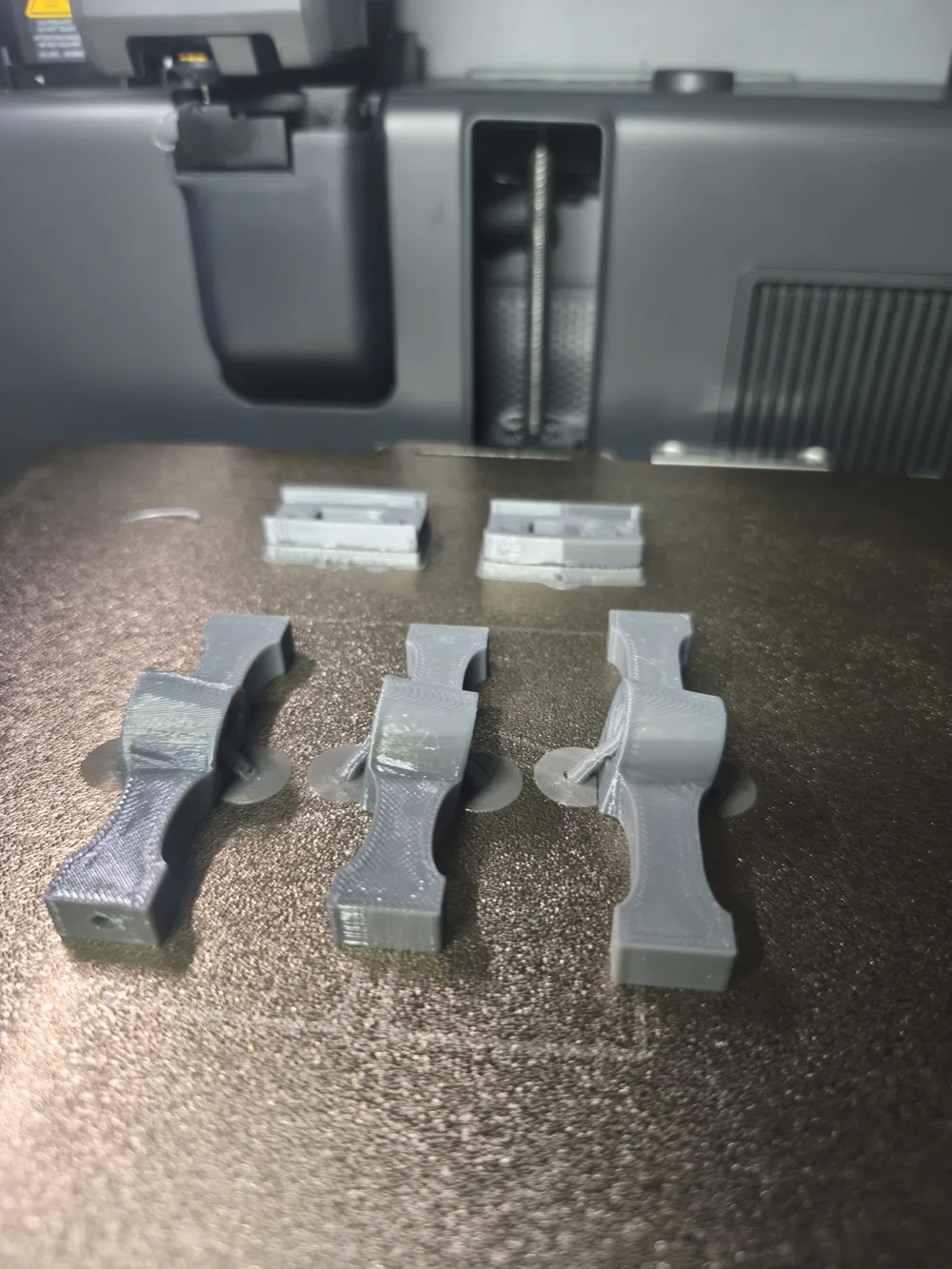

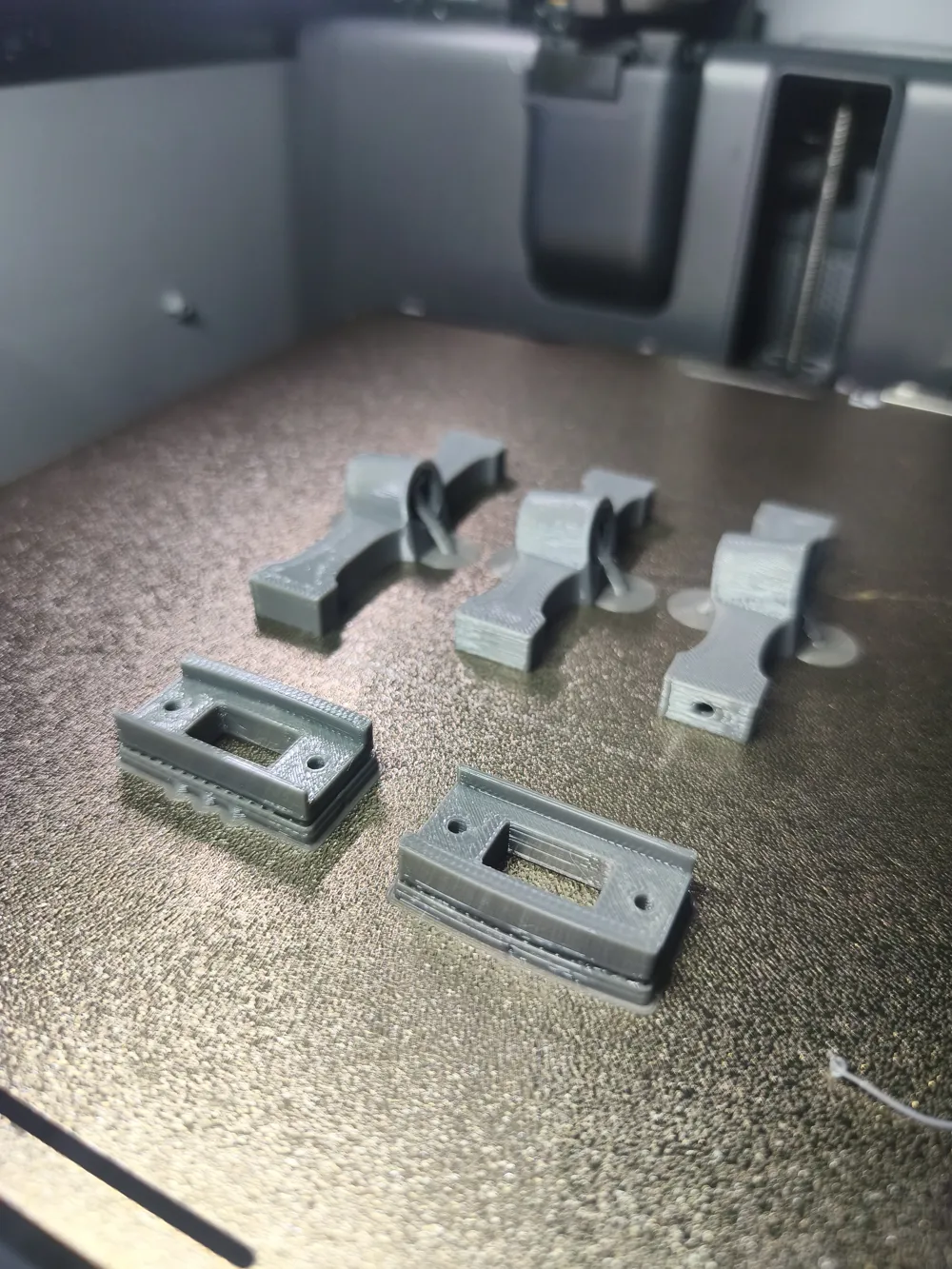

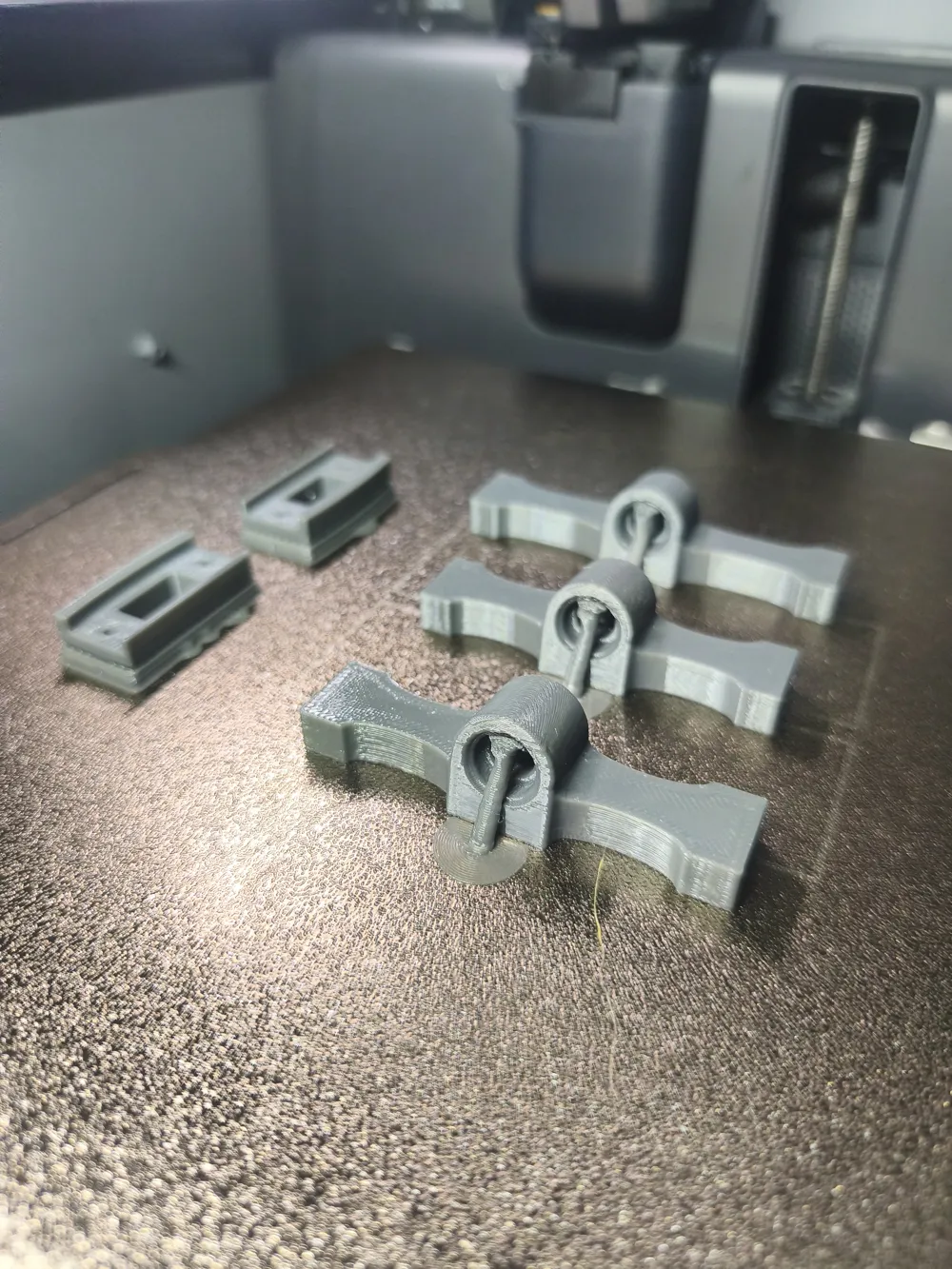

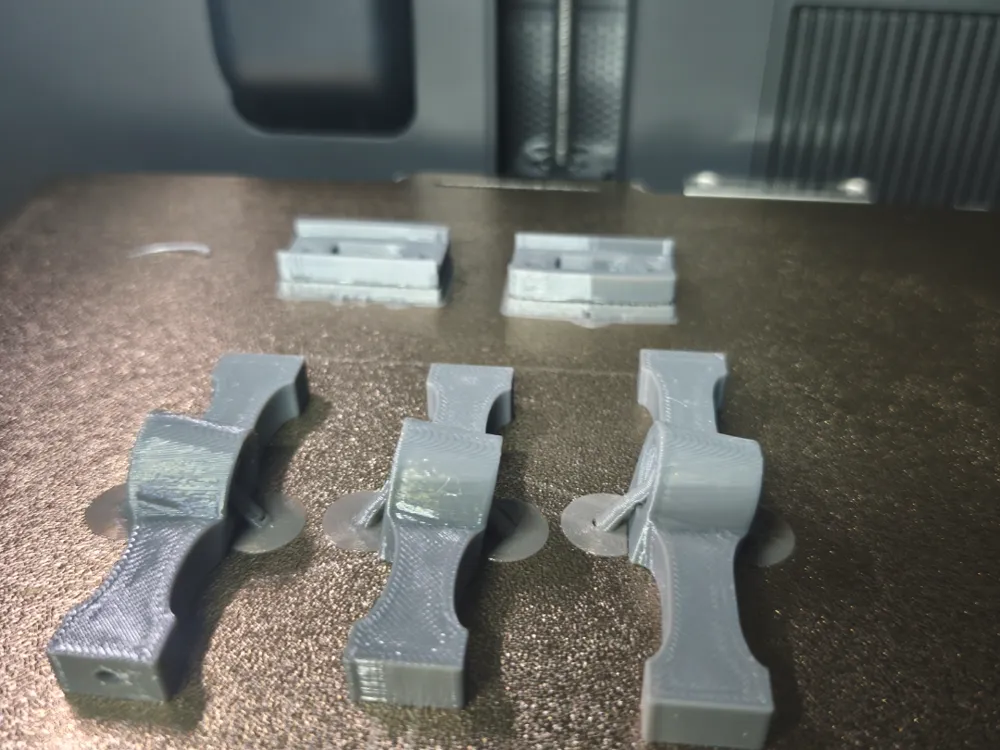

I designed it to fit the 1/10 Tarantula chassis, adding several skid plate sizes, one 67mm wide, and I added one for a 78mm skid plate. They are not very aesthetic, but the 67mm one has been thoroughly tested on rocky terrain. I used an existing hole in the chassis and the edge of the adapter to fix it. It can also be placed wherever desired if some 3mm holes are drilled. It is necessary to add 5mm inner diameter spacers on one or both sides to hold the bearing, as I left the housing shallow for greater adjustment flexibility. another 70mm version
Transfer case shaft: Part No. AXI31410
ProTek RC 5x10x4mm bearing
Printed in PETG with 100% infill.
