Swivel Vise Mount
Print Profile(1)
Description

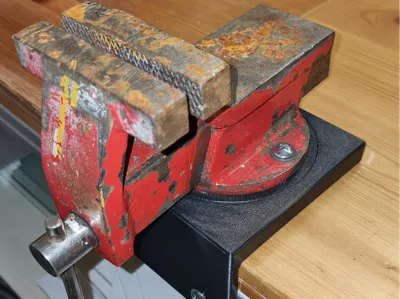

Swivel Vise Mount – 3D Print File
This swivel vise mount allows for flexible and precise alignment of your vise in almost any working position. The design focuses on stability, easy assembly, and reliable clamping – ideal for workshop, hobby, and DIY projects.
Features & Benefits:
- 🔄 360° rotatable thanks to integrated gear mechanism
- 🔒 Secure locking by form-fitting teeth
- 🛠️ Robust construction for high load capacity
- ⚙️ Easy assembly with standard screws (M10 cylinder head screws on top, any M8 screw on the side)
- 🧩 Modular design – all parts separately printable and interchangeable
Structure:

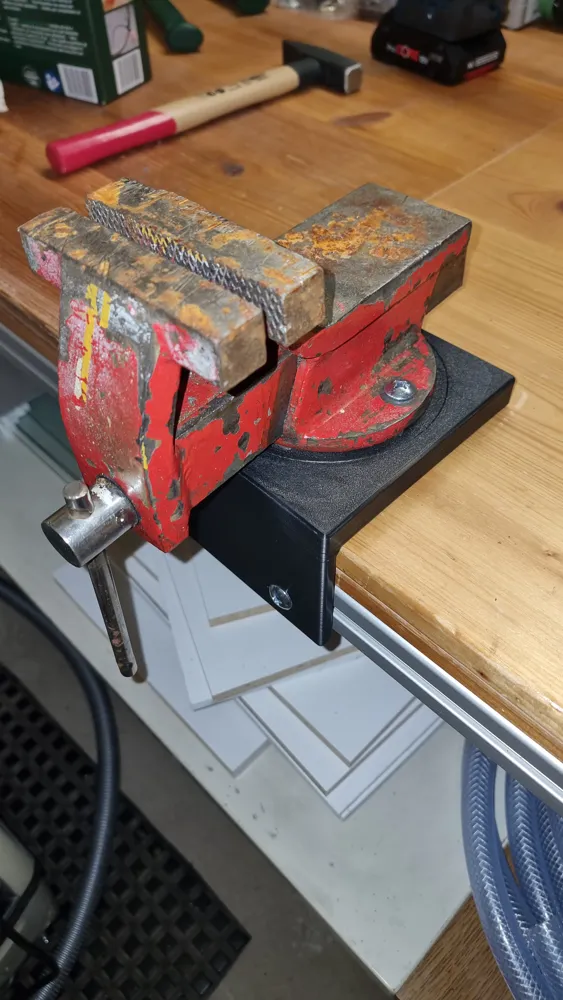

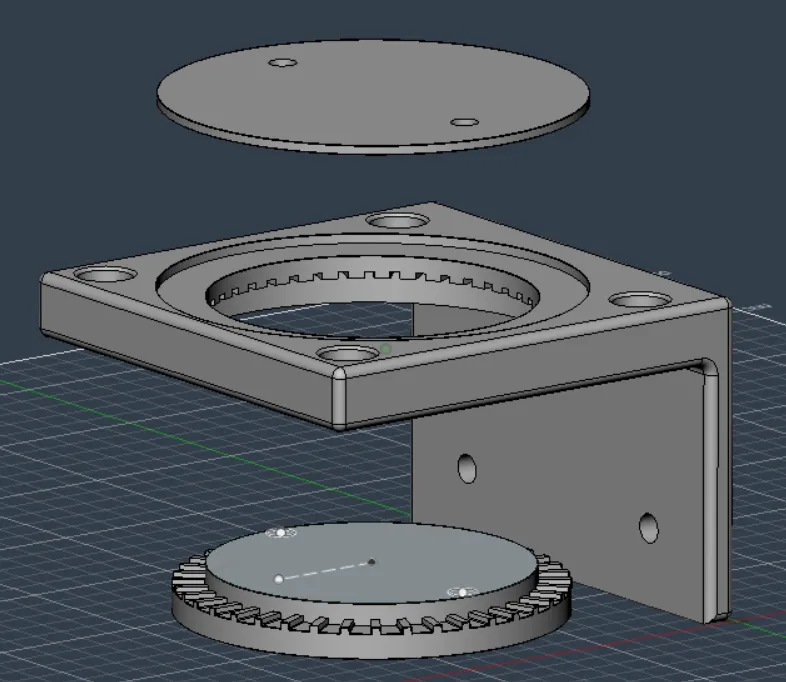

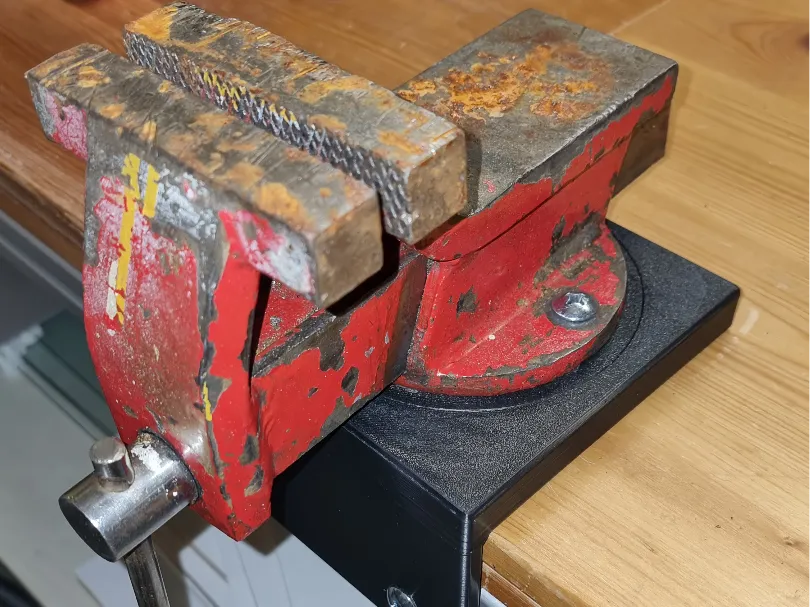

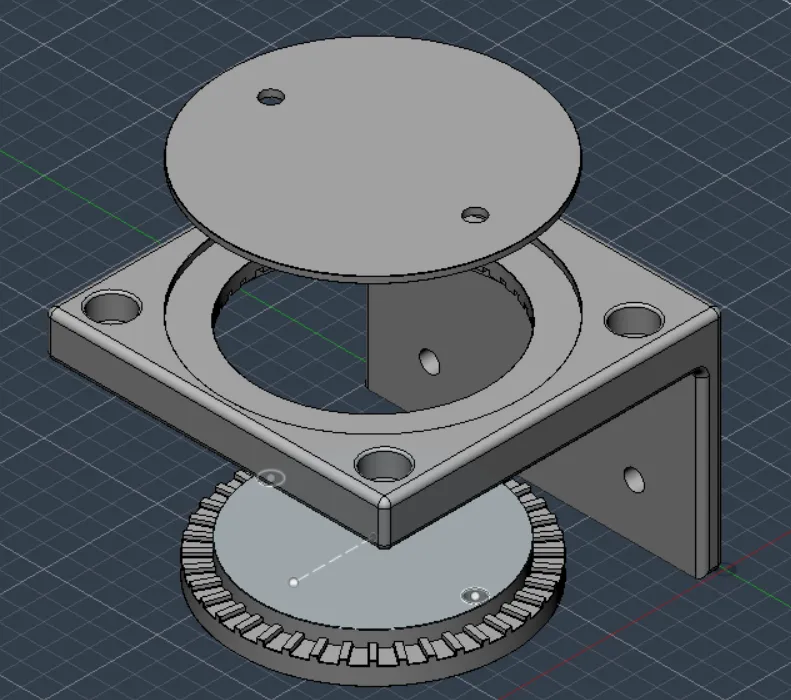

The mount consists of several components:
- Base plate for mounting on the workbench or laterally via brackets
- Rotary plate with teeth for positioning
- Upper mounting plate for the vise
- M8 nuts for attaching the vise to the rotary plate
Print Recommendations:
- Material: ABS or PETG (PLA only conditionally recommended)
- Infill: 30–50 % (higher for maximum stability)
- Wall thickness: ≥ 6 perimeter
- Layer height: 0.2 mm
- Support: Yes
Notes:
- Screws and nuts are not included
- I glued the M8 nut into the swivel plate, but it can also be embedded by printing one or two layers over it
- For optimal function, the gears should be printed cleanly
Depending on the printer, some minor post-processing may be necessary
Areas of Application:
Perfect for metalworking, woodworking, model making, or general workshop applications where flexibility and stability are required.
