WaveShare & WisBlock Junction Box Mounting Plate
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
2.3 h
1 plate
Open in Bambu Studio
Boost
26
94
4
2
62
26
Released
Description

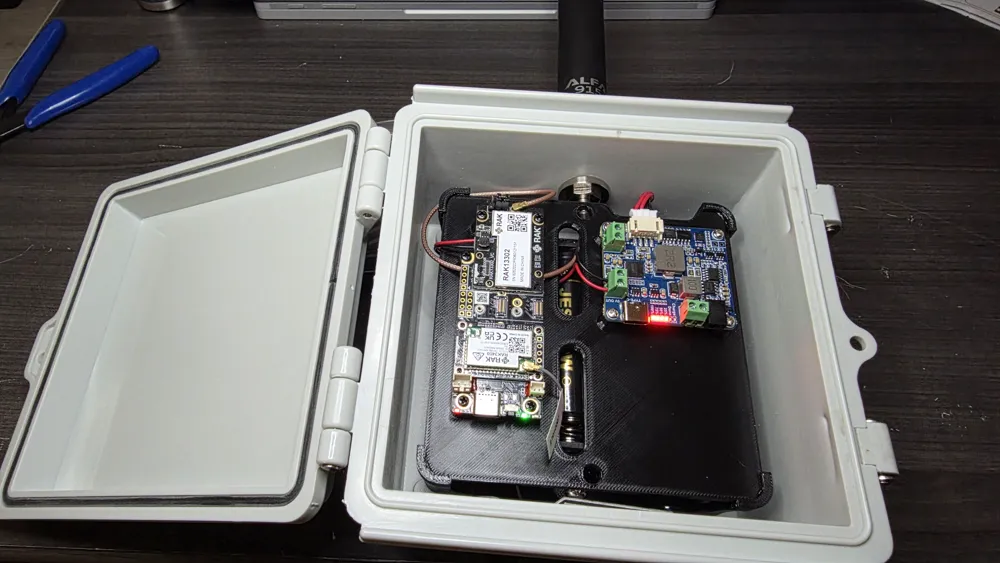

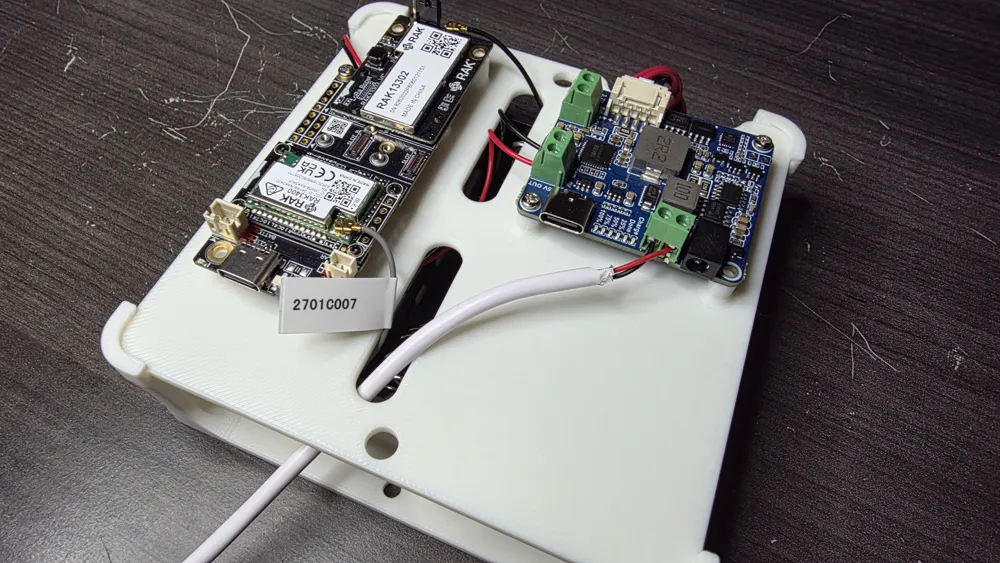

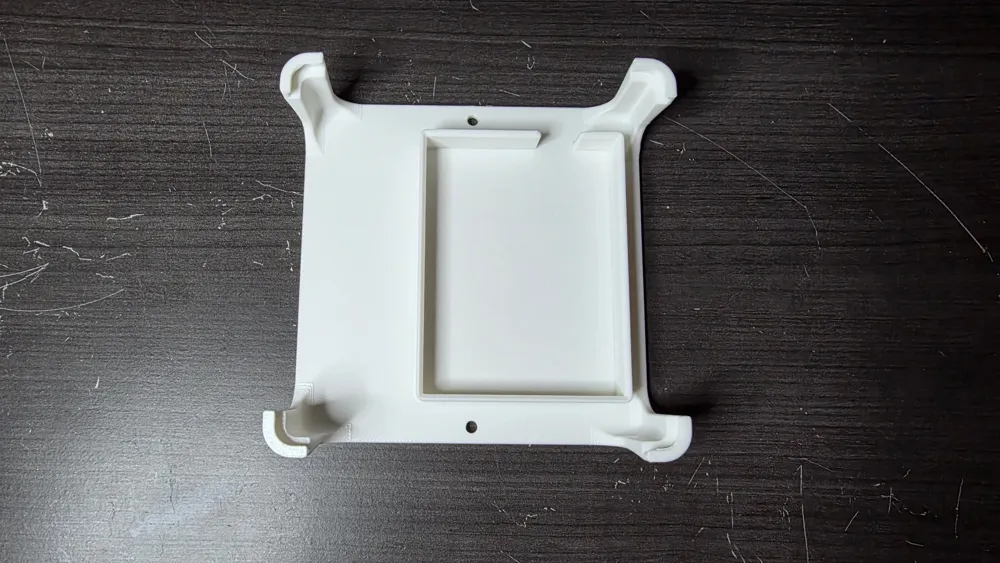

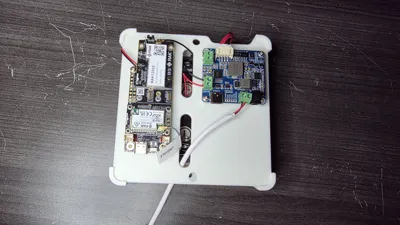

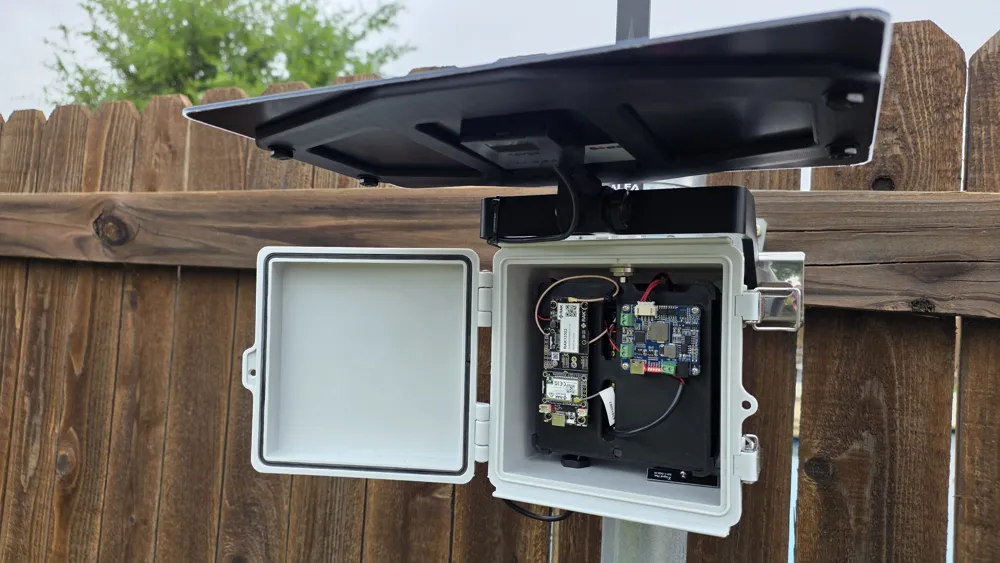

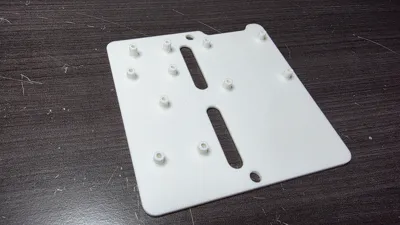

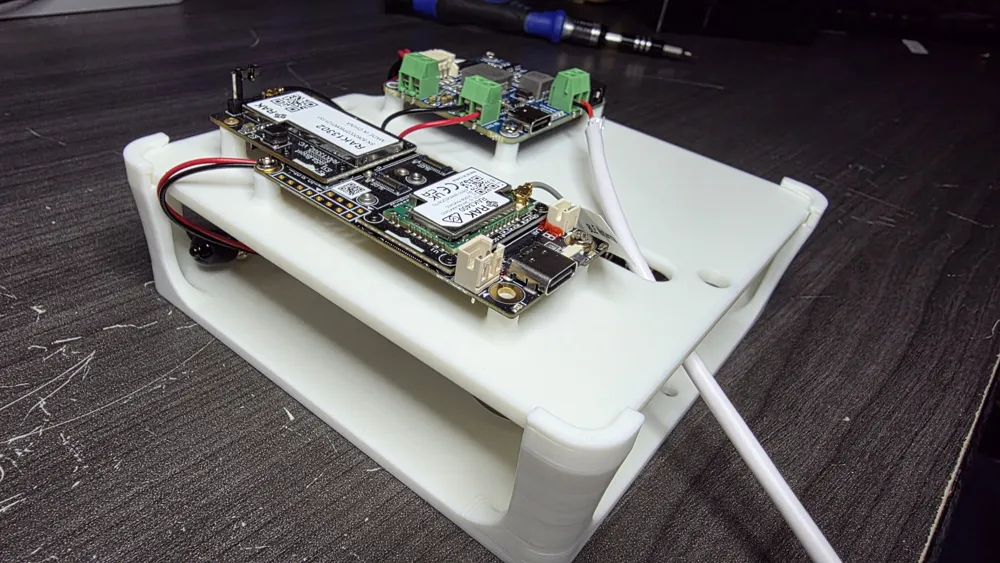

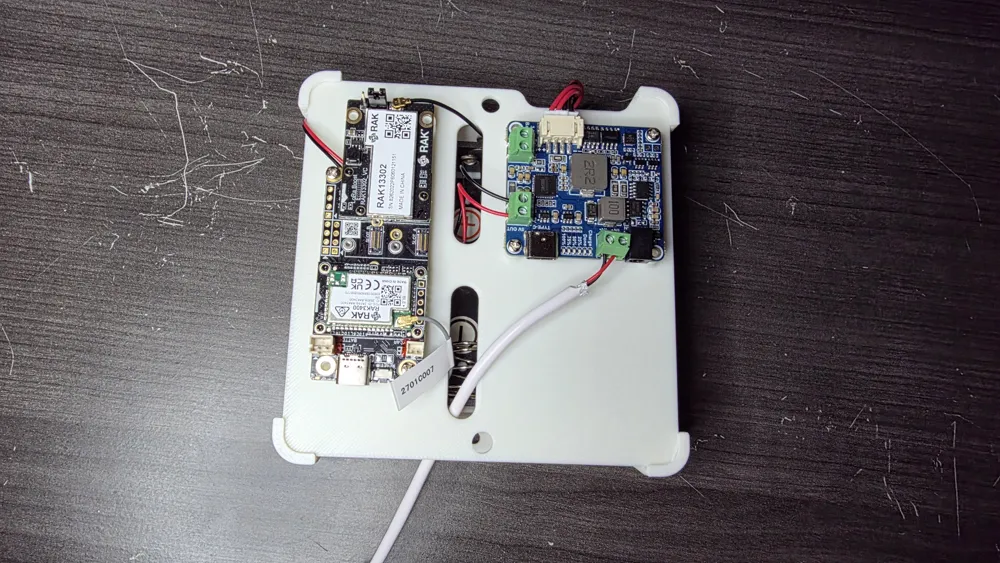

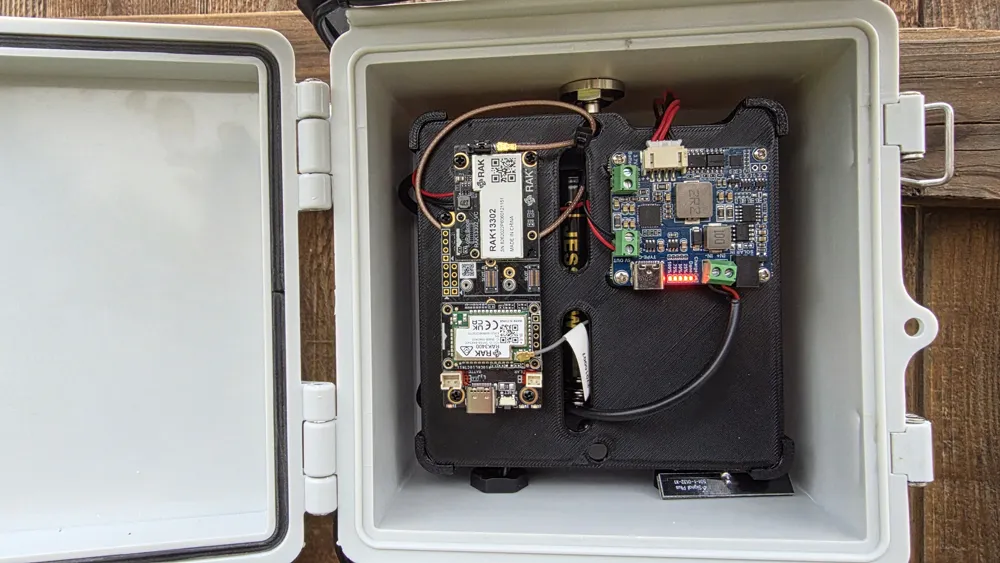

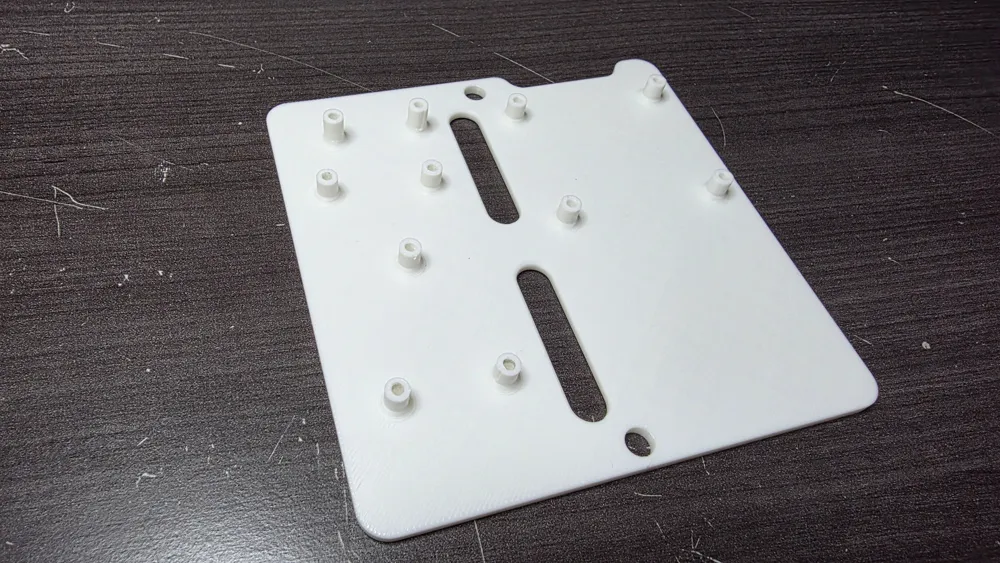

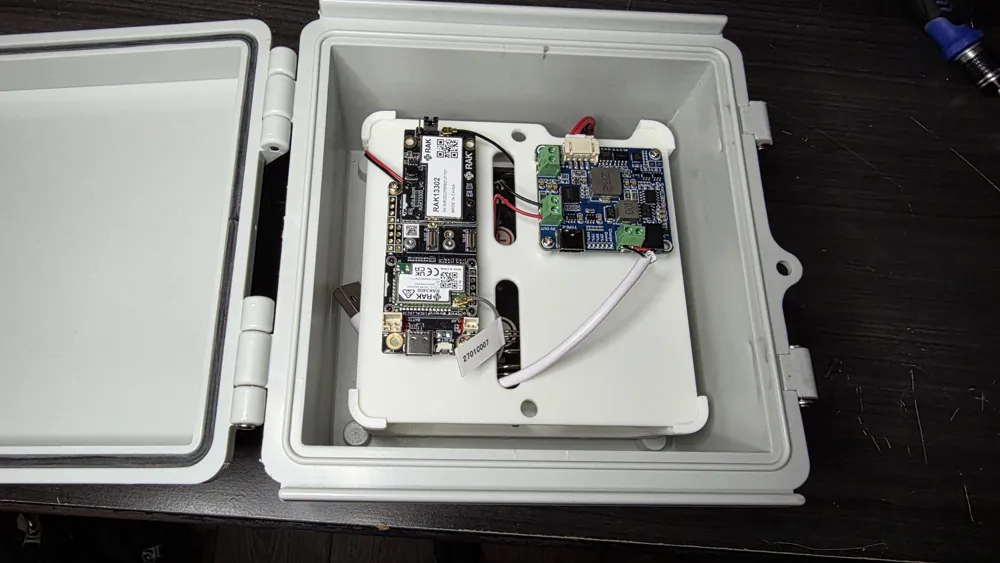

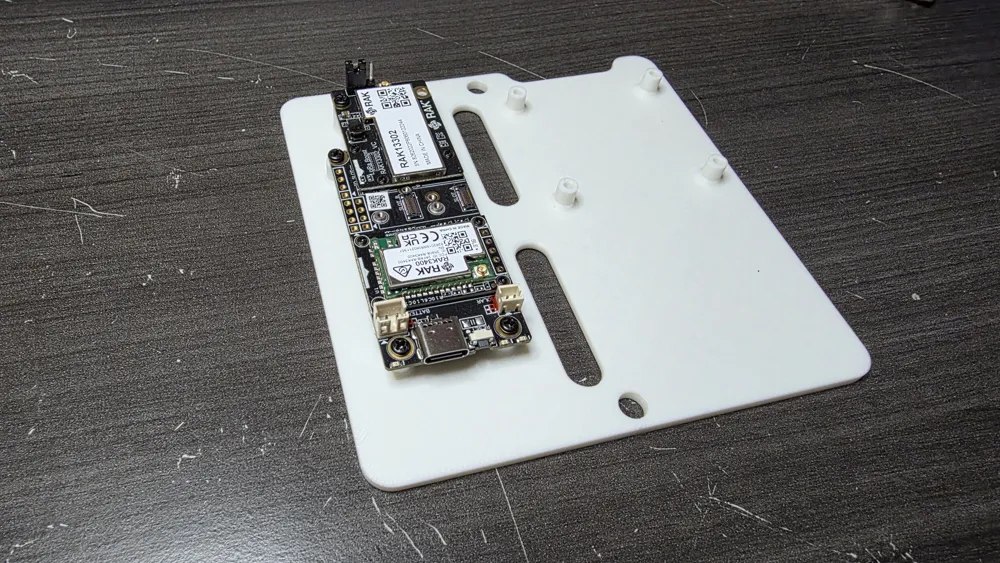

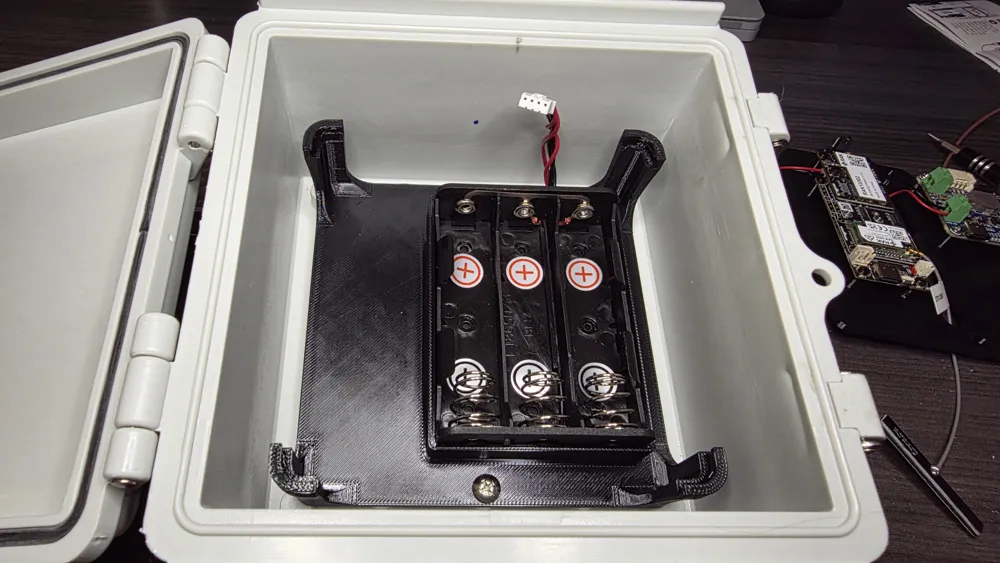

This mounting plate is designed for the WaveShare Solar Power Manager (D) and the RAK WisBlock or 1W WisMesh Booster, fitting a 150mm × 150mm × 90mm junction box. The battery base replaces the original mounting plate and reuses the existing hardware. The top plate slides and locks into place, allowing fast installation and easy access for maintenance.

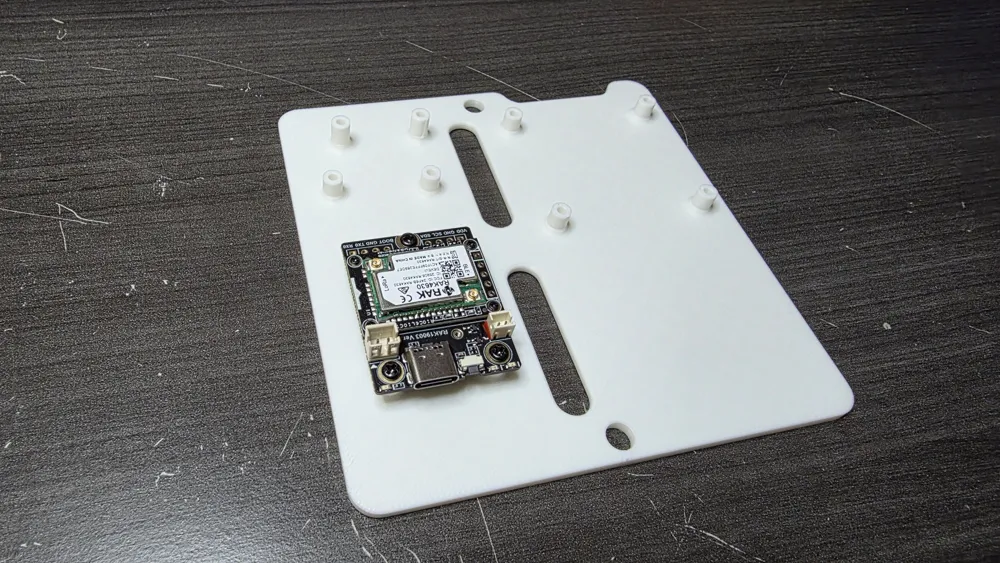

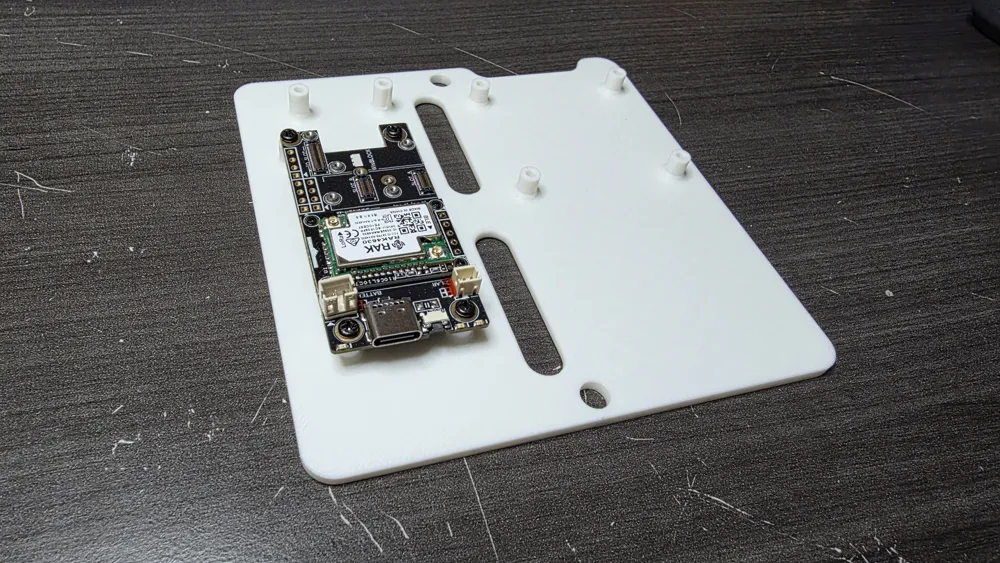

UPDATED: 04-19-2026 to include a Stand-Off to accommodate the WisBlock Mini
Equipment Used
- WaveShare Solar Power Manager Module (D) with battery holder
- 3.7V 18650 Batteries (up to 3 can be used)
- WisMesh 1W Booster Starter Kit or WisBlock or WisBlock Mini

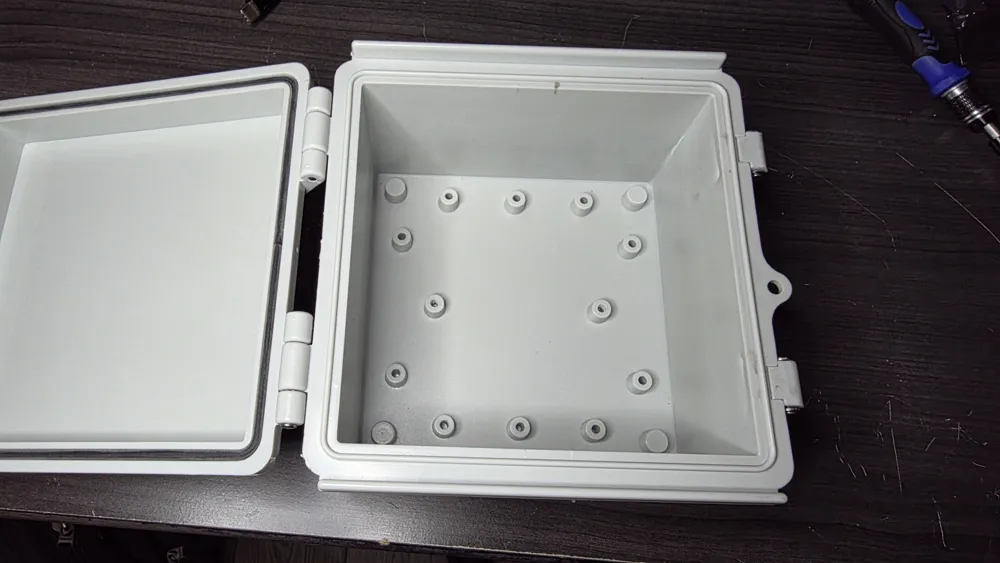

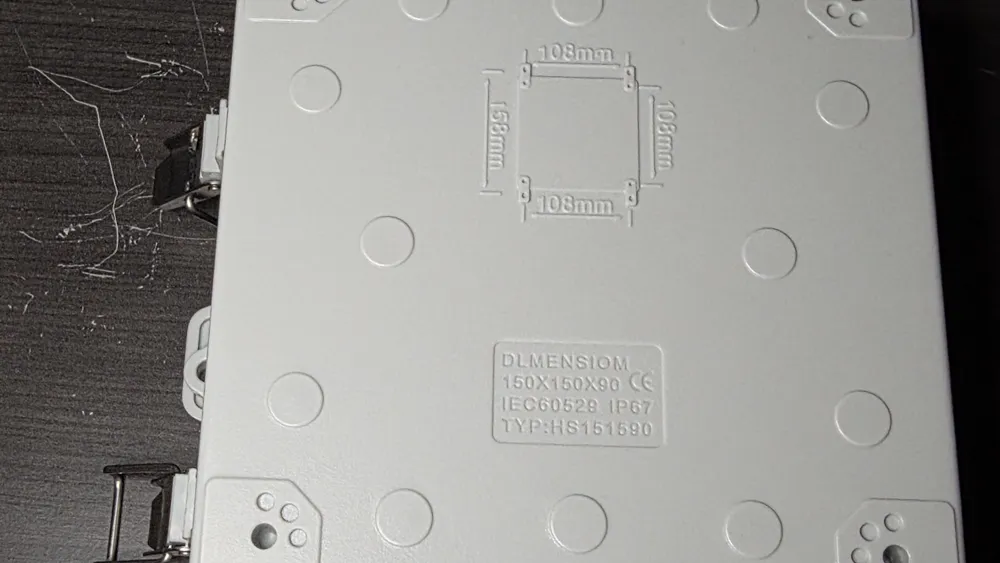

- Junction Box - 150mm x 150mm x 90mm (5.9" x 5.9" x 3.5")
