Guitar Pedal Board Risers for easier access
Print Profile(1)
Description

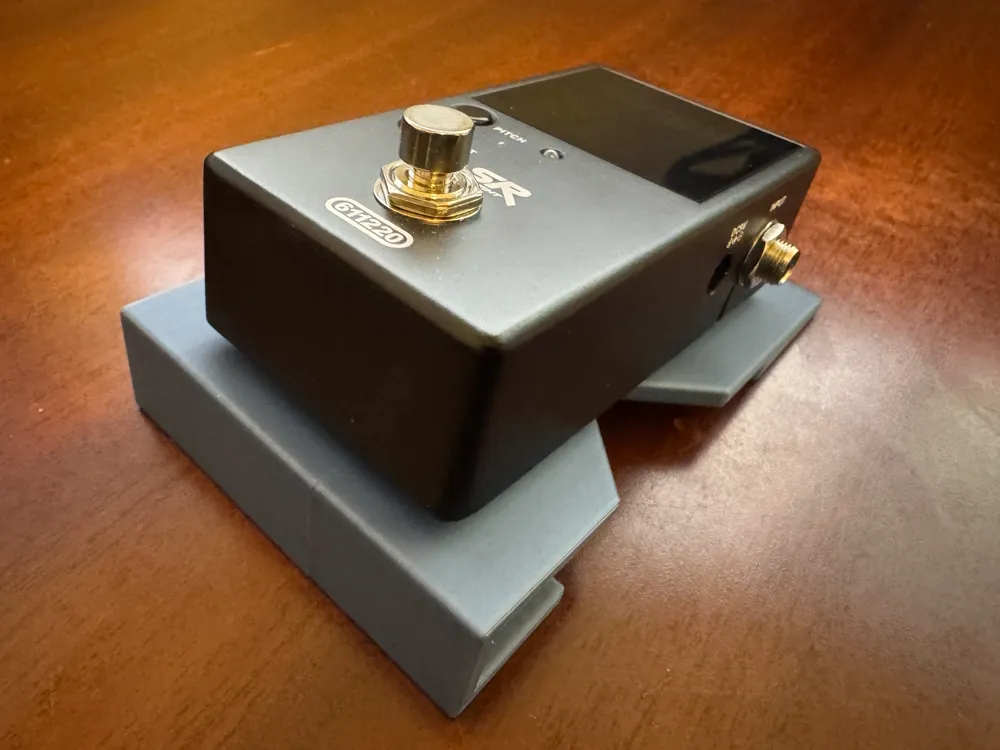

Pedal risers are for elevating the effects pedals on the rear row of your pedalboard. With all the pedals the same height on the front and back rows sometimes the switches are hard to hit on the back row. By raising the back pedals, they are easier to reach and can be switched without accidentally stepping on the front pedals. You can use multiple risers side by side with the cut-outs in the side allowing for cable routing
These risers come in two widths (Single 9cm or Double 18cm) and two Height configurations which can be reversed for more install options:
- 25mm at the front, flat at back (or vice versa)
- 25mm at the front, 40mm at back (or vice versa)
Attach the risers to your pedalboard and your pedals to the risers the same way your currently do (velcro, doublesided tape, zip ties, etc)
Boost Me (for free)
If you found this model useful please consider giving it a Boost - it means a lot!
Hints:
No Supports are needed if printed vertically due to the cutouts on sides, but you probably will require a Brim - especially for the Double width version

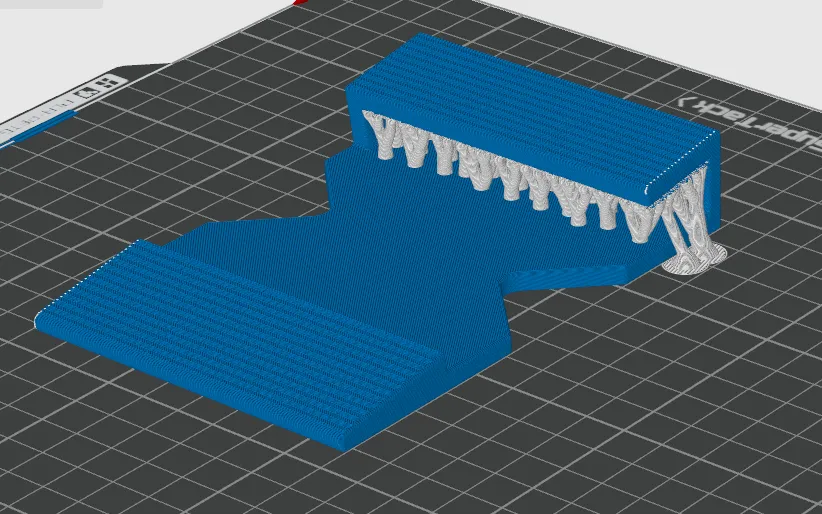

You can also print this model flat and use supports if you prefer

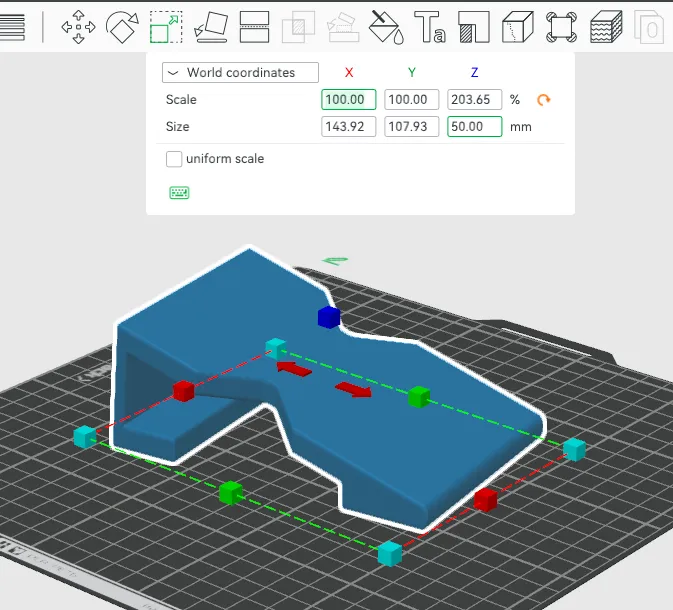

- You can resize/scale the pedals in Bambu Studio if you need a different Height/Width/Length too!
