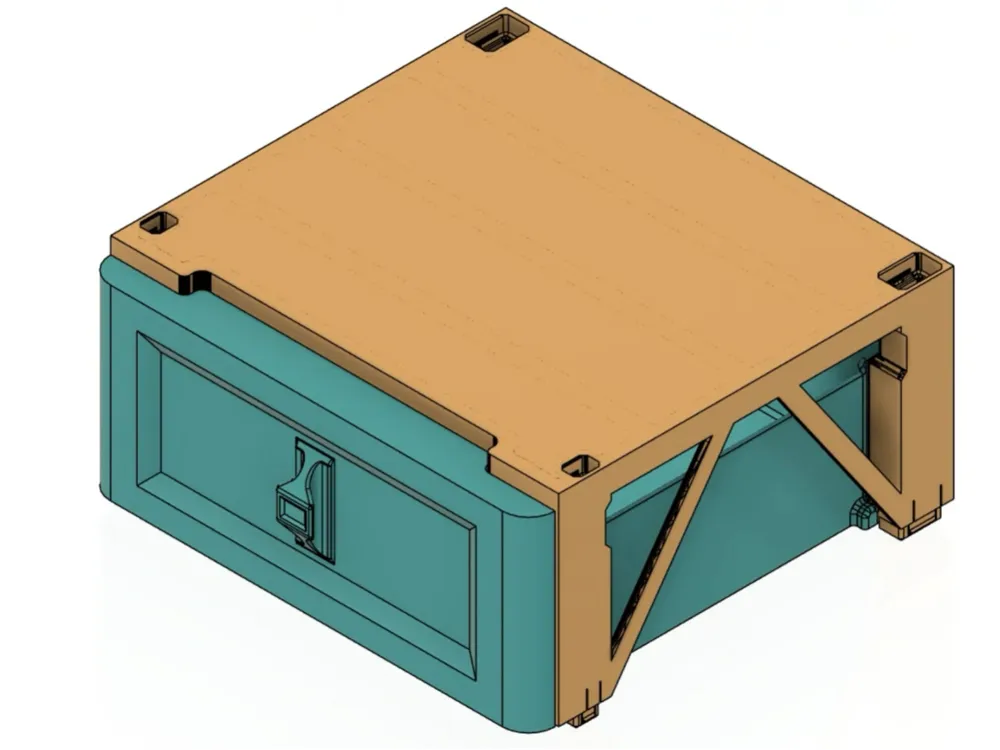

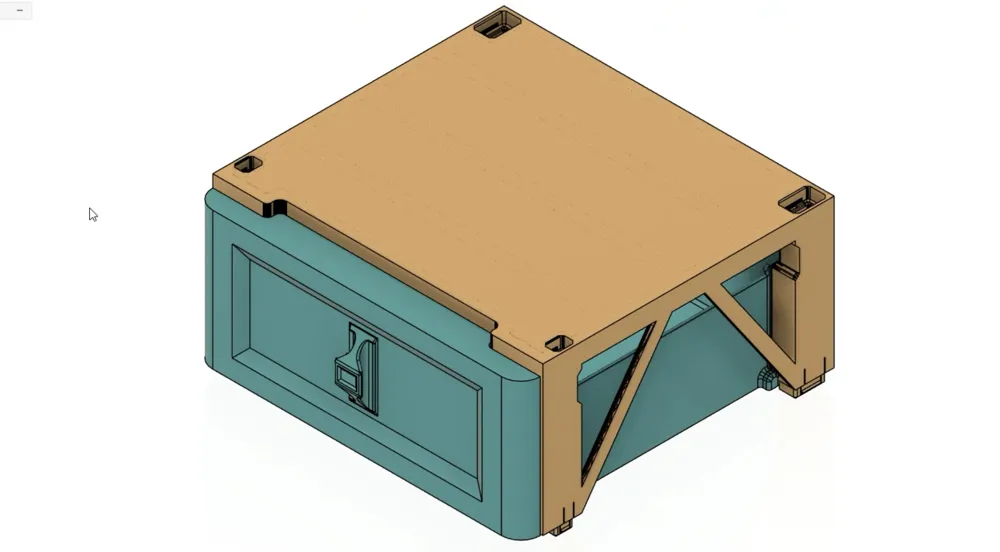

Drawers for Easy-Rearrange Shelves

These drawers are designed to fit the excellent Easy-Rearrange Shelves for Filament Dry Boxes by TADcanoe.

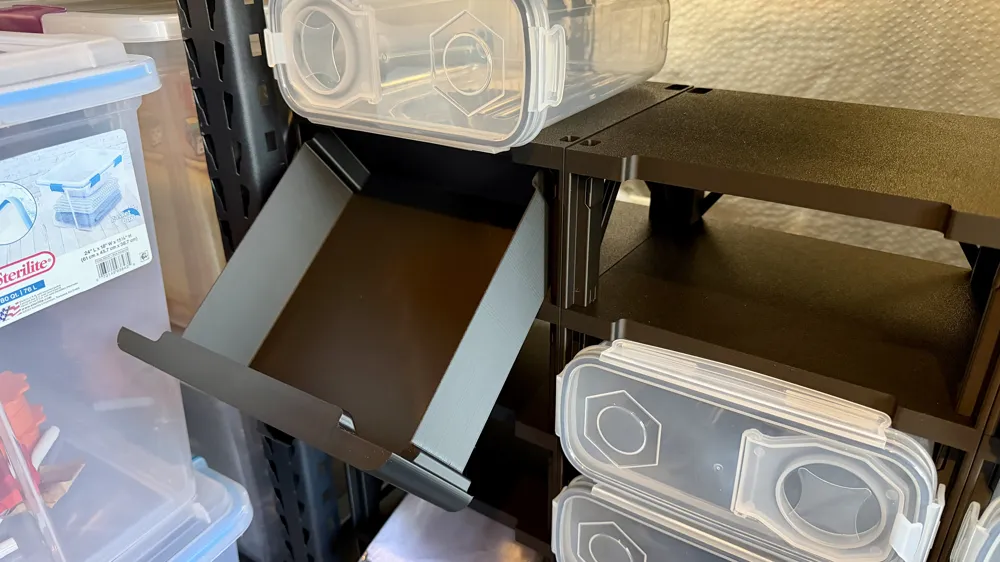

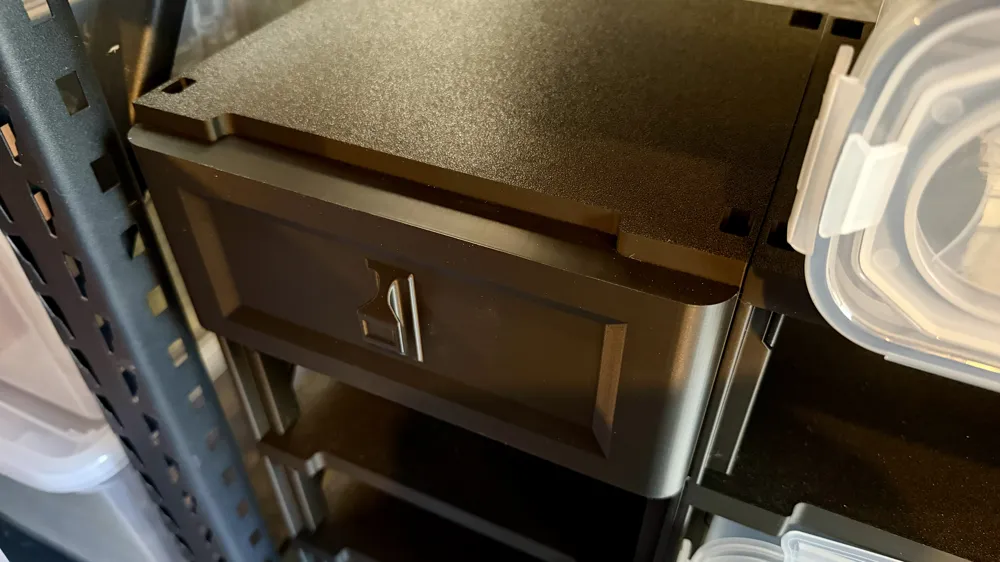

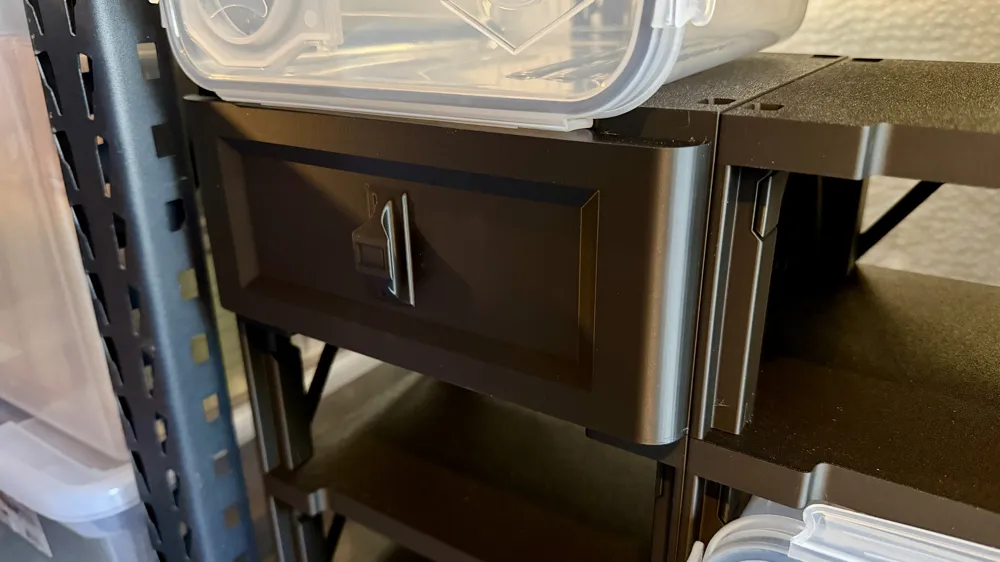

There are four versions, two with knobs on the back portion, and two without. Those knobs lock the drawer in a shelf. You have to take of the top shelf to place it underneath, and once you put the shelves back together, the drawer cannot be removed. The versions without knobs can be inserted and removed at any time, which also means they can fall out.

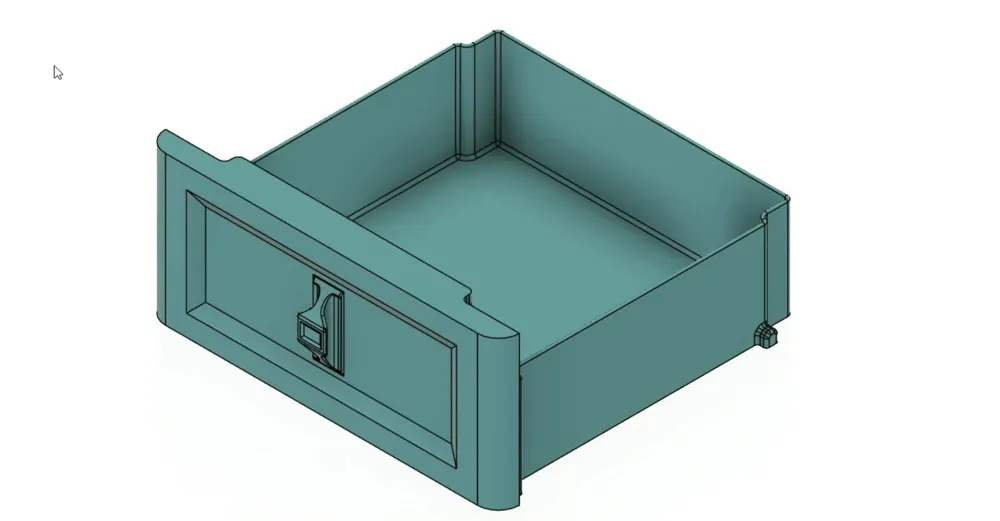

The other difference is the height of the sidewall of the drawers. I find that I actually prefer the “low” drawer (which is still plenty tall!)

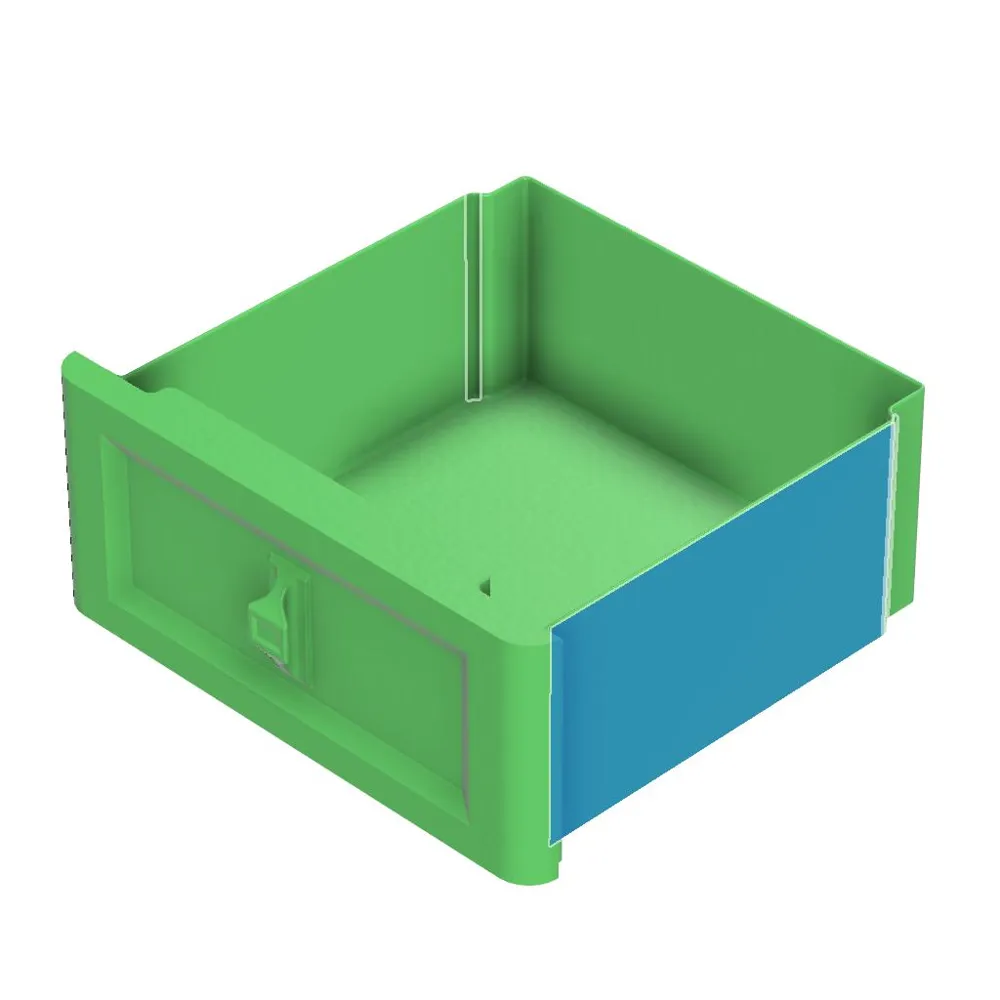

These drawers are big, and need to be rotated exactly 87.12 degrees on the Z axis, then centered and then moved a little to the right, to be able to be printed on a P1S without triggering exclusion area warnings. The print prime line will also interfere. You can easily try and remove it as soon as it has been printed, or change this piece in the Machine Start G-Code

G0 X240 E15 F{outer_wall_volumetric_speed/(0.3*0.5)     * 60}
G0 Y11 E0.700 F{outer_wall_volumetric_speed/(0.3*0.5)/ 4 * 60}
G0 X239.5

to

G0 X200 E15 F{outer_wall_volumetric_speed/(0.3*0.5)     * 60} ; was X240
G0 Y11 E0.700 F{outer_wall_volumetric_speed/(0.3*0.5)/ 4 * 60}
G0 X199.5 ; was X239.5

Unfortunately, Bambu insist on cleaning this change from the 3mf file before it gets posted up on Makerworld,

Supports are not needed.
