Universal Power Tool Holder

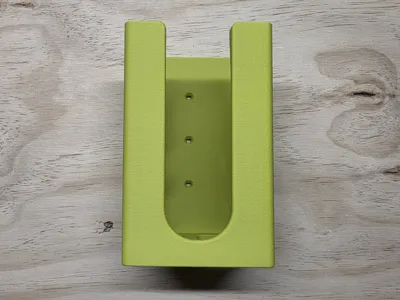

This holder is a simple way to keep power tools organized, easy to grab, and off the bench. Each holder is sized for tools with a handle around 40 mm wide, with a 42 mm opening that gives a secure fit while allowing room for your battery all while maintaining smooth sliding operation.

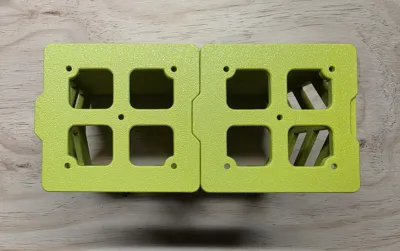

The built-in side slot lets you modularlay line up multiple holders next to each other, so you can add as many as you need and keep everything evenly spaced. It works well under shelves, cabinets, workbenches, or any other flat surface where you want quick access without taking up extra space.

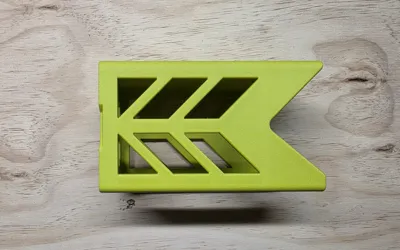

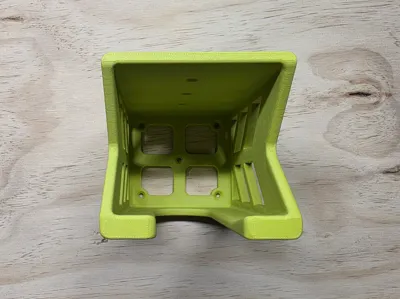

The open-frame design keeps material use down while still being strong and rigid while allowing the tool to hang naturally by the handle. A slight ramp at the back helps keep the tool from sliding out if it gets bumped.


Dimensions (L x W x H)

• Overall: 156 x 92 x 97 mm
• Internal:145 x 85 x 80 mm
• Tool Clearance: 42 mm slot for handle/base

Features

• Modular design with side alignment slots

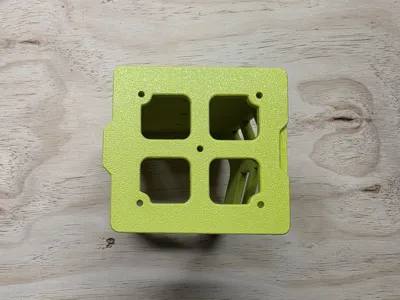

• 8 mounting holes
• 42 mm handle opening
• Rear ramp for added retention
• Great for under-shelf or under-bench mounting
• Open-frame design to reduce material use

Mounting Notes

• Use 3+ #6 or #8 screws
• Hand tighten only

Printing Notes

• Printed in Power Tool Green
• I recommend using the HT-PLA-GF and importing the custom filament profile for best results
