Filament rack bracket for 21mm Dowel
Print Profile(1)
Description

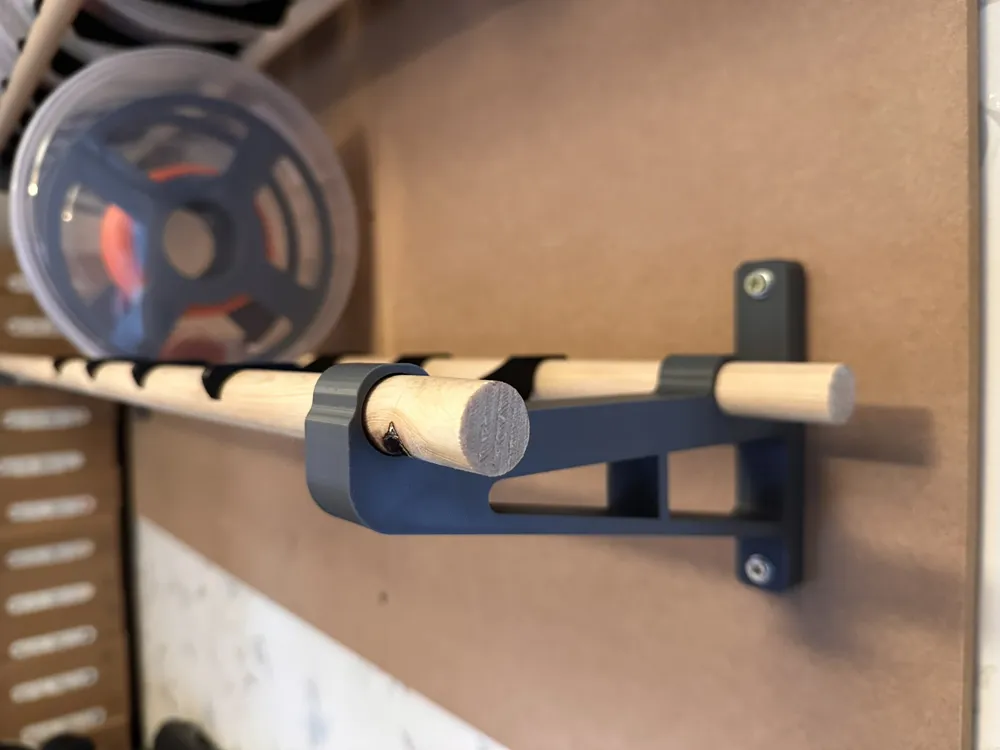

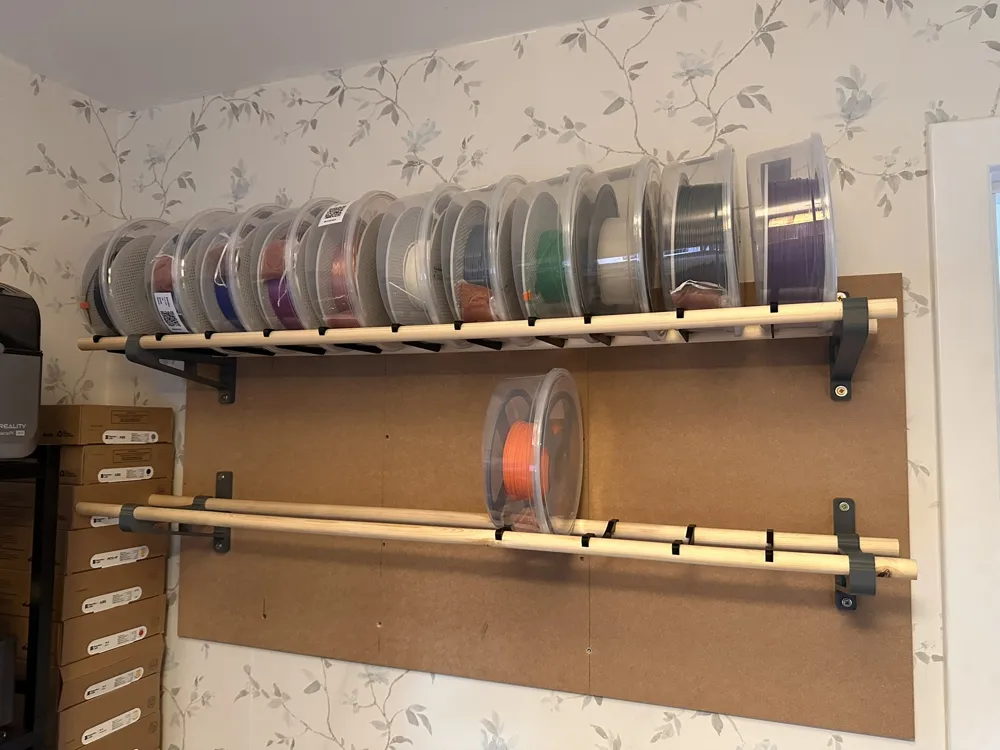

I made this Rack bracket to allow my round storage tubs to be put on the rack as the others I found are to close to the wall so doesn't allow the tub to sit properly, I also made a small support for the round filament storage tubs so they sit straight on the rack.
The rack needs 21mm dowel, I only used 2 brackets will no issues spaced approx. 1mtr apart, but 3 can be used if you want the additional support.

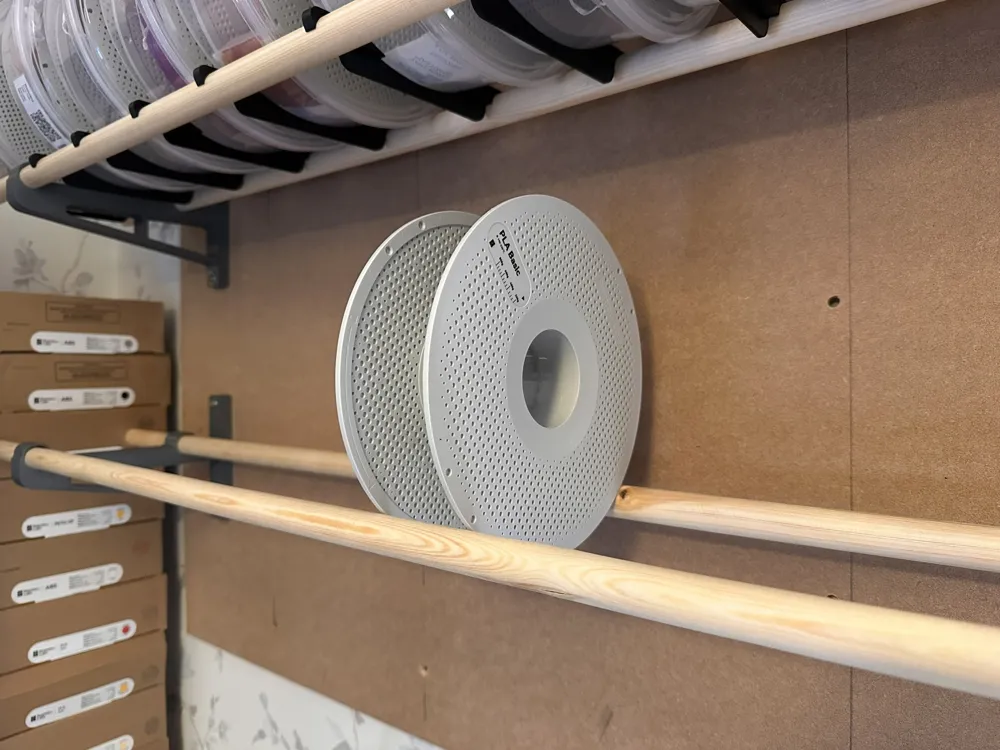

220mm in length to allow for the round filament tubs, the tubs I use for filament storage have a 240mm lid and the bottom is 215mm. the dowl are space 151mm apart so you can also just put 200mm spools on it if you don't use storage tubs.

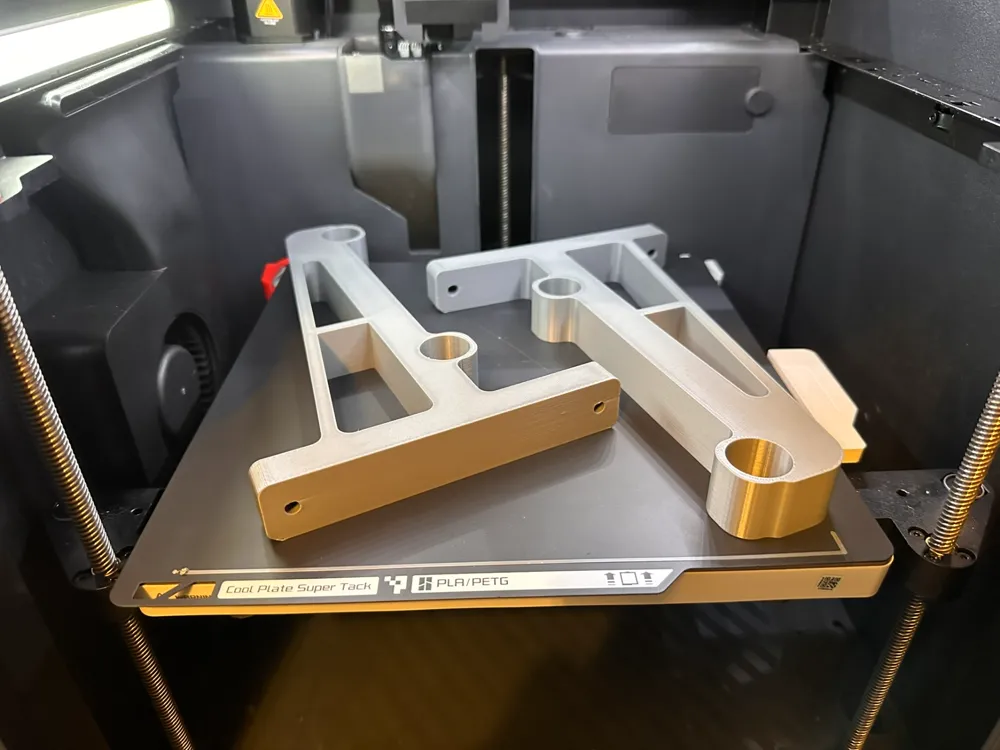

I printed them in PTEG but PLA will be fine.
Round Tub support can be found here >>> https://makerworld.com/en/models/2584488-filament-round-storage-tub-support-bracket#profileId-2850916
The small filament swatch / name tag can be found here >>> https://makerworld.com/en/models/2584487-filament-id-name-plate-for-21mm-dowel#profileId-2850915
Boost Me (for free)
New to 3d printing & designing things, so would appreciate the boost.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
