Professional 45-Degree Structural Bracket Set (Multi-Size)

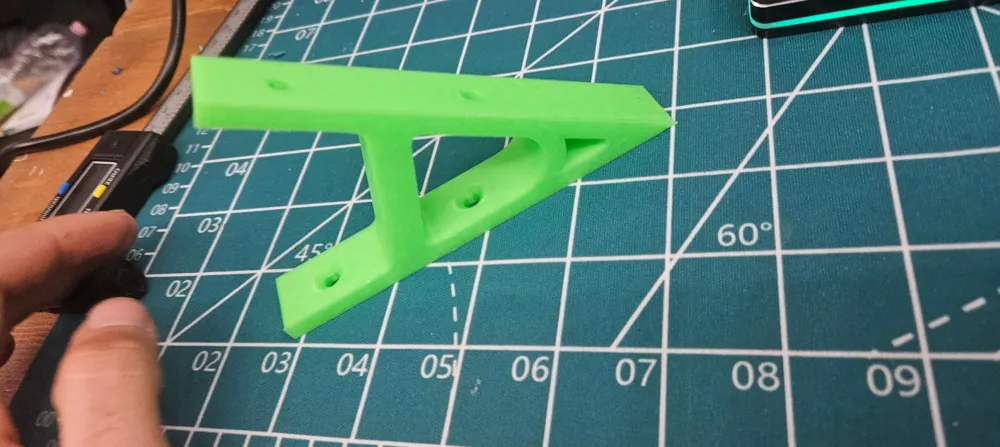

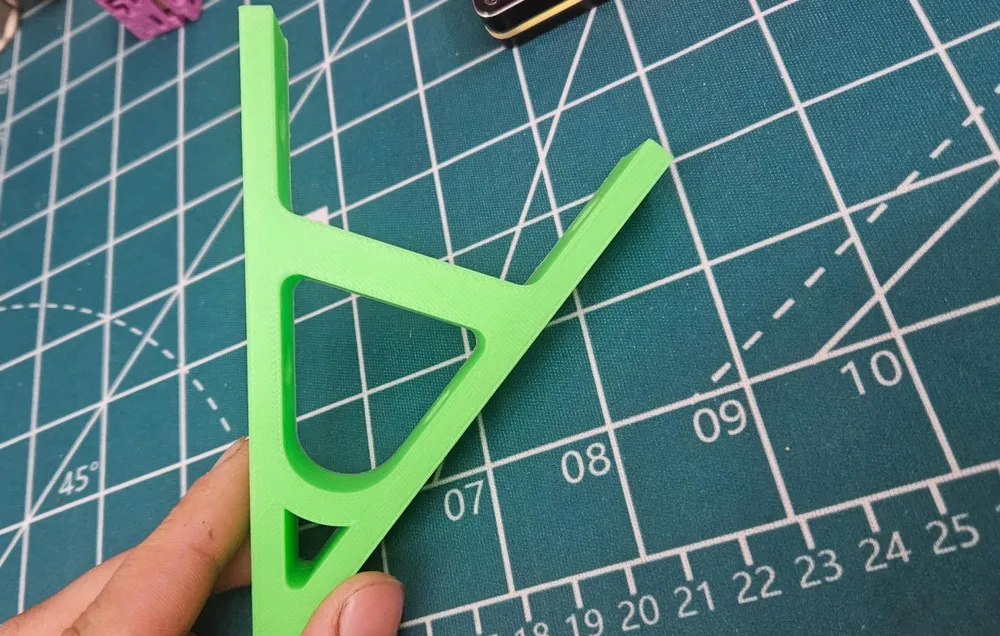

Reinforce your projects with this versatile set of 3D printable 45-degree geometric brackets. Designed for maximum structural integrity, these brackets are perfect for connecting wood, plastic panels, or lightweight metal frames at a perfect 90-degree internal angle with a rigid 45-degree reinforcement.

Key Features:

• Precision Geometry: Engineered for a perfect fit, providing high resistance to mechanical stress.

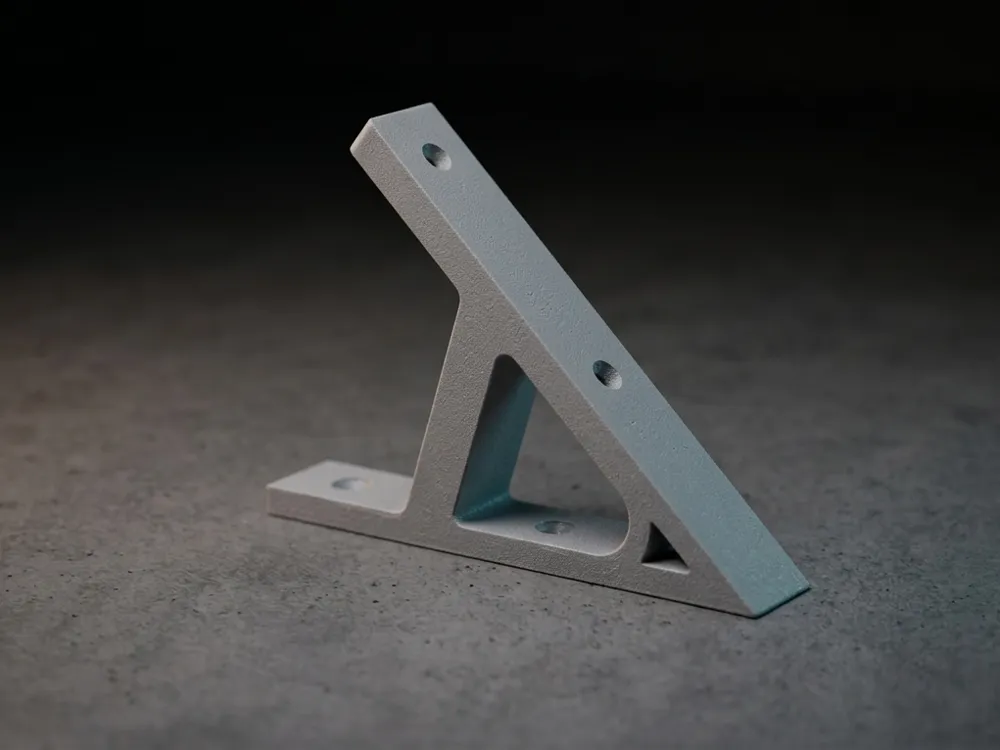

• Flush Finish: Each side features two countersunk holes, allowing screws to sit perfectly flush with the surface for a clean, professional look.

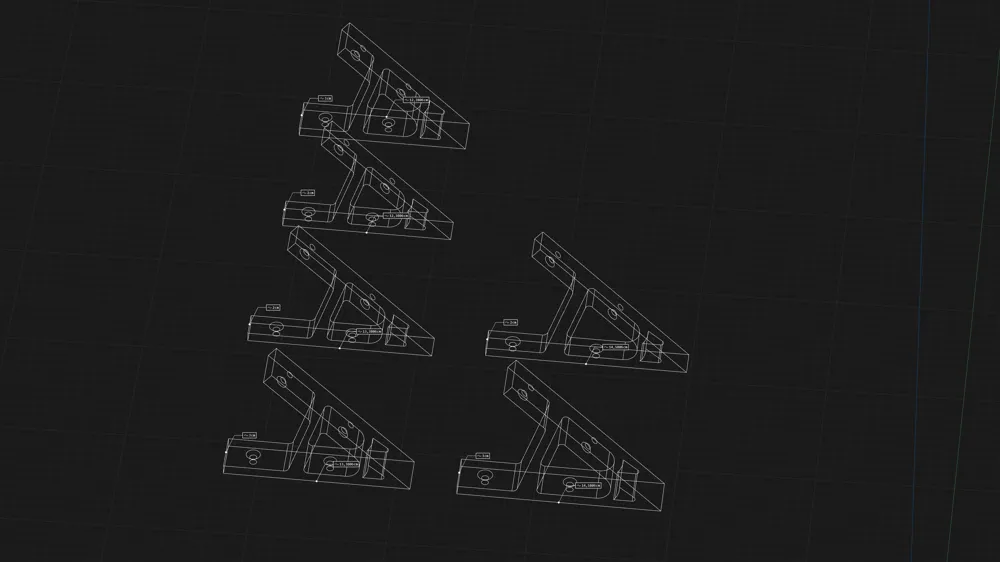

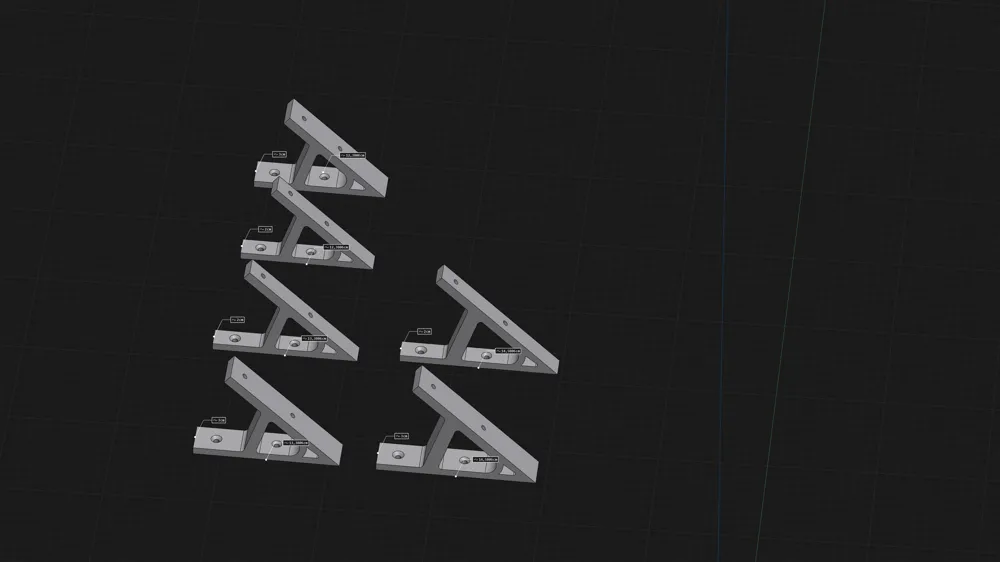

• Variable Sizing: This set includes 6 different versions to adapt to any project requirement, covering three different lengths and two standard widths.
• Optimized for 3D Printing: Designed to be printed on the side with minimal supports, ensuring high strength along the layers and a smooth surface finish.

Technical Specifications (Detailed Dimensions):

This set provides two width profiles (3 cm and 2 cm), each available in three different lengths:

Profile WidthLength Option 1Length Option 2Length Option 33 cm Series12.38 cm13.38 cm14.58 cm2 cm Series12.38 cm13.38 cm14.58 cm

Esporta in Fogli

Applications:

• Custom furniture and shelving reinforcement.
• Workbenches and DIY enclosure frames.

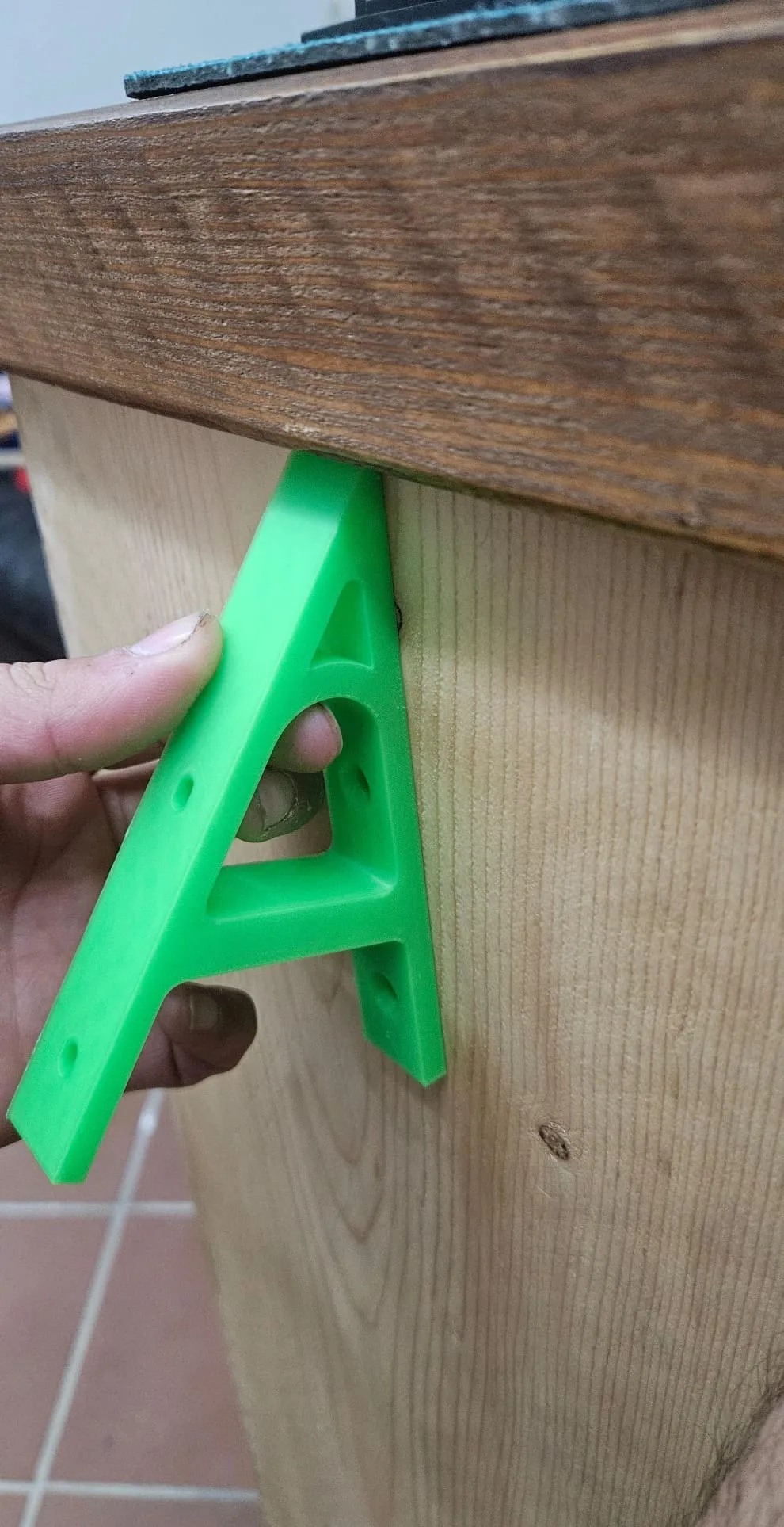

• Corner bracing for wooden structures.
• Heavy-duty 3D printer or CNC enclosures.

Recommended Print Settings:

• Material: PLA for prototyping; PETG, ABS, or Carbon Fiber filaments for structural and load-bearing use.
• Wall Line Count: 4 or more for maximum strength.
• Infill: 40% - 70% (Gyroid or Cubic recommended for structural integrity).
• Orientation: Print on the flat side to ensure the screw holes and the brace have the best mechanical resistance.
