Iron Man and ROG themed ITX case with 1U power supply
Print Profile(1)
Description
Mini PC Case for 17*17 Motherboard + Small 1U Power Supply - Free 3D Print Model - MakerWorld

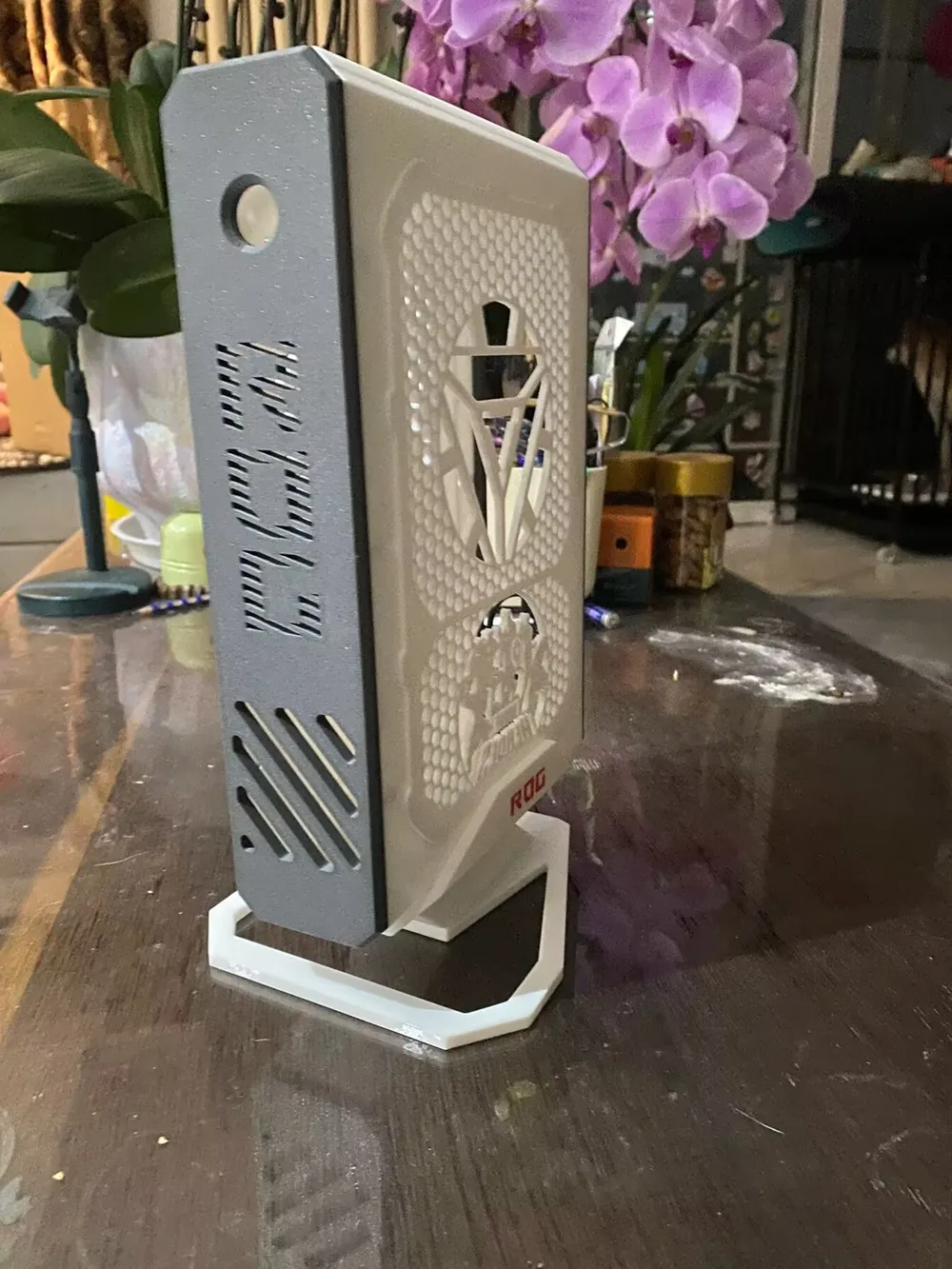

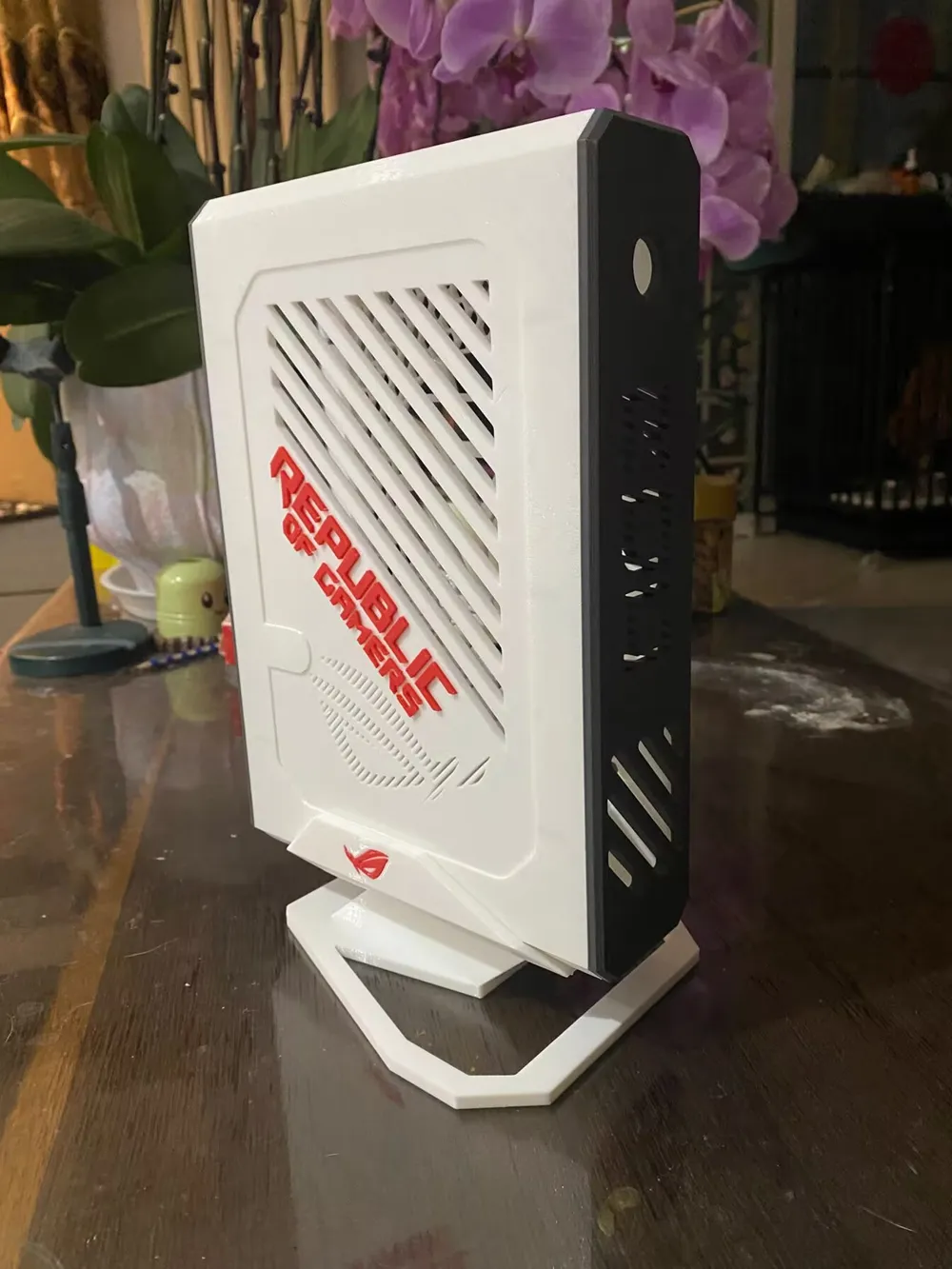

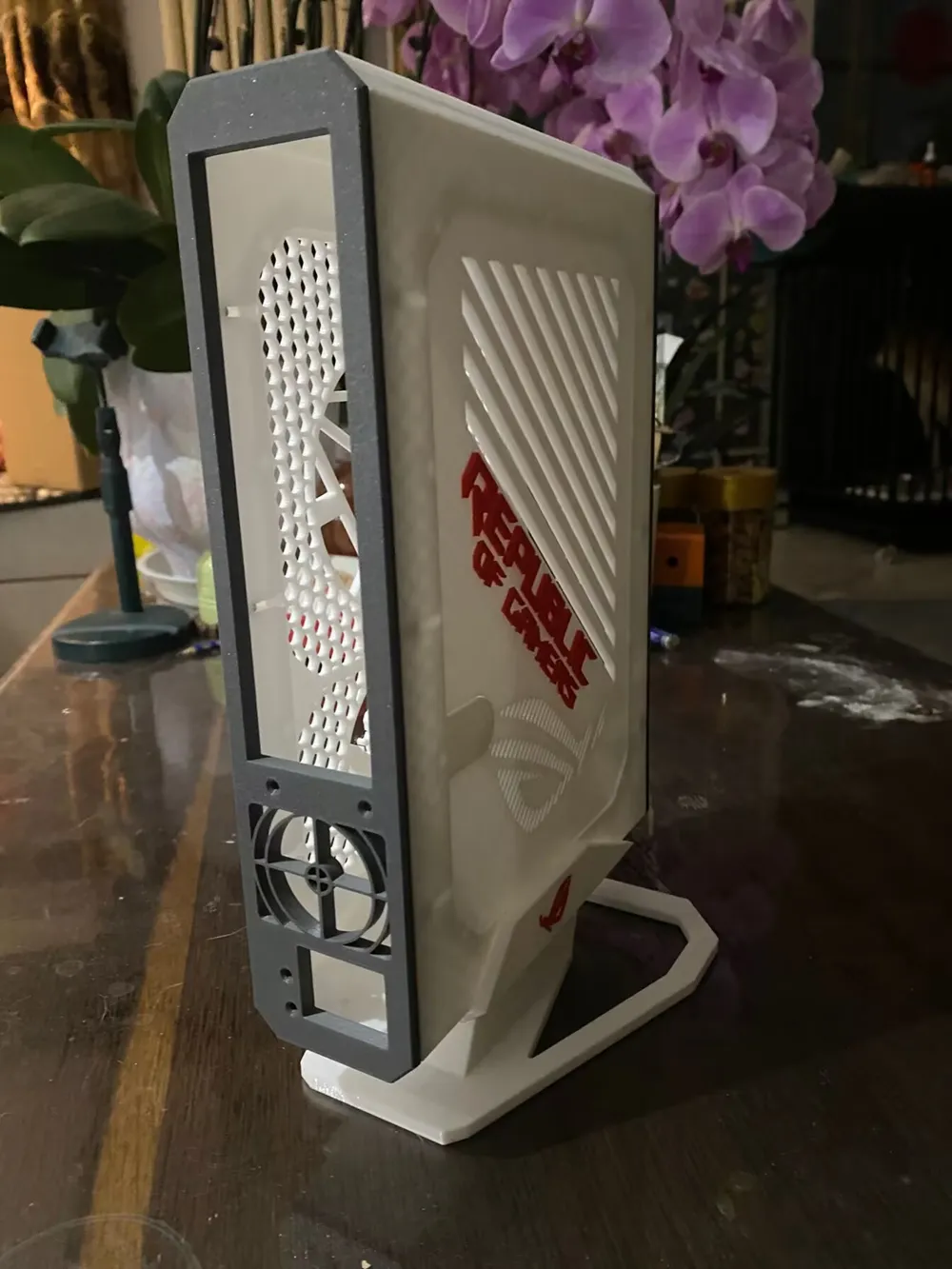

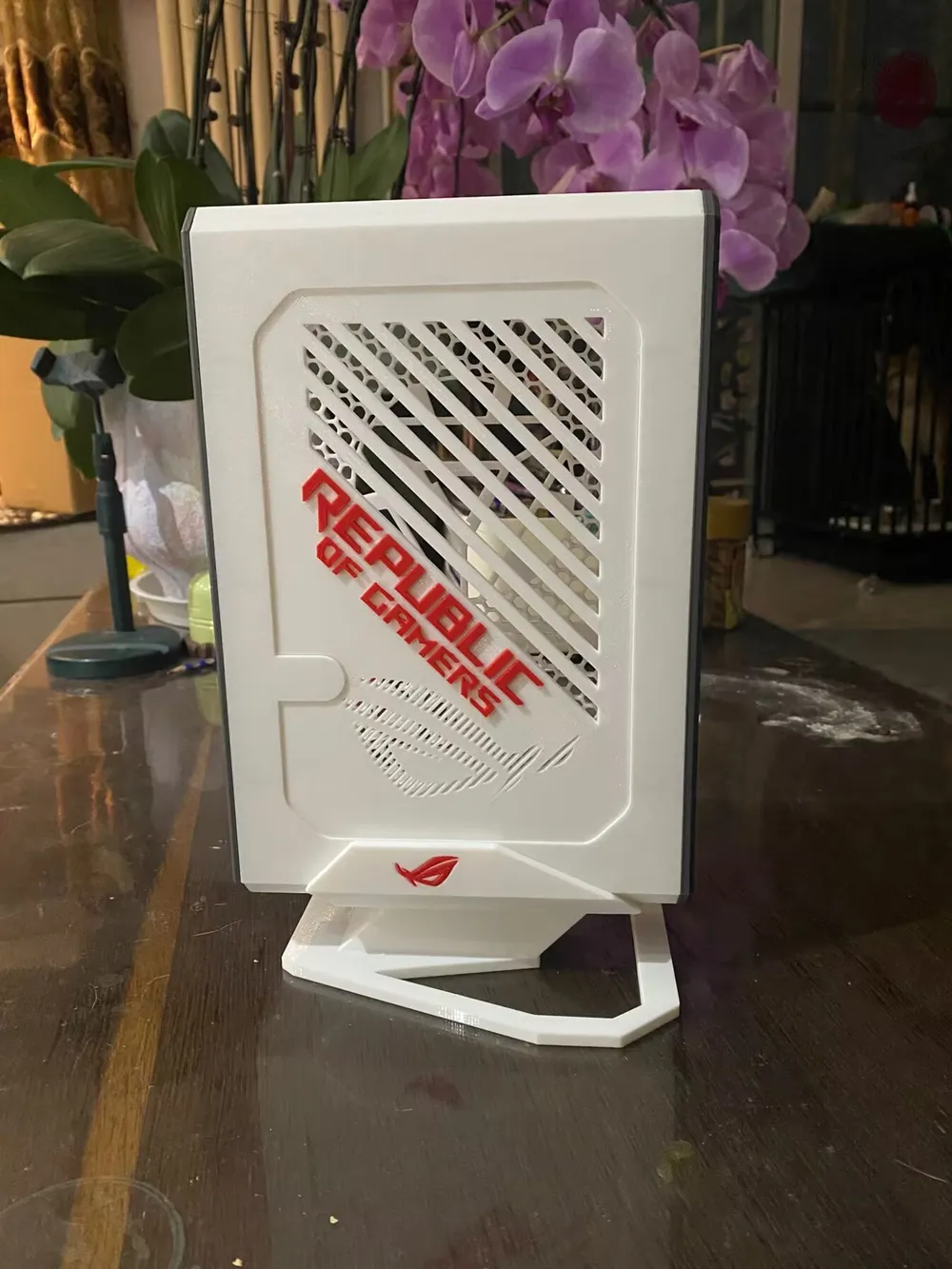

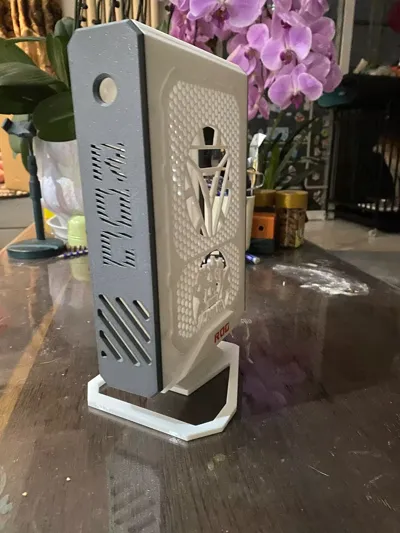

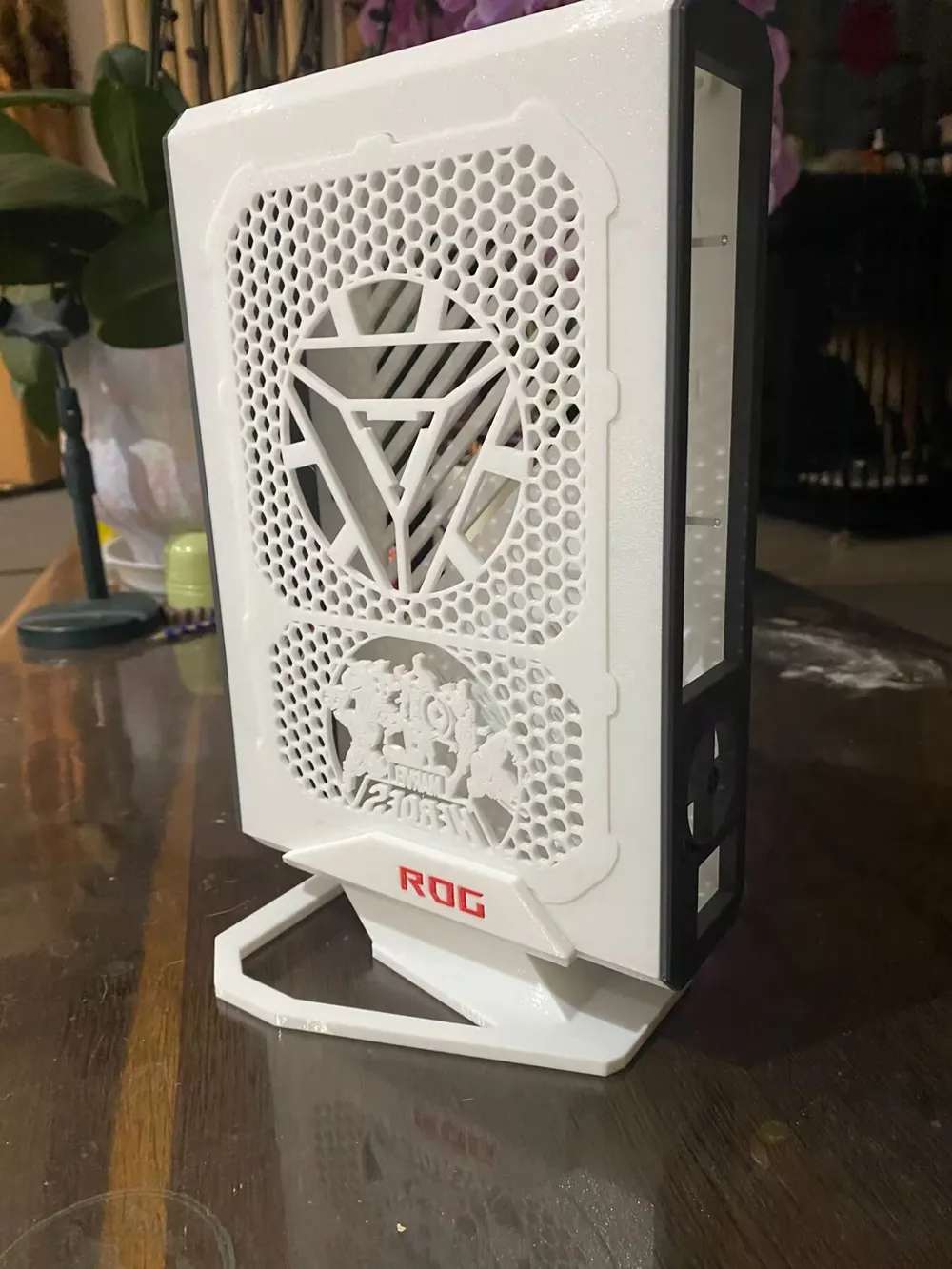

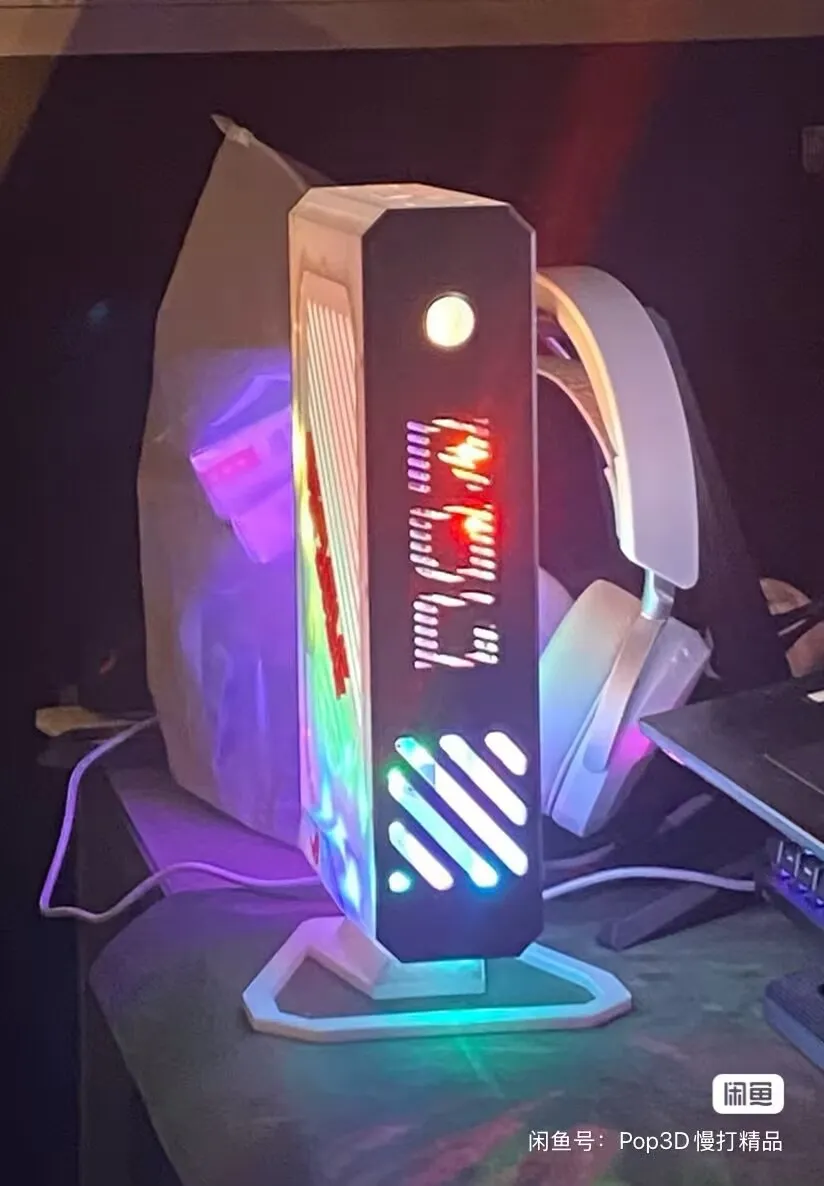

A redesign based on the original case, with one side and the front modified to an ROG theme.
Assembly Details:
The heat-set inserts for the front and rear panels are M2X3X3.2.
The heat-set inserts for the motherboard standoffs are M3X4X4.
The front and rear panels are secured with low-profile socket head cap screws in M2X8 and M2X10 sizes.
M3X12 countersunk screws are used to install the 1U power supply.
M3X6 cap screws are used to install the motherboard.
I don't think magnets are necessary, but if you insist on installing them, they are 4X1.5 and 4X2 in size.

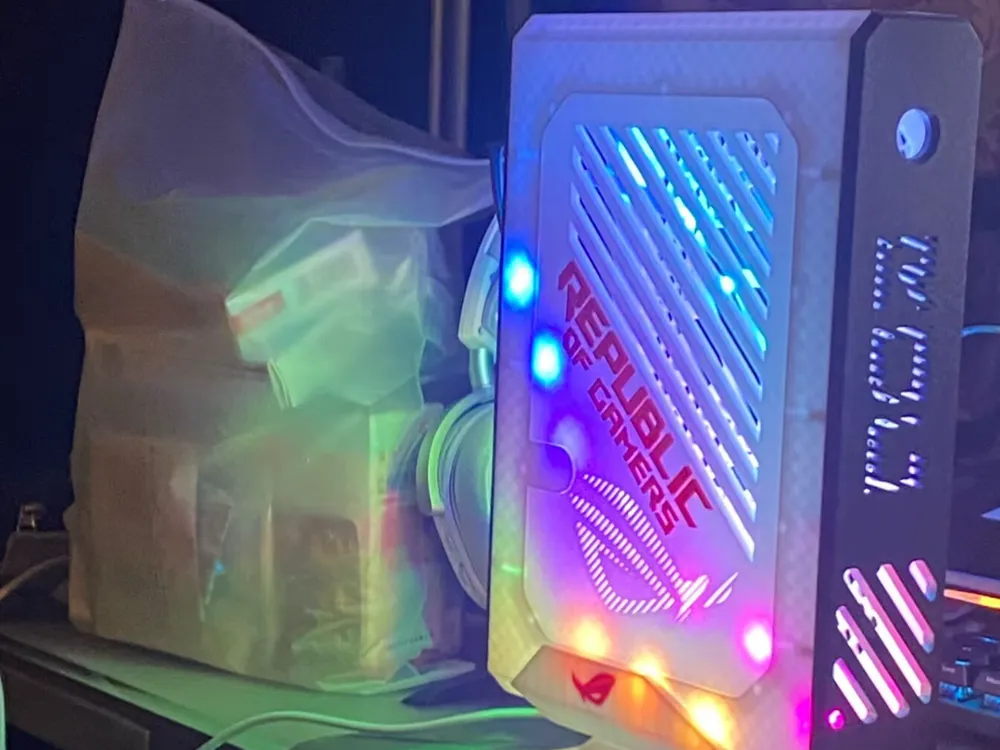

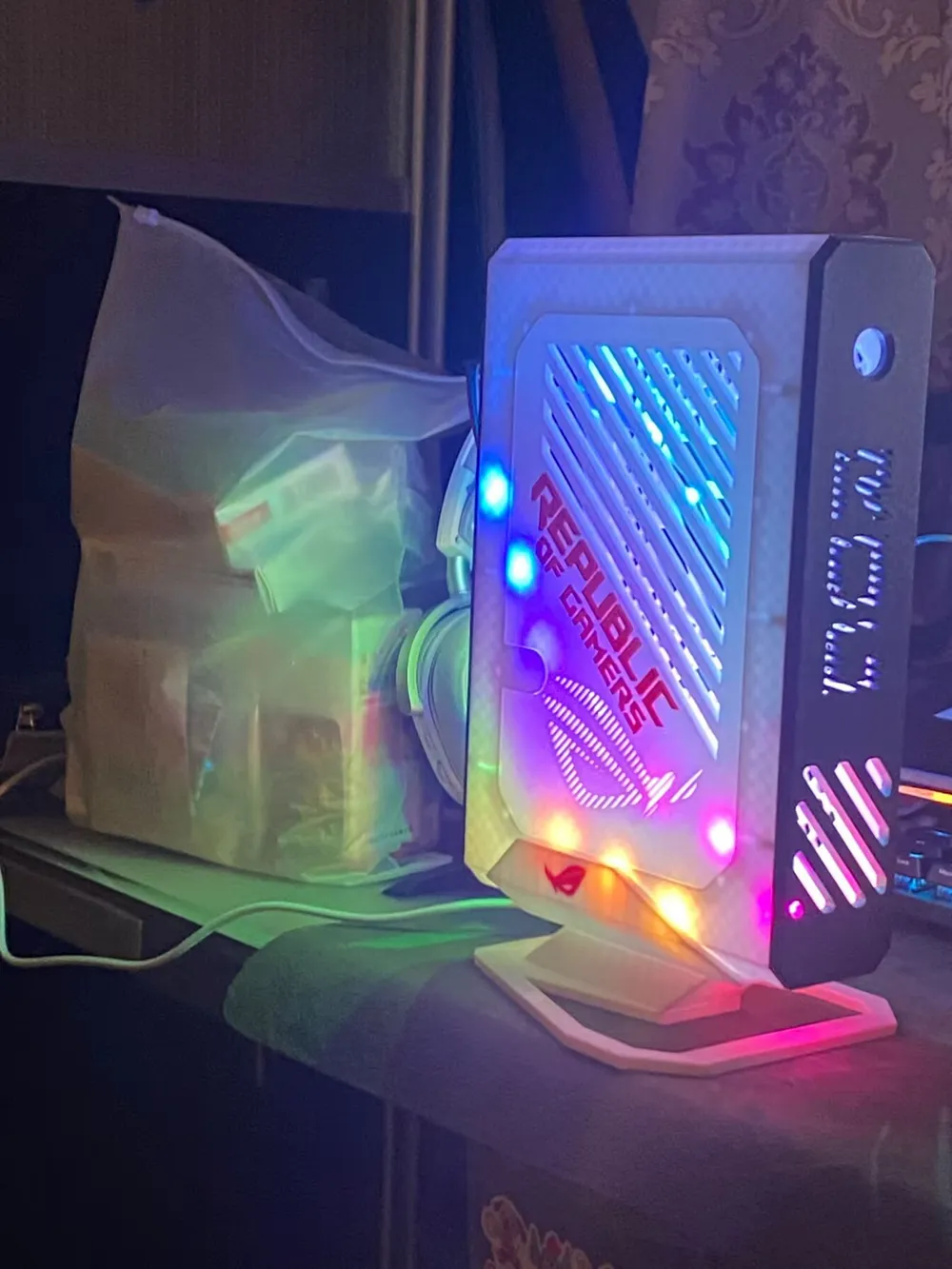

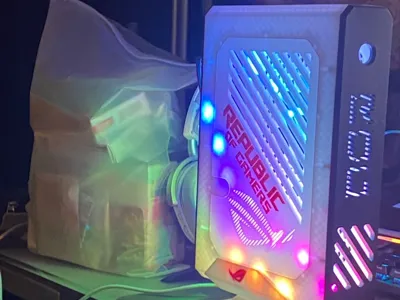

You can purchase your own 5V 3-pin ARGB light strips for decoration, which will yield better results.
The lack of dedicated GPU and HDD/SSD slots is a drawback, and it is recommended to use this with an HDD cage and a GPU dock.
For commercial use, please credit the source: Xianyu @Pop3D慢打精品
