10ml Peptide/TRT Vial Case
Print Profile(2)
Description

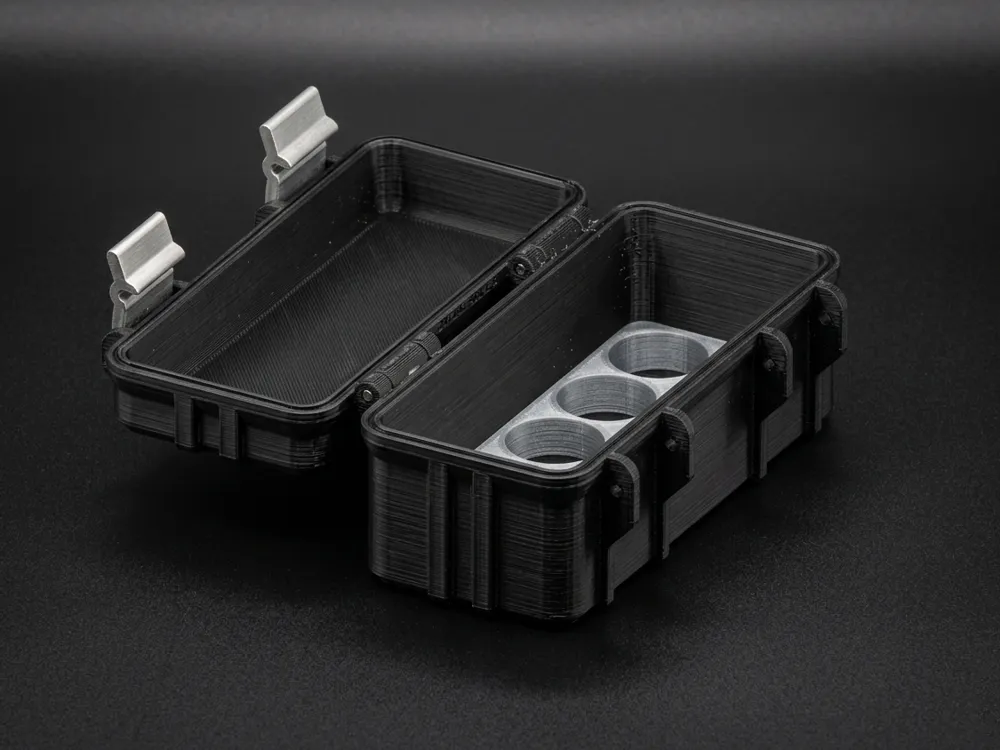

This is a case for 10ml peptide/TRT vials. I modified the original concept to achieve more compact scaling, saving space in the fridge. I also created a custom insert to keep the vials from rattling or clinking.
The case uses mechanical hardware for strength and durability, making it well-suited for frequent opening and closing in a refrigerated environment.
Design Details
- Fits 10ml Vials: Sized for 10ml vials (23mm diameter) with caps.
- Hardware Assembly: Uses (6) M3x30 screws
- (2) screws for the hinges
- (4) screws for the latches
- Secure Insert: Custom internal layout keeps vials upright.
- Compact Scaling: Slimmed down to fit easily in side doors.
- Material: Printed in PLA+, PLA, or PETG
- PLA+/PETG recommended for durability.
- Regular PLA is the default profile as a baseline for any one new to 3D printing.
- Has an optional seal that can be printed in TPU (not required by any means, just added peace of mind).
Model Options

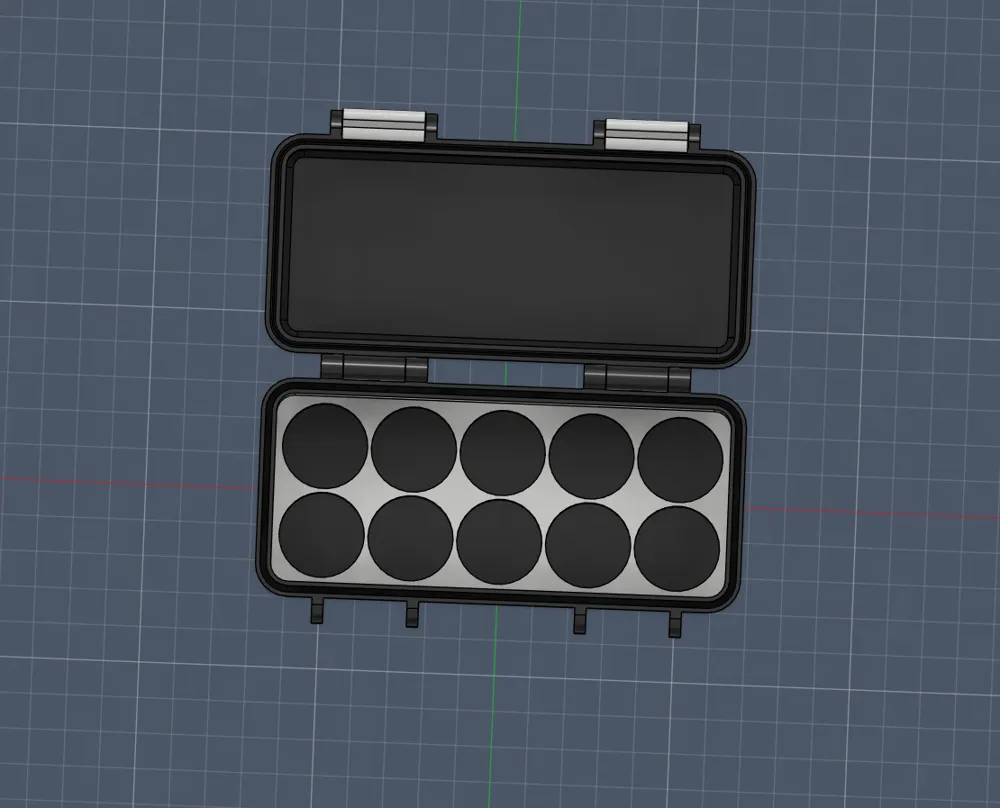

- 10x
- 20x
Print Settings
- Filament: PETG, PLA+, or PLA (PLA Silk not recommended)
- Supports: Tree supports used (likely printable without supports, but used to ensure clean overhangs)
- Walls: 3
- Infill: 15% (Gyroid recommended)
Assembly
Once printing is complete, align the lid and base at the hinge points and secure them using two M3x30 screws. Install the remaining four M3x30 screws into the latch mechanisms.
Boost Me (for free)
If you find value in this design, please consider giving it a Boost. Seeing your successful prints is one of the best parts of being a creator - don't forget to upload a photo of your print!
If you’d like to support my work and/or help prioritize your request, donations are appreciated but completely optional.
- PayPal: @ZiahMikael
- Cash App: @ZiahMikael
- Venmo: @ZiahMikael
If you do donate, include your MakerWorld username so I can match it to your request.
This remix is based on
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
