Description

AMS required

height with base 19,9cm

width 11,8cm

The model requires glue for assembly (e.g. superglue).

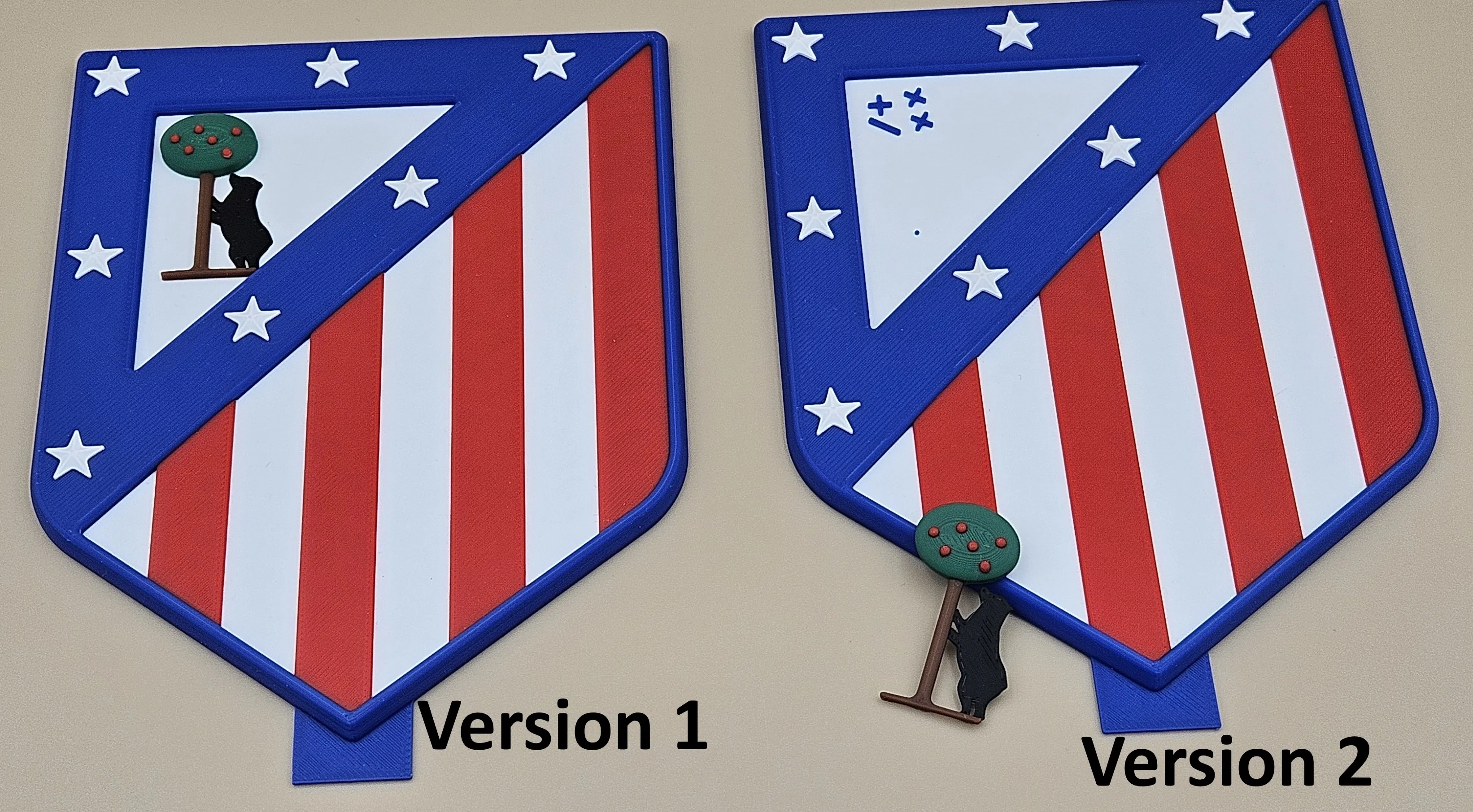

Because the Atlético Madryt logo consists of 6 colors, I have published two profiles.

The first profile is intended for printers equipped with two AMS units.
Each side of the logo is printed as a single piece. This version requires less work during assembly (you can skip the first step of the assembly instructions).
The second profile is intended for printers equipped with one AMS unit.
Each side of the logo is printed in two separate parts that need to be glued together. This version requires more time during assembly. The first step of the assembly instructions must be performed twice (once for each side of the logo).

Assembly Instructions:

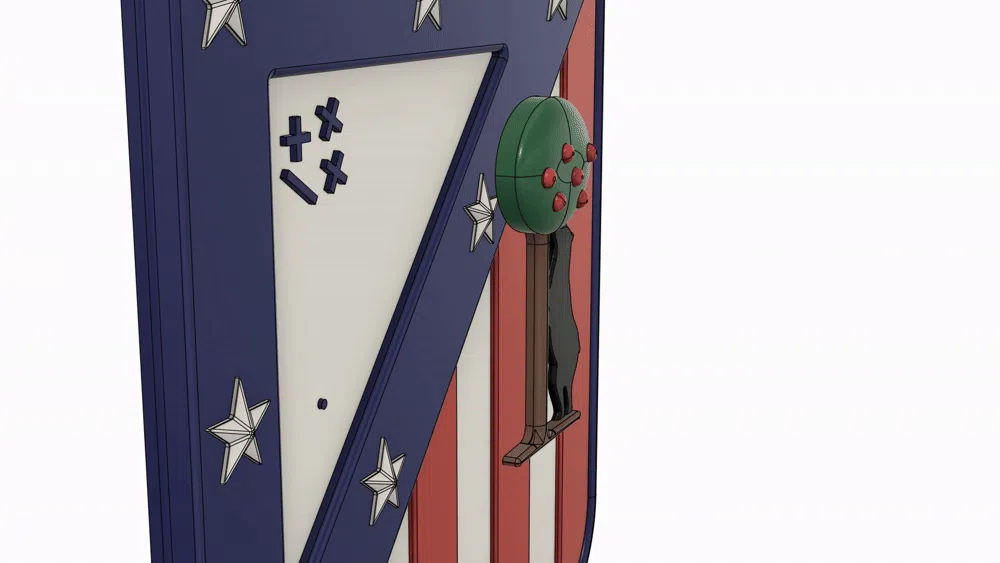

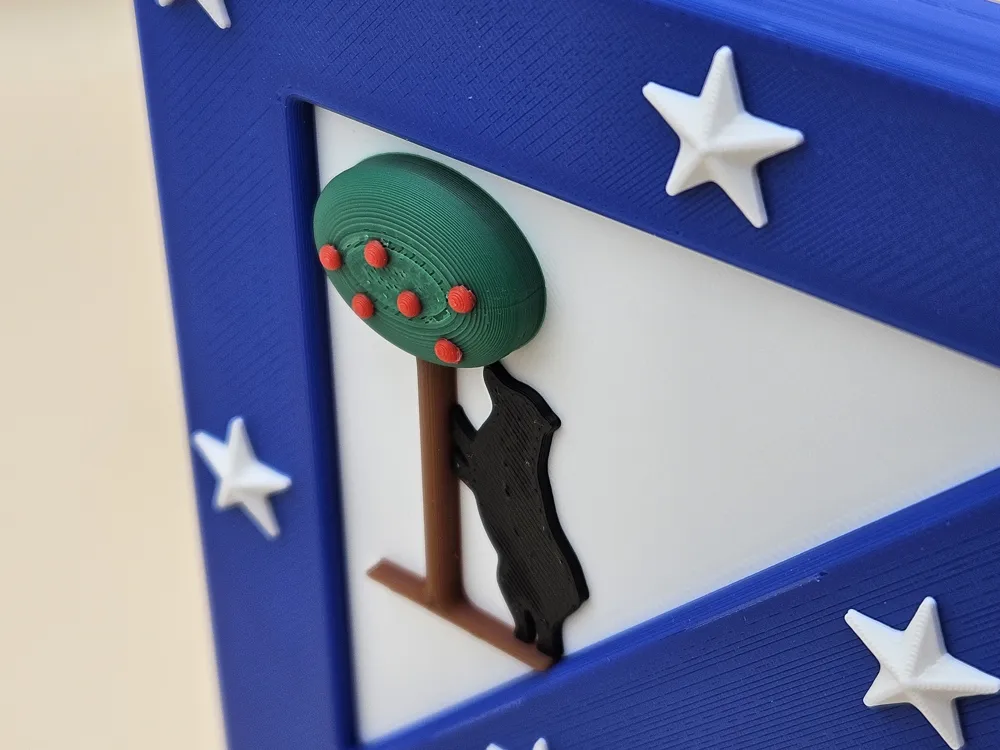

Glue the tree to the logo (only for the 1 AMS version)
Insert the connectors into one side of the logo, then glue both sides together
Glue the logo to the base

For printing the logo parts, I recommend using a smooth PEI plate (it will be easier to glue them if the back is smooth). The base can be printed on a textured plate.
