19" 2HE DAP Rackmount Waveshare RS485 TCP Gateway
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 20% infill
Designer
2.7 h
1 plate
Open in Bambu Studio
Boost
0
5
0
0
1
0
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
Description
Content has been automatically translated.

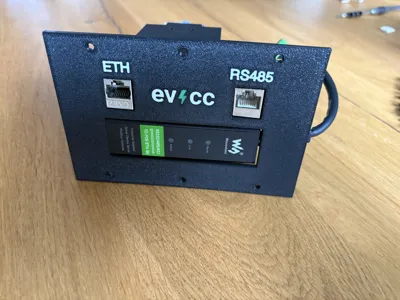

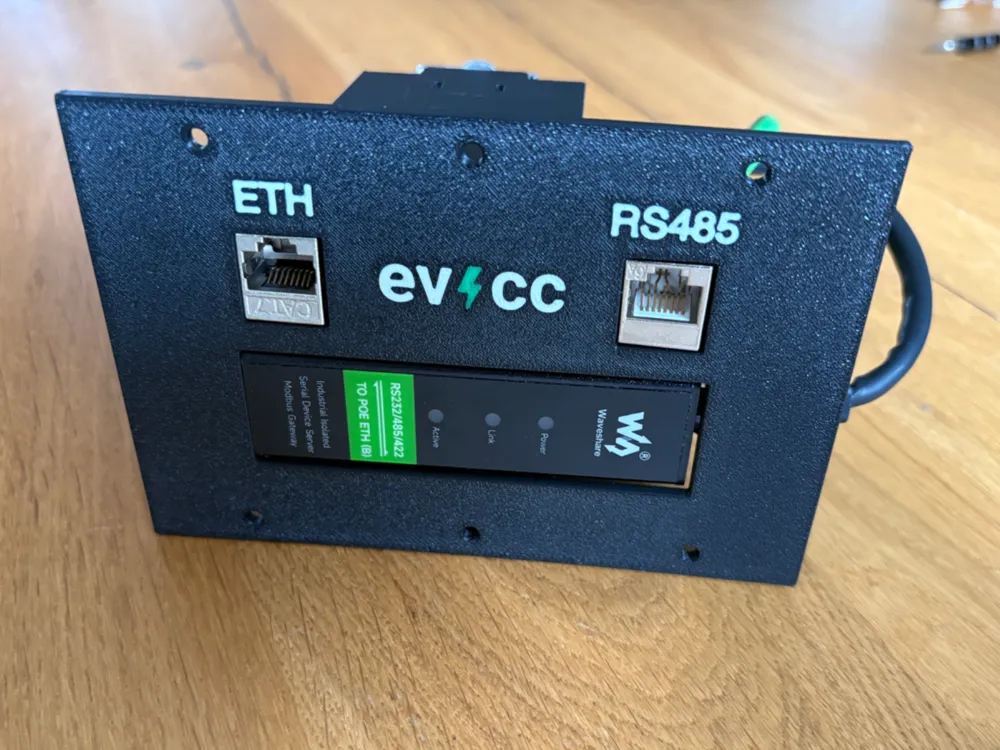

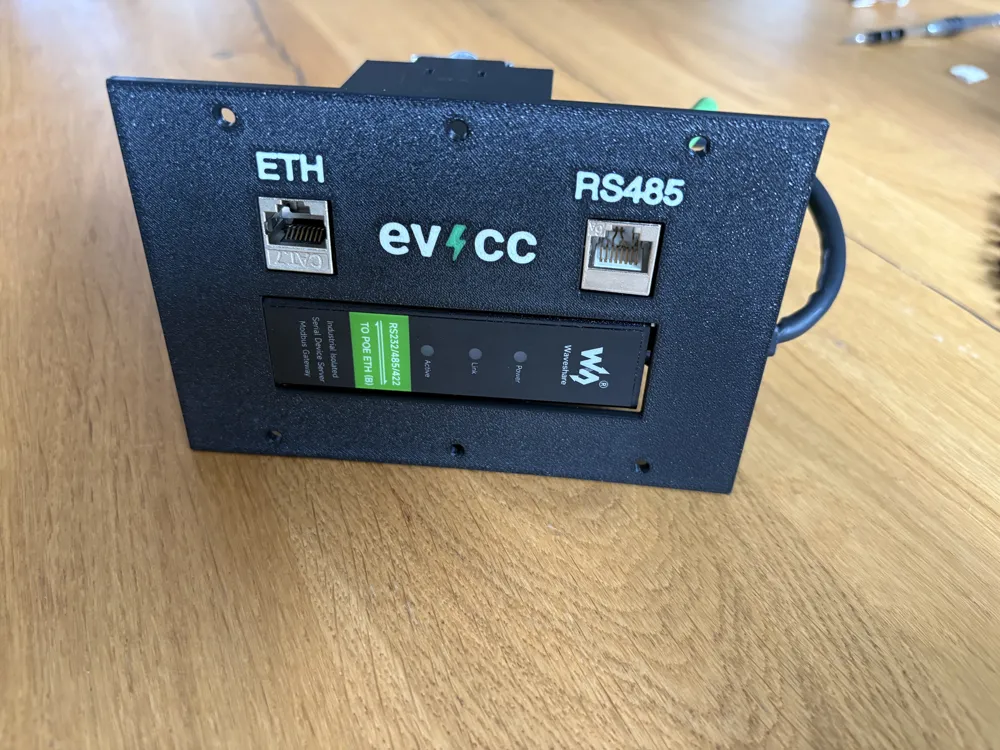

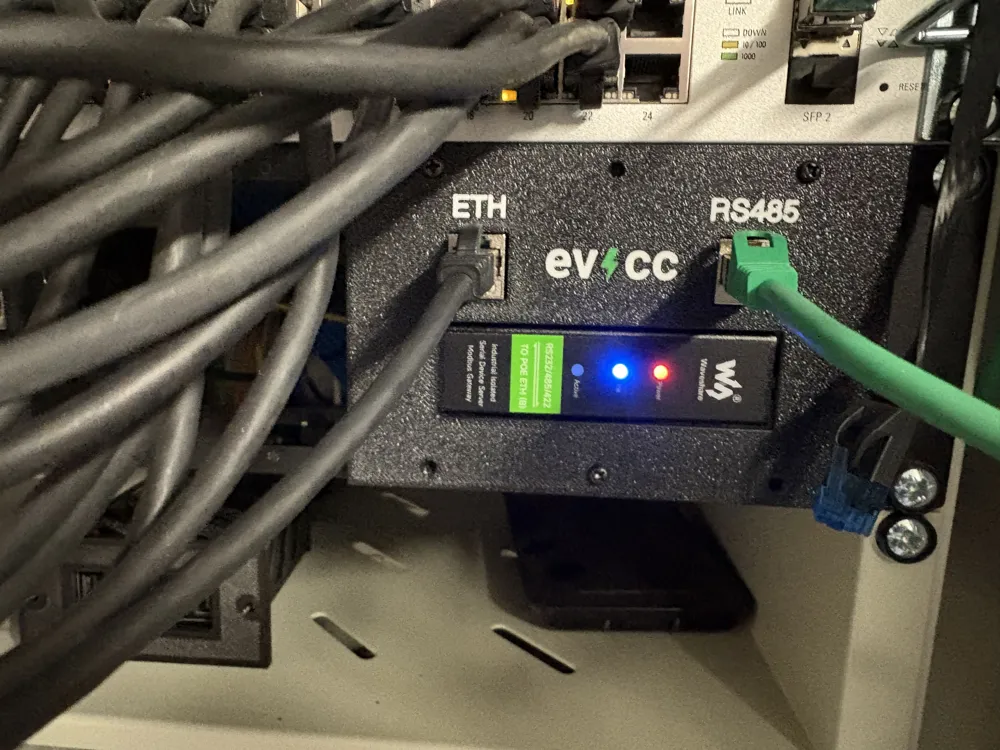

Here you get a 19" 2U rack mount for the Waveshare RS232/485/422 TO POE ETH (B) adapter. A Modbus TCP gateway with PoE connection. I use it to control a Heidelberg Energy Control Wallbox with a Fronius Symo Gen24 inverter via evcc.io. The mount fits into the DAP 2U Rack Blank MP-1
Required Parts
or

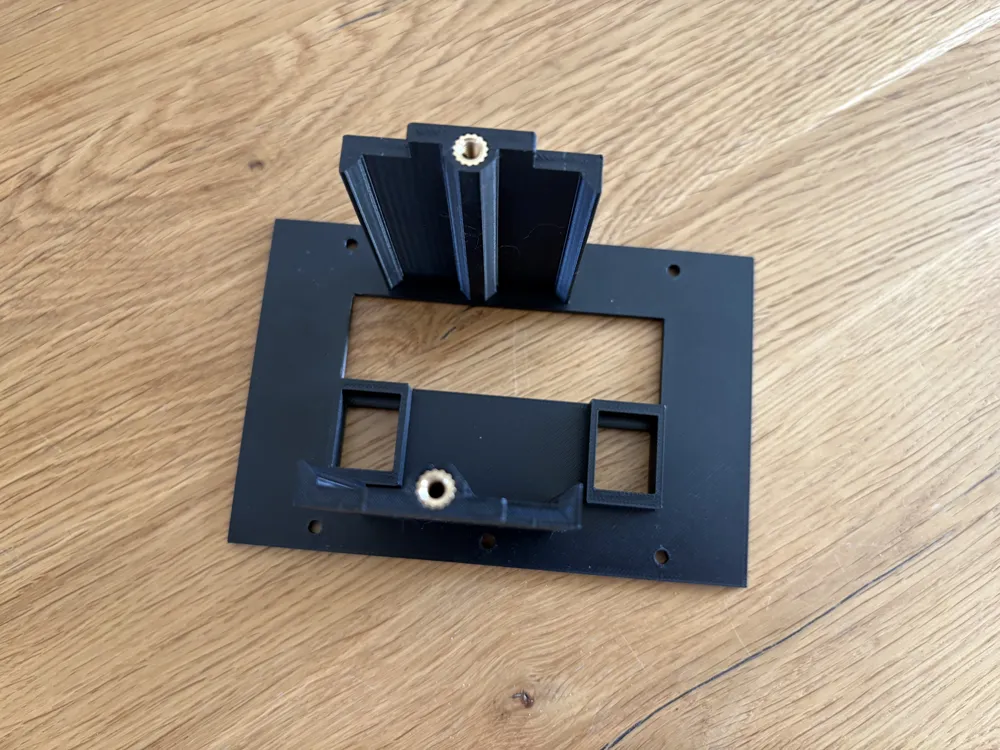

- 1x 19" DAP 2U Rack Panel (for printing)

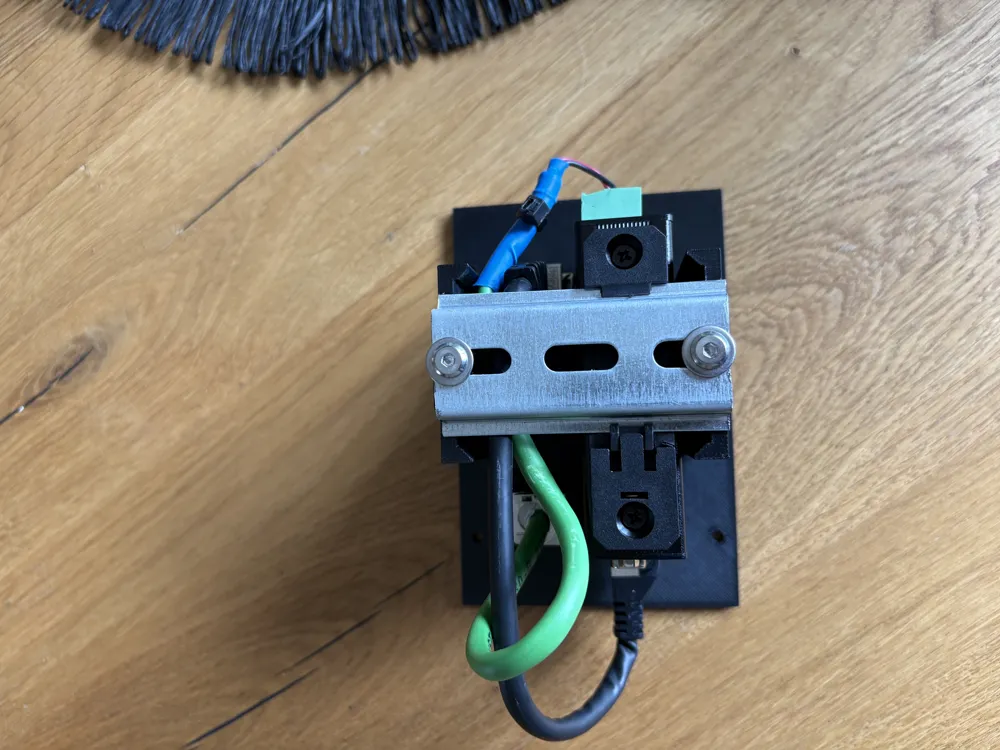

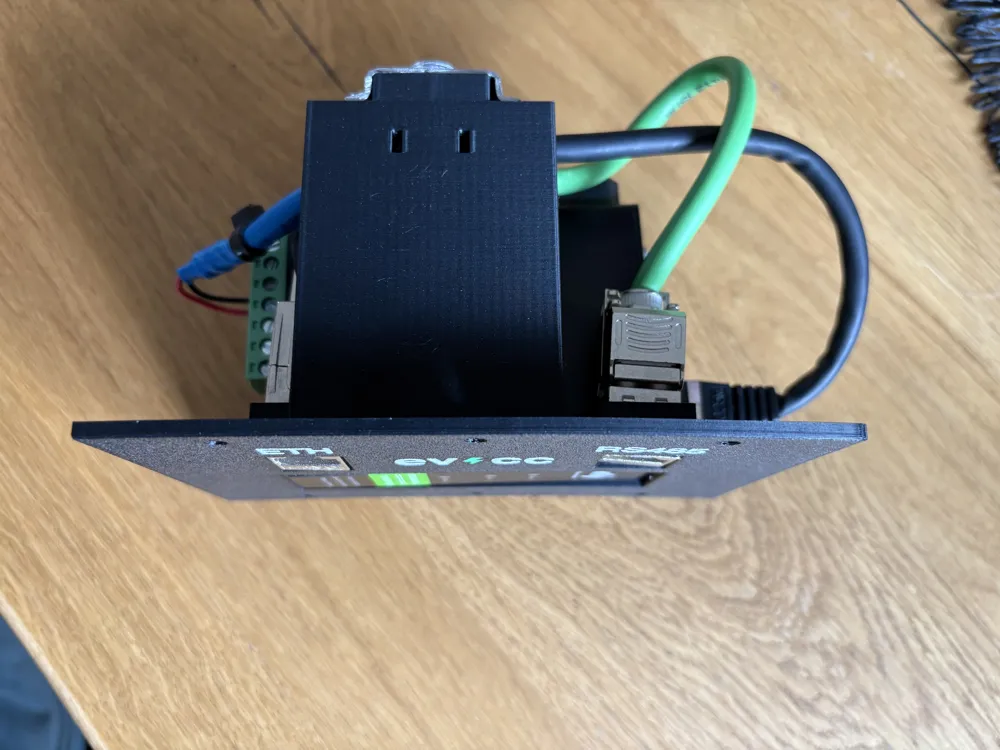

For Assembly
- 2x M4 heat-set inserts
- 2x M4 screw
- 2x M4 washer DIN 9021
- 1x DIN rail 35mm
- 1x Keystone RJ45 coupler
- 2x Keystone RJ45 module
- 1x Patch cable 25cm
- 1x Bus cable
The labeling can be customized in the slicer as desired. I printed it in PETG HF
If you would like to support my work, you are welcome to buy me a coffee ☕️
Boost Me (for free)
I would of course be very happy about your boost, like, or review. Thank you!
