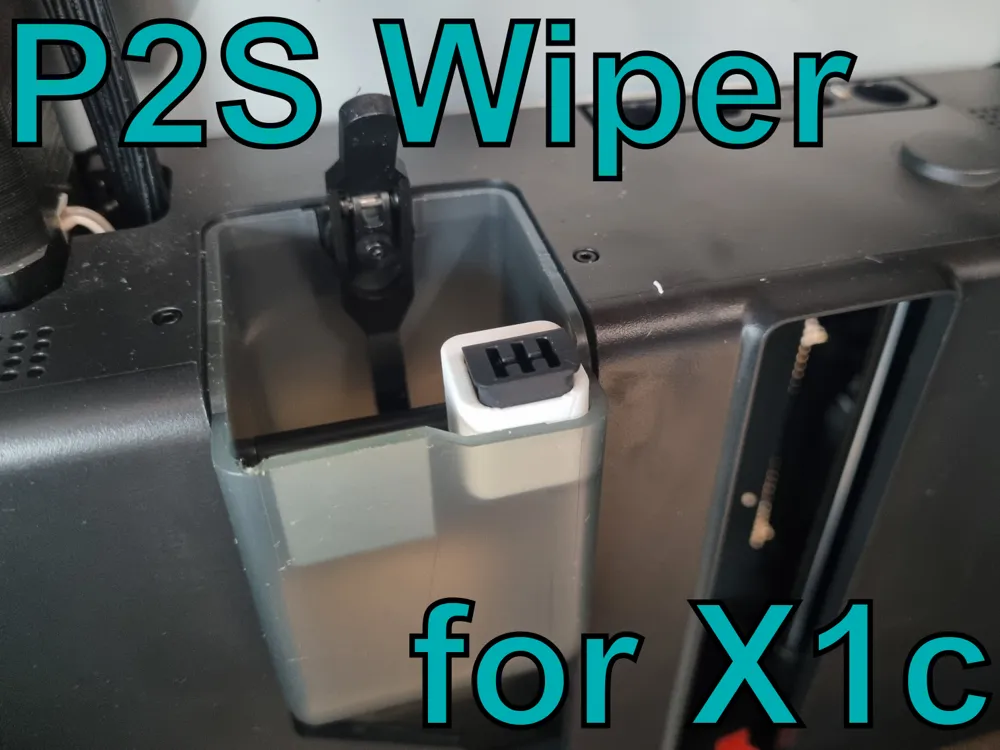

P2S Nozzle Wiper Pad Adapter for X1c / P1 Series
Print Profile(1)
Description
⚠️ DISCLAIMER I'm not responsible for any damage caused by this mod. It works for me, but improper installation could cause damage — proceed at your own risk.

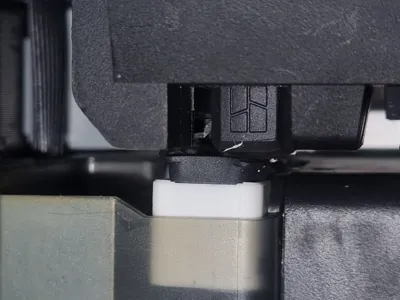

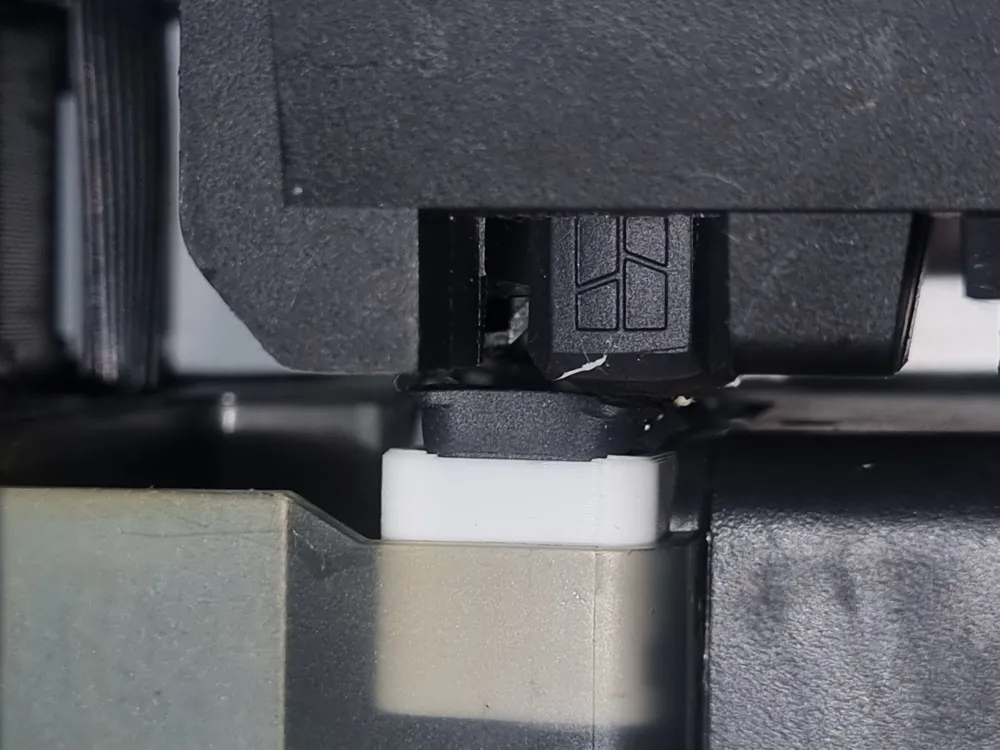

This adapter is designed specifically for the Bambu Lab P2S wiper pad, mounted in the stock wiper position on the X1C. It allows purged filament to drain freely, preventing buildup in the poop chute. Likely also compatible with X1, P1S, and P1P — not tested.
You need:
- 1x Bambu Lab P2S Nozzle Wiper pad
Print settings:
- Material: ABS or ASA recommended. PETG may work but is untested. Avoid PLA — it will warp.
Installation:
1. Remove the original wiper using the hex key

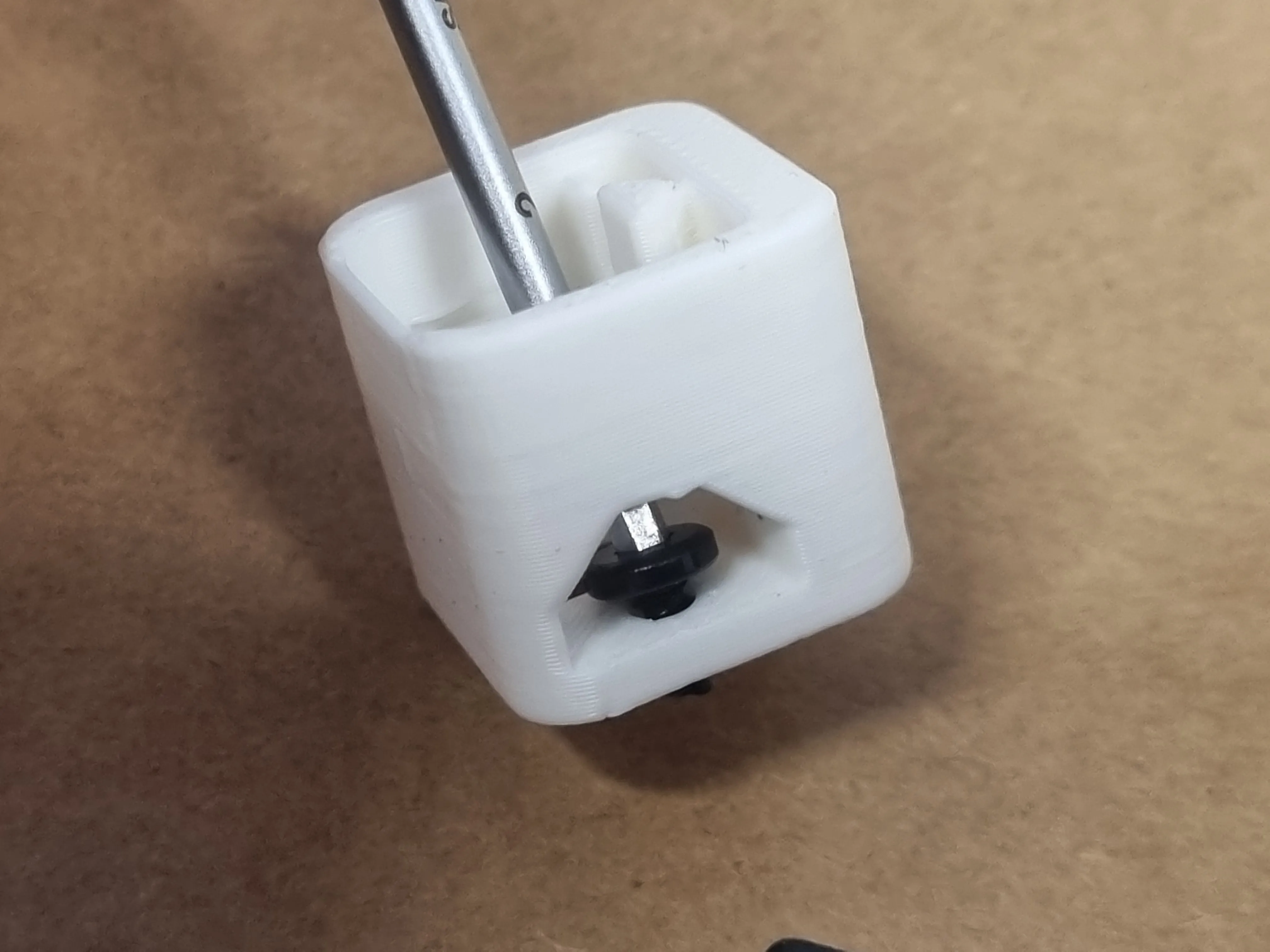

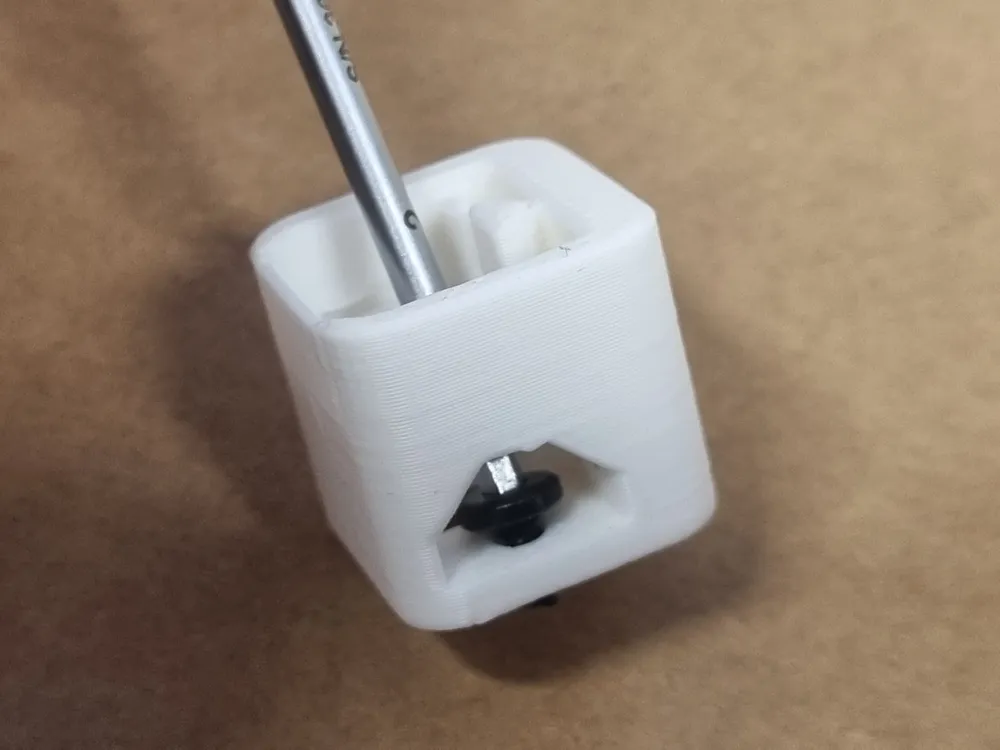

2. Insert the screw into the new wiper holder

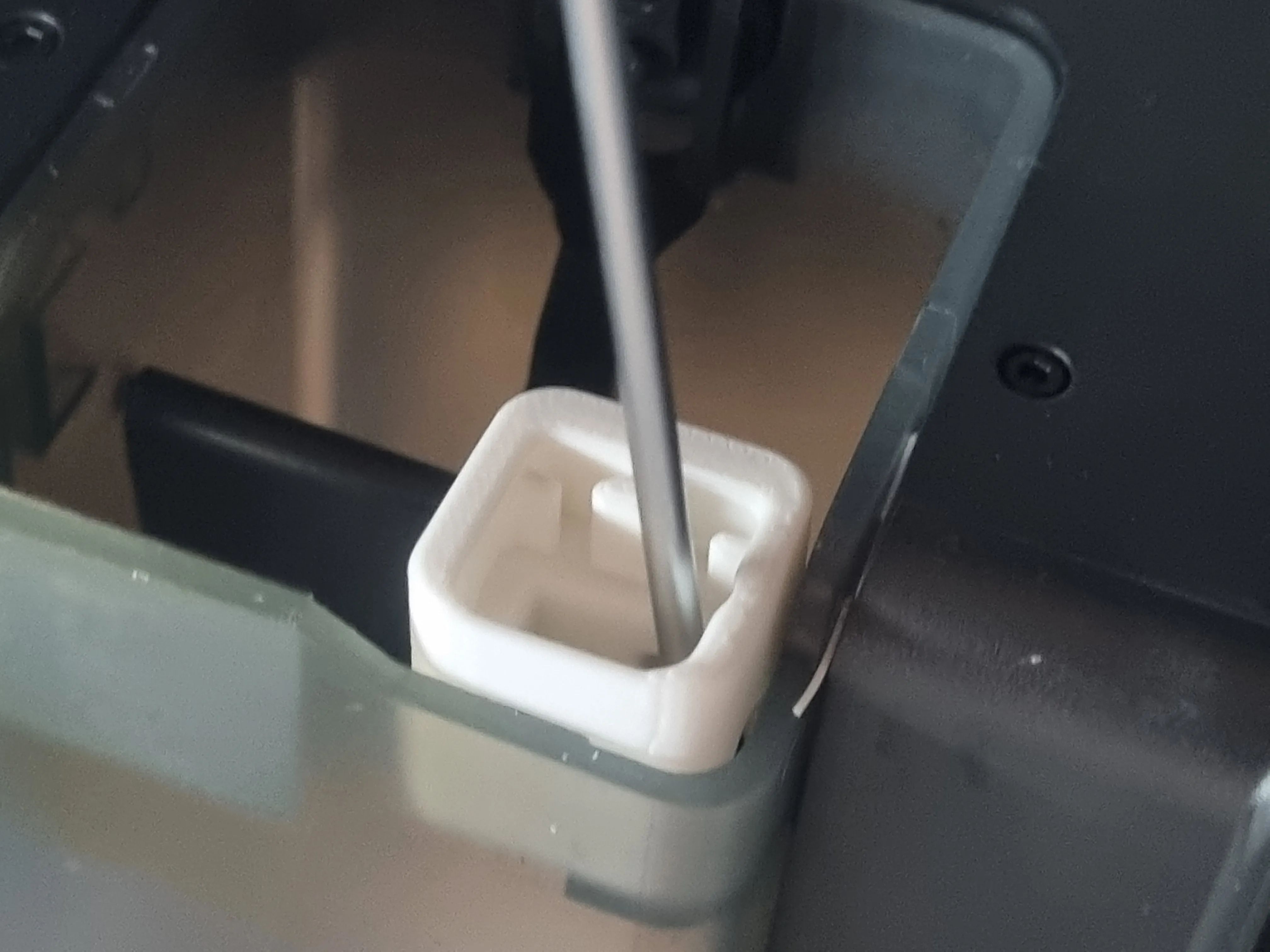

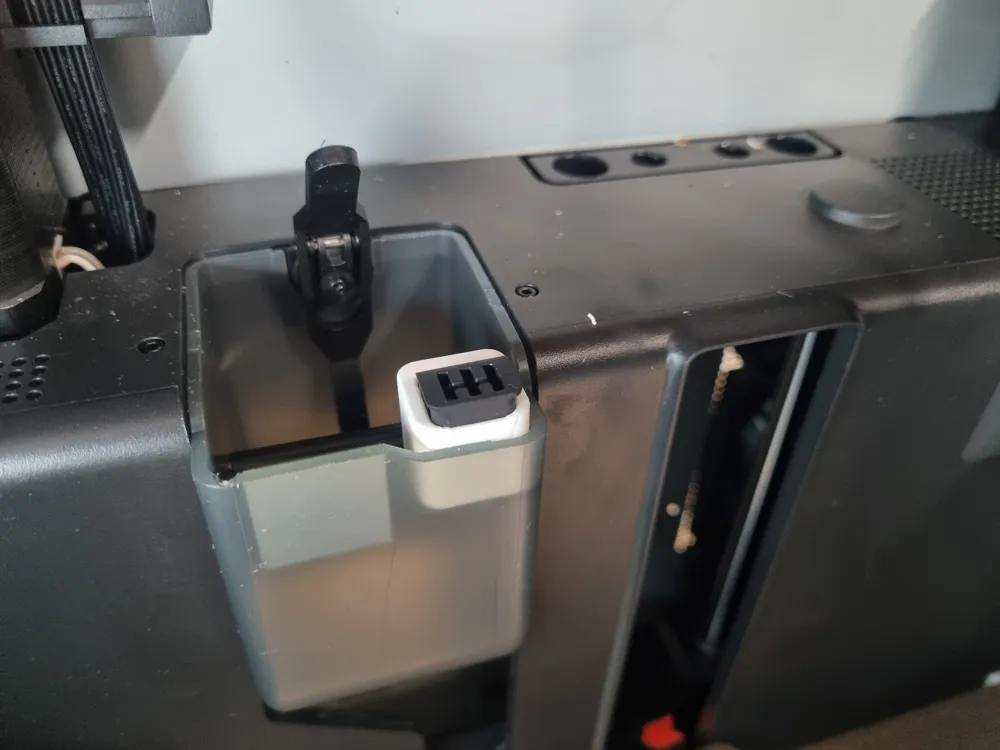

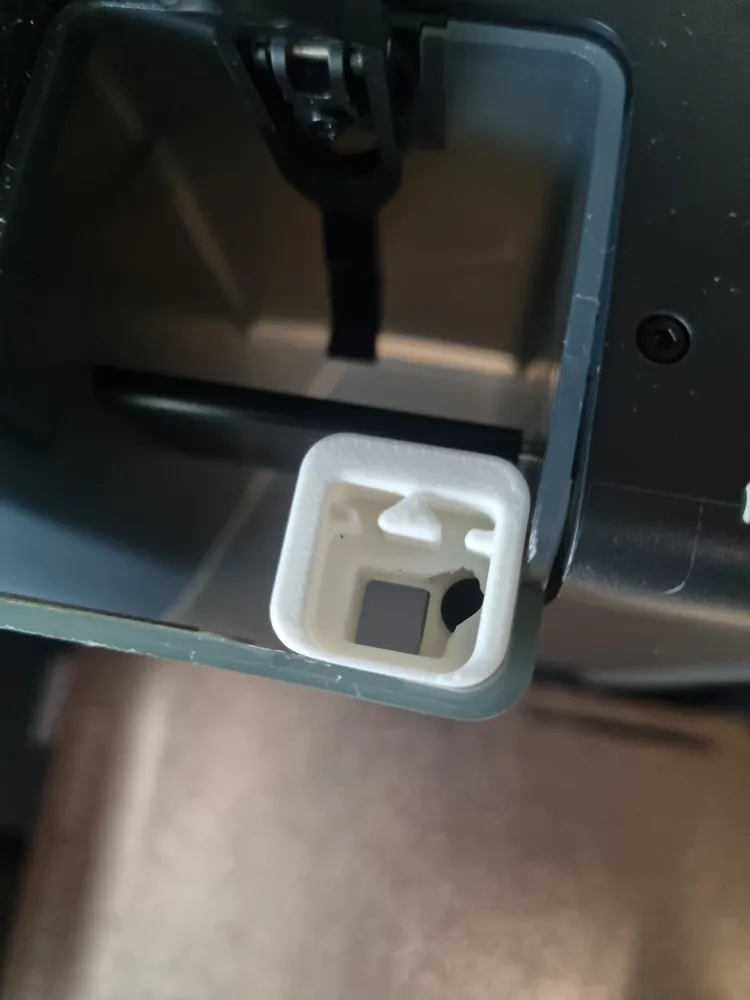

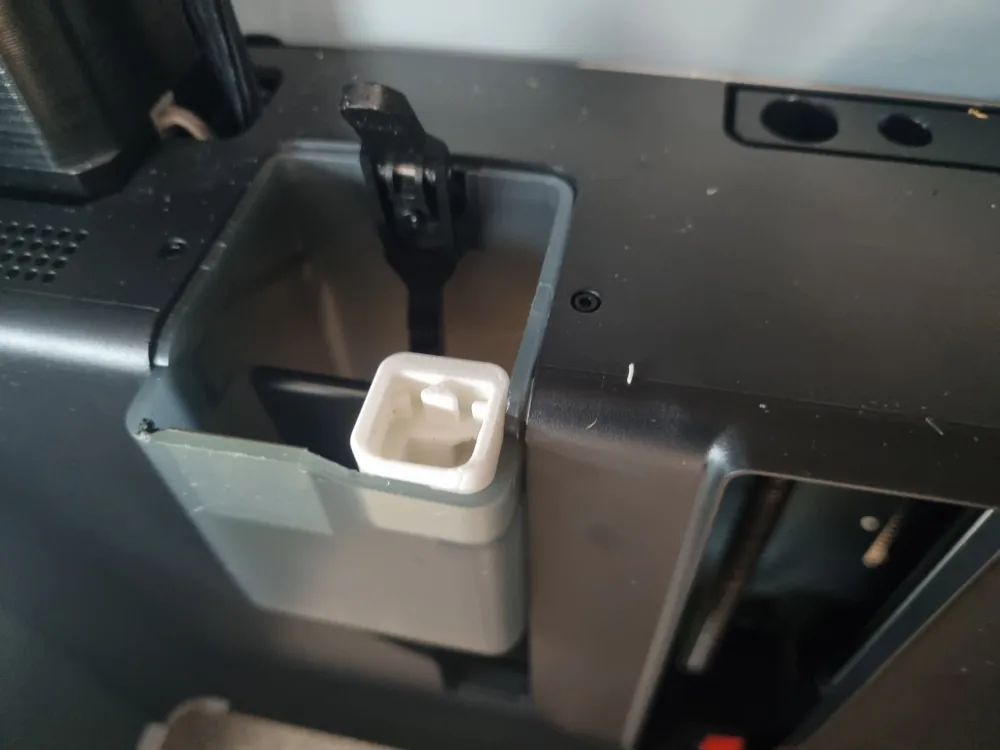

3. Place the holder in the front-right corner in the orientation shown in the photos
4. Tighten the screw — ⚠️ careful, threads strip easily

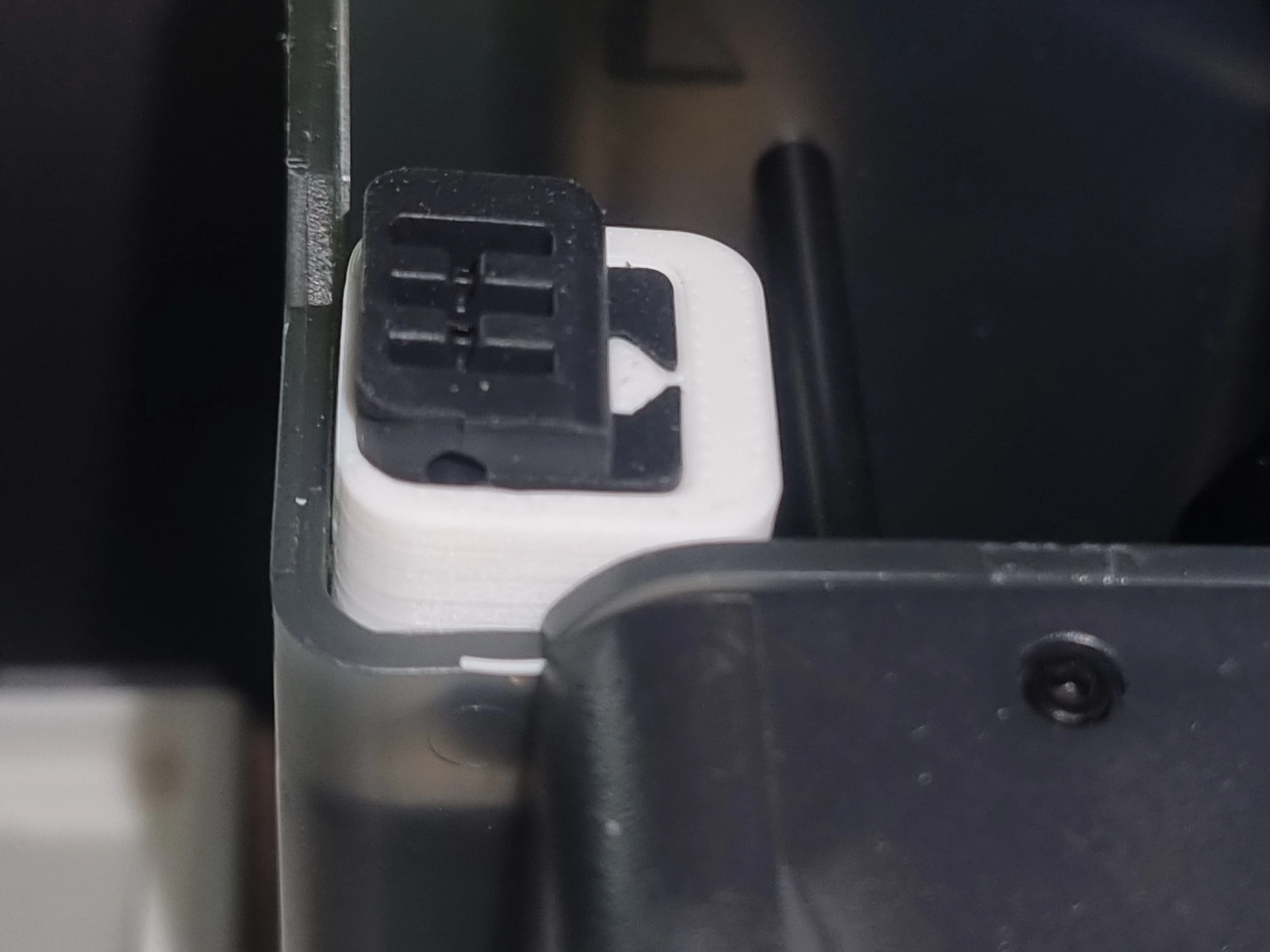

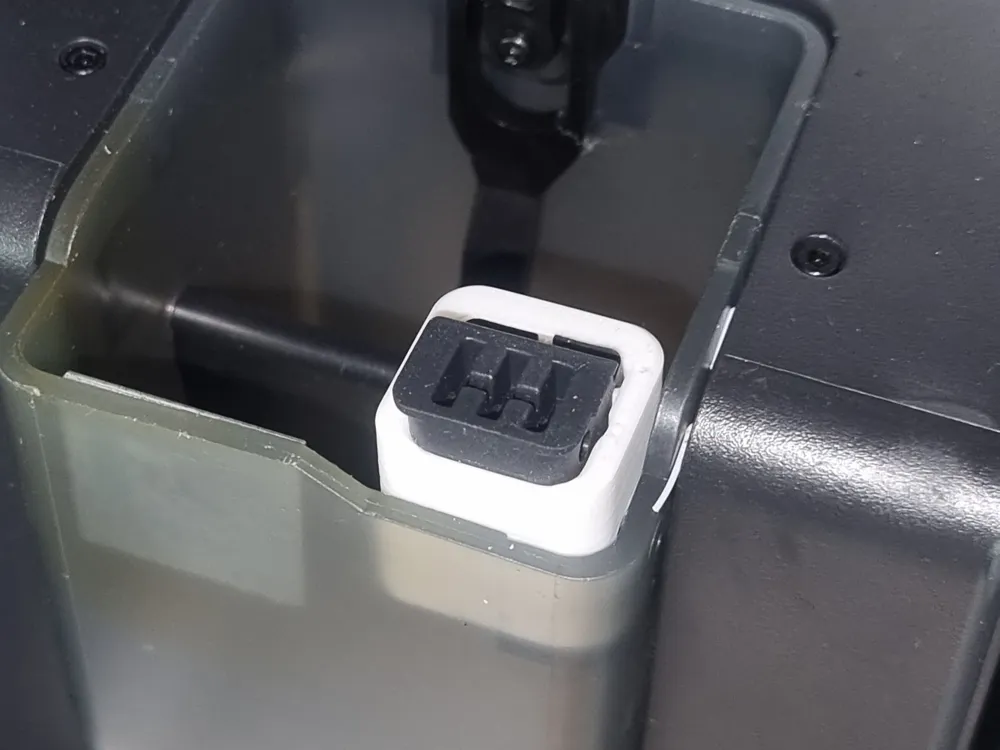

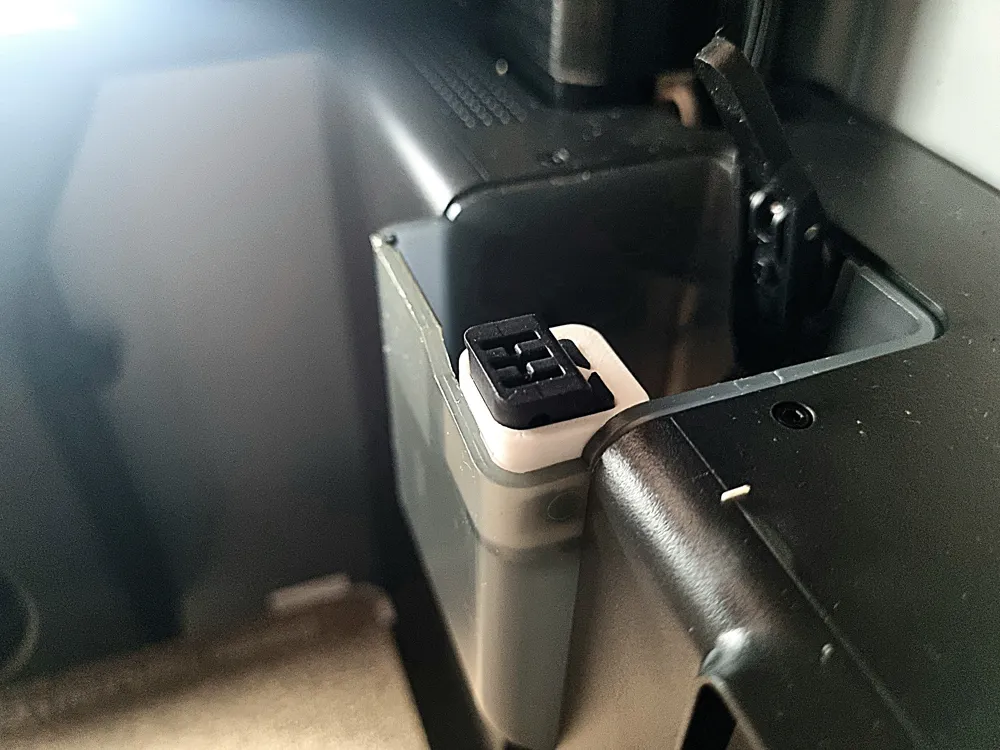

3. Insert the P2S wiper pad and make sure it sits flush in the back
