Screw Driver Holder - French Cleat (4 Variations)
Print Profile(1)
Description

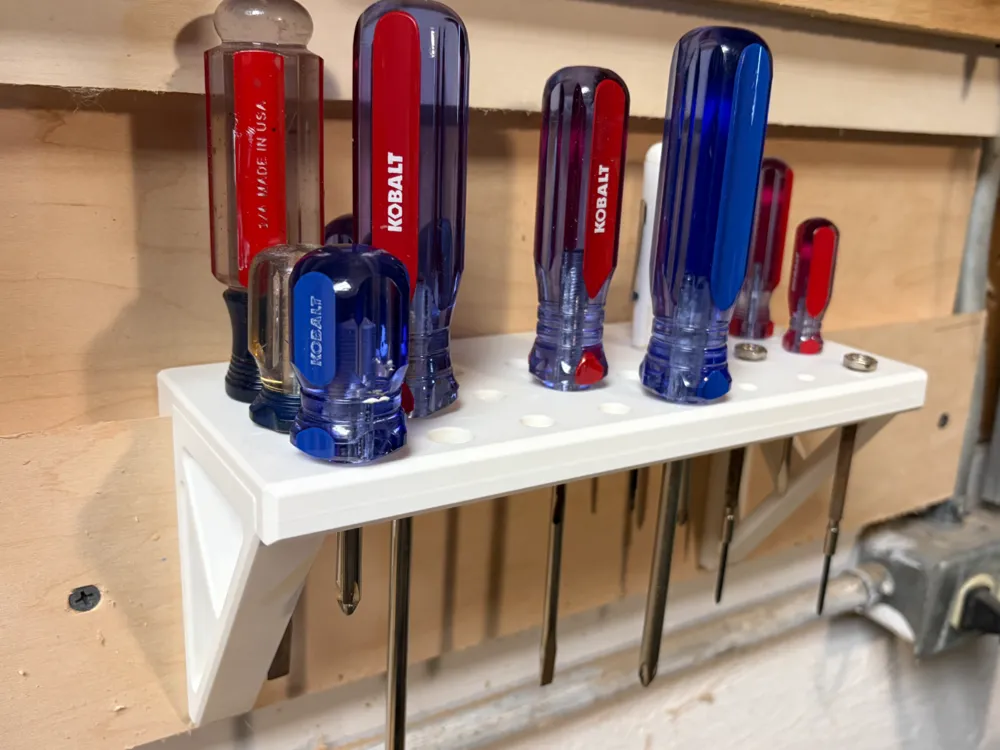

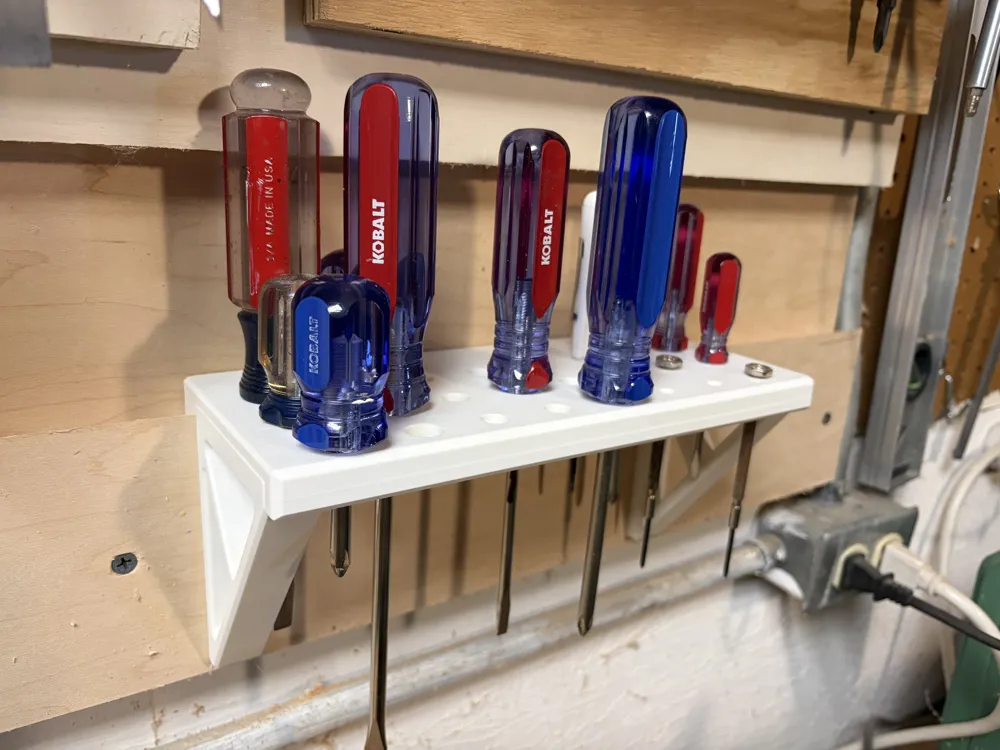

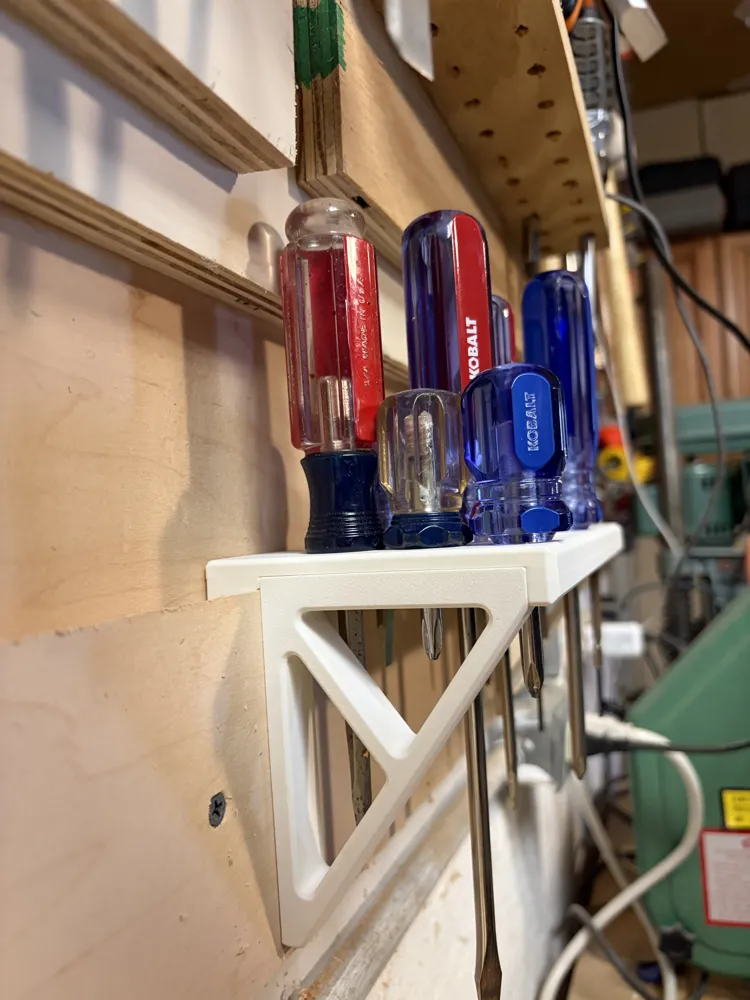

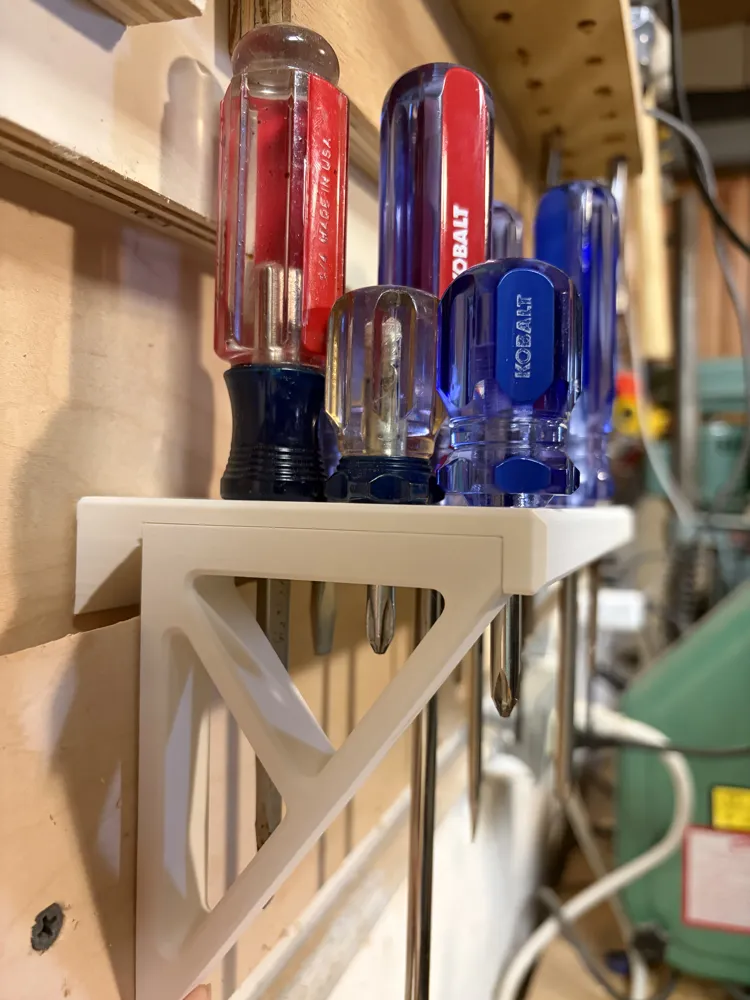

Screw driver holder with french cleat with various sized holes (see image for sizes). I've found the large holes to be great for standard sizes flat heads, while medium holes are good for standard phillips, and small holes good for the misc smaller screw drivers. Hole spacing is 1" on center (screw driver handles should be 1" or less to use all holes).

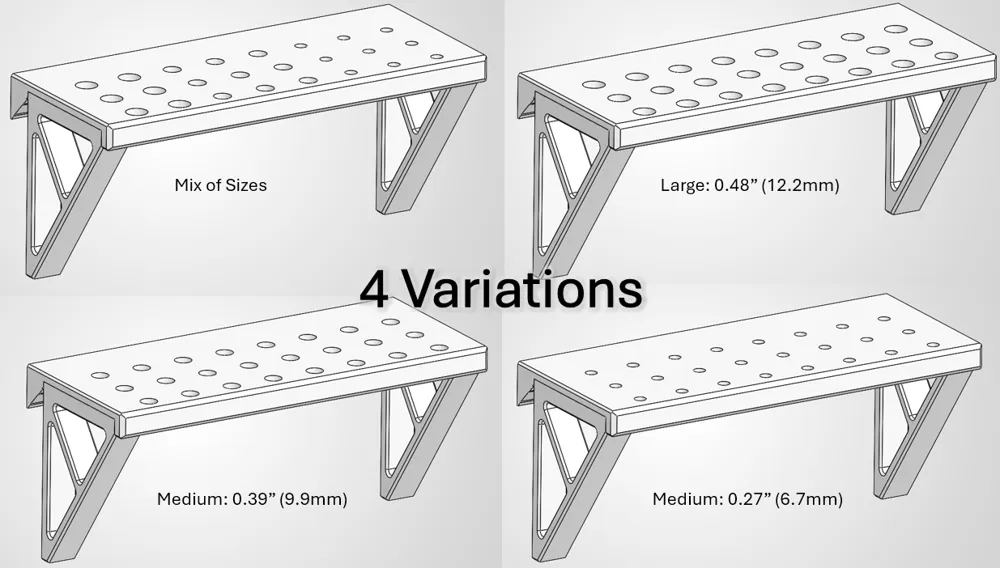

4 Variations Available
- Large: 24 x .48" Holes
- Medium: 24 x .39" Holes
- Small: 24 x .27" Holes
- Mixed: 24 x Various
3 piece design doesn't required any supports and reduces filament which maintaining strength. Assemble with the hidden dovetails. Dovetail fit requires light pressure. Use a dab of glue on the dovetails if you feel the fit is too loose (Results do vary based on machine calibration).
French cleat is .7" (17.8mm) deep. Your wall french cleat depth must be deeper than this value (a typical 3/4" plywood is .72" thick and works well).
