Customizable Gridfinity Label Template (V2.0) 🏷️

Organize your workspace like a pro with this fully customizable, high-contrast Gridfinity label template!

Designed specifically for Gridfinity containers that support label slots, this small tab features a perfectly tuned press-fit mechanism. It snaps securely into place—absolutely no hardware, screws, magnets, or glue required—while remaining easy to swap out when you reorganize your bins.

🚀 What's New in V2.0?

• Perfected Press-Fit Tolerances: Fine-tuned the dimensions so the label snaps in with a satisfying click and stays firmly in place, while still being easily removable.
• Streamlined Workflow: Optimized the .3mf file hierarchy for even easier text editing directly within Bambu Studio.

✨ Key Features

• 100% Slicer-Customizable: No CAD software needed! Modify the text directly in Bambu Studio.

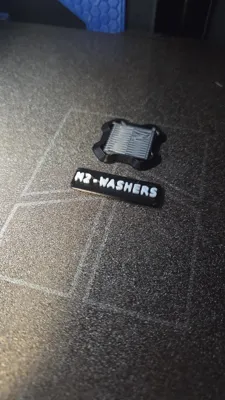

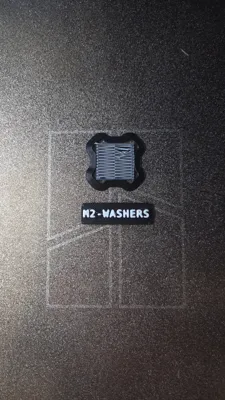

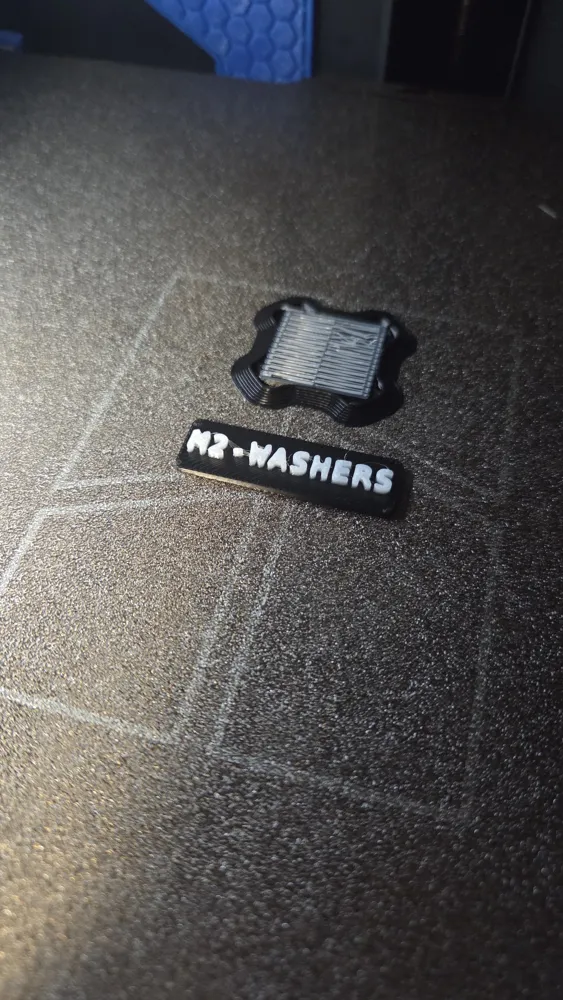

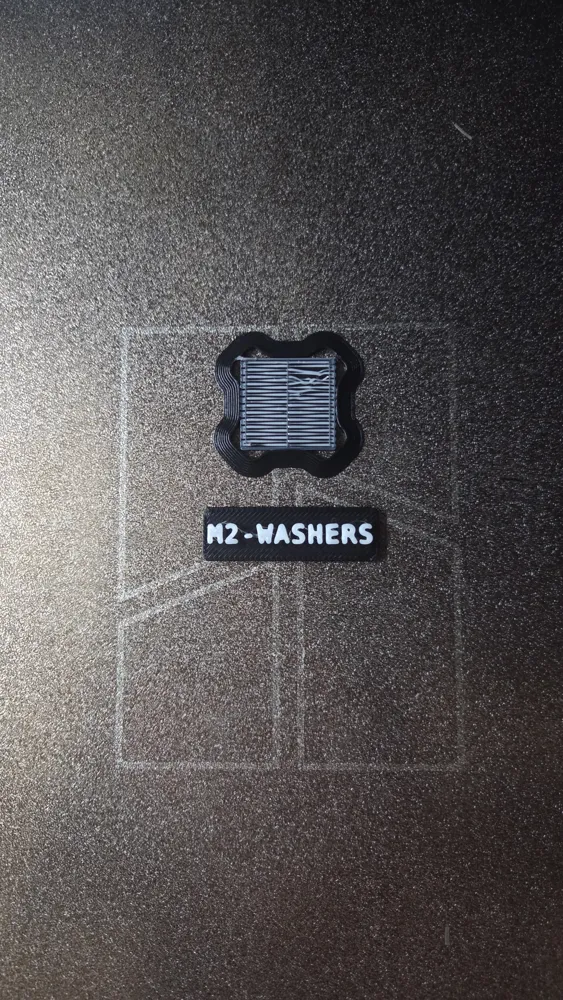

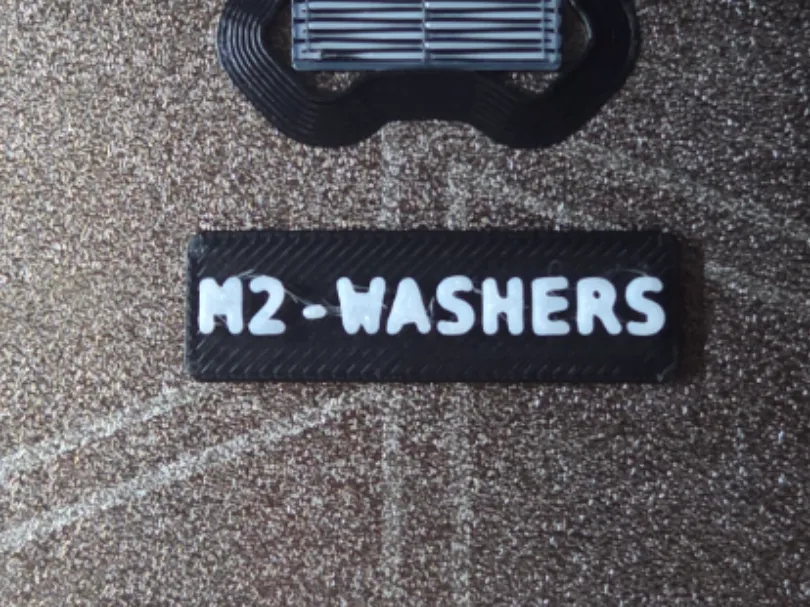

• High Contrast & AMS Ready: Pre-configured for a crisp, 2-color print. The default profile uses Black (Color 1) for the background tab and White (Color 2) for the text, ensuring maximum readability.

🛠️ How to Customize Your Text

Don't worry if you are new to Bambu Studio, changing the text is super easy!

Step 1: Find the text

1. Open the .3mf file in Bambu Studio.
2. In the left panel, click on the Objects tab.
3. Find the main part named Gridfinity_Label and click the small arrow to expand it.
4. Inside, locate the text item named String.

Step 2: Change the words

1. Right-click on the word String.
2. Select "Edit Text".
3. Type your new label (e.g., "M3 Screws", "Washers"). The text will automatically stay perfectly centered!

Step 3: Print multiple labels at once (Optional)

1. Select your main Gridfinity_Label on the virtual build plate.
2. Press Ctrl + K (or right-click and choose "Clone") to duplicate it as many times as you need for your bins.
3. Repeat Step 2 for each cloned label to give them all different names.
4. Hit Slice and you're ready to print!

🖨️ Materials & Print Profile

You can print these labels using the material of your choice (PLA, ABS, ASA, etc.). However, the provided .3mf print profile is already pre-configured for PETG. PETG is highly recommended because its slight flexibility makes the press-fit action incredibly smooth and durable.

🤝 Contributing & Remixes

The maker community thrives on collaboration. Feel free to remix this model! Whether you want to adjust tolerances for a specific printer, modify the tab shape, or add custom SVG icons alongside the text, go for it. Please share your remixes so we can build the ultimate Gridfinity system together!
