Universal Rotation Adapter for BTT HDMI5
Print Profile(0)
Description
What is this part for?

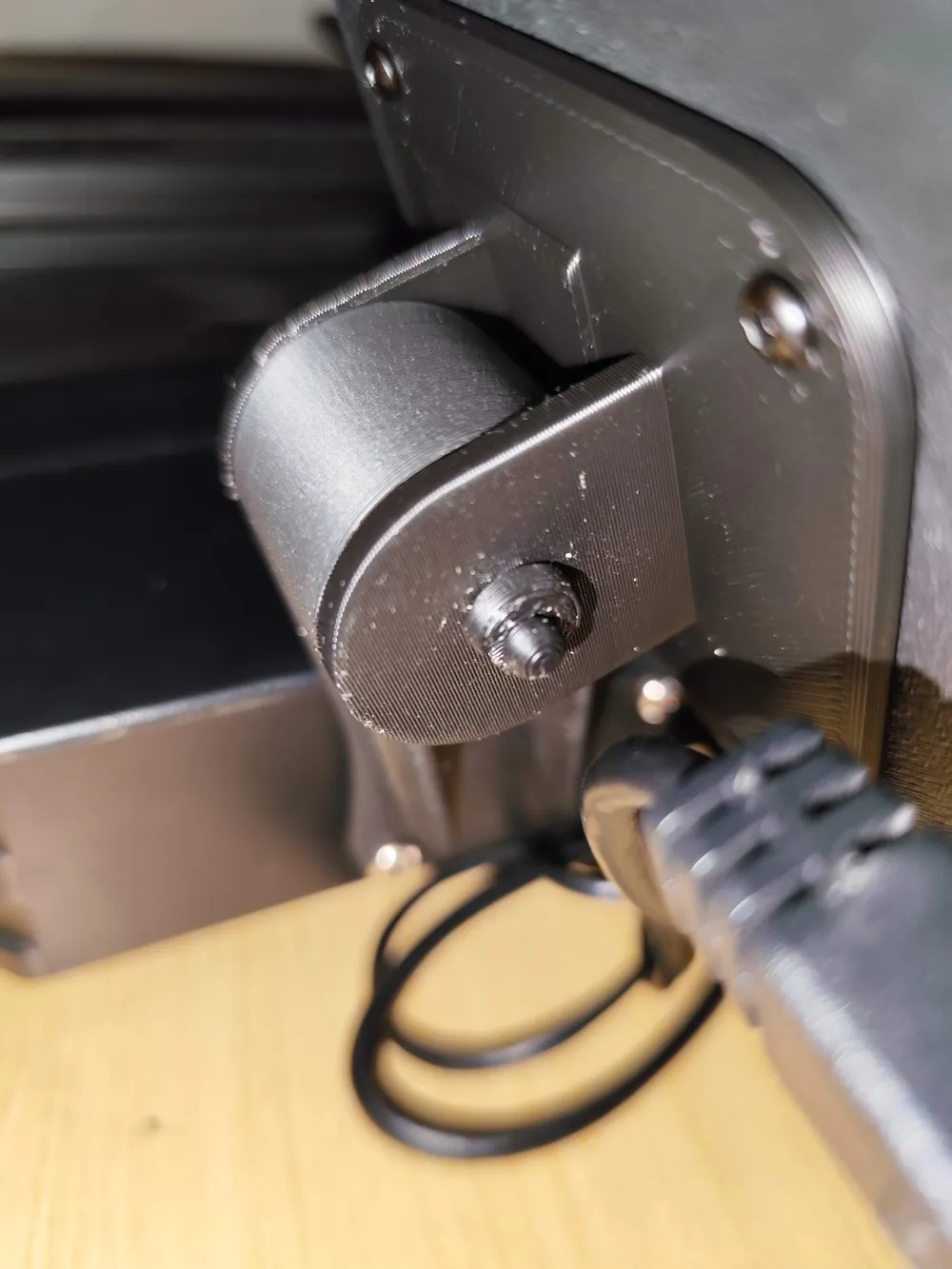

It is the connector that joins the printer mount (Printer Mount) with the screen. Thanks to its geometry, you can:
Landscape Mode: Ideal for standard Marlin menus or wide interfaces
Portrait Mode: Perfect for KlipperScreen or for saving space on the side of your Ender, preventing the screen from protruding too much
Design details:
Versatility: You don't need to print different parts if you decide to change your screen's orientation in the future
Compatibility: Fully compatible with the base design by S_S_C on Printables

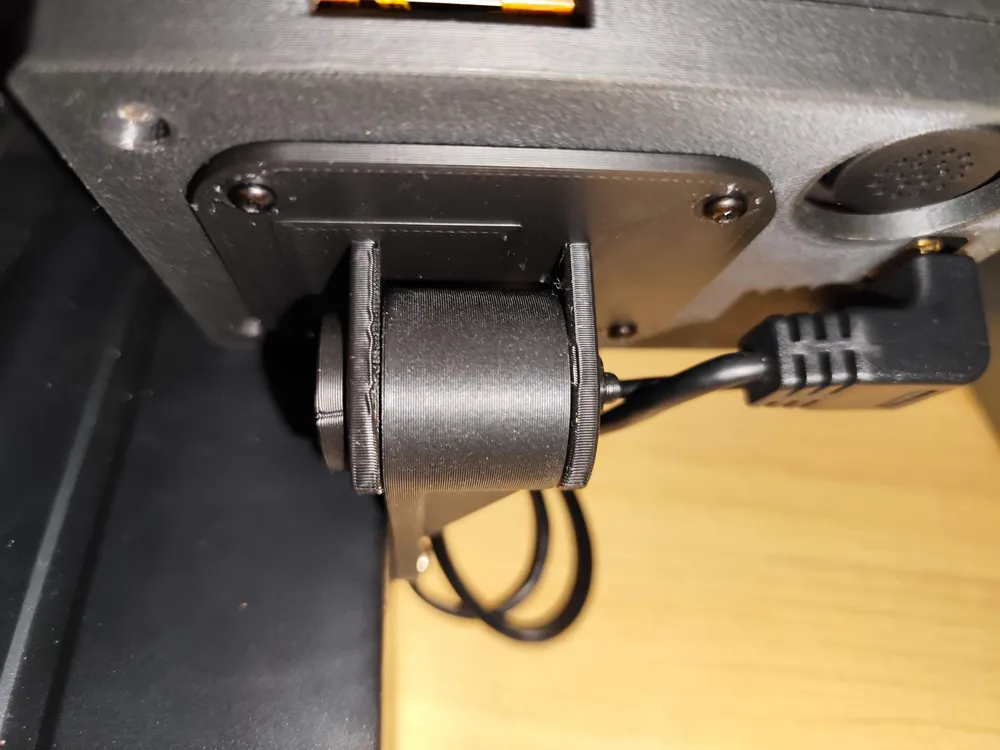

Installation: It is inserted between the Y/X axis arm and the rear casing of the HDMI5 screen
🔧 Assembly Recommendation
For the part to be truly sturdy in both orientations:
Use at least 4 walls in your slicer (Cura, OrcaSlicer, etc.). This will make the screw holes solid and prevent them from cracking under tension
Print Orientation: Print it resting on its flattest side to maximize bed adhesion
