Modular GT3 Style Wheel – Fanatec Universal Hub V2

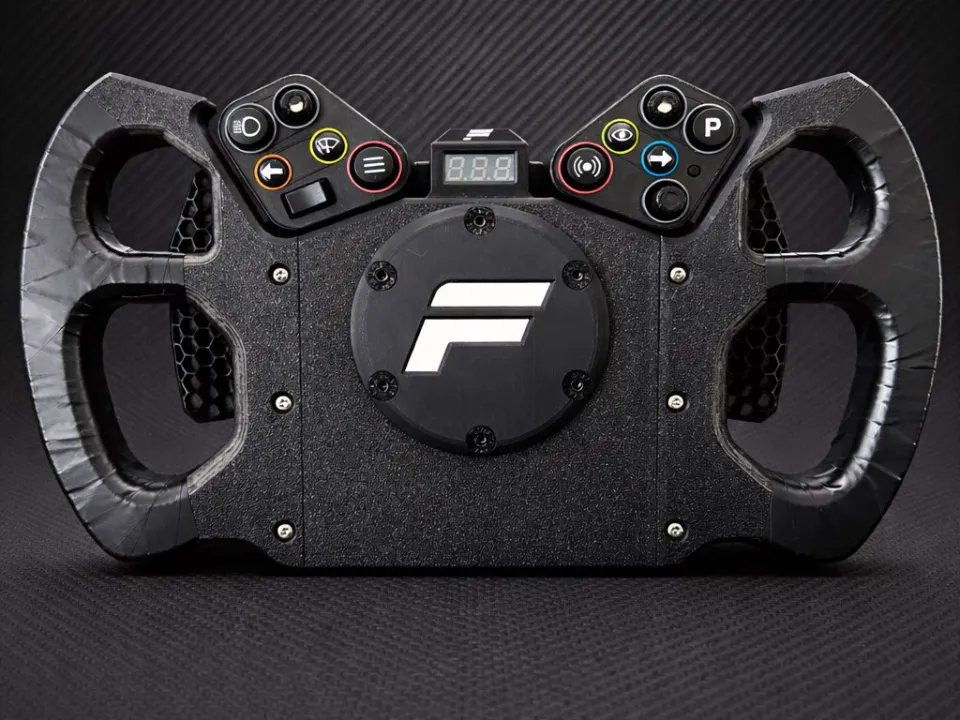

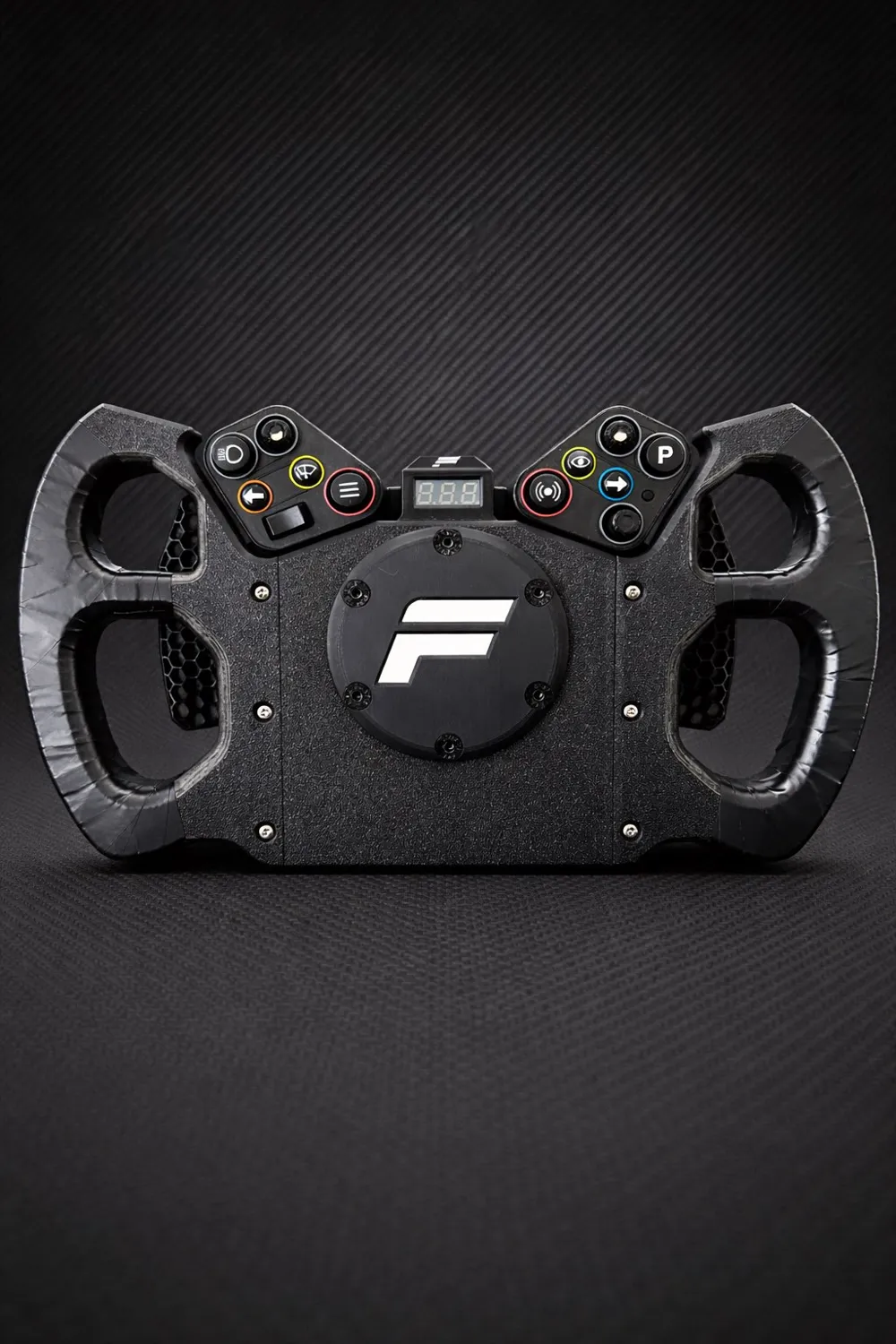

Note: The wheel pictured was printed in black matte PLA. It is the same model but not the newest version—the latest files include improved ergonomics for better comfort.
Versions
Heat Insert Version (Recommended)
- Center section with separate handles
- Uses heat-set inserts and screws
- Most serviceable
- Only modular option
Hardware
- 8x heat-set threaded inserts (M3)
- 8x M3 x 5-10mm screws (for handles)
- 6x flat or countersunk M5 x 12mm screws (to mount to Fanatec Universal Hub V2, standard wheel mounting pattern)
Press-Fit Version
- Side and center combined
- Handle presses on
- No hardware required
One-Piece Version
- Fully integrated
Hub Caps
- Basic Fanatec logo version (Press Fit)
- Blank version for customization
Fits all wheel versions.
Grip
The wheel shown uses electrical tape on the handles. This works well and adds comfort.
Recommended:
- Stick-on microfiber or suede wrap
Compatibility & Testing
- Fanatec Universal Hub V2
- Suitable for direct drive setups
- Tested on CSL DD and ClubSport DD+ bases up to 12 Nm torque
Compatibility
- Fanatec Universal Hub V2
- Suitable for direct drive setups
Print Settings
- Material: PLA/+ or PETG recommended
Handles
- Walls: 5–6
- Top/Bottom: 5–6
- Infill:15% (gyroid)
Hub Mount
- Walls: 5-6
- Top/Bottom: 10 (to avoid any flex)
- Infill:15% (gyroid)
Higher wall count matters more than infill for strength.
Hardware (Heat Insert Version)
- Heat-set inserts
- Machine screws
Notes
Optional: QR2 Mount
This wheel's Universal Hub can be used with a 3D printed QR2 slide mount as an alternative to buying one.
- I used: [Federico Villa -QR2 ]
- Printed in ABS with good results
This part is not included in this project.
Make sure to follow the original model’s print settings and use materials appropriate for your torque level.

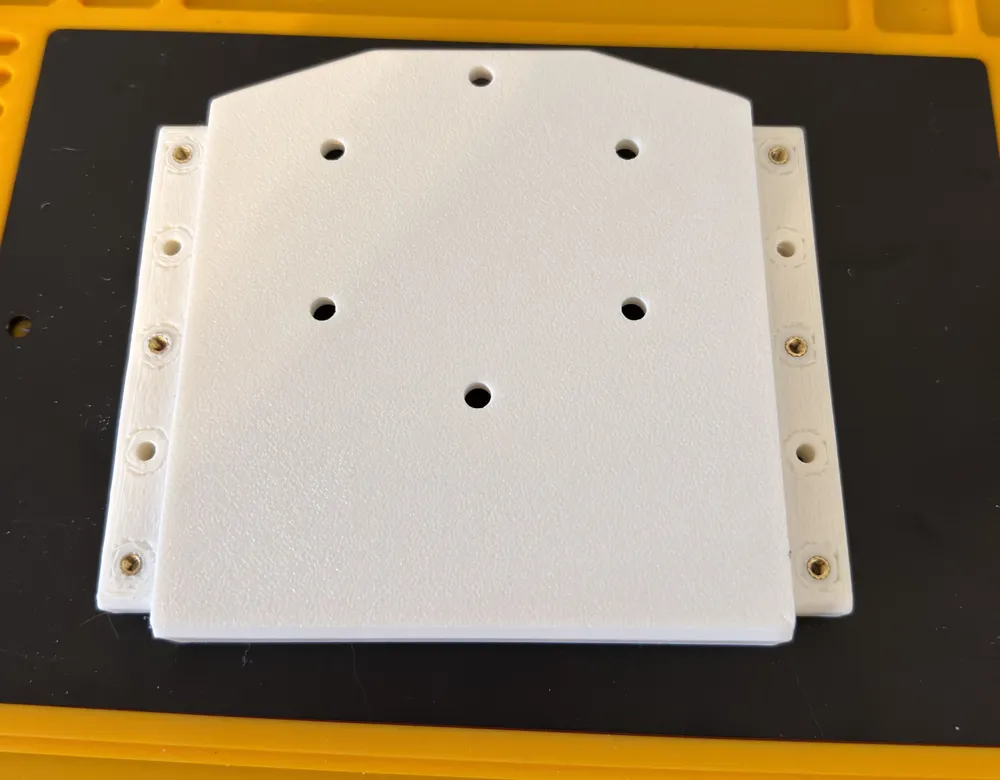

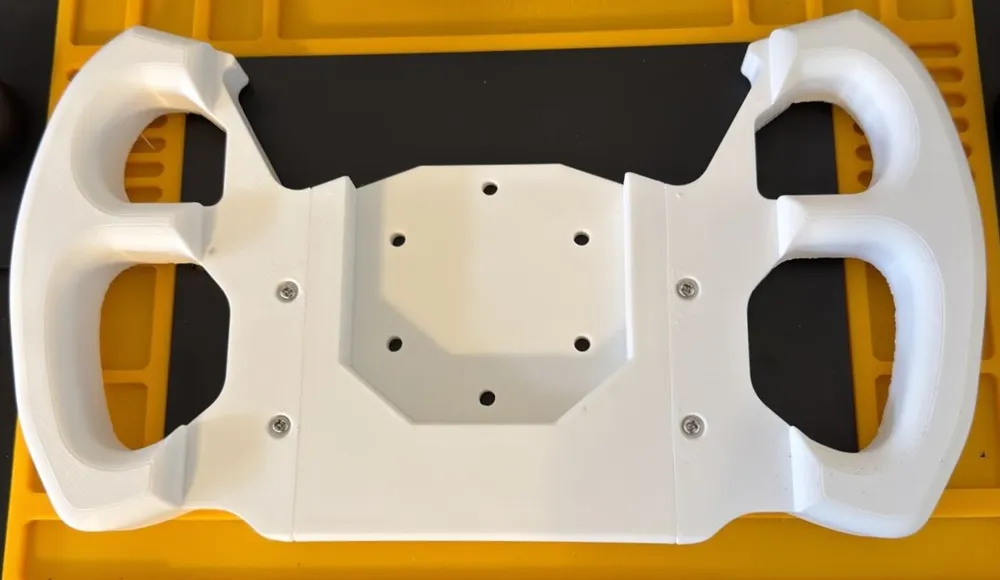

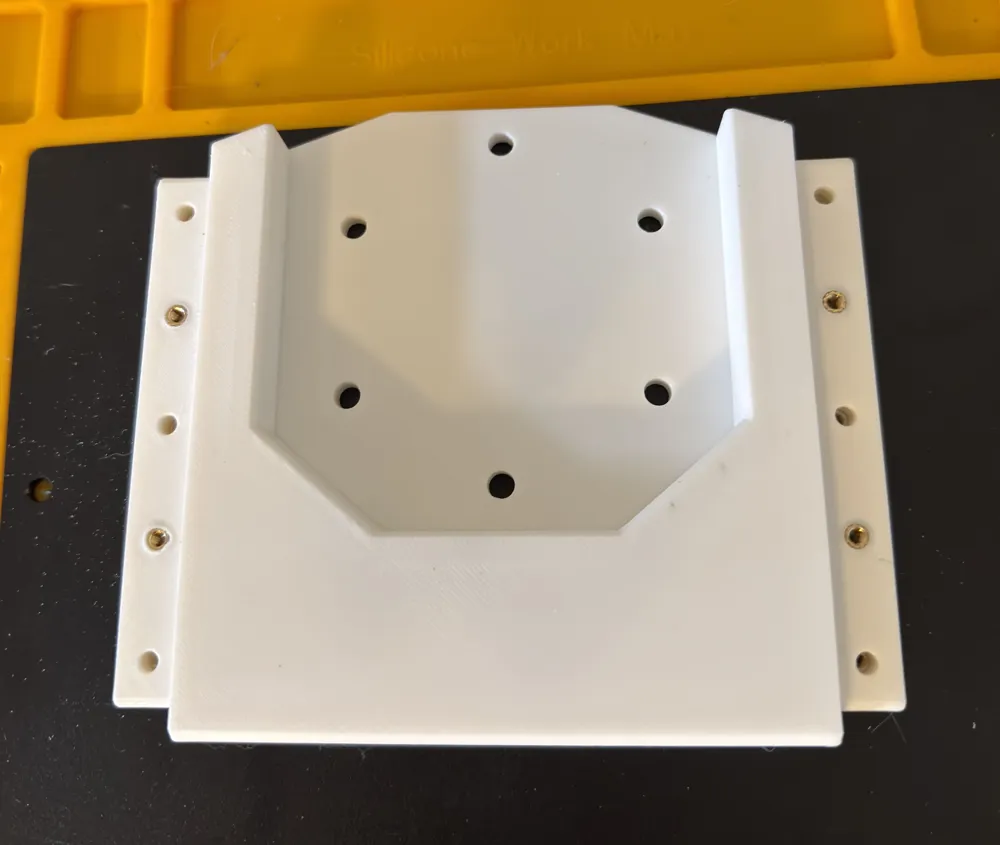

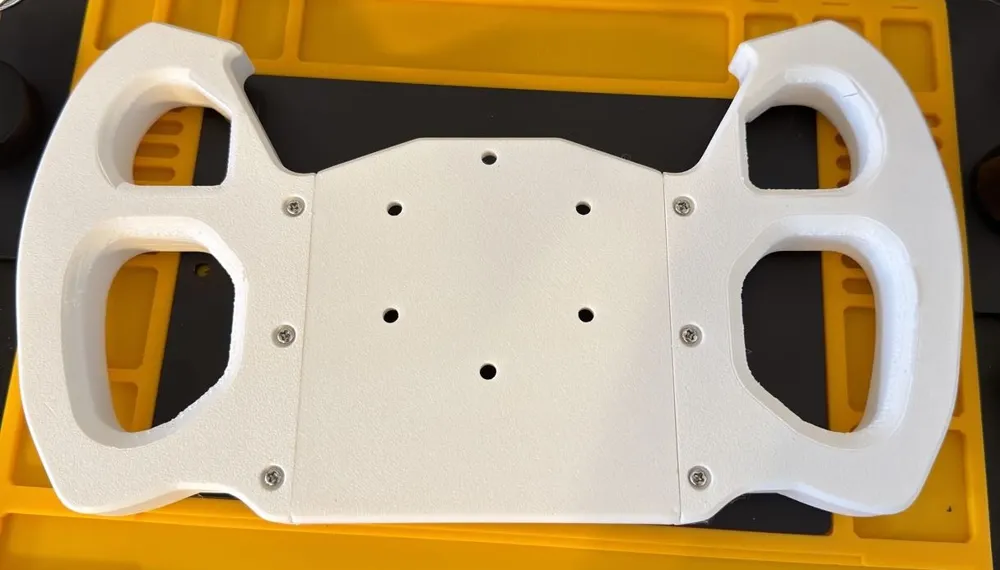

- Photos show the heat insert version
- Images are slightly outdated
- Files include newer revisions and improvements
