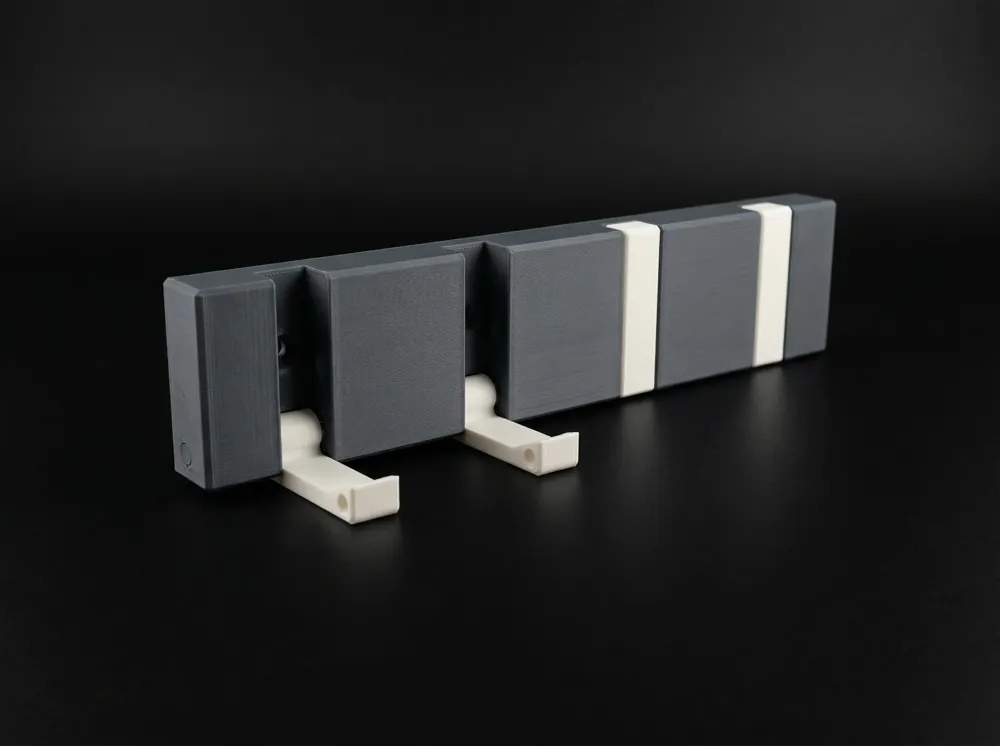

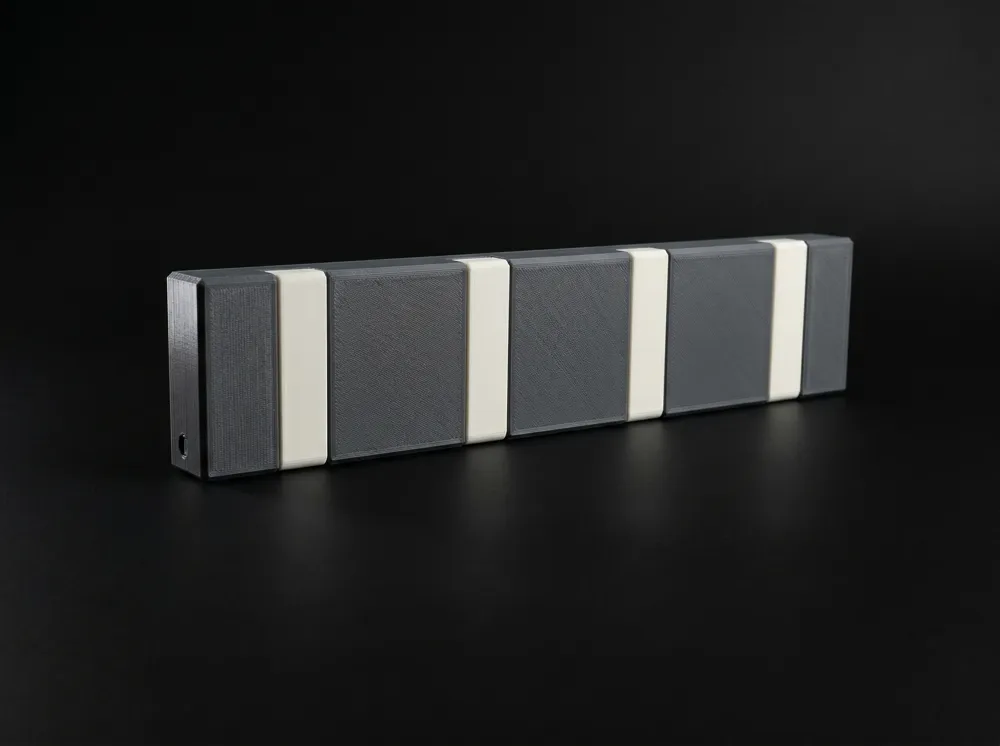

FYRA - Parametric Folding Wall Hook

Say goodbye to cluttered entryways and maximize your space with the FYRA Folding Wall Hook! This design blends minimalist aesthetics with rugged functionality, providing a clean storage solution that snaps shut when not in use.

The FYRA model is designed for makers, offering smart engineering that prioritizes both strength and ease of printing. The 3-part modular system ensures you can customize it completely to match your decor.

Key Features:

• 100% Parametric Design: Easily customize the width, height, and depth to perfectly fit your space or load requirements.
• Magnetic Snap-Up: Utilizes small 6x2mm magnets (one in the base, one in the hook) to keep the hook securely held in the upper, folded position for a sleek look.
• Support-Free Printing: Engineered to print cleanly without any support material
• Optimized Multi-Color Printing: The 3-part design (Base, Hook, Axle) lets you easily print components in different colors and materials without needing an AMS.
• Maximum Strength Orientation: By printing the hook and base in their optimal orientations, you significantly increase the layer bonding strength for heavy coats or bags.

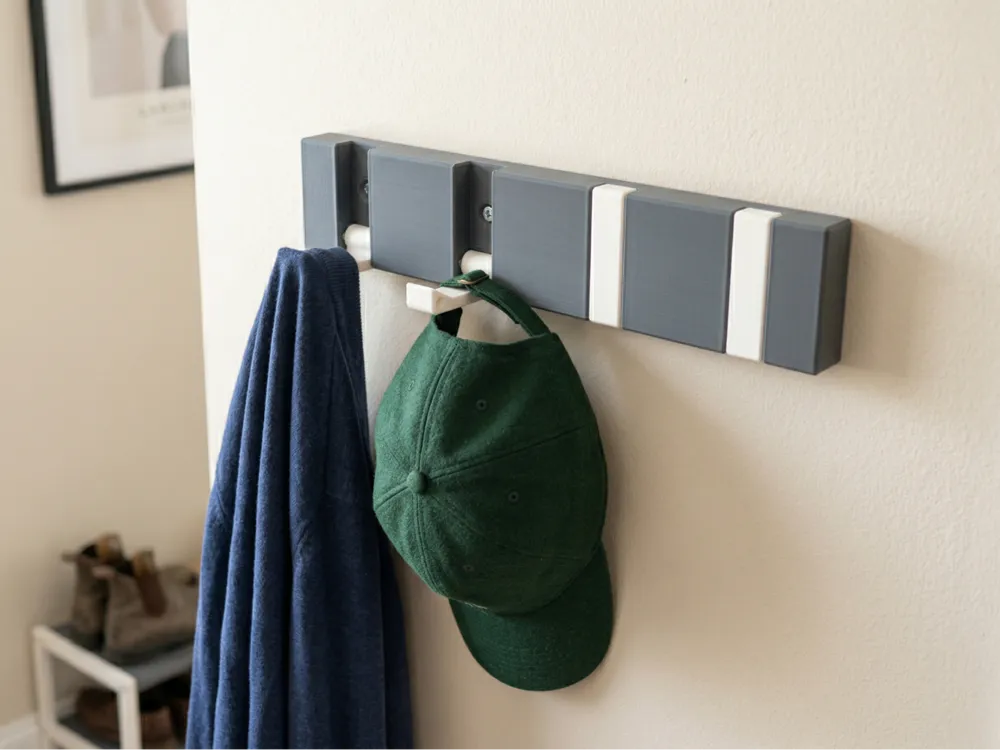

• Minimalist & Functional: Perfect for entryways, bathrooms, closets, workshops, or offices.

Printing & Assembly:

• Material: PLA is great for light duty; PETG, ABS, or ASA is recommended for higher load-bearing capability.
• Walls/Infill: 3-4 walls and 25%+ Gyroid or Adaptive Cubic infill recommended for structural integrity.
• Hardware Required:
  • 8x 6x2mm cylinder magnets (secure with a drop of superglue).
  • 4x Countersunk screws (sized appropriate for your customized model) for wall mounting.
• Assembly: Simply insert the magnets (with glue), place the hook in the base channel, and snap the axle through.
