Ultimate Parametric Drywall Anchor System

This is a professional-grade, fully parametric drywall anchor designed for maximum grip and versatility. Unlike standard models, this version features mathematically correct, high-volume threads that ensure a solid physical bite into the drywall and reliable metric bolt engagement.

the 3mf print includes all together for all who like to check them out print it directly

Key Features

• True Physical Threads: Engineered with a polar projection algorithm to create massive, printable thread flanks instead of thin lines.

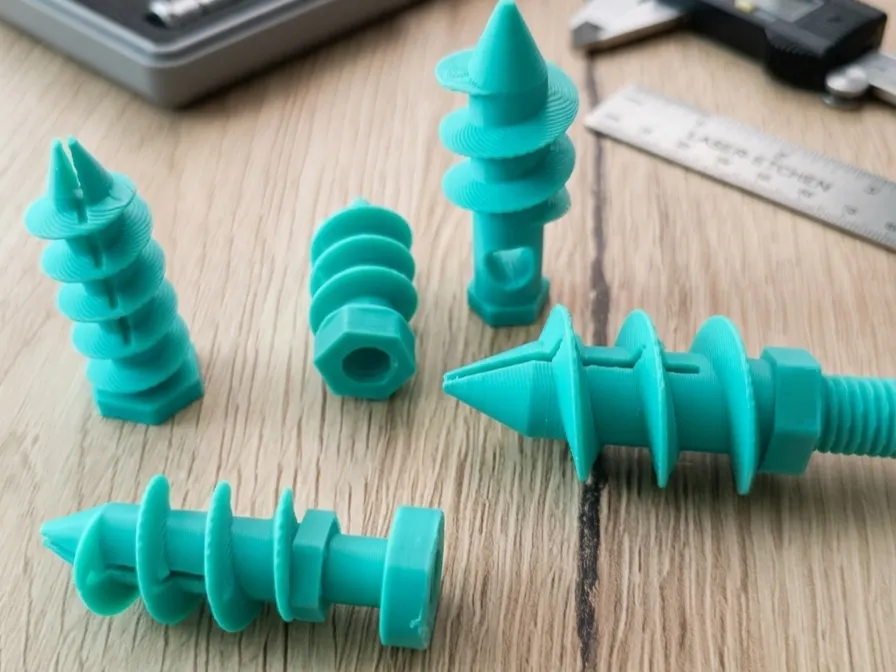

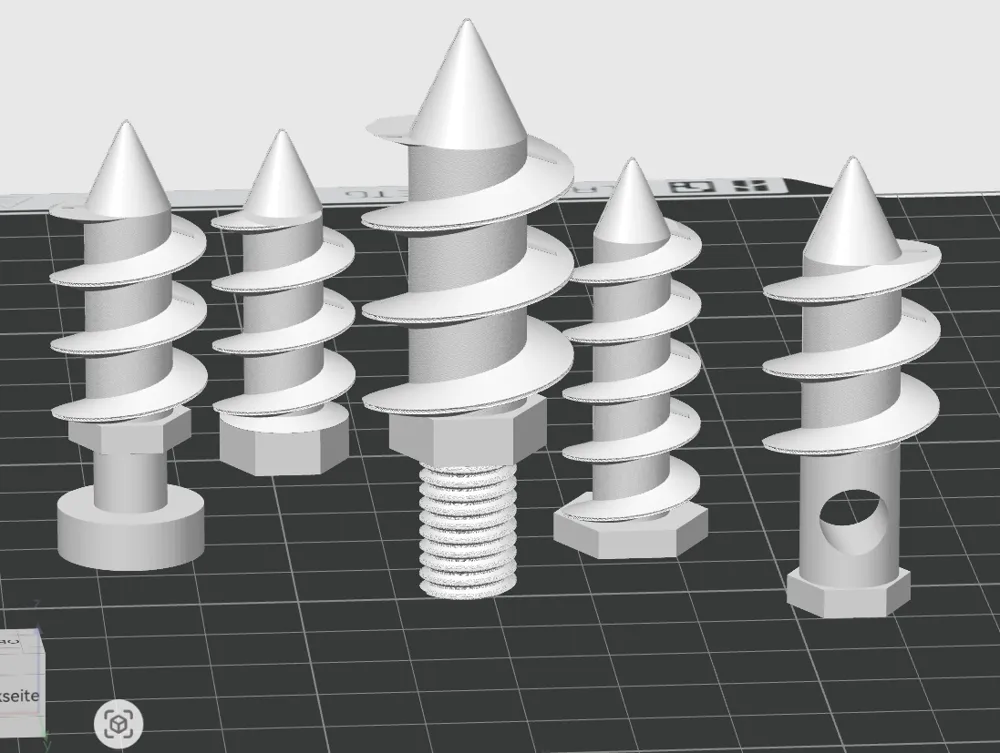

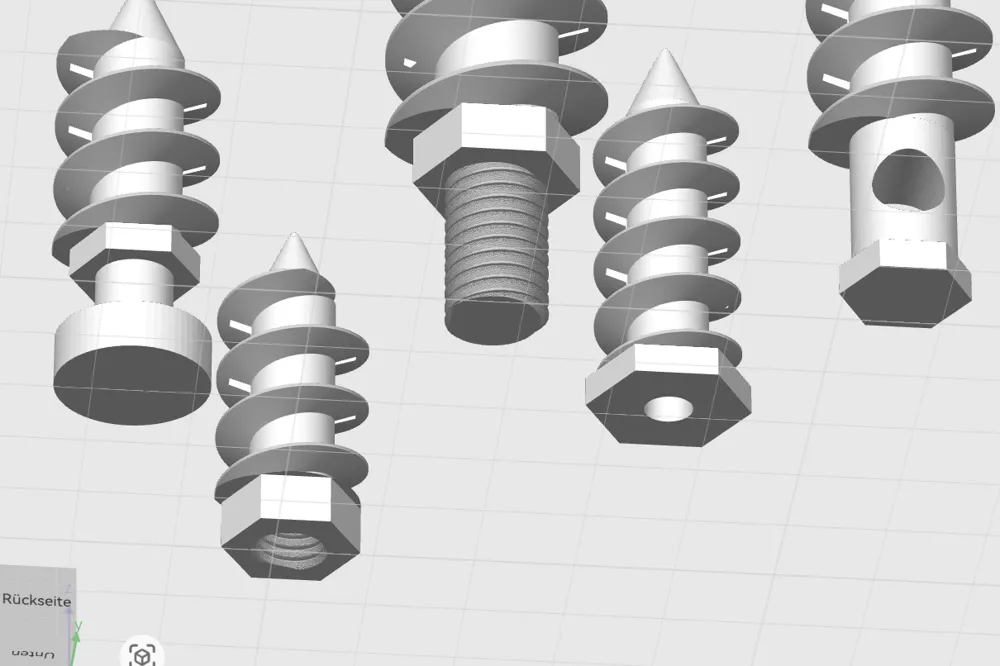

• 5-in-1 Head System: * Classic: Standard low-profile hex.
  • Knob: Extended neck for hanging items directly.
  • Eyelet: Integrated loop for cables or hooks.
  • External Thread: Integrated M6/M8/M10 bolt head.
  • Internal Thread: Perfect for machine screws (M6-M10).
• Solid Core Design: The internal thread stops 1mm before the shaft, ensuring the anchor body remains solid and doesn't snap under torque.
• Fully Parametric: Adjust drill hole diameter, anchor length, and wrench size directly in the MakerWorld Customizer.

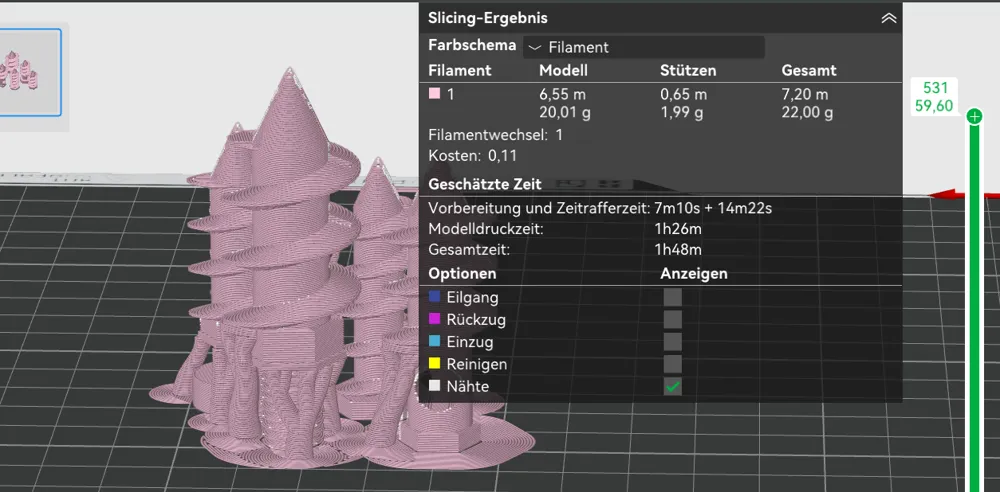

Print Settings

• Material: PETG or Tough PLA (for better thread durability).
• Wall Loops: 5 (Crucial for thread strength).
• Infill: 40% - 100% (use 100% for the smaller M6 versions).
• Layer Height: 0.16mm or 0.2mm (Higher resolution helps the internal threads).
• Orientation: Print vertically (head on the build plate). Activate supports on critical only!

Tip: If using the Internal Thread option, run a metal bolt in and out once to "prime" the plastic threads for a perfect fit!
