🏎️ RC Monster Truck Wheels - Type 2 (125×70mm | 17mm Hex)

This is a high-fidelity rim and tire set for 1:8 scale RC models, inspired by popular "Monster Truck" designs found on AliExpress. It was meticulously modeled to offer an aggressive and functional look, ideal for those who want to customize their vehicle with high-performance 3D printed parts

🛠️ Technical Specifications

• Outer Diameter: 125 mm
• Width: 70 mm
• Hex: 17 mm
• Compatibility: Perfect for ARRMA Kraton, Outcast, Traxxas E-Revo, HPI Savage, and other 1:8 Truggy/Monster Trucks

🖨️ Printing Notes (Recommended)

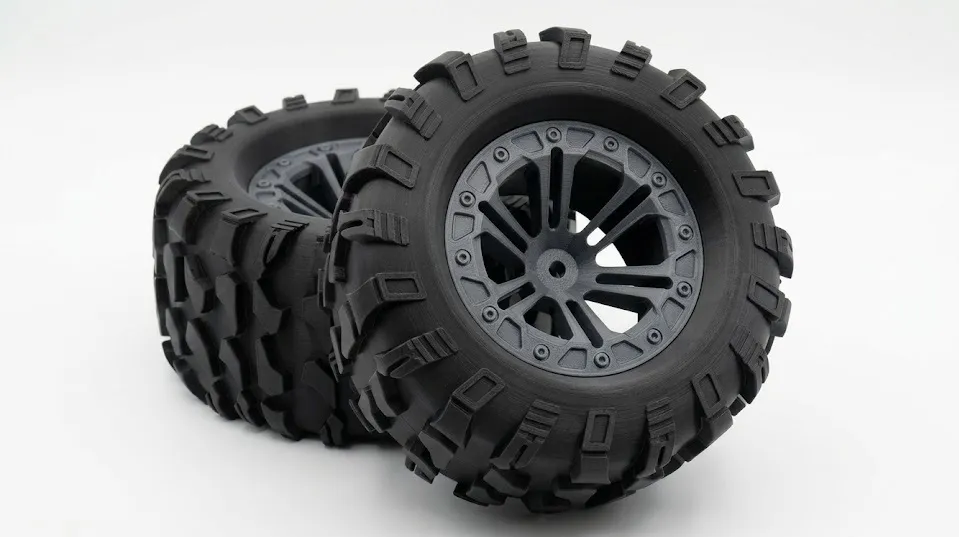

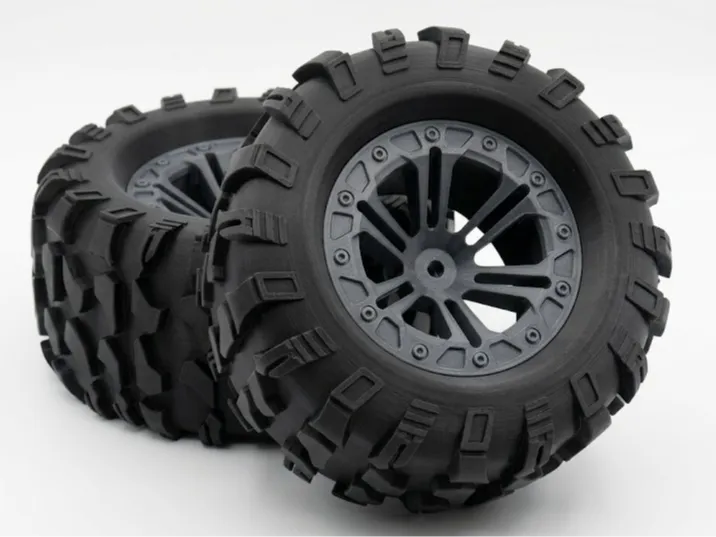

To achieve the premium look of the photos (almost no layer lines), I recommend the following settings:

• Rims: * Material: PETG HF (Dark Gray) for higher impact and heat resistance
  • Walls: Minimum of 4 to 6 perimeters to ensure the integrity of the 17mm hex mount
  • Infill: 40% (Gyroid) for structural robustness

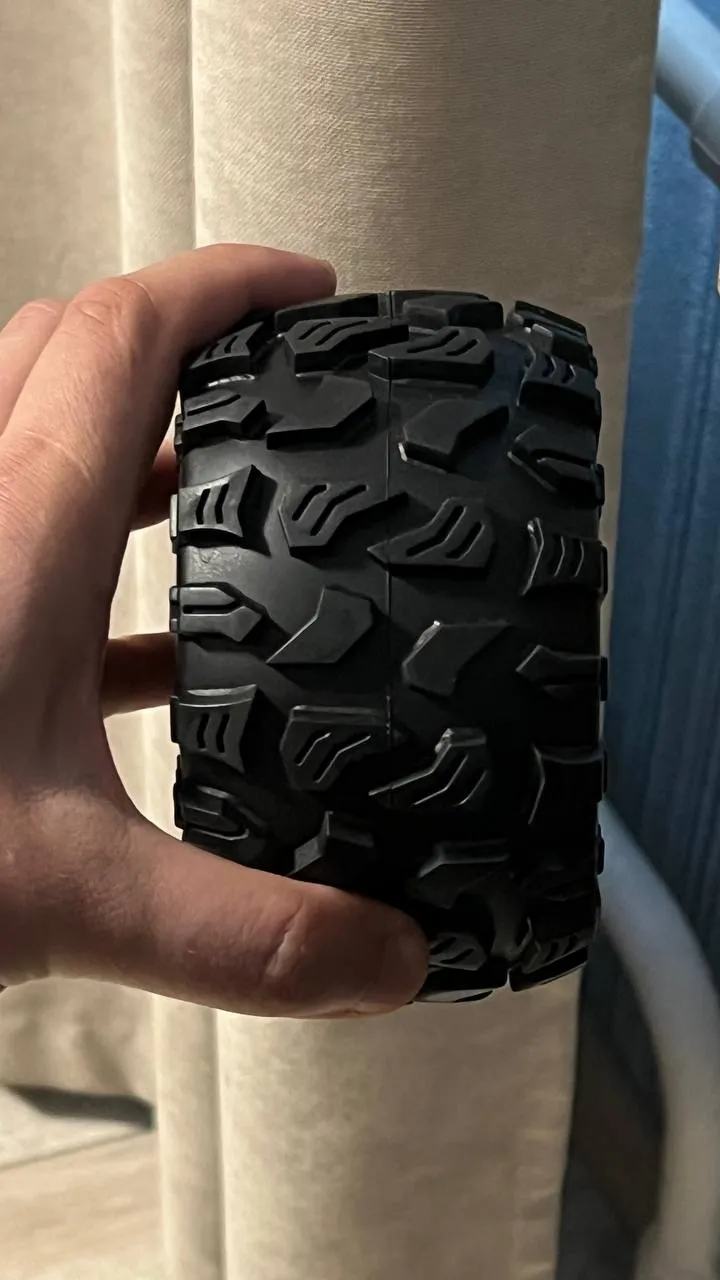

• Tires:
  • Material: TPU 95A (Black)
  • Setting: Adjust infill (10-15%) if you want a softer tire for climbing or increase for greater stability at speed
  • Layer: 0.16mm or 0.20mm for sharp details on off-road treads

📦 Model Content

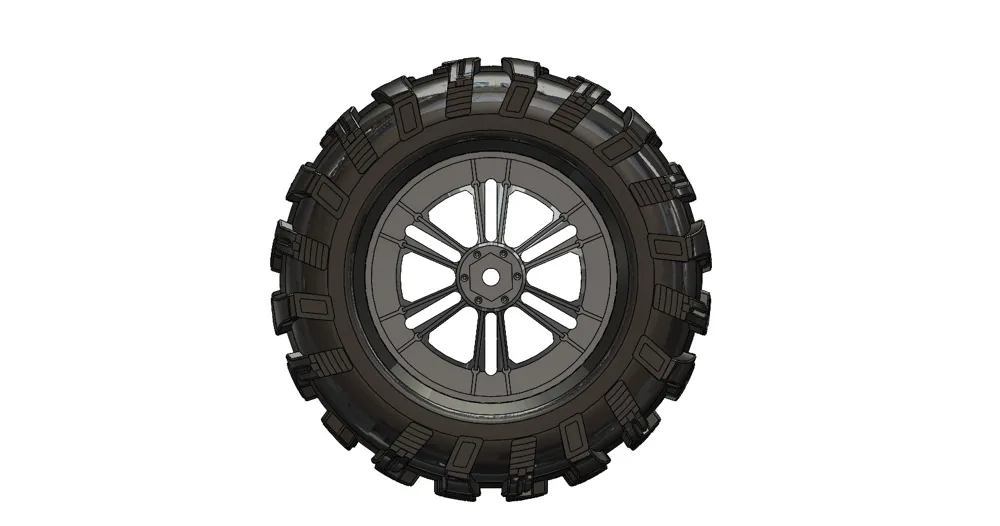

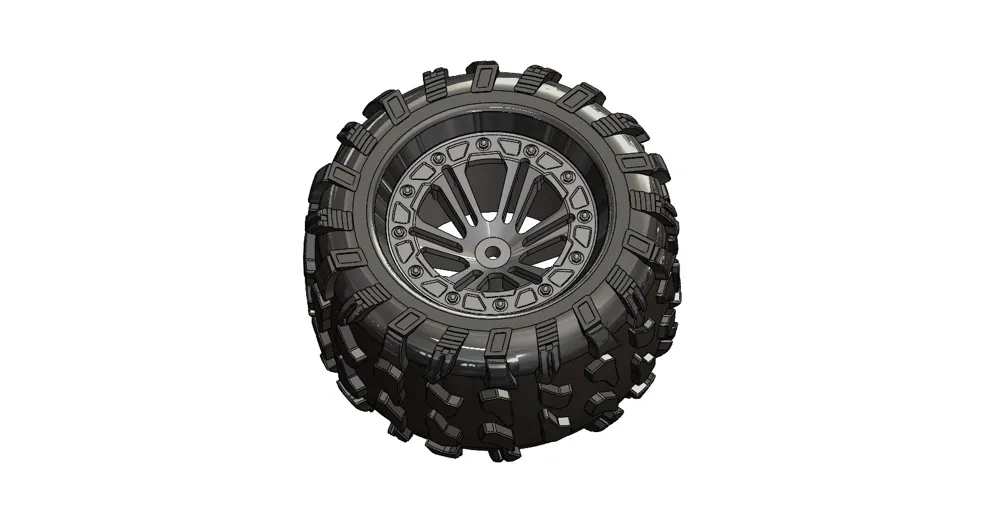

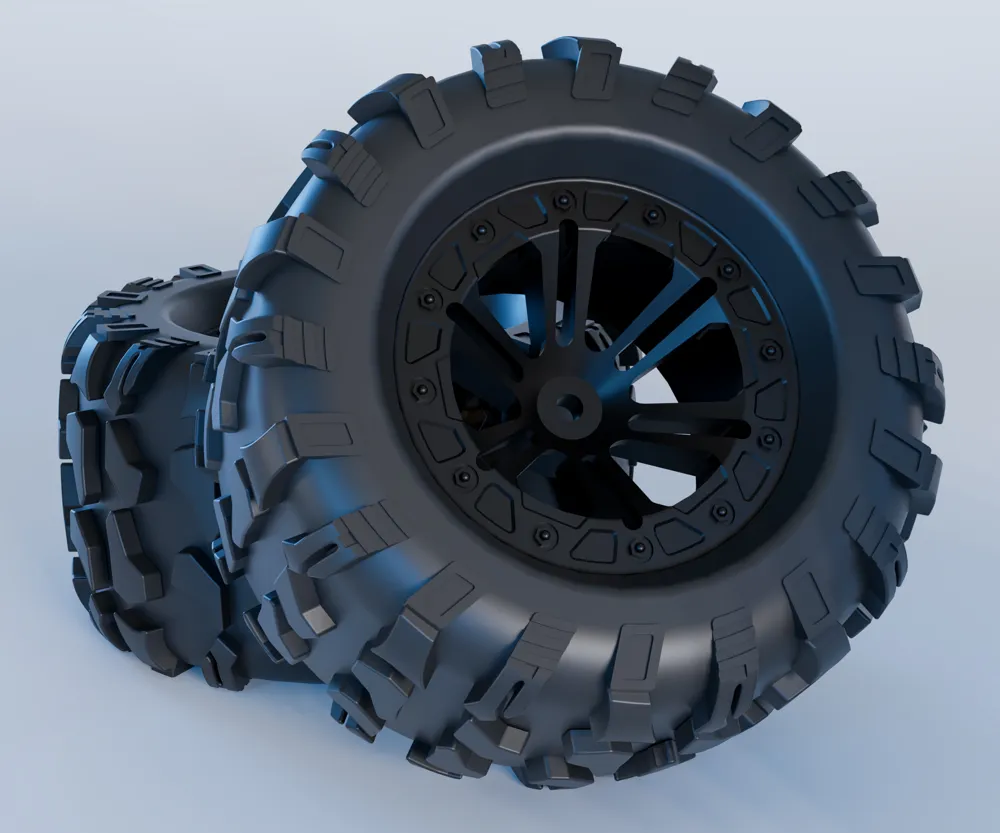

• Beadlock-style Design: Technical look with multiple spokes and simulated screw details
• Aggressive Traction: Tread designed for maximum grip on dirt, grass, and mud

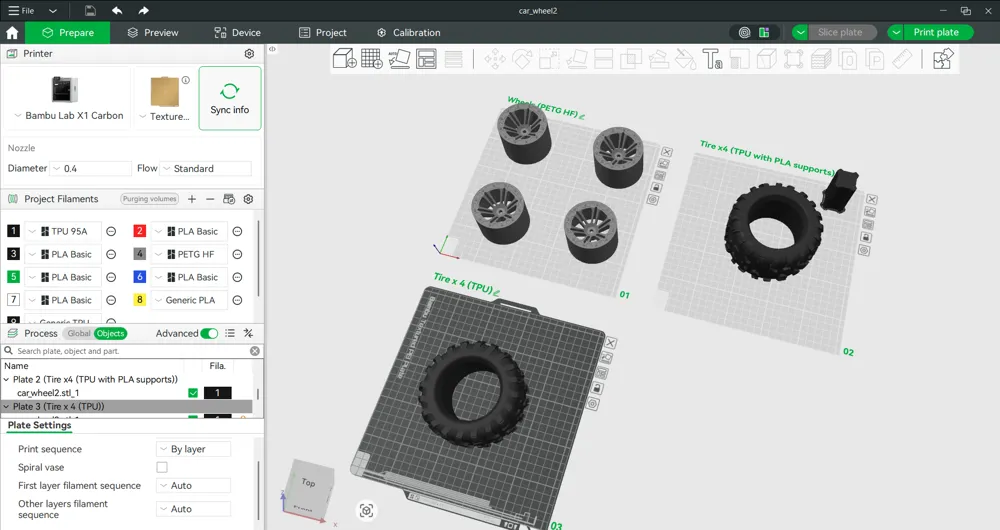

• Ready Files: Includes the complete assembly (Rim + Tire) making it easy to position on the print bed

Assembly Tip: As these parts are 3D Printed, always check the tolerance of your 17mm hex. If it's too tight, a light sanding on the rim will perfectly resolve it

Based on the model: AliExpress Link

If you liked the model, don't forget to upload a "Make" and rate it! Have fun tearing up the terrain! 💨
