闪电麦皮

M203-2.0安装指南.pdf

cover







6层壁，15%填充，也可以根据自己的喜欢去调整

6 walls, 15% infill, you can also adjust it according to your preference

0.2mm layer, 6 walls, 15% infill



这个链接只有原版本的圆环形护木，它是可以跟上面的模型护木进行替换，当然，需要多打印一个枪管模型，因为上面的镂空护木需要热熔螺母把枪管和护木镶嵌在一起，而这个原型圆环护木不需要，它只需要两个M3*5杯头内六角螺丝进行固定就行，不需要热熔螺母！！！

This link only provides the original circular handguard. It can be interchanged with the model handguard above. Of course, you will need to print an additional gun barrel model, because the hollow handguard above requires heat-set inserts to embed the gun barrel and handguard together, whereas this original circular handguard does not. It only needs two M3*5 cap head hex screws for fastening, no heat-set inserts needed!!!

0.2mm layer, 2 walls, 15% infill

You may create derivative works based on this object, provided that all such derivative works are published exclusively on the MakerWorld platform and include proper attribution to the original creator. You may not share, upload, host, distribute, or publish this object—or any derivative work of this object—on any other digital platform, marketplace, or distribution channel. Commercial use of this object and any derivative works is strictly prohibited. This includes, but is not limited to, selling, renting, sublicensing, or using the object in any context in which you receive monetary compensation or other financial benefits.

This user content is licensed under the MakerWorld Exclusive License.

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>如果您喜欢我的作品，并希望支持我未来分享更多优秀的模型，请考虑助力支持我， 您的支持是我拥有足够耗材和物资，支撑我对模型的不断测试，以确保模型高质量且易于组装的关键，每一份图纸都是经过大量的废稿，不断改进，不断打印，最终才完成的。谢谢 :-) </boostcontent></boostme>这是改进后的M203，撇弃了两片壳，用一体壳代替，还更换了新的护木，也可以替换旧的经典款式护木，它们都是通用的，依然是采用皮筋动力。还原把玩，这里仅有主体发射器的打印文件，如果喜欢把手和需要子弹的打印文件可以去看我前面发布的产品，都是一样的，五金和安装教程我都放在PDF文档上了，感兴趣可以去看看，谢谢！！安装指南里面有五金表，需要的五金不多，如果需要子弹模型，和握把文件，可以去我主页的那个CZ GL链接，里面有子弹和握把的文件，因为它们是通用的，所以我就不重复上传了，谢谢

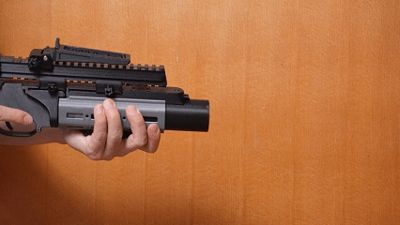

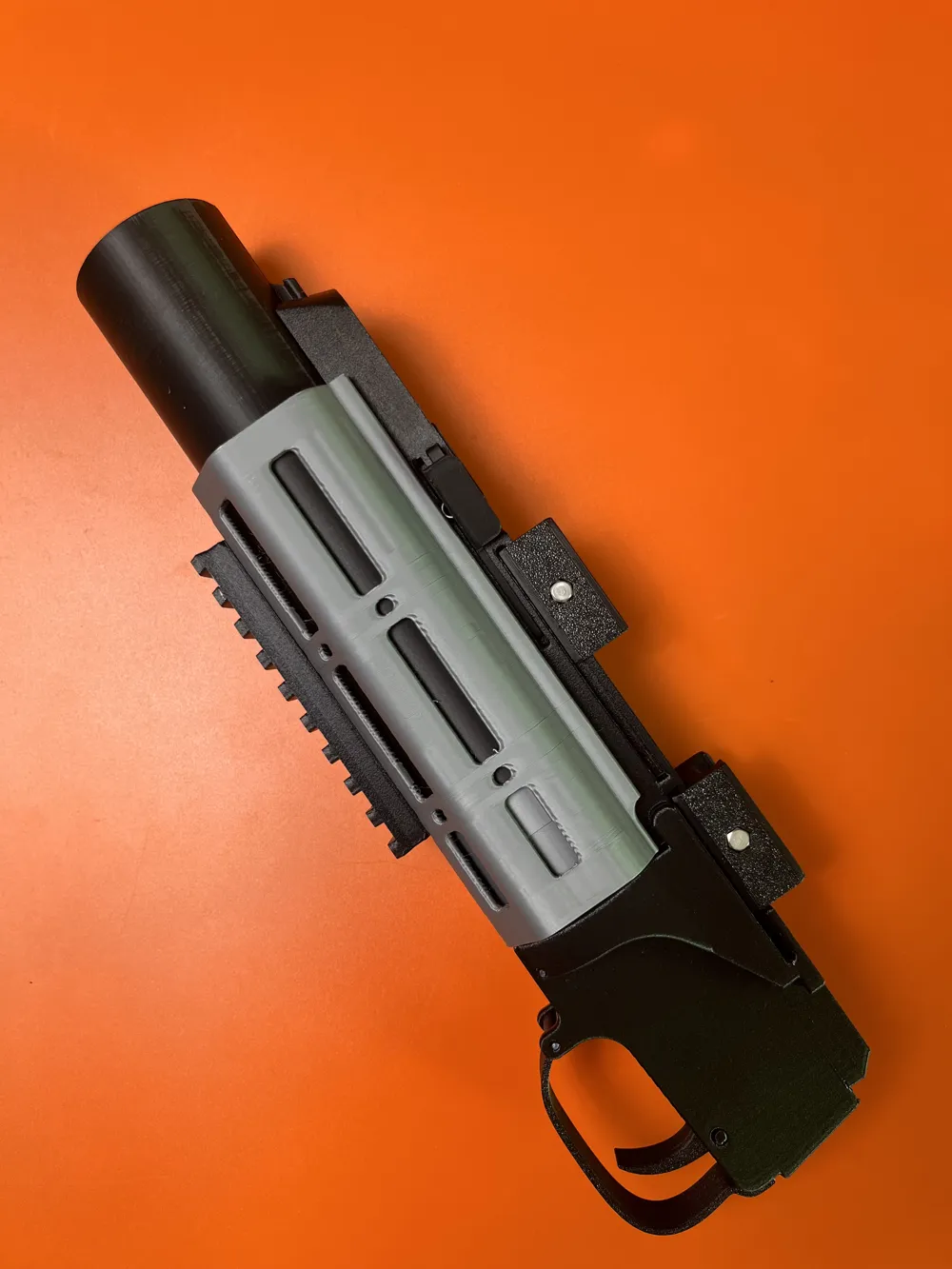

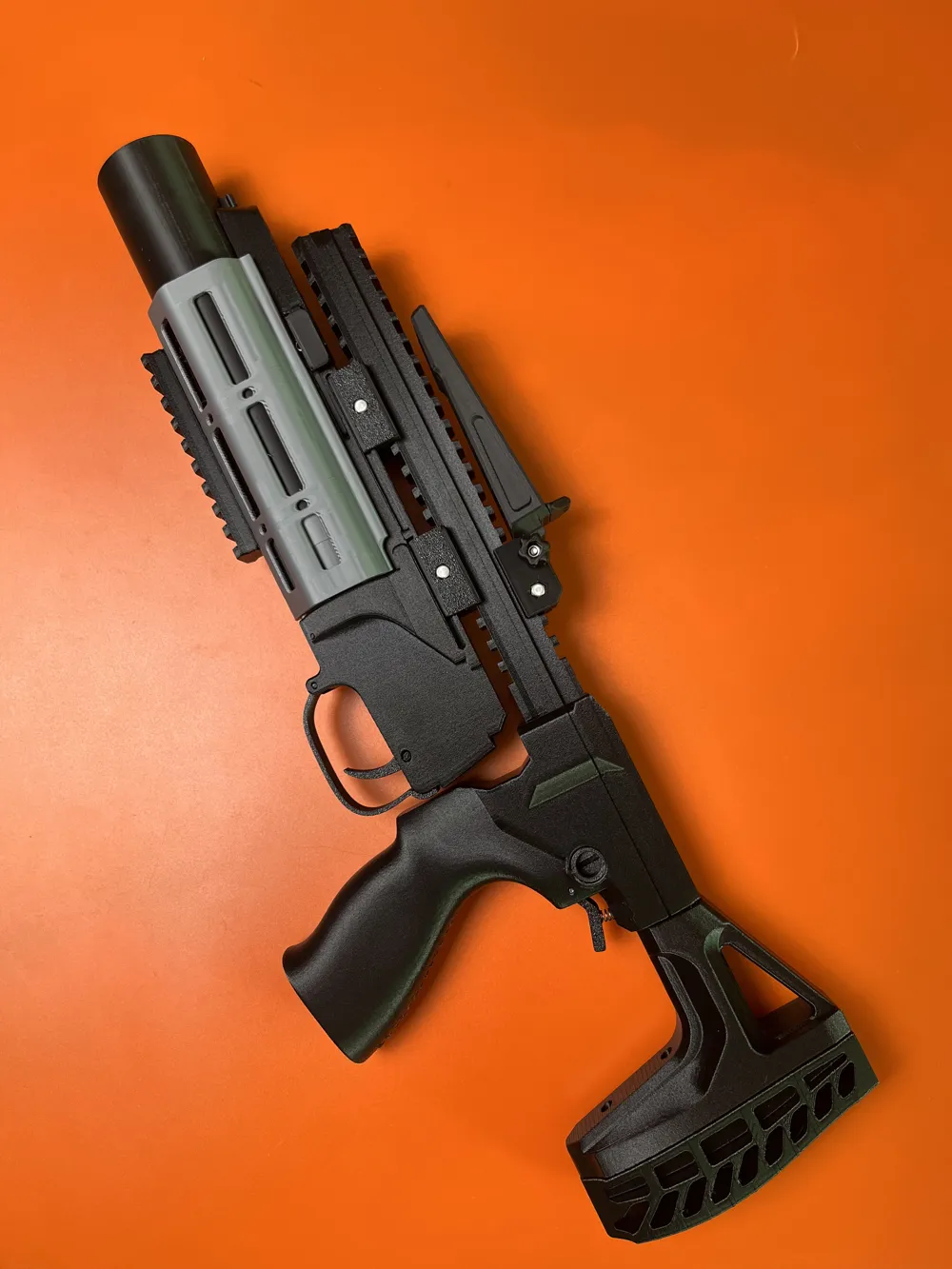

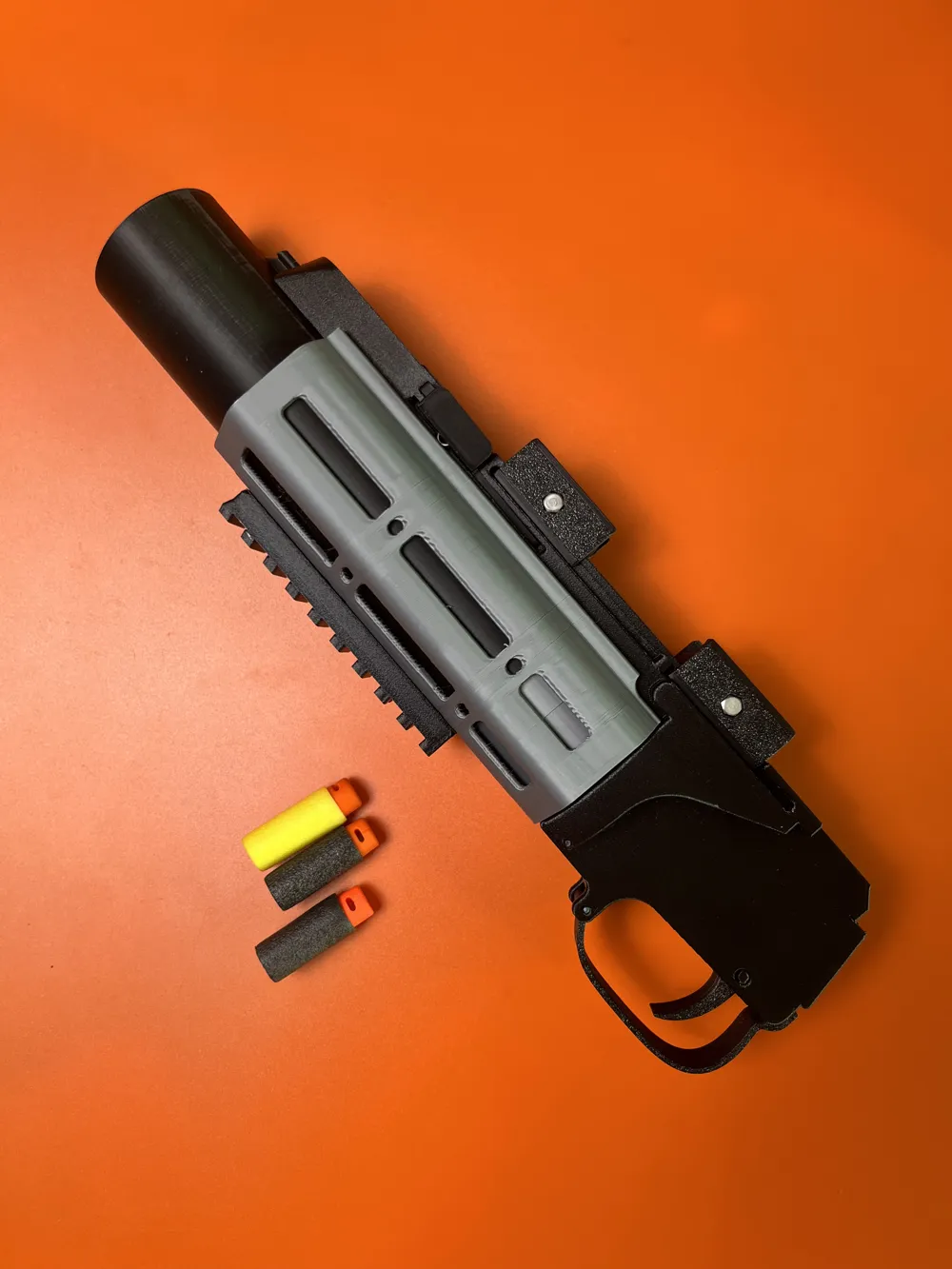

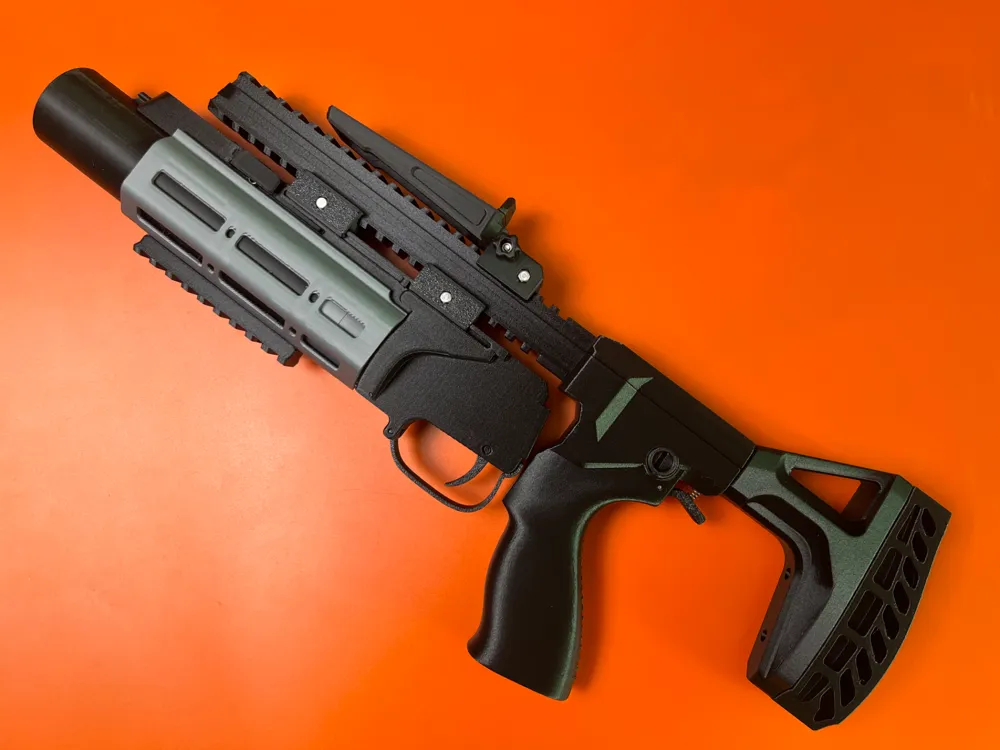

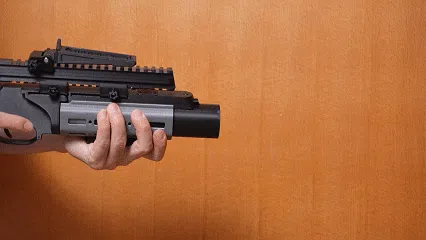

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>If you like my work and want to support me in sharing more excellent models in the future, please consider boosting me Your support is key to me having enough filament and materials to continuously test my models, ensuring they are high quality and easy to assemble Every design goes through numerous drafts, continuous improvements, and repeated printings before it is finalized Thank you :-)</boostcontent></boostme>This is the improved M203, abandoning the two-piece shell and replacing it with a single-piece shell It also features a new handguard, which can also be replaced with the old classic style handguard; they are all universal and still use rubber band power For recreational play, only the print files for the main launcher are included here If you want the handle and bullet print files, you can check my previously published products, they are the same The hardware and installation tutorial are included in the PDF document; feel free to check it out if you're interested, thank you The installation guide includes a hardware list, and not much hardware is needed If you need the bullet model and grip files, you can go to the CZ GL link on my homepage; it contains the bullet and grip files, and since they are universal, I will not re-upload them, thank you
