🧠 What is this project?

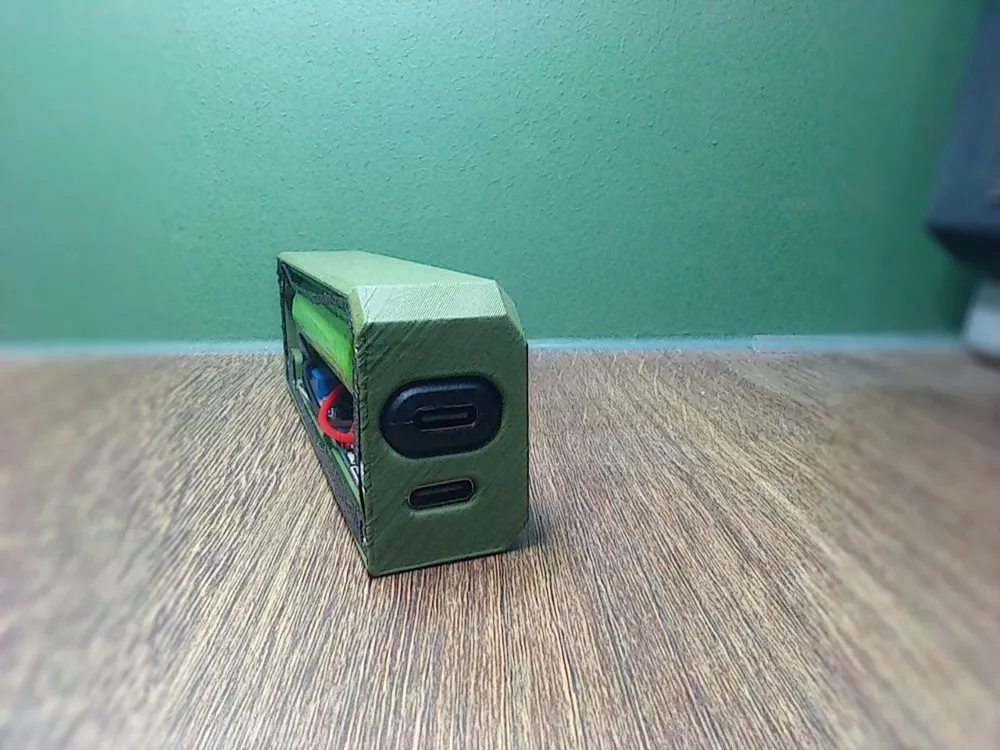

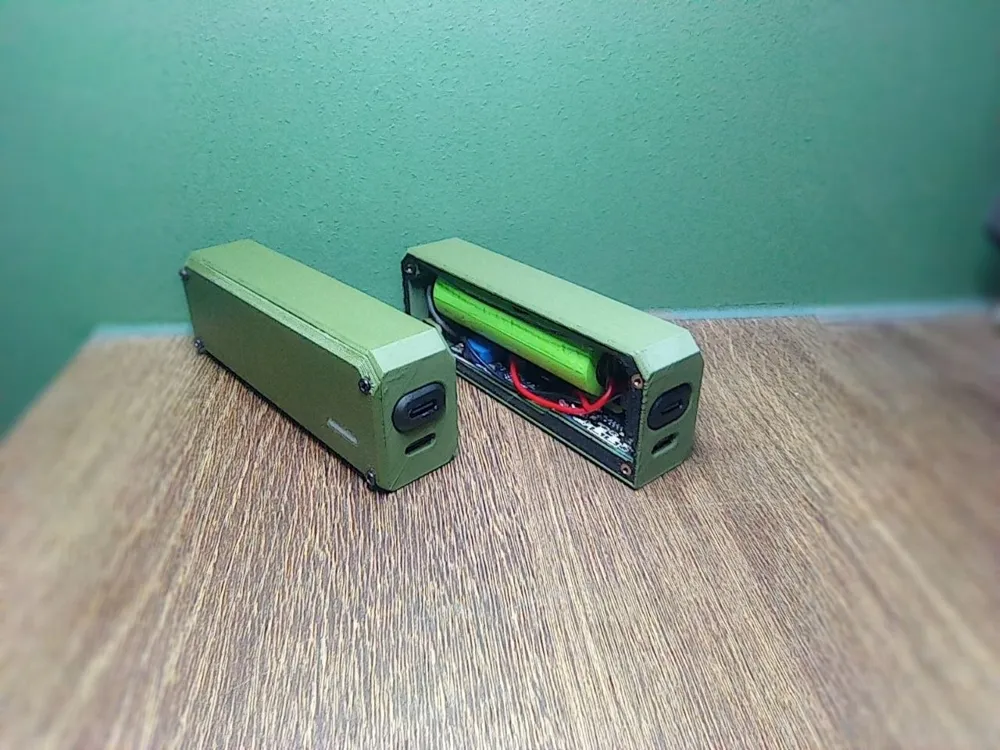

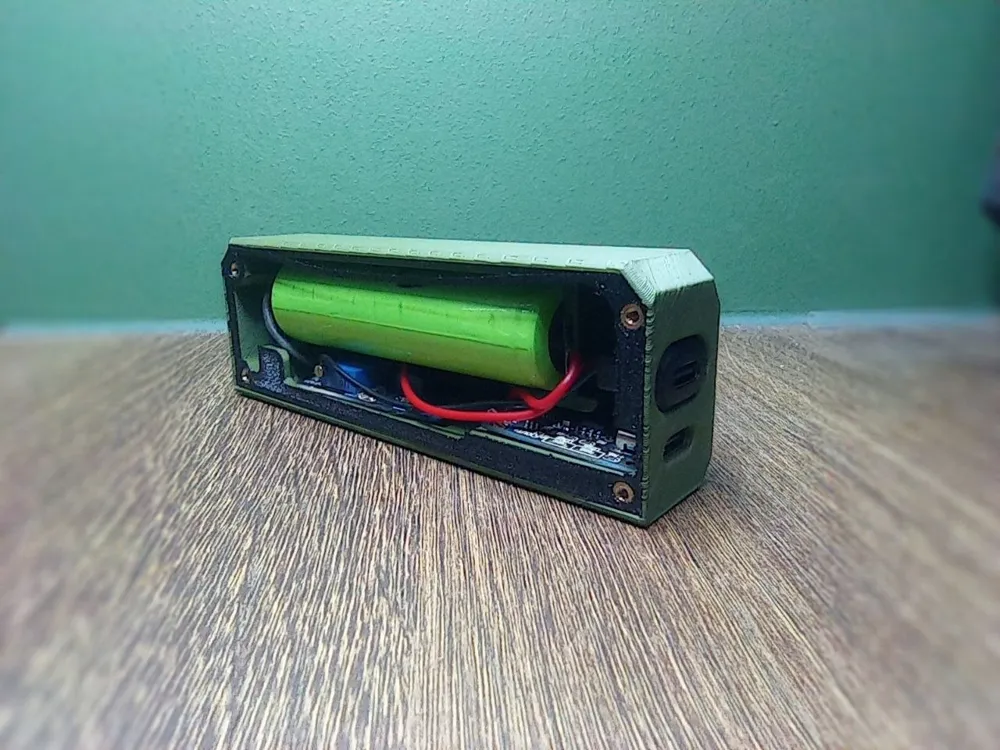

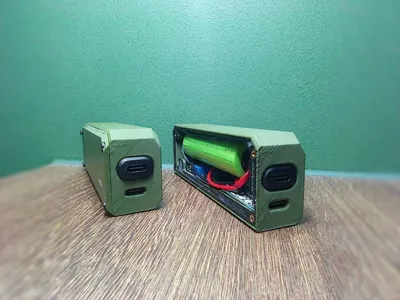

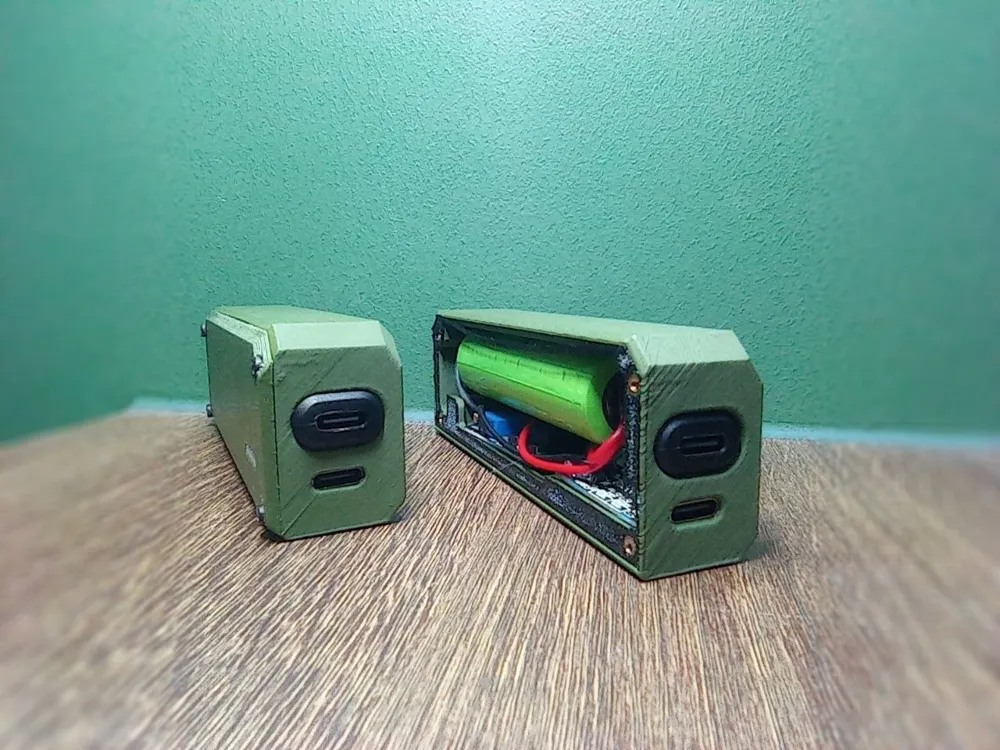

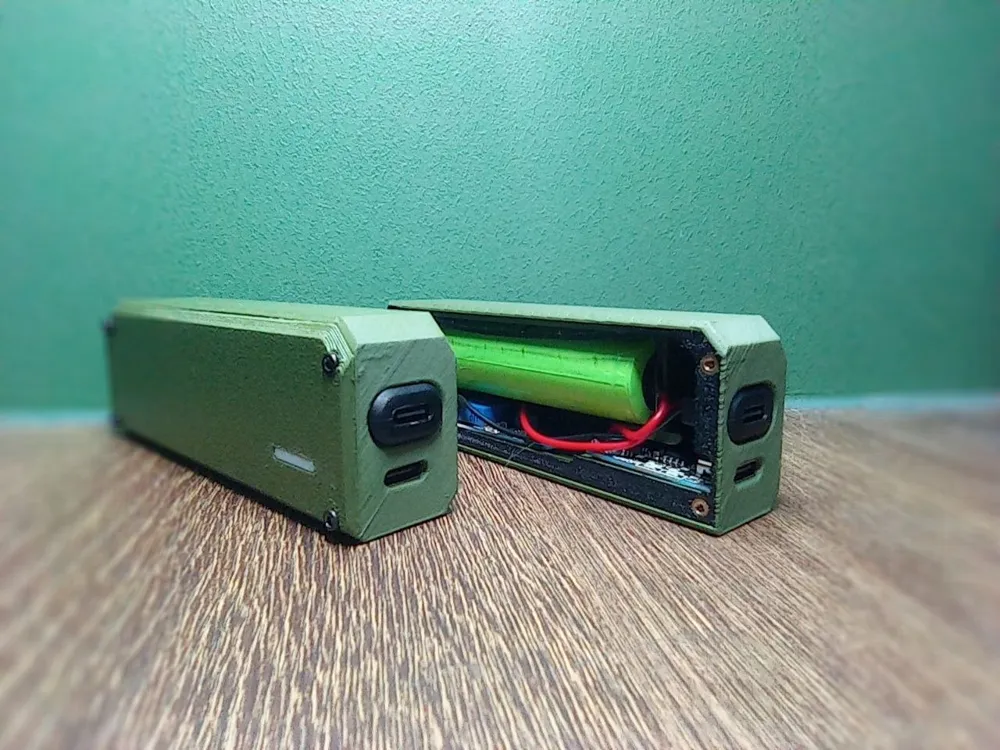

This is a compact portable powerbank designed to power a soldering iron or small devices like a phone. It uses a 18650 Li-ion battery, a TP4056 charging module, and an MT3608 boost converter to provide adjustable output voltage.

Perfect for beginners and makers who want to build a simple and useful electronics project.

---

⚙️ Assembly instructions:

1️⃣ Connect battery to TP4056
Battery + → B+
Battery – → B-

2️⃣ Connect TP4056 to MT3608
OUT+ → VIN+
OUT– → VIN–

3️⃣ Power and adjust voltage
- Connect USB-C cable to TP4056
- Measure output voltage on MT3608
- Adjust using potentiometer:
• 9V → soldering iron
• 5V → phone

⚠️ Set voltage BEFORE connecting device!

4️⃣ Connect output USB-C
Red → OUT+
Black → OUT–

5️⃣ Final assembly
- Insert components into the case
- Install M2 threaded inserts (for plastics)
- Glue gasket/seal if needed
- Close enclosure

---

⚠️ Safety notes:

- Double check polarity
- Do not short circuit the battery
- Use protected 18650 cell
- Do not exceed safe voltage
