Ultra-Minimalist Dog Poop Bag Dispenser EDC

IP Report

Print Profile(1)

All
A1 mini
X1 Carbon
H2D
H2C
A1
P1S
H2D Pro
P1P
X1E
H2S
P2S
X1
X2D
A2L

0.6mm nozzle, 0.3mm layer, 2 walls, 100% infill
0.6mm nozzle, 0.3mm layer, 2 walls, 100% infill
Designer
22 min
1 plate
5.0(1)

Open in Bambu Studio
Boost
2
8
3
2
13
8
Released

Description

I designed this because I was tired of those giant, clunky plastic bone-shaped holders bouncing around on the leash every time I walked my dog, Kokomo. I wanted something that was literally as small as physically possible, but still actually worked.

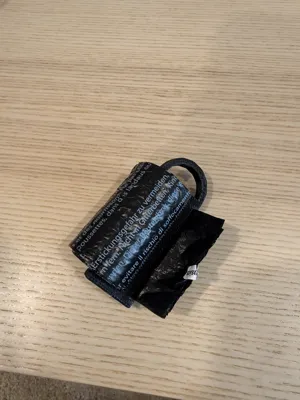

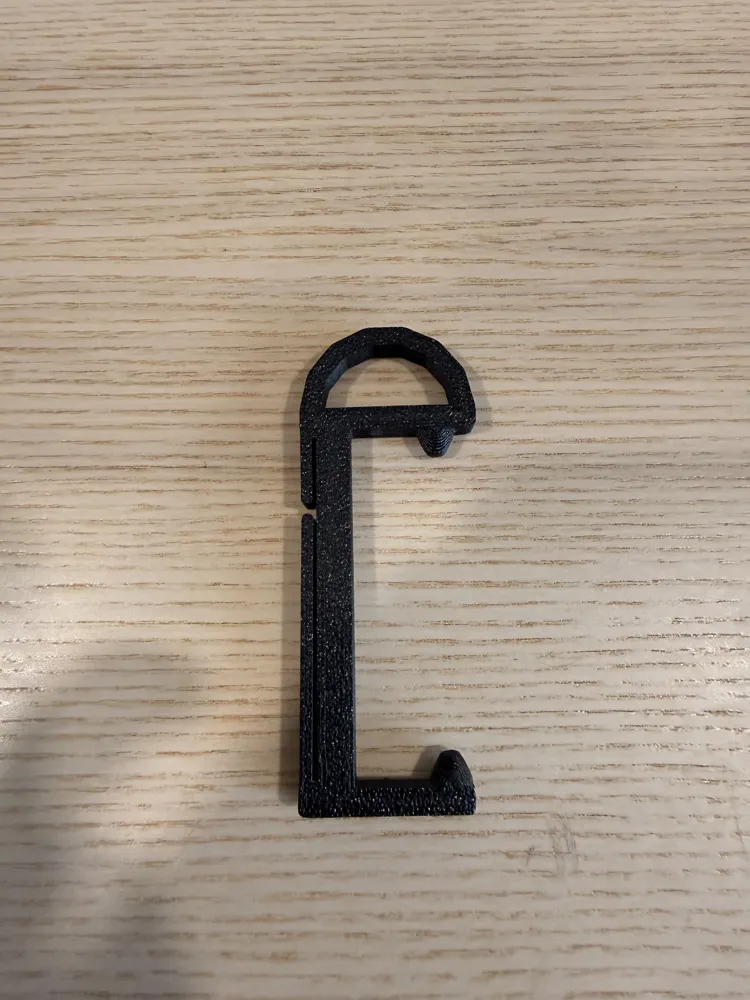

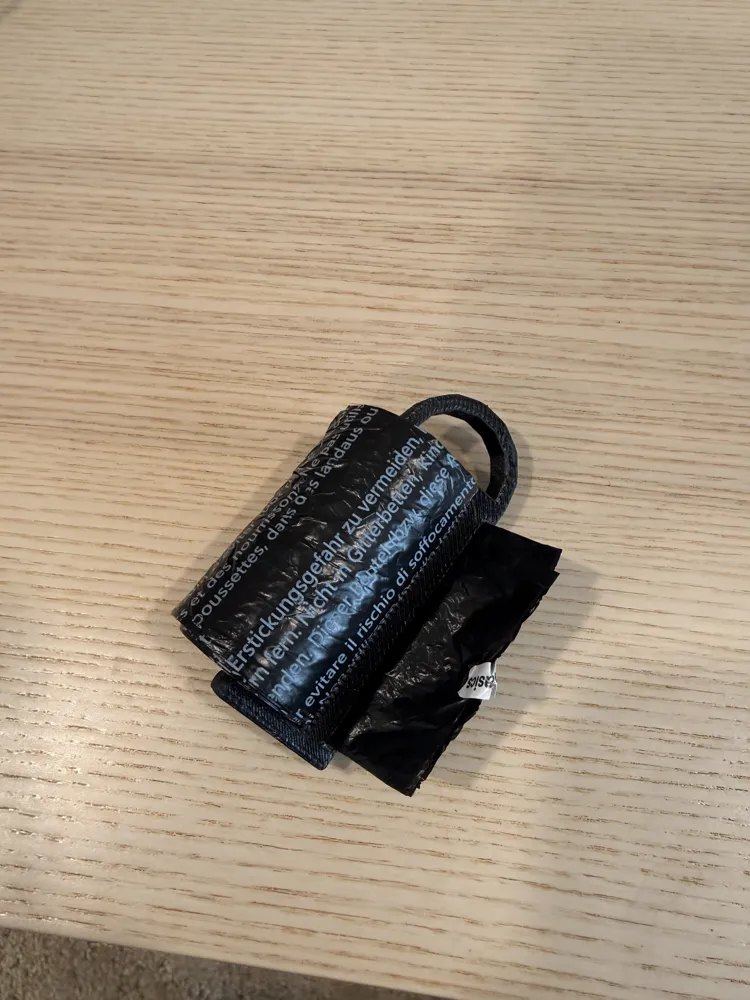

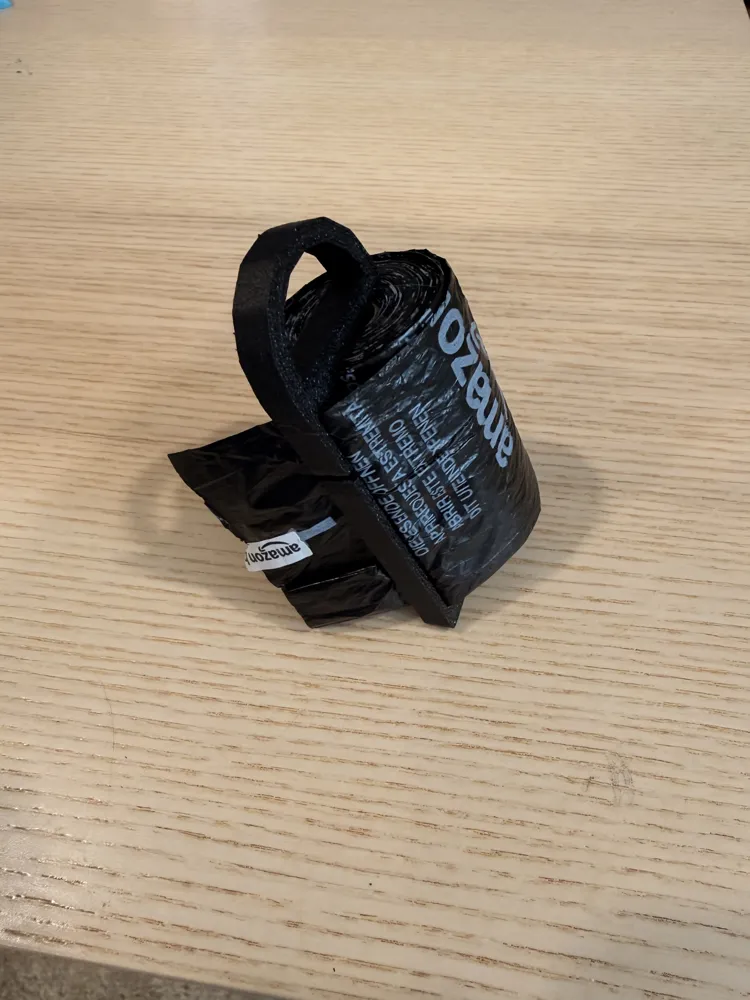

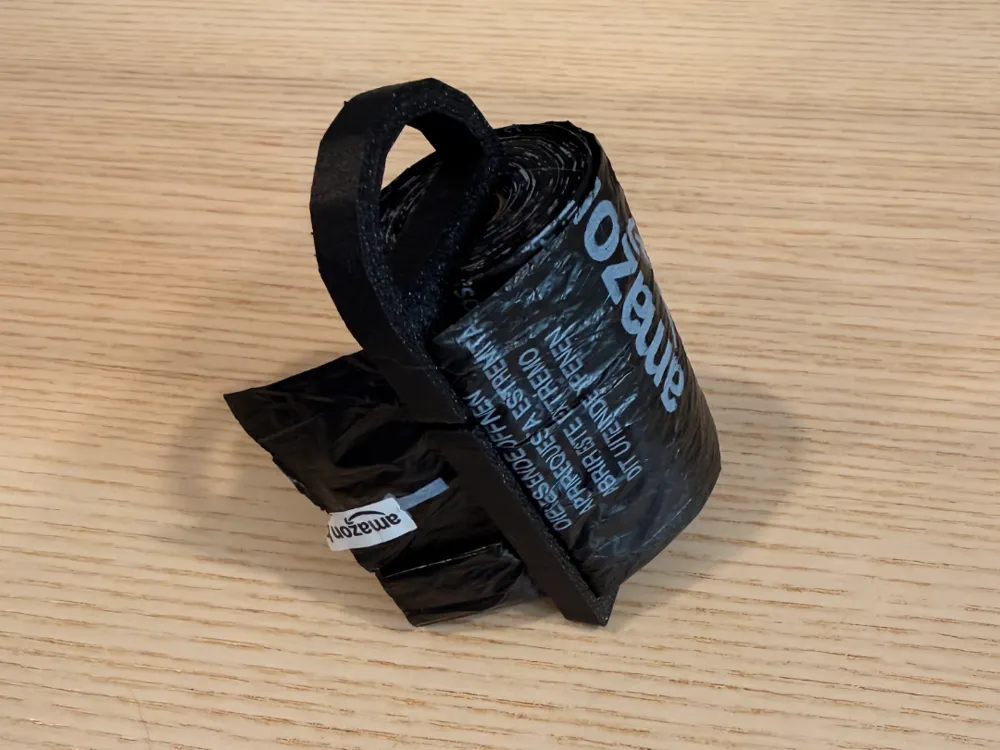

It just hooks onto your leash D-ring or a keychain. To load it, you just snap a standard roll of bags right in—no screwing end caps on and off or threading pieces together. I also added a little feed guide for the bags to pass through. It gives it just enough friction to hold the bags in place so the roll doesn't unravel into a huge mess while you're walking.

A quick heads up on printing: I really don't recommend using standard PLA for this. Because you have to snap the roll in, and it's going to be outside taking some abuse on a leash, PLA will probably warp in the sun or snap eventually. You need a material with a bit more strength and flex.

I printed mine in PETG-CF and it's rock solid. Regular PETG, ABS, ASA, or PC should work great too. The print profile I included is the exact one I used for my PETG-CF print, so the tolerances are already dialed in.

Let me know if you print one, and feel free to post a make!
