Action cam mount for DJI Air 3 - Air 3S
Print Profile(1)
Description

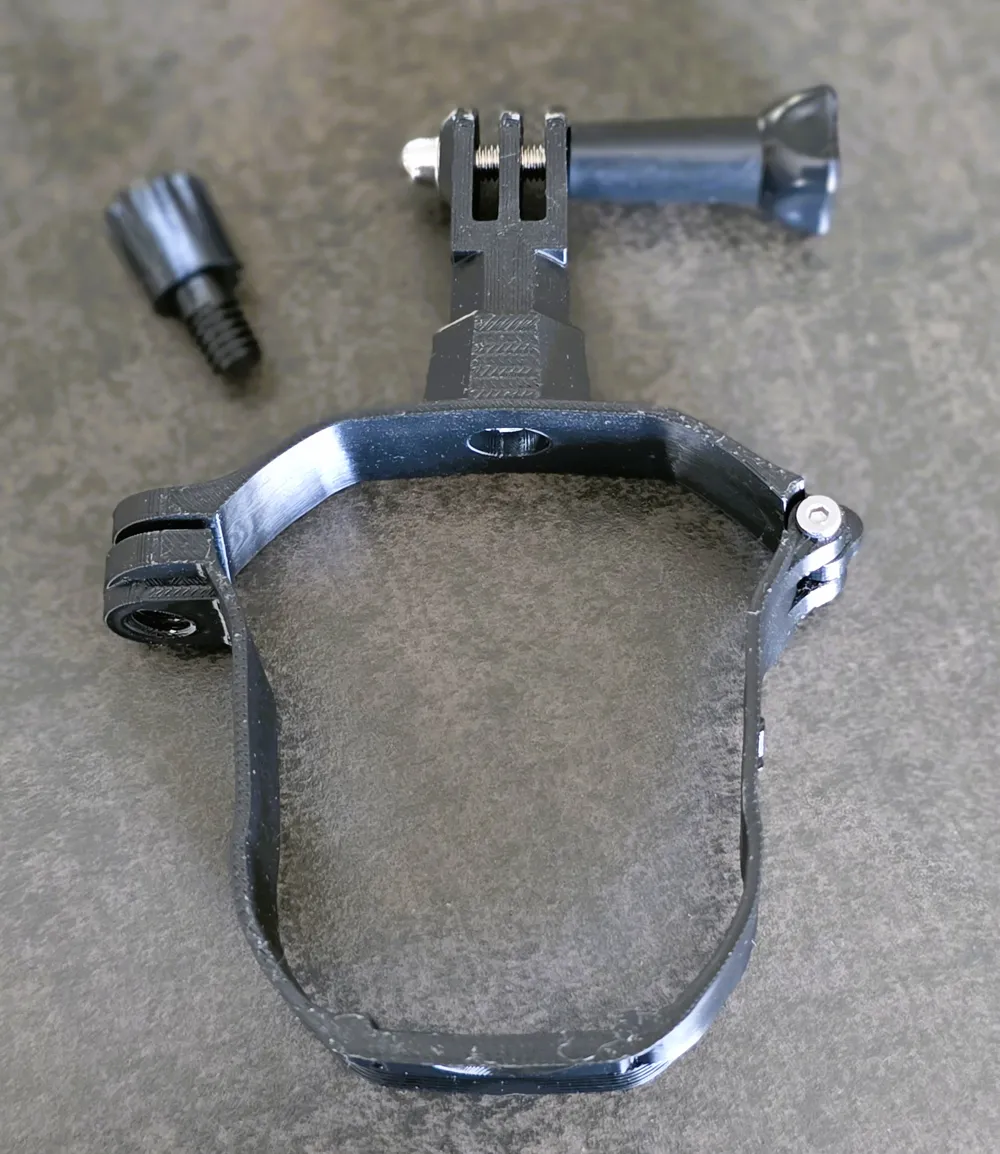

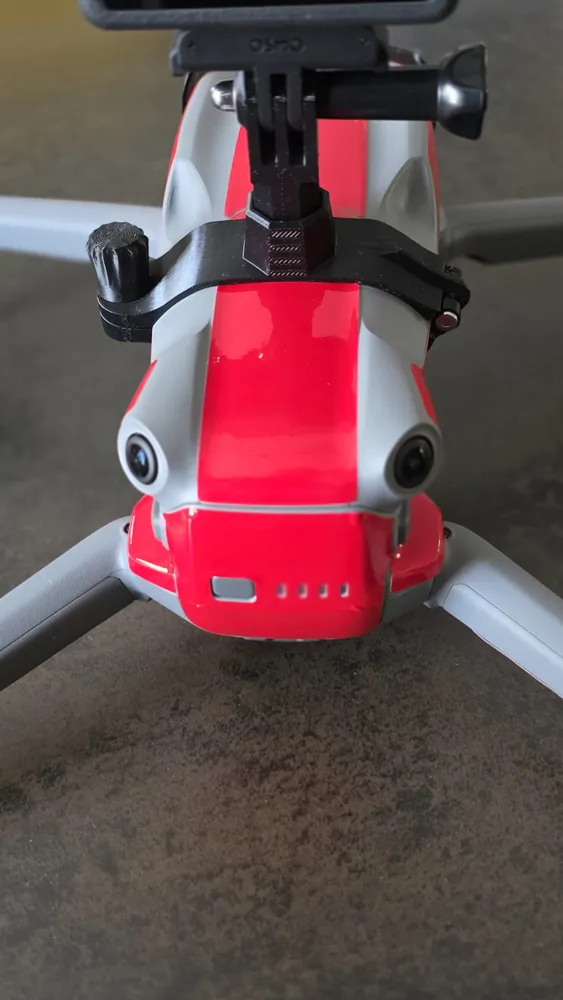

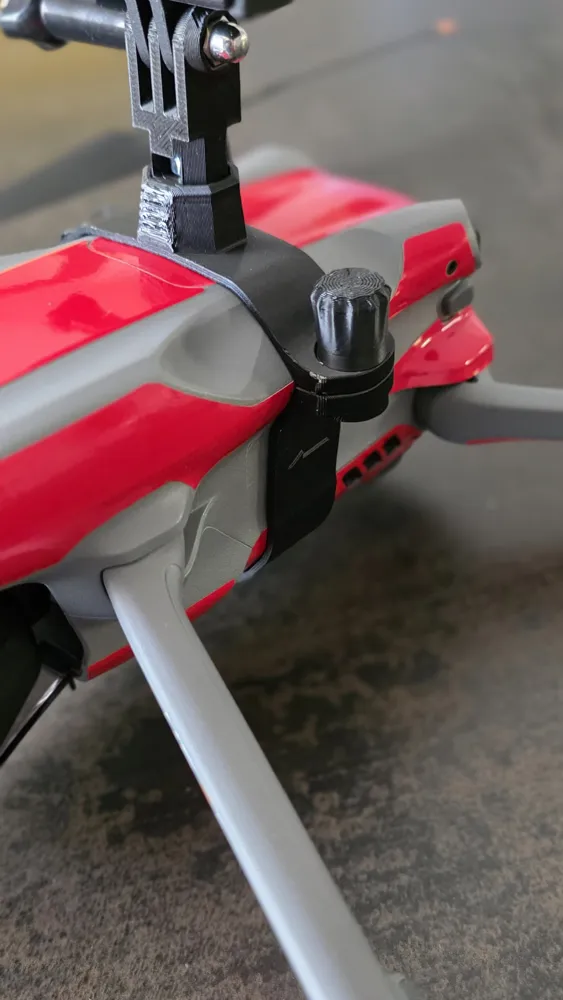

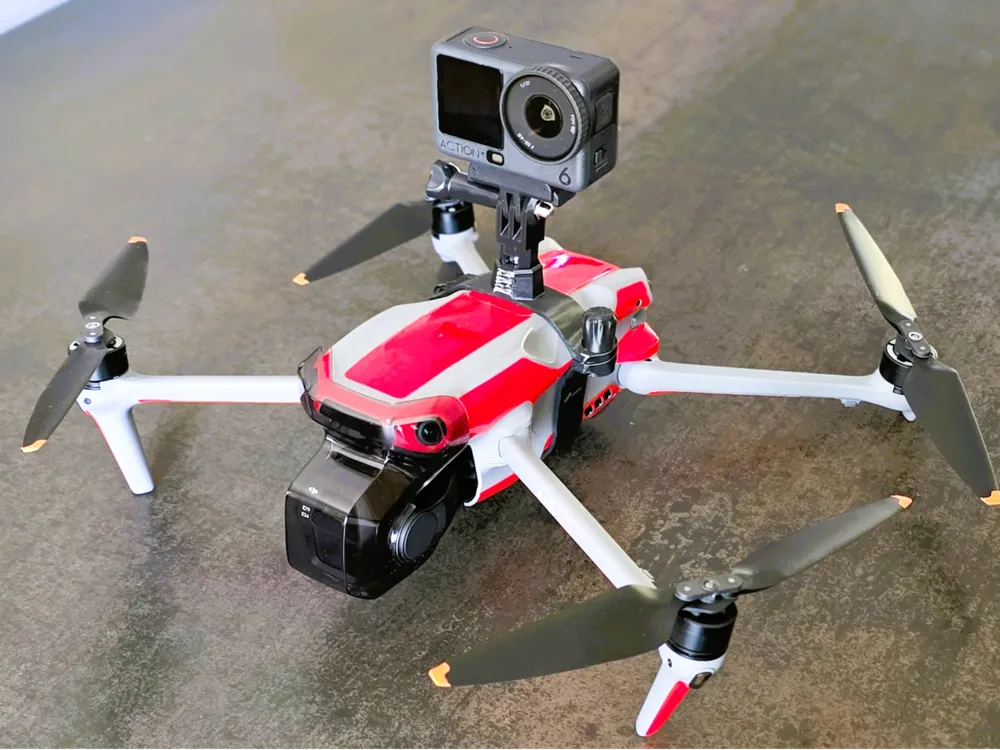

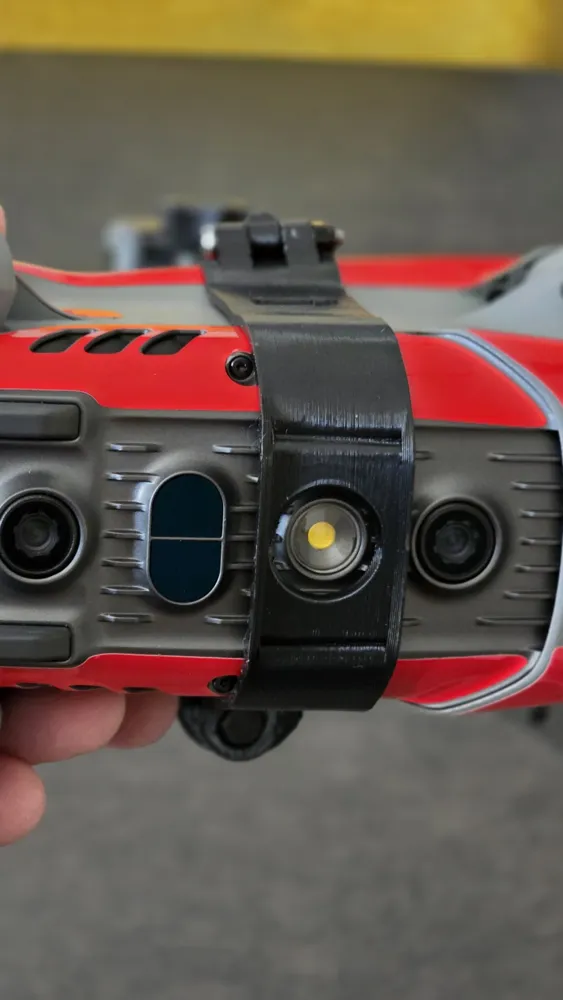

This highly durable mount for the DJI Air 3 and Air 3S allows you to attach your action camera to the back of your drone in 8 different directions.
It enables you to capture shots from the rear, front, sides and even from a three-quarter angle.
It has been designed to fit the drone perfectly, weigh just 28 g and keep your camera securely in place.
Its hinge and screw system makes mounting this harness very quick and easy.
Boost Me (for free)
Thank you for encouraging me to continue creating new cool and free designs by giving me a boost :)
This model should be printed in PETG or, alternatively, using a fairly rigid TPU.

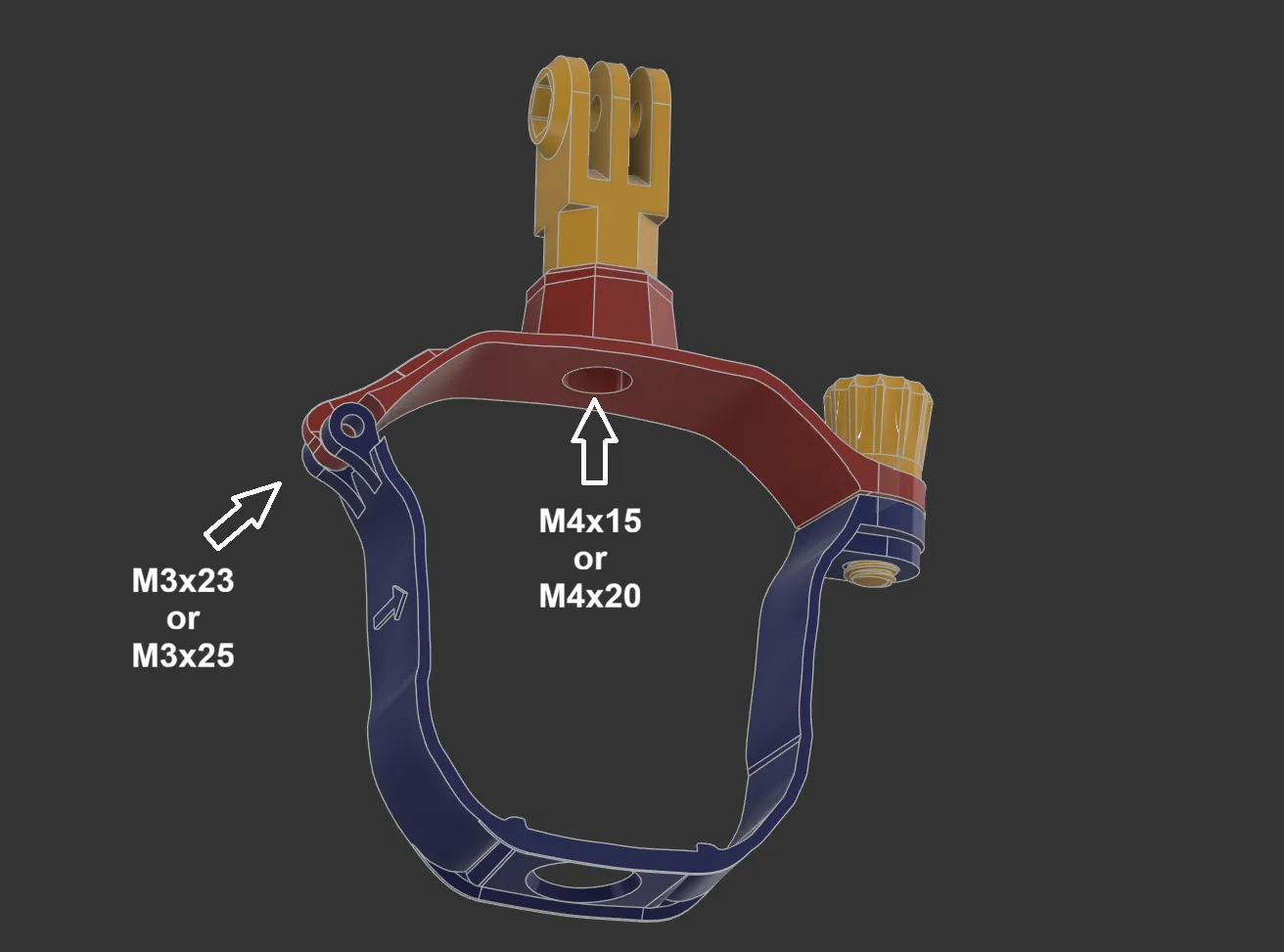

You will only need 2 bolts with lock nuts:
- M3 x 23 or M3 x 25 for the hinge ()
- M4 x 15 or M4 x 20 (max) for the camera mount
You can find this here:
M3 screw : https://eu.store.bambulab.com/fr/products/m3-socket-head-cap-machine-screws-shcs?id=47966811390300
M3 nuts : https://eu.store.bambulab.com/fr/products/self-locking-hex-nut?id=48722463719772
M4 screw : https://eu.store.bambulab.com/fr/products/m4-button-head-cap-machine-screws-bhcs?id=48676294492508
M4 bolts with lock nuts can be found in any DIY store
