Print Profile(1)
0.2mm layer, 4 walls, 15% infill
Designer
4.7 h
4 plates
Open in Bambu Studio
Boost
45
159
9
5
156
109
Released
Description

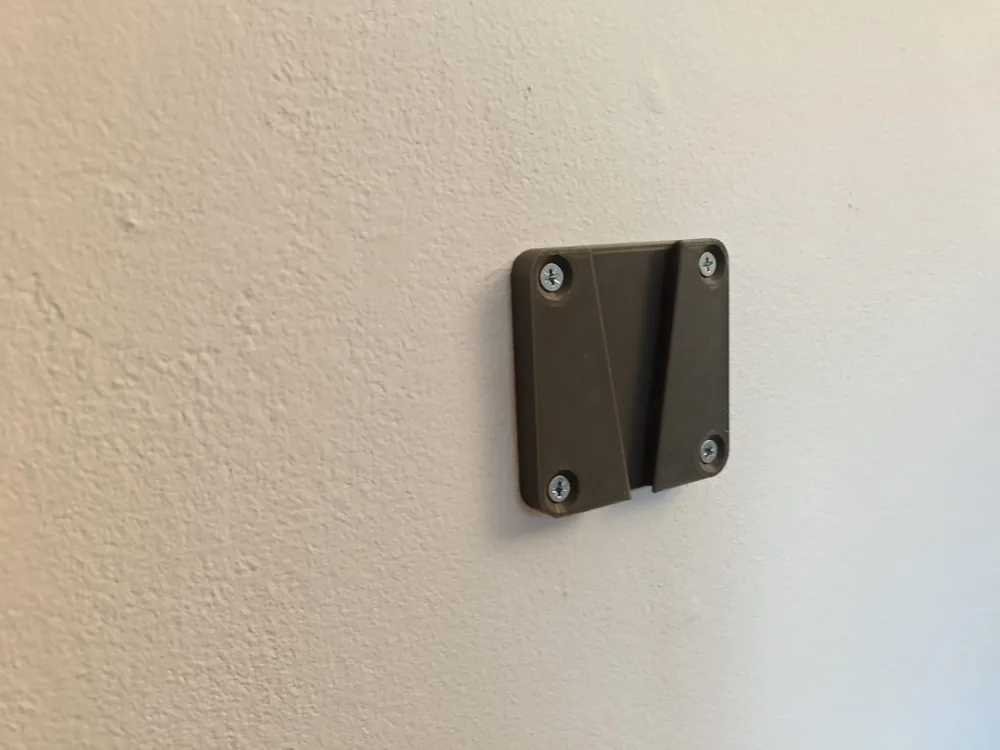

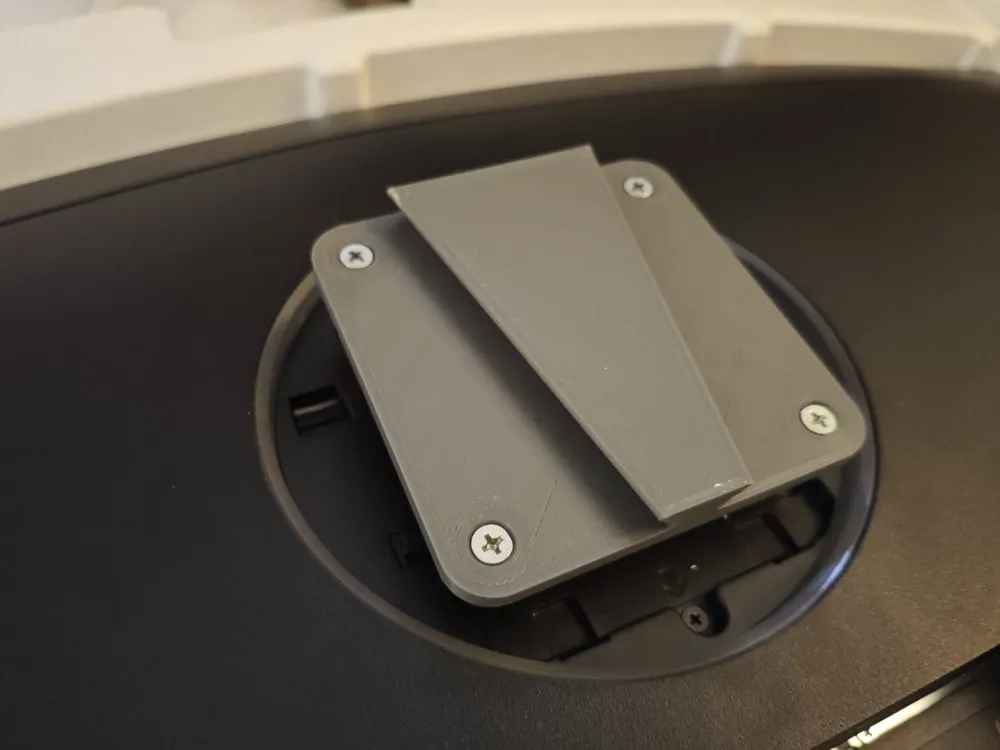

Simple low profile wall mount for 100x100mm and 75x75mm VESA monitors.

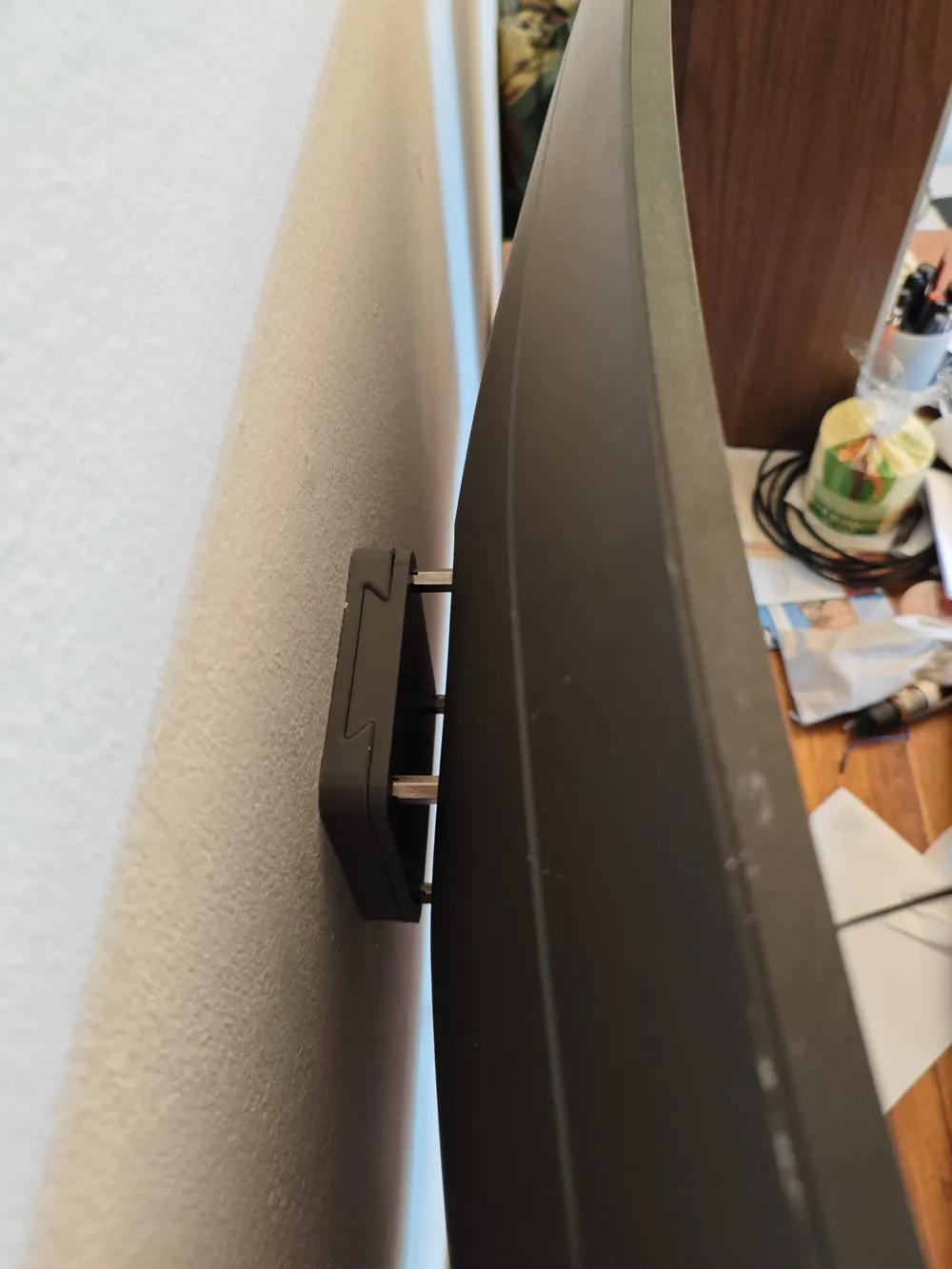

I used it to mount my 34" ultrawide and it worked like a charm. Because of the low profile, 4 screws and angled dovetail it's very easy to install and very strong. Use M4 countersunk screws for the monitor and 5mm screws for the wall plate. Make sure you use solid wall anchors suited for your type of wall.
Printed on my A1 mini
- 0.4mm nozzle
- 0.2mm layer height
- 4 walls
- 15% infill
- SUNLU PLA+
PETG will be an even better choice but it's more than strong enough with PLA.
If you found this model useful and want to support me in creating more interesting and useful projects, please consider buying me some fuel to keep going: https://buymeacoffee.com/jvgdesign
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
