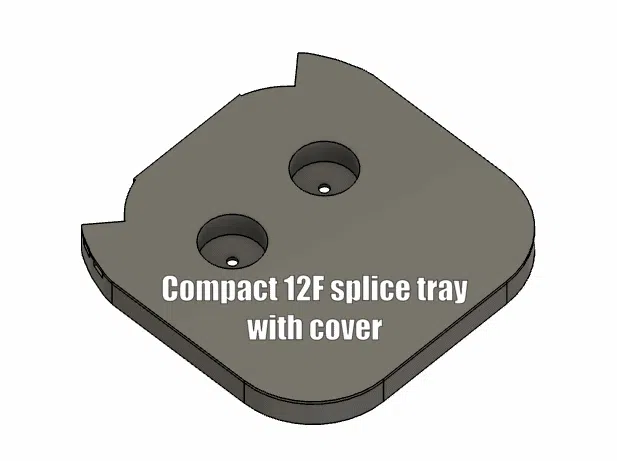

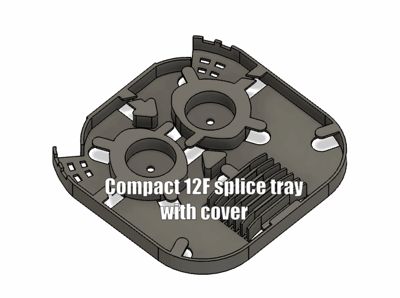

Fiber Optic 12F splice tray - compact
Print Profile(1)
Description

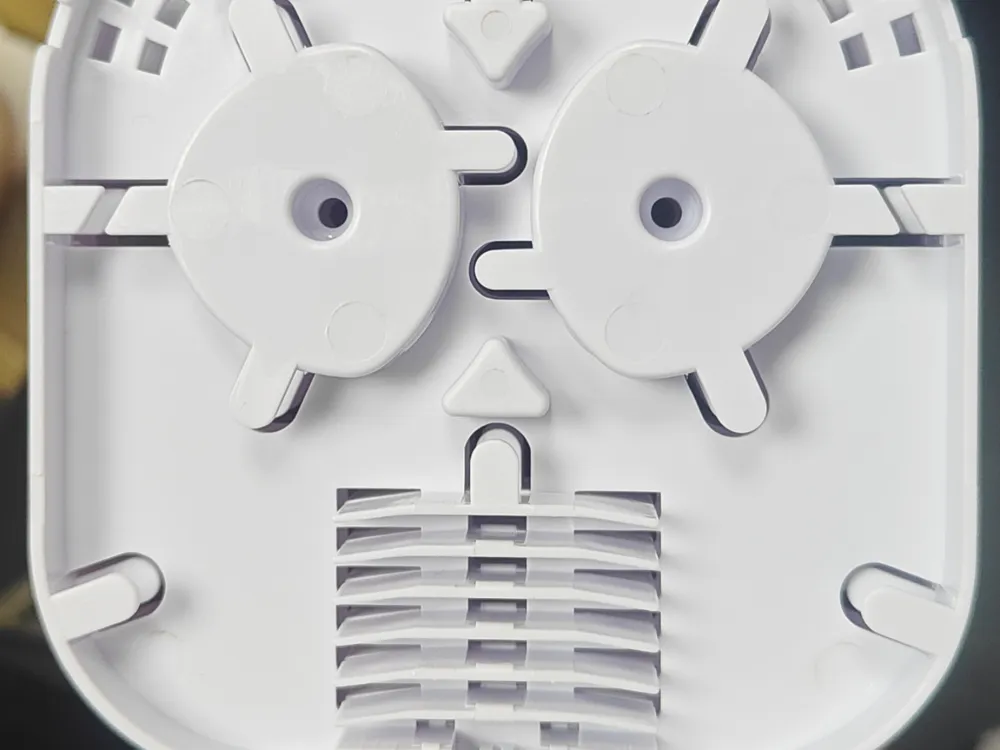

A small splice tray I found recently in an enclosure, I liked very much because of the very small size of it 9cm overall size side to side. I thought that it may be helpful for anyone that need to fit something in a very tight space.
Features
- Supports up to 12 fiber optic splices
- Quick print time ~1H
- Cover held by friction can be easily removed by fingers. [user requested]

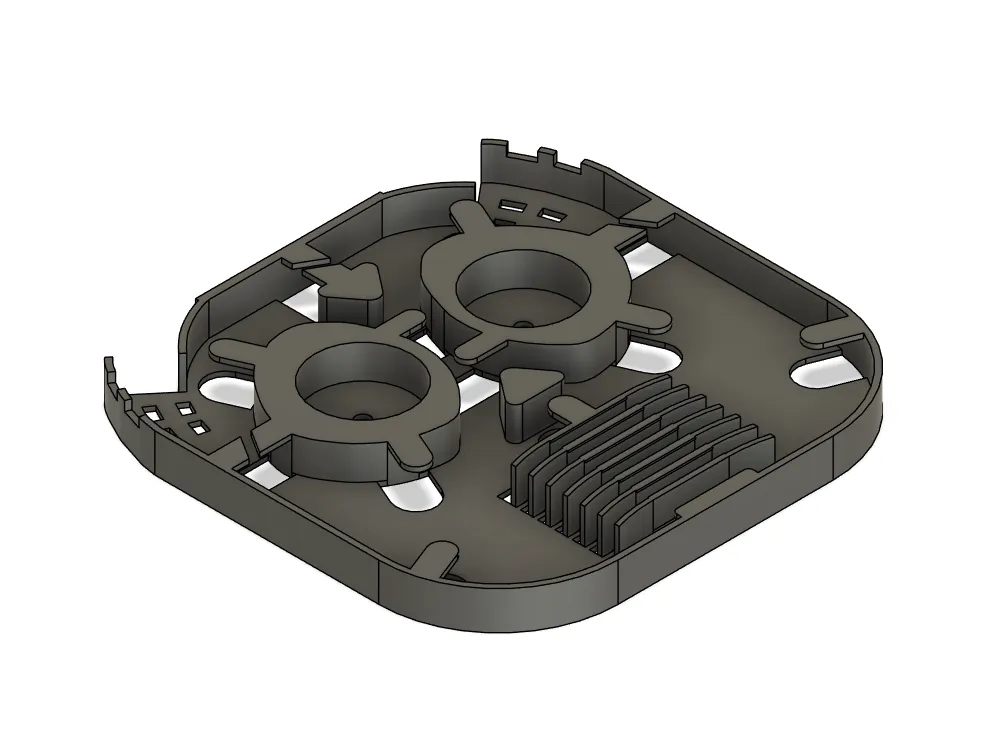

- Integrated splice holder “spring style”

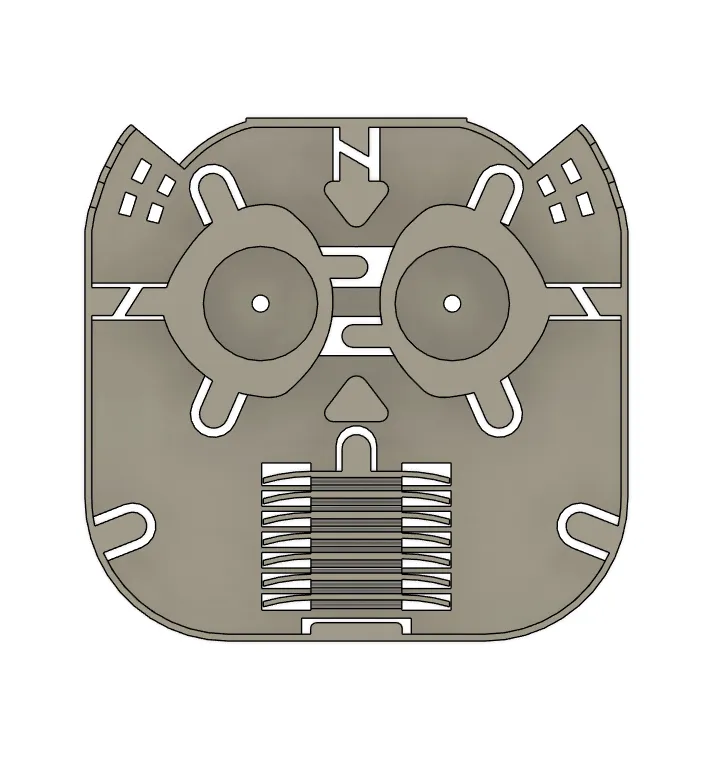

- Smooth fiber routing channels with controlled bend radius
- 2 × 3 mm center mounting holes for direct screw mounting
- Zip-tie cut-outs for cable strain relief
- Flat base suitable for adhesive mounting (silicone, double-sided tape, etc.)
- Designed for use in tight fiber patch panels, ODFs, and custom enclosures
- Enabled supports into the print profile
This model is ideal for network technicians, data center installations, and DIY fiber projects where a compact, printable splice management solution is needed.
