HT50 Extraction Gate Valve with Cleaning Function
Print Profile(1)
Description
Here is my version of a gate valve with a cleaning function.
HT50 pipes can be connected to the top and bottom of the gate valve.
With this design, dust can fall out or be cleaned.
Other gate valves were too cramped for me.
A few M3 screws, washers, and nuts are required for assembly.
I printed the part with PETG, PLA would probably also work.

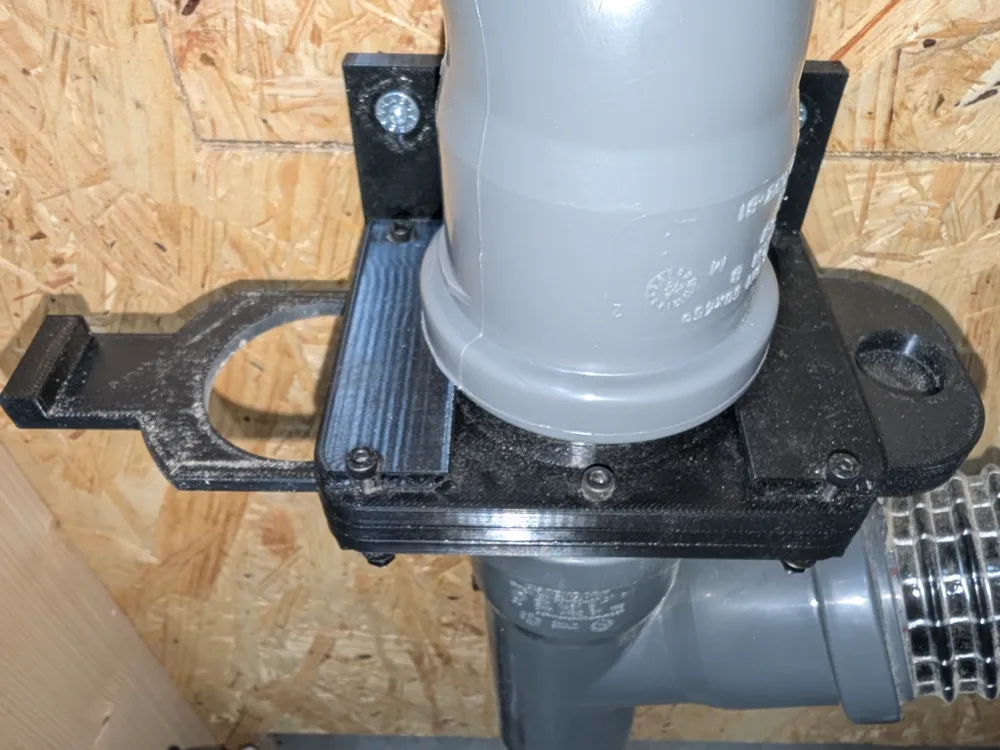

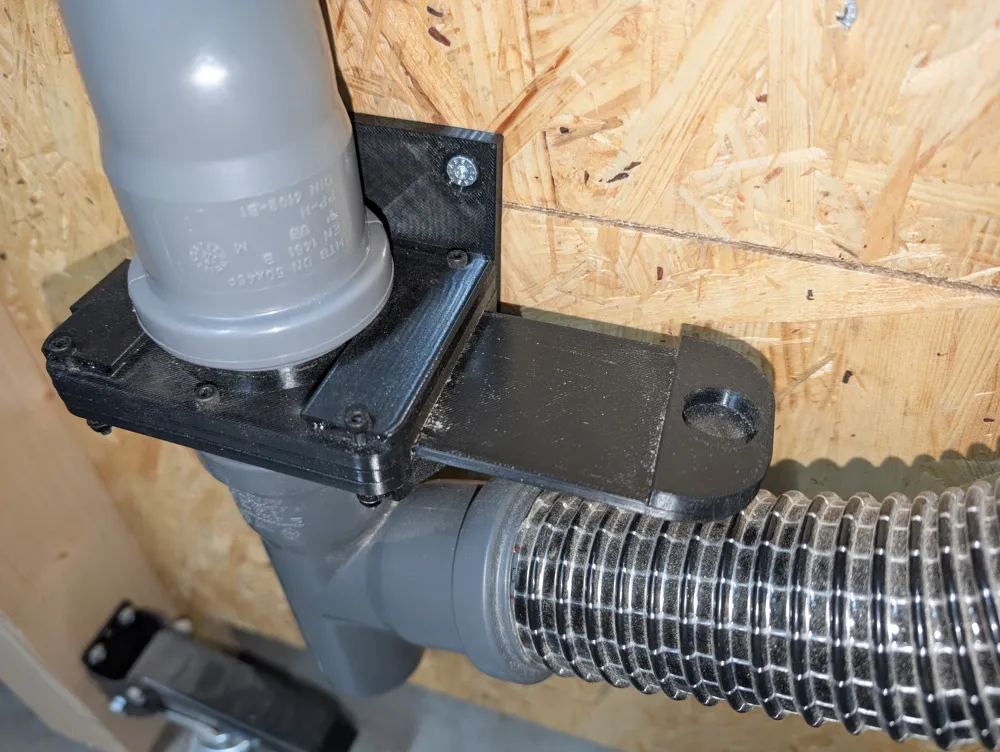

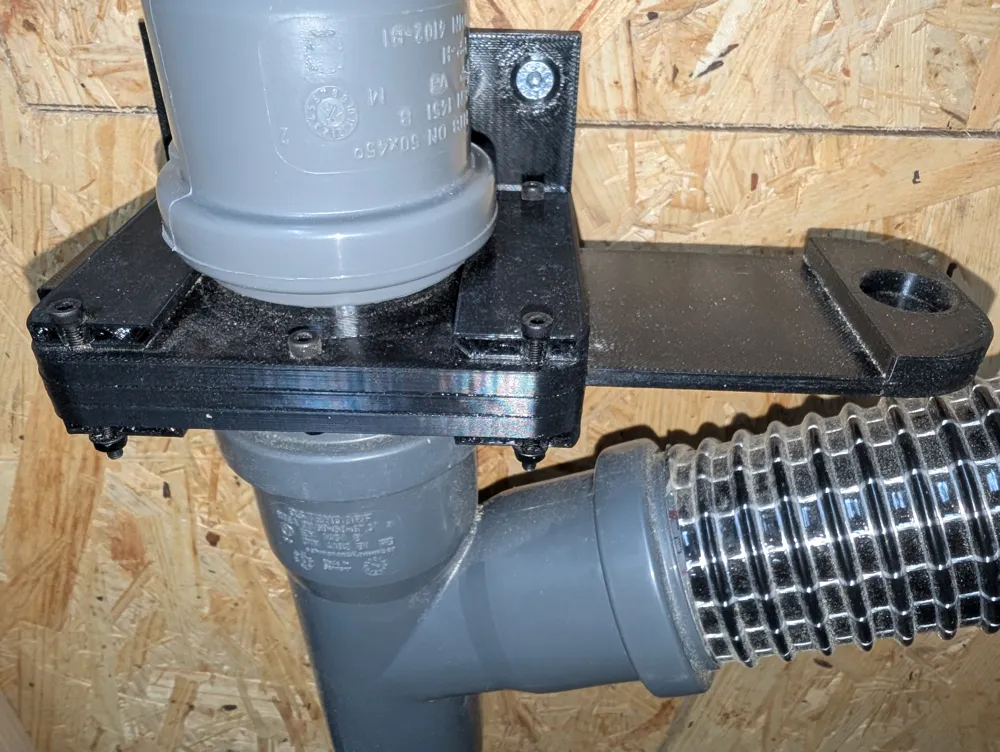

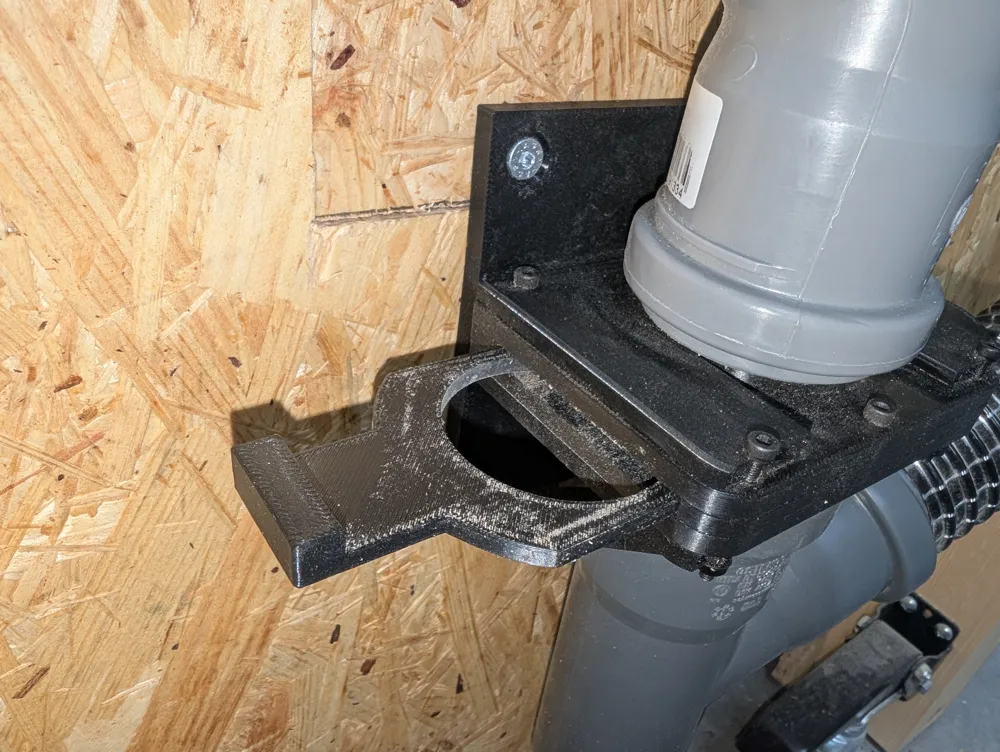

For assembly as shown in the photos, I have a separate bracket in my profile.
I am very grateful for comments, likes, and boosts.
If something doesn't fit, just leave a comment or send me a message.
