KabelHeld: Compact Phone Holder for the Socket

📱 Practical Phone Holder

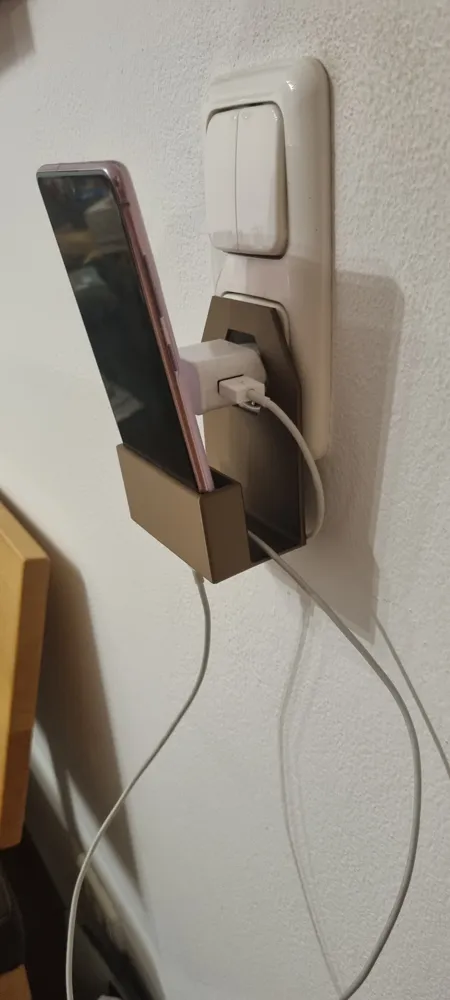

Bring order to your charging chaos! This compact phone holder simply clamps between the socket and the charger. It makes optimal use of the available space and keeps your smartphone safe and within reach while it charges.

Features:

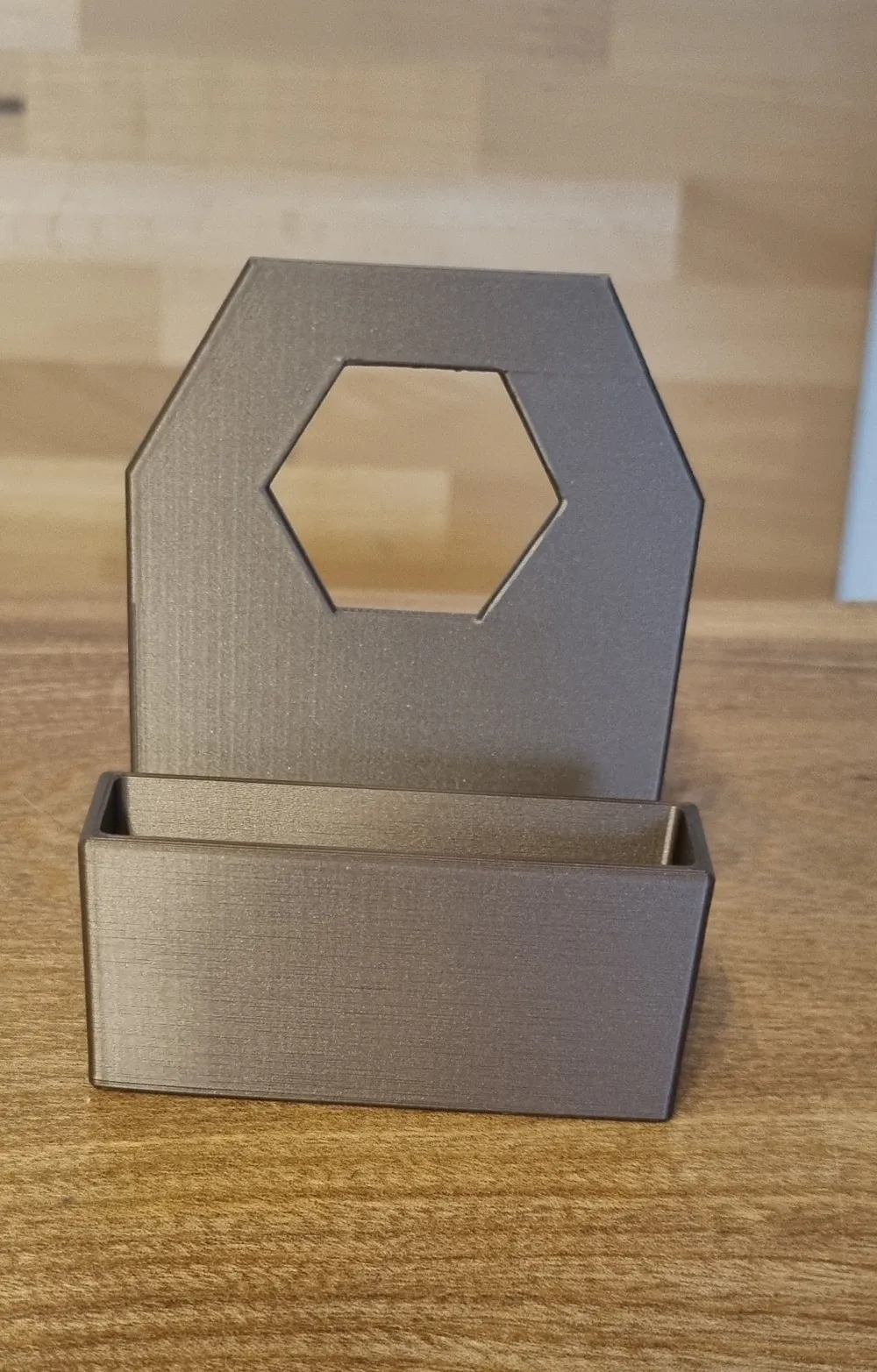

• Secure Stand: The front compartment is dimensioned so that common smartphones stand stably and upright.
• Integrated Cable Management: No more tangled cables! The excess charging cable can be neatly wrapped around the body.

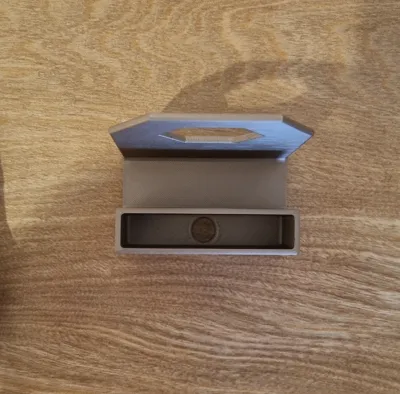

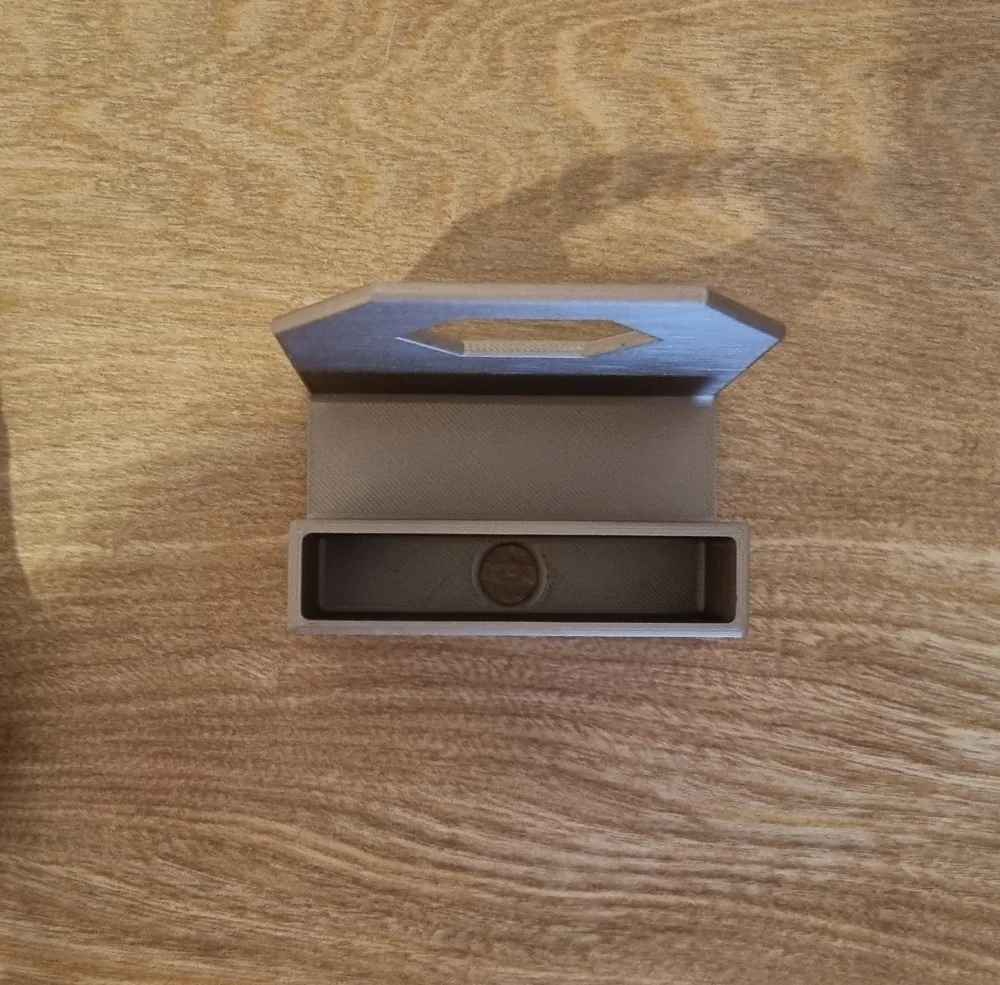

• Direct Routing: Through the opening in the bottom of the holder, the cable can be routed directly from below into the phone – for a tidy look.

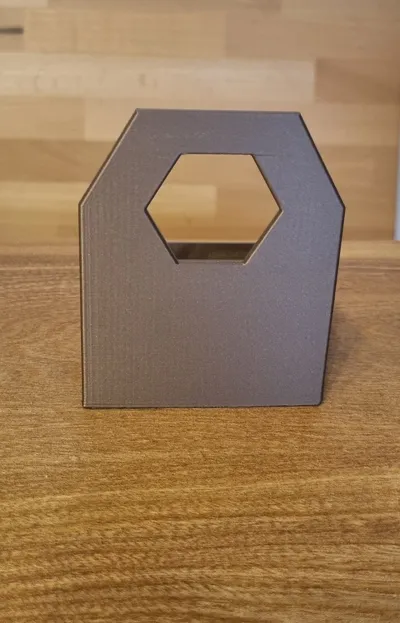

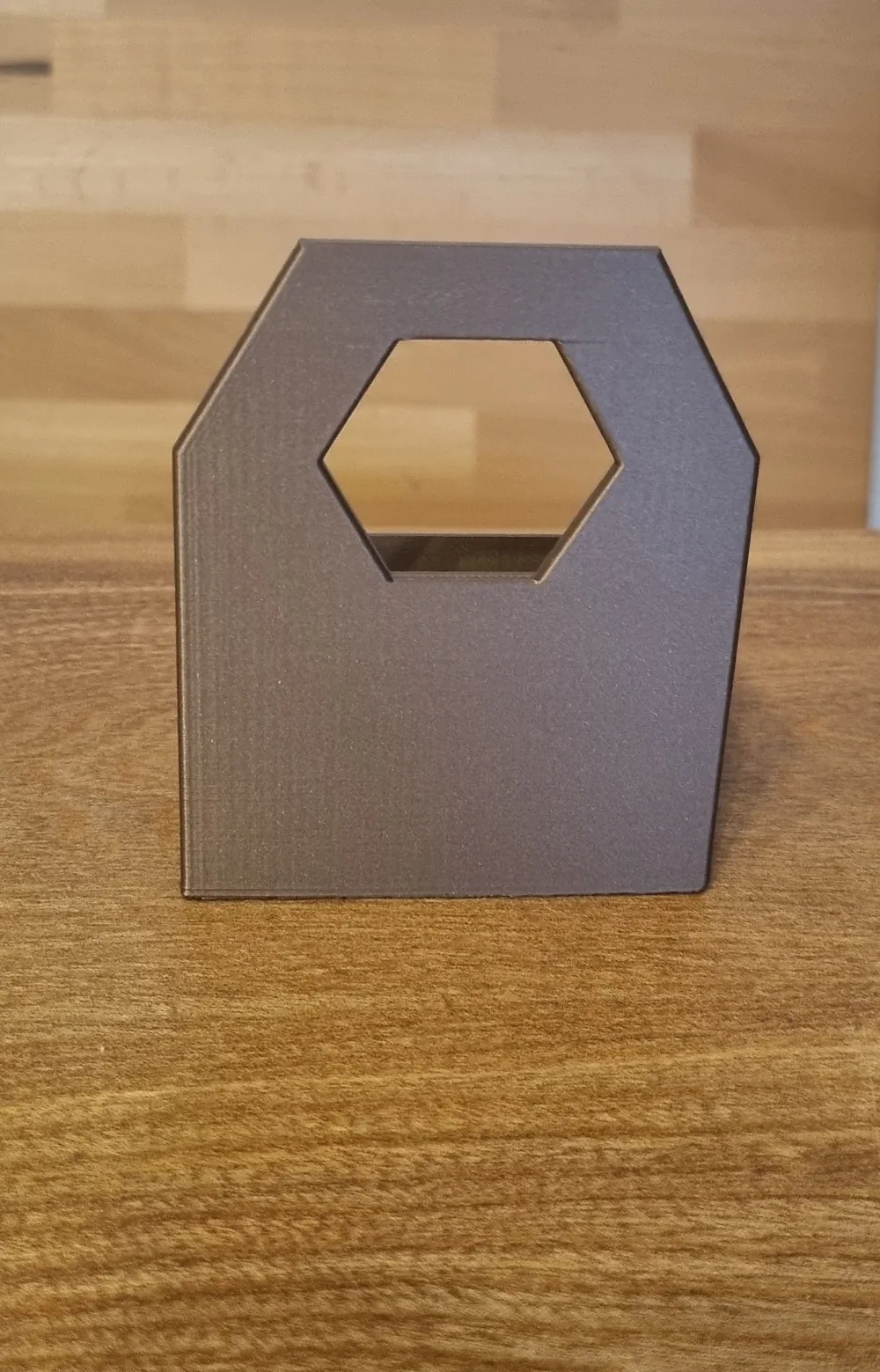

• Universal Design: The hexagonal recess is optimized for standard EU chargers.

Printing Settings (Printing Specs):

The model has been optimized for maximum stability with minimal material consumption.

• Material: PLA, PETG or ABS (PETG recommended for higher heat resistance near the power supply).
• Infill: 15-20% (Gyroid recommended).
• Walls: 3-4 wall loops for maximum stability on the holding arm.
• Support Structure (Supports): Only necessary in one spot! Use Support only for the charger recess (the hexagonal opening). The rest is "support-free" printable.

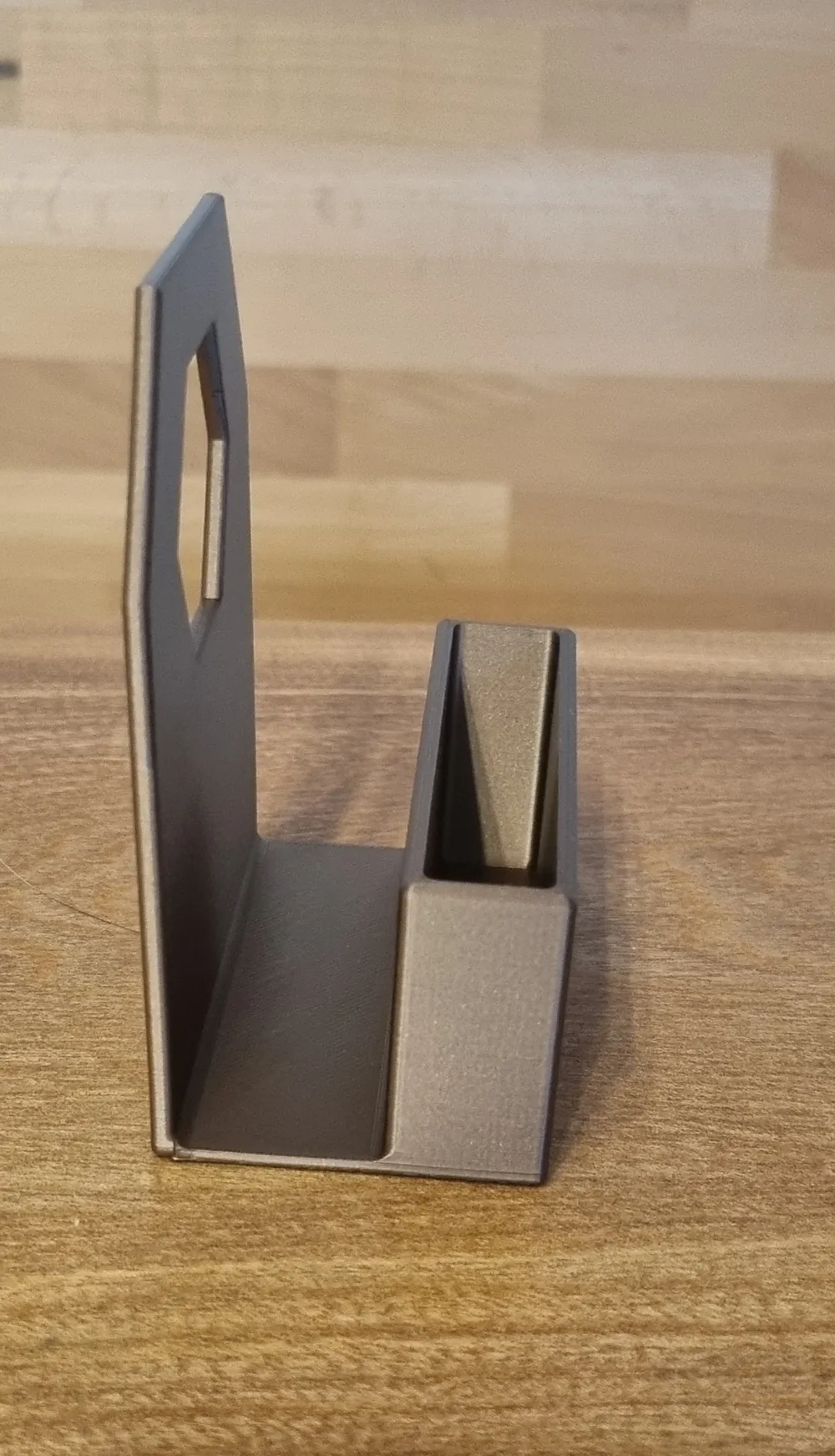

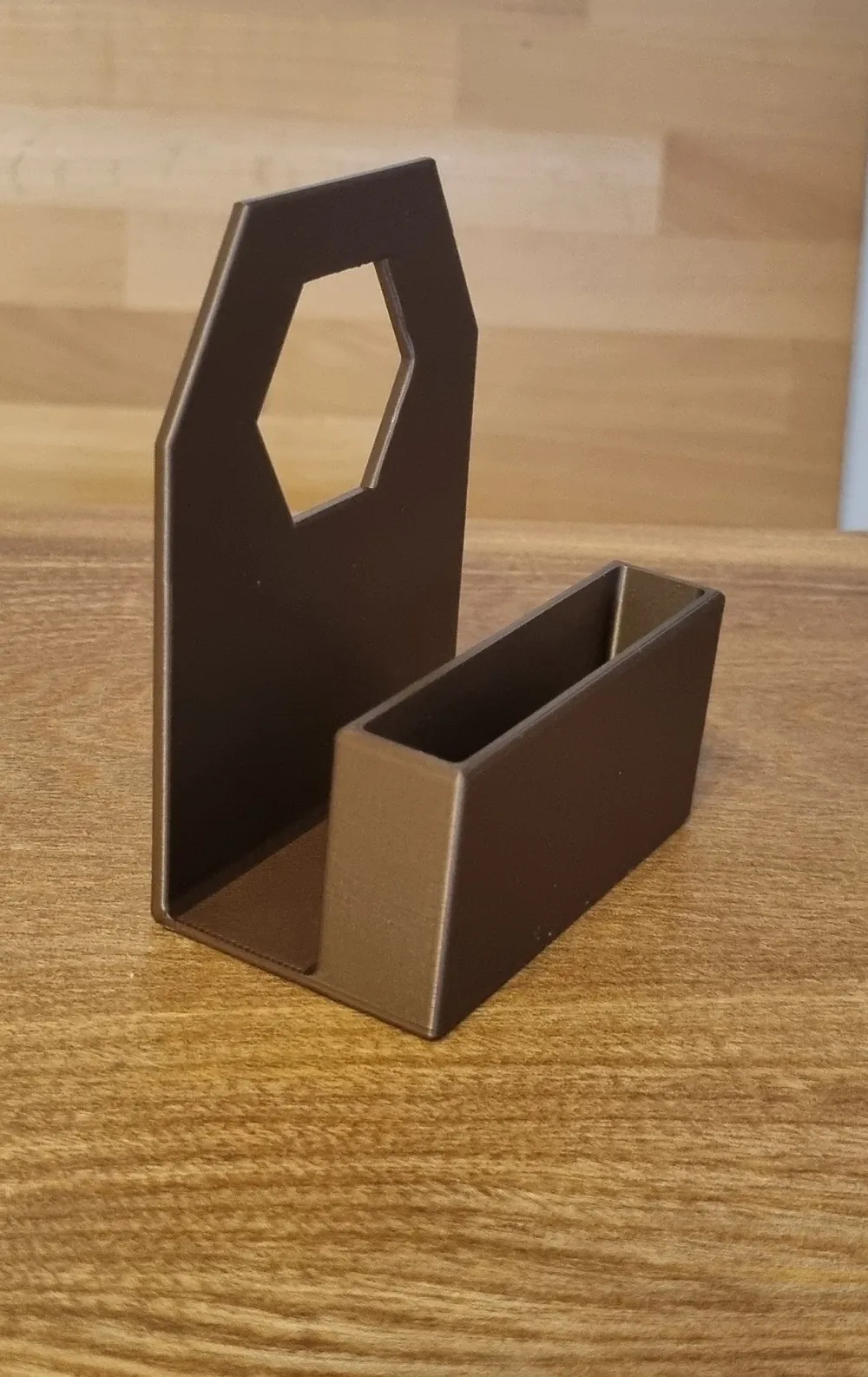

• Orientation: Print upright, as shown in the preview.

Instructions:

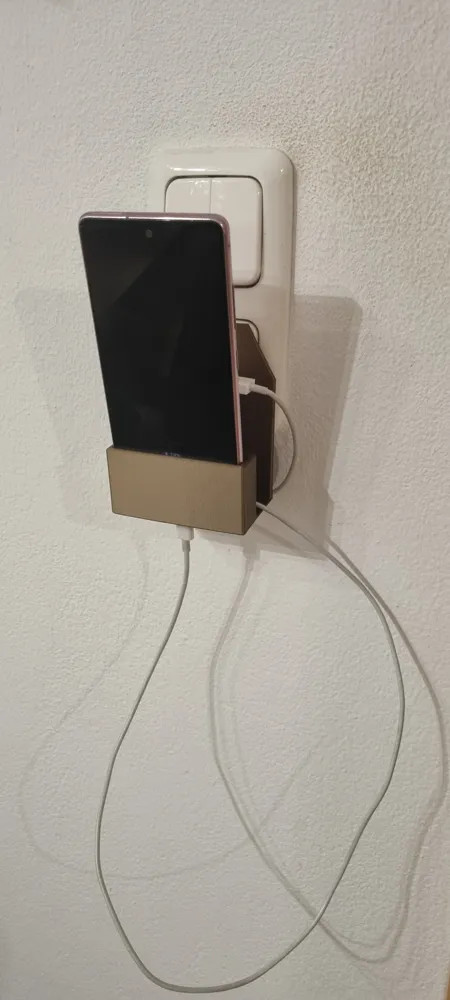

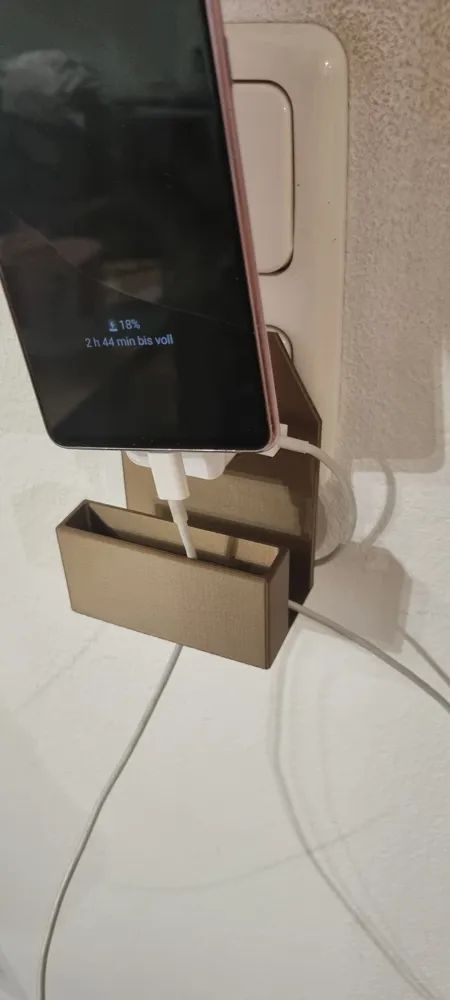

1. Hold the holder over the socket.

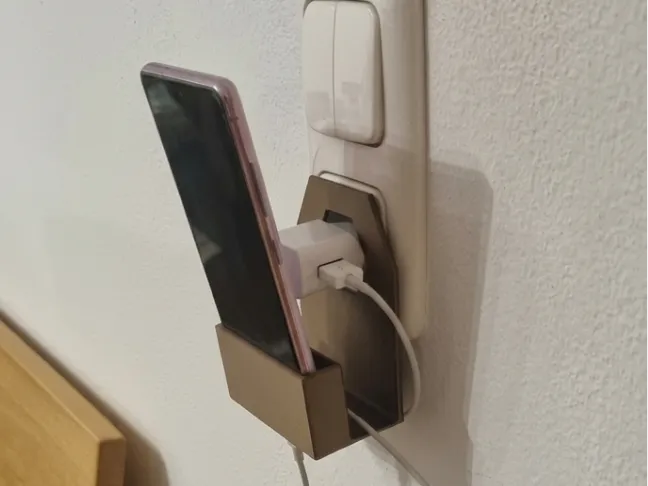

2. Plug the charger through the opening into the socket (the holder will now be fixed).
3. Wrap the charging cable around the holder.

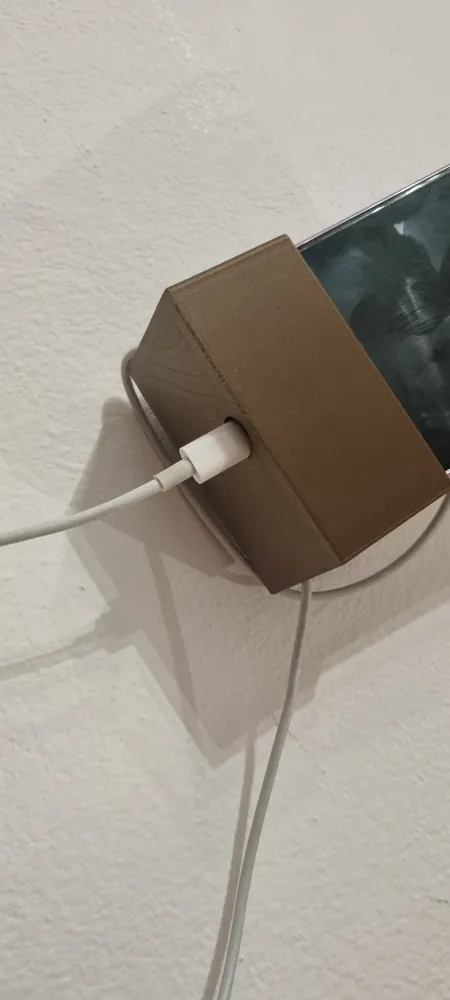

4. Thread the cable end through the bottom slot and plug it into the phone.
5. Done!

Happy printing! If you like the design, I'd appreciate a Like and a photo of your Make! 🚀
